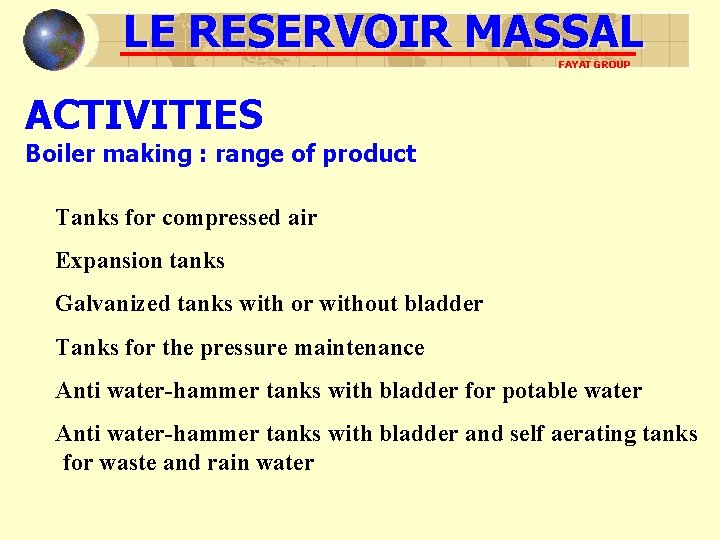

LE RESERVOIR MASSAL FAYAT GROUP ACTIVITIES Boiler making : range of product Tanks for compressed air Expansion tanks Galvanized tanks with or without bladder Tanks for the pressure maintenance Anti water-hammer tanks with bladder for potable water Anti water-hammer tanks with bladder and self aerating tanks for waste and rain water

LE RESERVOIR MASSAL COMPRESSED AIR FAYAT GROUP

LE RESERVOIR MASSAL GALVANISED TANK FAYAT GROUP

LE RESERVOIR MASSAL VAPOR TANK FAYAT GROUP

LE RESERVOIR MASSAL FAYAT GROUP ANTI WATER-HAMMER TANK

LE RESERVOIR MASSAL FAYAT GROUP MANUFACTURE ISO 9001 V 2000 Manufacture in conformity with the European Directive 97/23/CE Thickness calculation according to CODAP 2000 Capacity from 0 to 100000 L Pressure from 0 to 100 bar

MATERIALS Steel ALL MATERIALS used for the MANUFACTURE of the ENCLOSURES UNDER PRESSURE ARE IN CONFORMITY WITH EUROPEAN DIRECTIVE D. E. S. P. 97/23/CE Material used for the vessel: P 265 GH

LE RESERVOIR MASSAL FAYAT GROUP A TANK ASSEMBLY ROLLING OF A SHELL IN Ø 3000 AND 35 mm

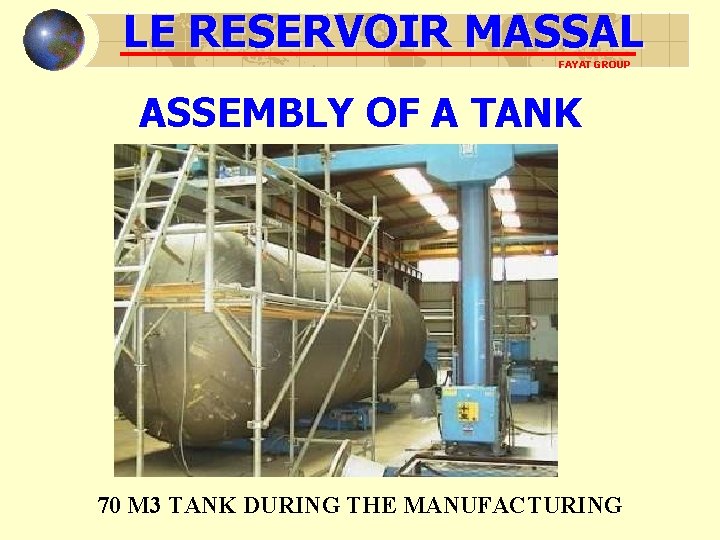

LE RESERVOIR MASSAL FAYAT GROUP ASSEMBLY OF A TANK 70 M 3 TANK DURING THE MANUFACTURING

LE RESERVOIR MASSAL HYDRAULIC TEST FAYAT GROUP

LE RESERVOIR MASSAL FAYAT GROUP MATERIALS BLADDERS FOR THE TANKS UNTIL 500 L : Bladder in EPDM FOR THE 750 L TANKS AND MORE : Bladder in polyurethane

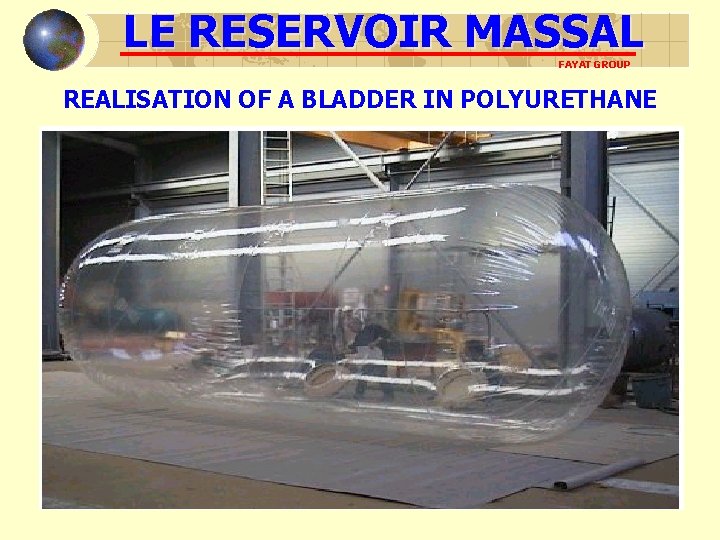

LE RESERVOIR MASSAL FAYAT GROUP REALISATION OF A BLADDER IN POLYURETHANE

LE RESERVOIR MASSAL FAYAT GROUP REALISATION OF A BLADDER IN POLYURETHANE

LE RESERVOIR MASSAL FAYAT GROUP ANTI-CORROSION PROTECTION - Hot galvanisation in option up to 4500 litres ( 1250) - Painting after sandblasting for all capacity Internal : Epoxy External : Epoxy Finishing lacquer

LE RESERVOIR MASSAL FAYAT GROUP

LE RESERVOIR MASSAL FAYAT GROUP EQUIPEMENTS Visual level Magnetic level Weight controller « Mas-Control »

LE RESERVOIR MASSAL VISUAL LEVEL FAYAT GROUP

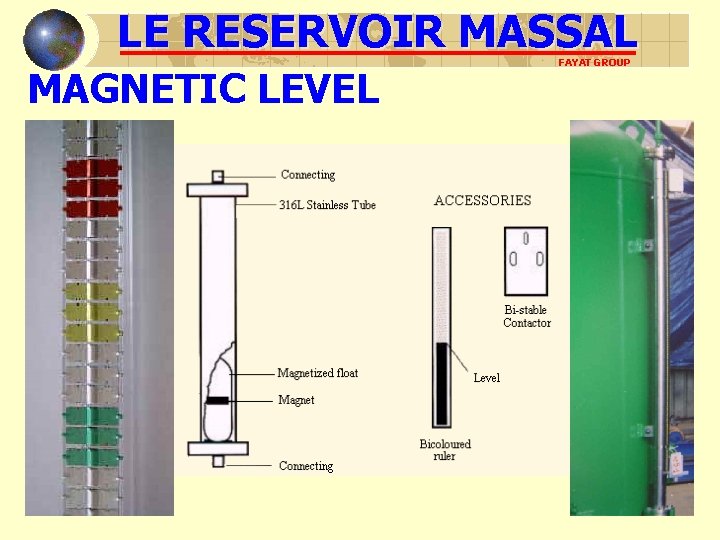

LE RESERVOIR MASSAL MAGNETIC LEVEL FAYAT GROUP

LE RESERVOIR MASSAL WEIGHT CONTROLLER FAYAT GROUP

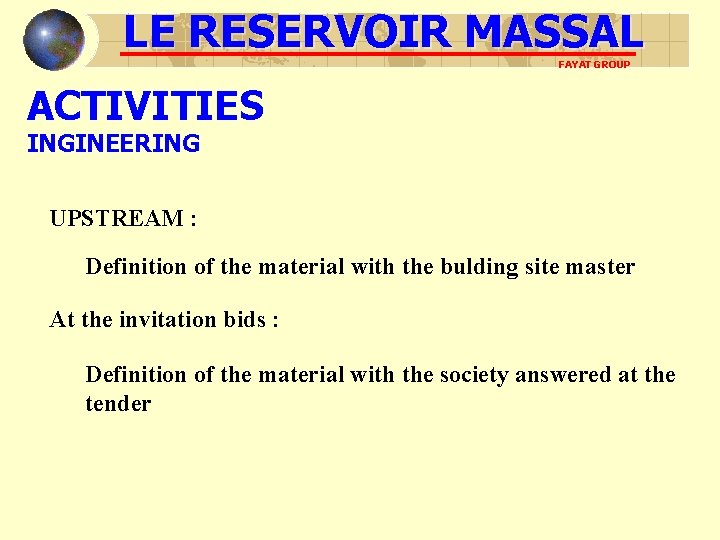

LE RESERVOIR MASSAL FAYAT GROUP ACTIVITIES INGINEERING UPSTREAM : Definition of the material with the bulding site master At the invitation bids : Definition of the material with the society answered at the tender

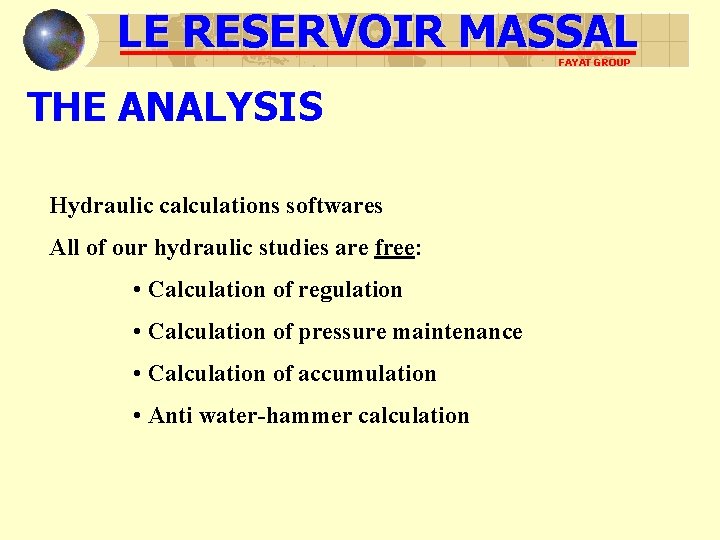

LE RESERVOIR MASSAL FAYAT GROUP THE ANALYSIS Hydraulic calculations softwares All of our hydraulic studies are free: • Calculation of regulation • Calculation of pressure maintenance • Calculation of accumulation • Anti water-hammer calculation

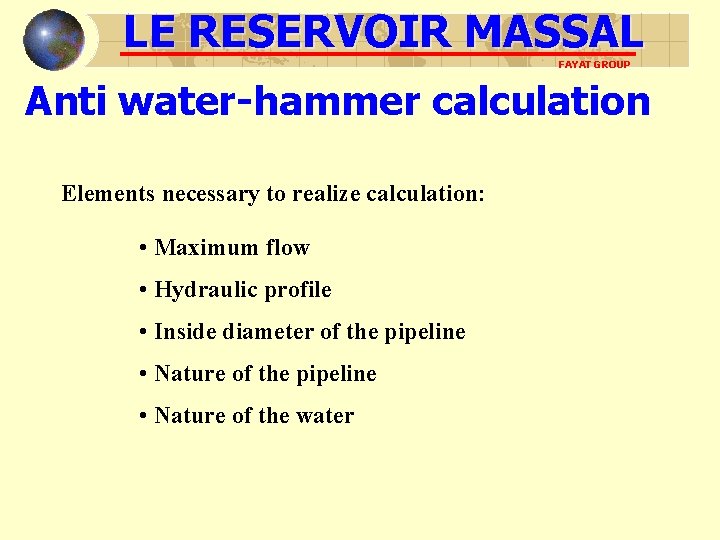

LE RESERVOIR MASSAL FAYAT GROUP Anti water-hammer calculation Elements necessary to realize calculation: • Maximum flow • Hydraulic profile • Inside diameter of the pipeline • Nature of the water

LE RESERVOIR MASSAL FAYAT GROUP CALCULATION OF REGULATION Elements necessary to realize calculation: • Pressure at the pump start • Flow at the pump start • Pressure at the pump stop • Flow at the pump stop • Number of acceptable time starting (according to the number of pumps, these data have to be communicated for each pump)

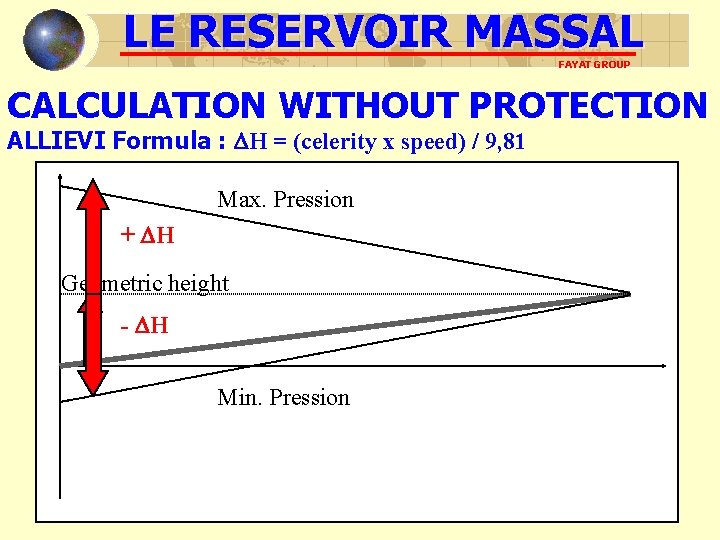

LE RESERVOIR MASSAL FAYAT GROUP CALCULATION WITHOUT PROTECTION ALLIEVI Formula : H = (celerity x speed) / 9, 81 Max. Pression + H Geometric height - H Min. Pression

LE RESERVOIR MASSAL FAYAT GROUP ARRIVAL AT THE PUMP CHECK VALVE ATMOSPHERIC PRESSURE ARRIVAL Normal functioning Pump Stop DEPRESSION PROPAGATION OF THE WAVE

LE RESERVOIR MASSAL FAYAT GROUP ATMOSPHERIC PRESSURE ARRIVAL SURPRESSION PROPAGATION OF THE WAVE

LE RESERVOIR MASSAL FAYAT GROUP Amortisation of the water-hammer PRESSURE IN FONCTIONING PRESSURE FALL PHASE PRESSURE GOING UP PHASE

LE RESERVOIR MASSAL FAYAT GROUP SOME REALISATIONS San Lorenzo Station (Salvador) 2 x 25 m 3 in 25 bar

LE RESERVOIR MASSAL FAYAT GROUP REALISATION Pumping station in Abu Dhabi (UAE)

LE RESERVOIR MASSAL FAYAT GROUP REALISATION Pumping station in Freyming (France) 1 x 6000 L ; 2 x 500 L ; 1 x 2000 L

LE RESERVOIR MASSAL FAYAT GROUP REALISATION 80 m 3 tanks in 10 bar (Egypt)

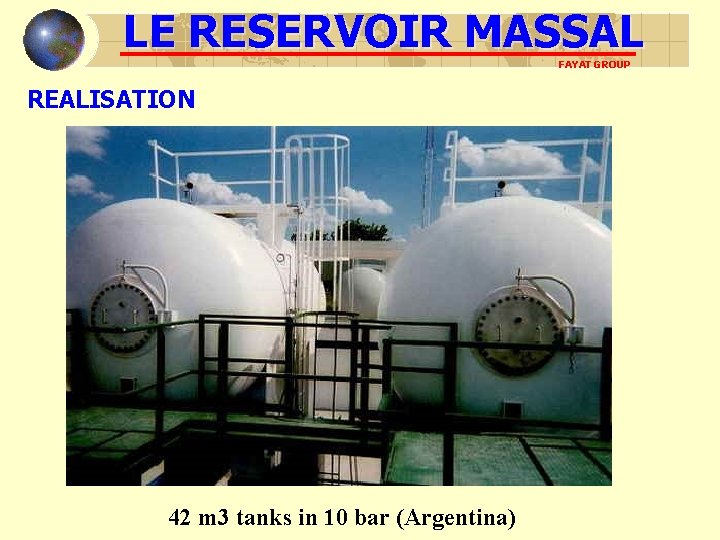

LE RESERVOIR MASSAL FAYAT GROUP REALISATION 42 m 3 tanks in 10 bar (Argentina)

LE RESERVOIR MASSAL FAYAT GROUP REALISATION Capelle station (France) 2 x 5000 L 1 x 1000 L

LE RESERVOIR MASSAL FAYAT GROUP CONCLUSION • LE RESERVOIR MASSAL is especially a partner • Free studies from the begining of the project • Rapidity of response to a consultant • The best studied price • Service submitted to a self-control at each station • After sale service realized on line
