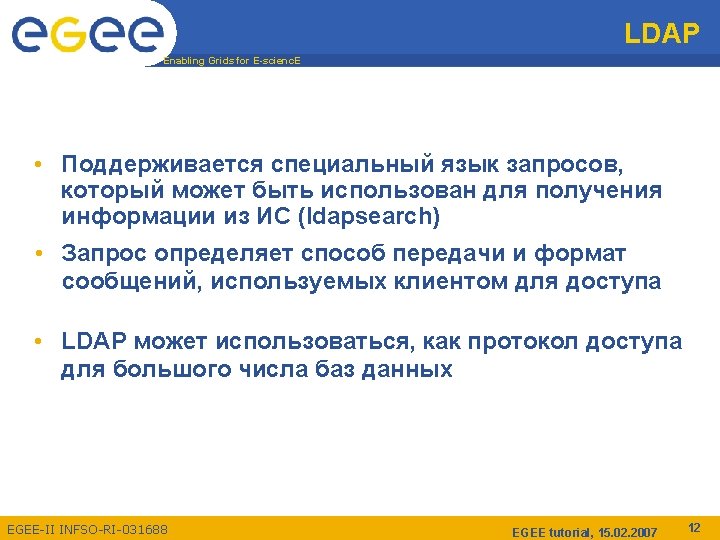

LDAP Enabling Grids for Escienc E o grid
Структура данных LDAP Enabling Grids for E-scienc. E o = grid (корень DIT) ► Lightweight Directory Access Protocol: древовидная структура данных ►DIT (Directory Information Tree) c= US c=Switzerland c=Spain ►Путь от узла к корню DIT определяет встроенное уникальное имя ( DN): st = Geneva “id=pml, ou=IT, or=CERN, st=Geneva, c=Switzerland, o=grid” or = CERN ou = IT object. Class: person cn: Patricia M. L. phone: 5555666 office: 28 -r 019 EGEE-II INFSO-RI-031688 ou = EP id = pml id=gv EGEE tutorial, 15. 02. 2007 id=fd 7
Примеры GLUE Schema (II) Enabling Grids for E-scienc. E Атрибуты для SE ¤ Базовый класс (objectclass: Glue. SETop) : нет атрибутов ¤ Aрхитектура (objectclass: Glue. SLArchitecture) – Glue. SLArchitecture. Type: тип оборудования (диск, ленты, …. ) ¤ Протокол доступа (objectclass: Glue. SEAccess. Protocol) – Glue. SEAccess. Protocol. Type: тип протокола доступа или передачи файлов – Glue. SEAccess. Protocol. Port: номер порта – Glue. SEAccess. Protocol. Version: версия протокола – Glue. SEAccess. Protocol. Access. Time: время доступа к файлу по этому протоколуl EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 10
Примеры GLUE Schema (III) Enabling Grids for E-scienc. E Смешанные атрибуты ¤ Связь между CE и одним или более SE (objectclass: Glue. CESEBind. Group) – Glue. CESEBind. Group. CEUnique. ID: уникальный ID для CE – Glue. CESEBind. Group. SEUnique. ID: уникальный ID для SE EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 11

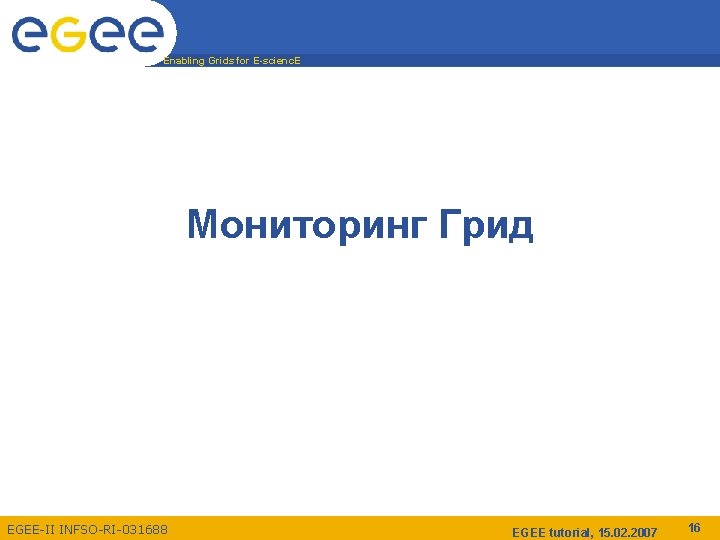

Enabling Grids for E-scienc. E Мониторинг Грид EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 16

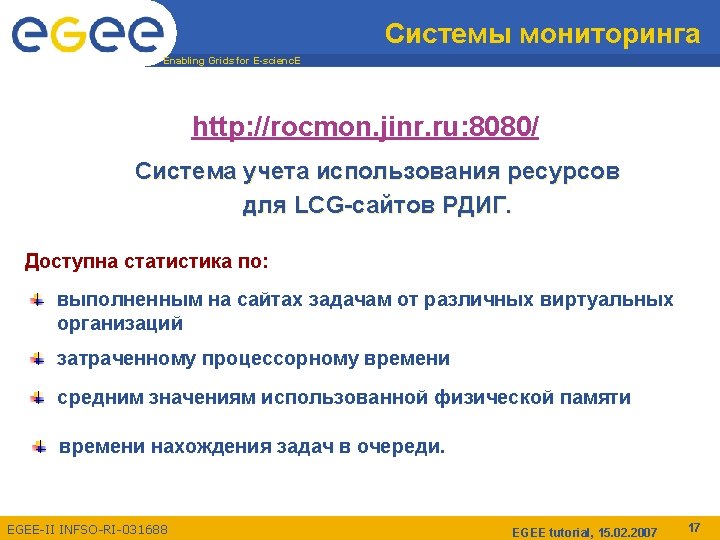

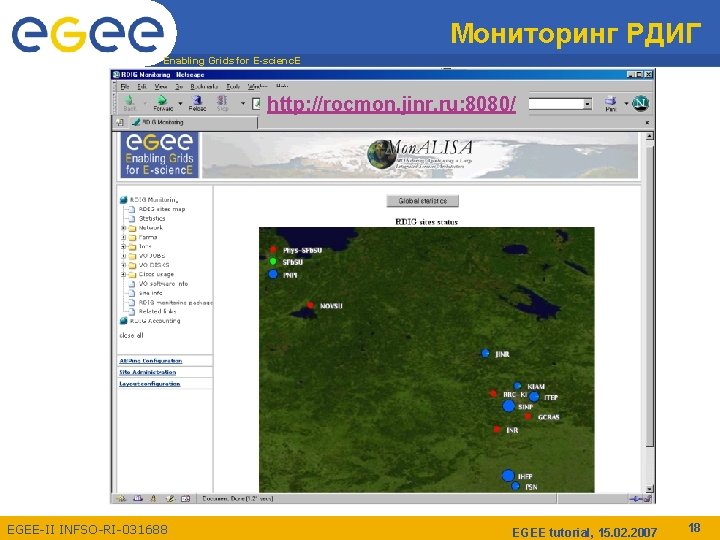

Мониторинг РДИГ Enabling Grids for E-scienc. E http: //rocmon. jinr. ru: 8080/ EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 18

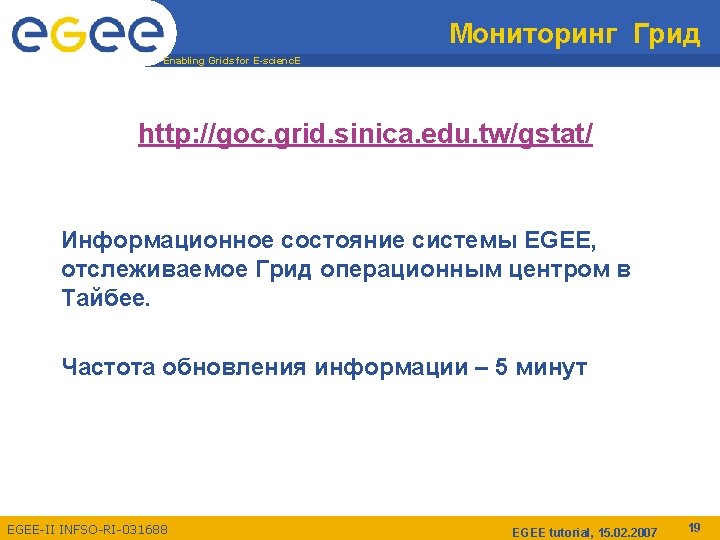

Грид операционный центр Enabling Grids for E-scienc. E http: //goc. grid. sinica. edu. tw/gst at/ EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 20

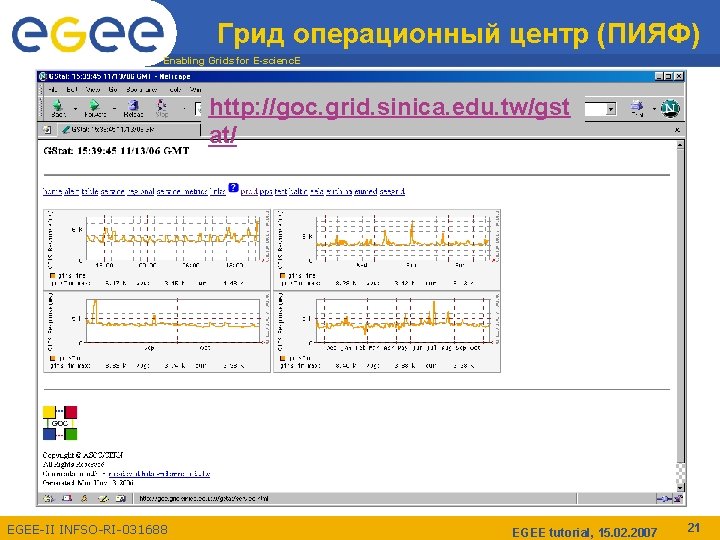

Грид операционный центр (ПИЯФ) Enabling Grids for E-scienc. E http: //goc. grid. sinica. edu. tw/gst at/ EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 21
Мониторинг Грид Enabling Grids for E-scienc. E http: //gridportal. hep. ph. ic. ac. uk/rtm/applet. html Java апплет, отображающий real-time прохождение задач в LCG EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 22

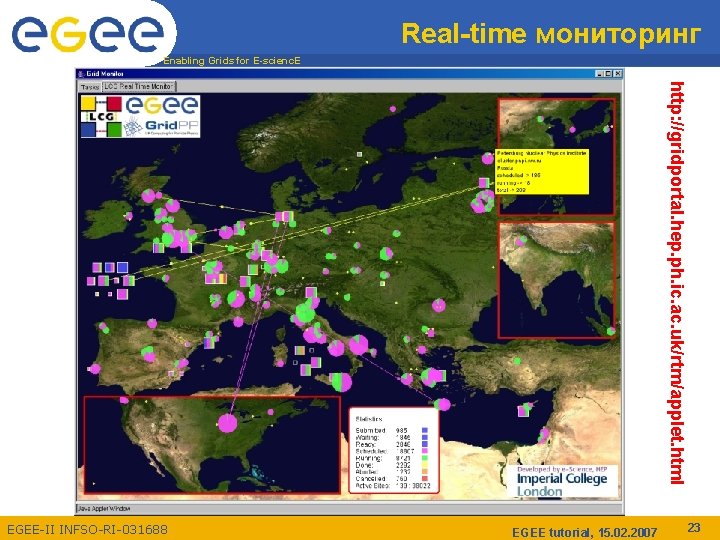

Real-time мониторинг Enabling Grids for E-scienc. E http: //gridportal. hep. ph. ic. ac. uk/rtm/applet. html EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 23
Мониторинг Грид Enabling Grids for E-scienc. E http: //goc 02. gridsupport. ac. uk/googlemaps/lcg. html Результаты прохождения ежедневных SFT тестов из Операционного Центра в ЦЕРН. EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 24

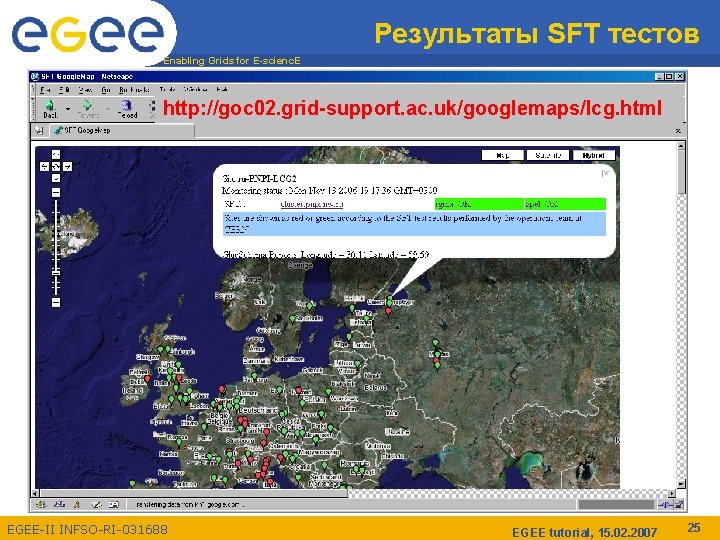

Результаты SFT тестов Enabling Grids for E-scienc. E http: //goc 02. grid-support. ac. uk/googlemaps/lcg. html EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 25

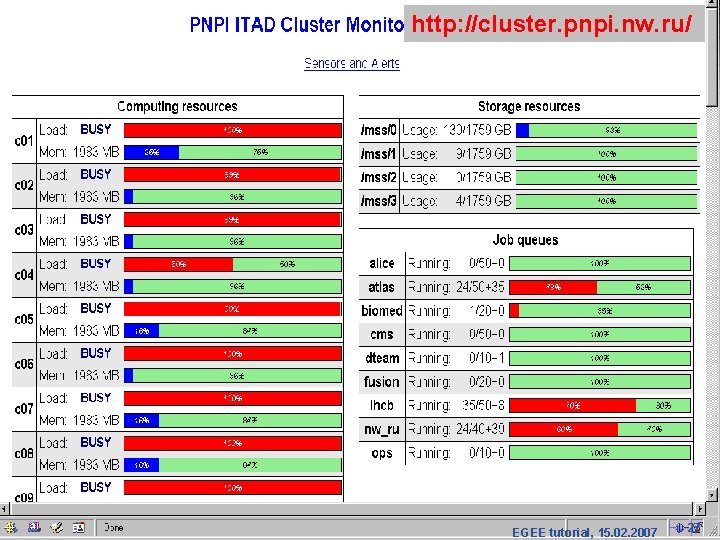

Мониторинг Грид Enabling Grids for E-scienc. E http: //cluster. pnpi. nw. ru/ Мониторинг загрузки кластера ПИЯФ EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 26
http: //cluster. pnpi. nw. ru/ Enabling Grids for E-scienc. E EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 27
Enabling Grids for E-scienc. E Спасибо за внимание EGEE-II INFSO-RI-031688 EGEE tutorial, 15. 02. 2007 28
