LDAP as a replacement for NIS Wolfgang Friebel

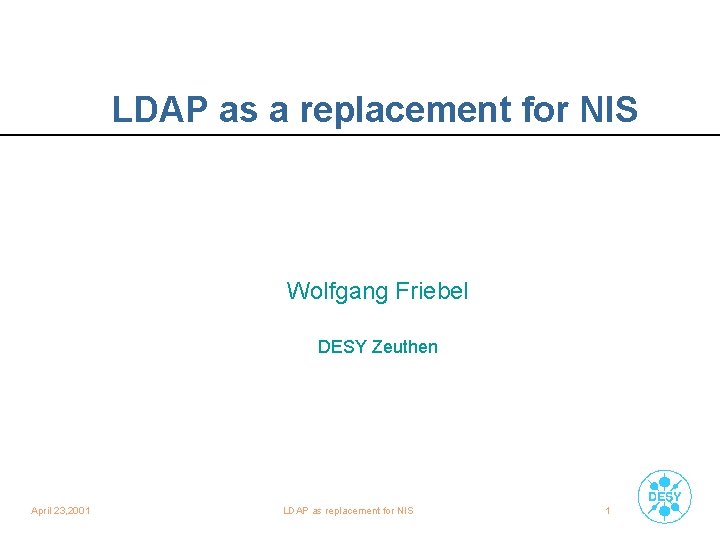

LDAP as a replacement for NIS Wolfgang Friebel DESY Zeuthen April 23, 2001 LDAP as replacement for NIS 1

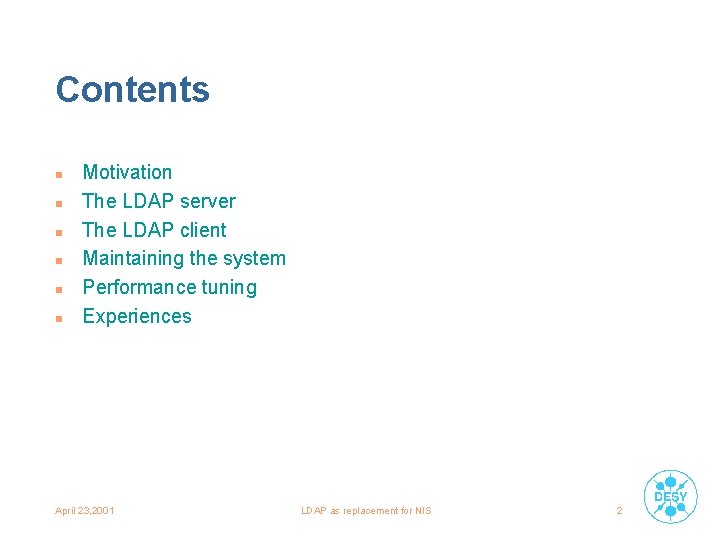

Contents n n n Motivation The LDAP server The LDAP client Maintaining the system Performance tuning Experiences April 23, 2001 LDAP as replacement for NIS 2

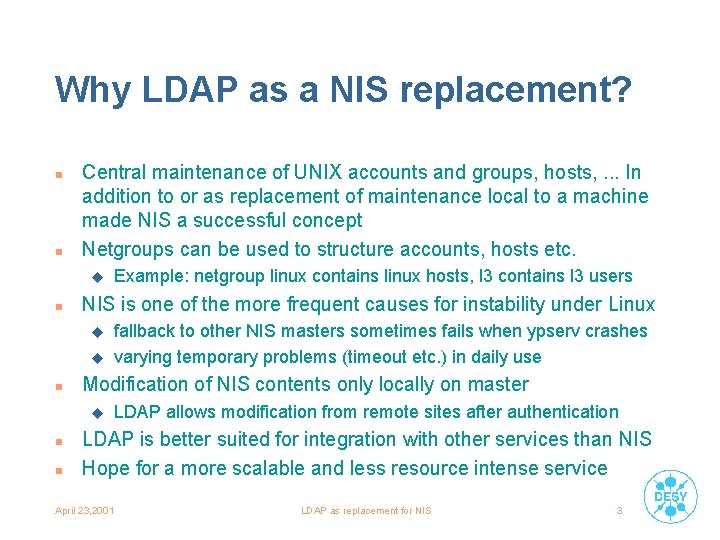

Why LDAP as a NIS replacement? n n Central maintenance of UNIX accounts and groups, hosts, . . . In addition to or as replacement of maintenance local to a machine made NIS a successful concept Netgroups can be used to structure accounts, hosts etc. u n NIS is one of the more frequent causes for instability under Linux u u n n fallback to other NIS masters sometimes fails when ypserv crashes varying temporary problems (timeout etc. ) in daily use Modification of NIS contents only locally on master u n Example: netgroup linux contains linux hosts, l 3 contains l 3 users LDAP allows modification from remote sites after authentication LDAP is better suited for integration with other services than NIS Hope for a more scalable and less resource intense service April 23, 2001 LDAP as replacement for NIS 3

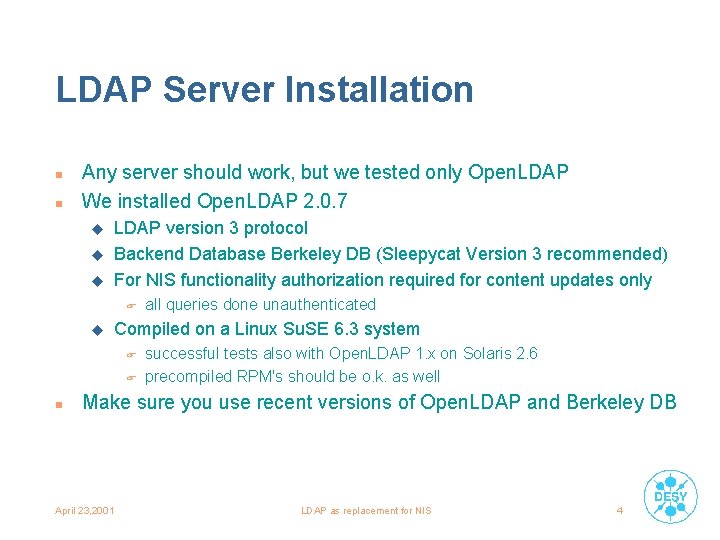

LDAP Server Installation n n Any server should work, but we tested only Open. LDAP We installed Open. LDAP 2. 0. 7 u u u LDAP version 3 protocol Backend Database Berkeley DB (Sleepycat Version 3 recommended) For NIS functionality authorization required for content updates only F u Compiled on a Linux Su. SE 6. 3 system F F n all queries done unauthenticated successful tests also with Open. LDAP 1. x on Solaris 2. 6 precompiled RPM's should be o. k. as well Make sure you use recent versions of Open. LDAP and Berkeley DB April 23, 2001 LDAP as replacement for NIS 4

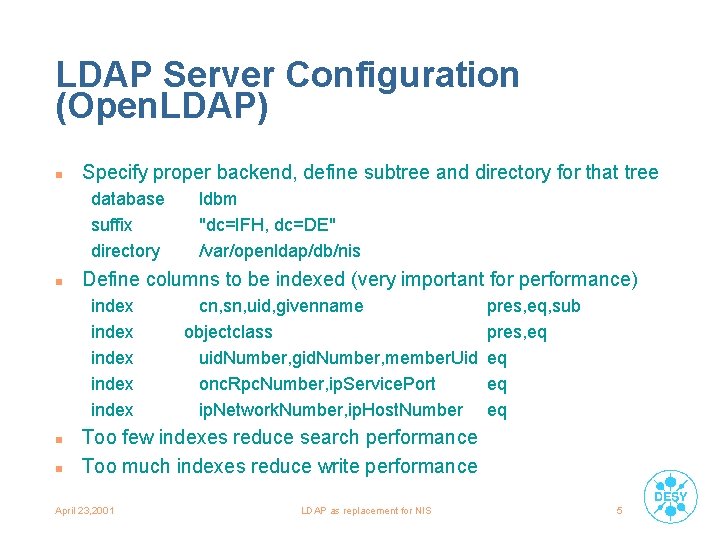

LDAP Server Configuration (Open. LDAP) n Specify proper backend, define subtree and directory for that tree database suffix directory n Define columns to be indexed (very important for performance) index index n n ldbm "dc=IFH, dc=DE" /var/openldap/db/nis cn, sn, uid, givenname objectclass uid. Number, gid. Number, member. Uid onc. Rpc. Number, ip. Service. Port ip. Network. Number, ip. Host. Number pres, eq, sub pres, eq eq Too few indexes reduce search performance Too much indexes reduce write performance April 23, 2001 LDAP as replacement for NIS 5

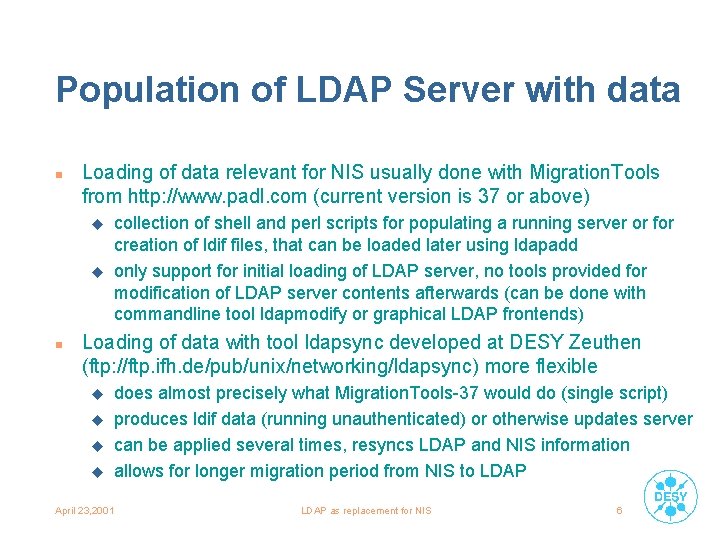

Population of LDAP Server with data n Loading of data relevant for NIS usually done with Migration. Tools from http: //www. padl. com (current version is 37 or above) u u n collection of shell and perl scripts for populating a running server or for creation of ldif files, that can be loaded later using ldapadd only support for initial loading of LDAP server, no tools provided for modification of LDAP server contents afterwards (can be done with commandline tool ldapmodify or graphical LDAP frontends) Loading of data with tool ldapsync developed at DESY Zeuthen (ftp: //ftp. ifh. de/pub/unix/networking/ldapsync) more flexible u u does almost precisely what Migration. Tools-37 would do (single script) produces ldif data (running unauthenticated) or otherwise updates server can be applied several times, resyncs LDAP and NIS information allows for longer migration period from NIS to LDAP April 23, 2001 LDAP as replacement for NIS 6

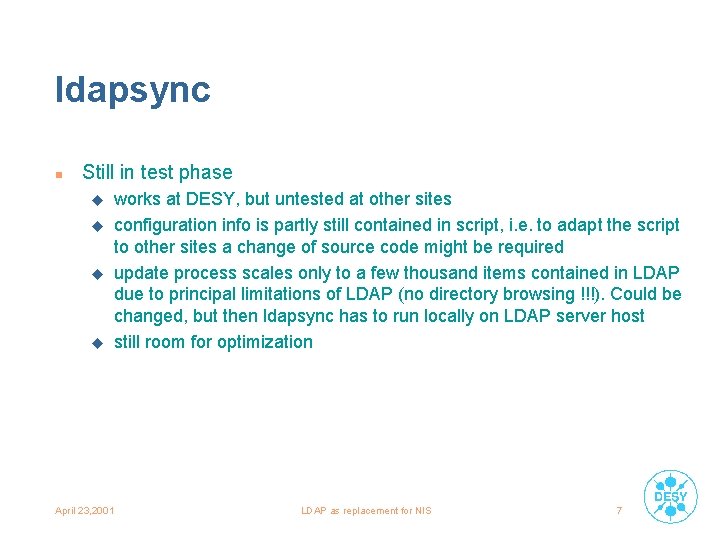

ldapsync n Still in test phase u u works at DESY, but untested at other sites configuration info is partly still contained in script, i. e. to adapt the script to other sites a change of source code might be required update process scales only to a few thousand items contained in LDAP due to principal limitations of LDAP (no directory browsing !!!). Could be changed, but then ldapsync has to run locally on LDAP server host still room for optimization April 23, 2001 LDAP as replacement for NIS 7

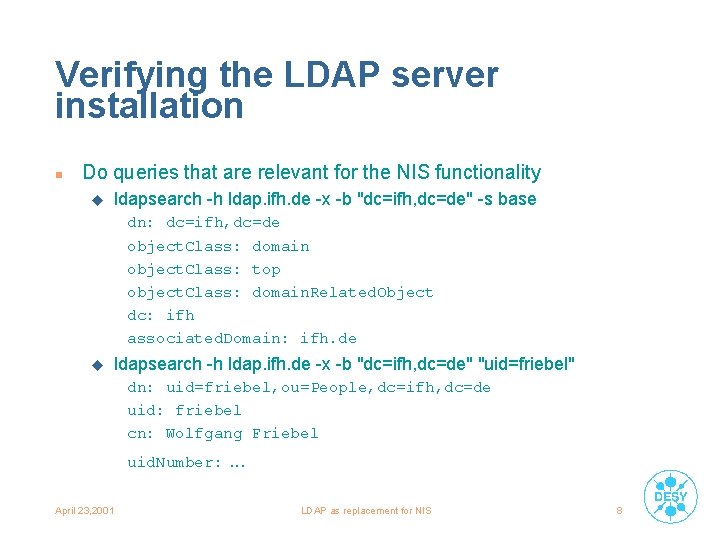

Verifying the LDAP server installation n Do queries that are relevant for the NIS functionality u ldapsearch -h ldap. ifh. de -x -b "dc=ifh, dc=de" -s base dn: dc=ifh, dc=de object. Class: domain object. Class: top object. Class: domain. Related. Object dc: ifh associated. Domain: ifh. de u ldapsearch -h ldap. ifh. de -x -b "dc=ifh, dc=de" "uid=friebel" dn: uid=friebel, ou=People, dc=ifh, dc=de uid: friebel cn: Wolfgang Friebel uid. Number: April 23, 2001 . . . LDAP as replacement for NIS 8

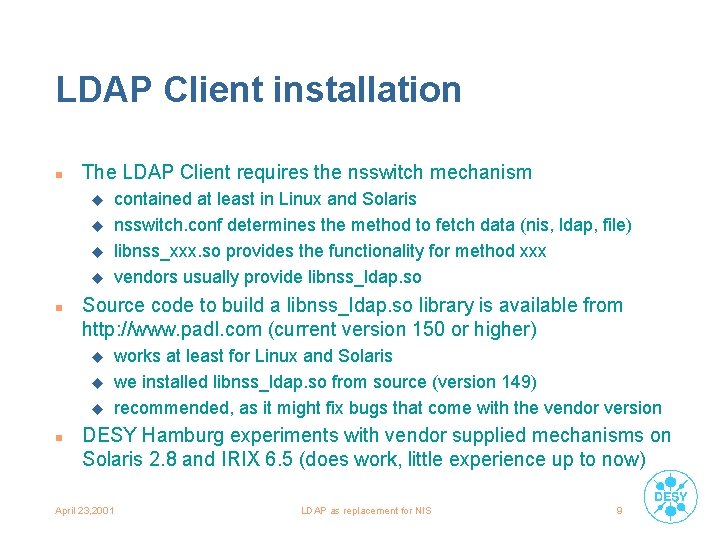

LDAP Client installation n The LDAP Client requires the nsswitch mechanism u u n Source code to build a libnss_ldap. so library is available from http: //www. padl. com (current version 150 or higher) u u u n contained at least in Linux and Solaris nsswitch. conf determines the method to fetch data (nis, ldap, file) libnss_xxx. so provides the functionality for method xxx vendors usually provide libnss_ldap. so works at least for Linux and Solaris we installed libnss_ldap. so from source (version 149) recommended, as it might fix bugs that come with the vendor version DESY Hamburg experiments with vendor supplied mechanisms on Solaris 2. 8 and IRIX 6. 5 (does work, little experience up to now) April 23, 2001 LDAP as replacement for NIS 9

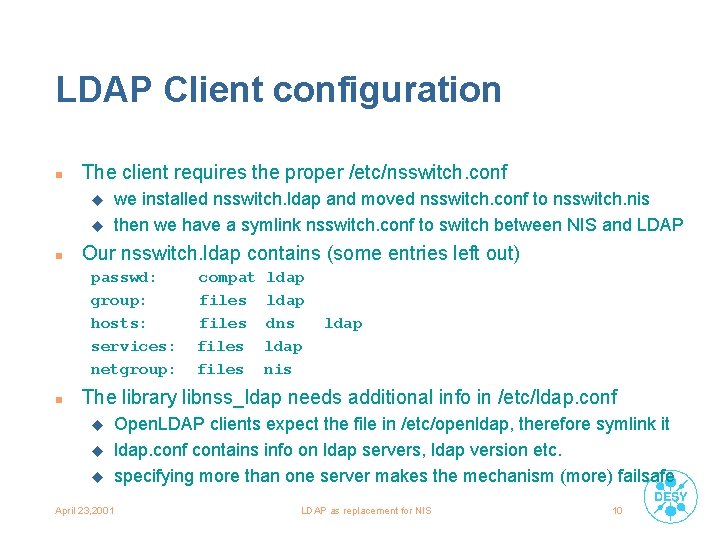

LDAP Client configuration n The client requires the proper /etc/nsswitch. conf u u n we installed nsswitch. ldap and moved nsswitch. conf to nsswitch. nis then we have a symlink nsswitch. conf to switch between NIS and LDAP Our nsswitch. ldap contains (some entries left out) passwd: group: hosts: services: netgroup: n compat files ldap dns ldap nis ldap The library libnss_ldap needs additional info in /etc/ldap. conf u u u Open. LDAP clients expect the file in /etc/openldap, therefore symlink it ldap. conf contains info on ldap servers, ldap version etc. specifying more than one server makes the mechanism (more) failsafe April 23, 2001 LDAP as replacement for NIS 10

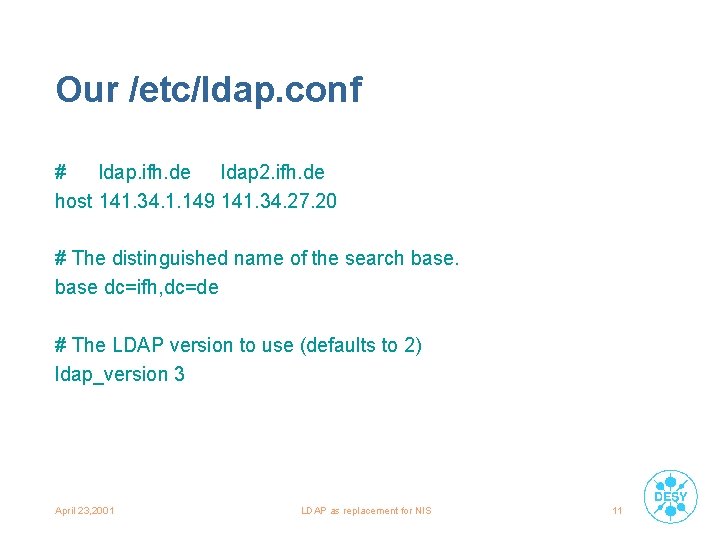

Our /etc/ldap. conf # ldap. ifh. de ldap 2. ifh. de host 141. 34. 1. 149 141. 34. 27. 20 # The distinguished name of the search base dc=ifh, dc=de # The LDAP version to use (defaults to 2) ldap_version 3 April 23, 2001 LDAP as replacement for NIS 11

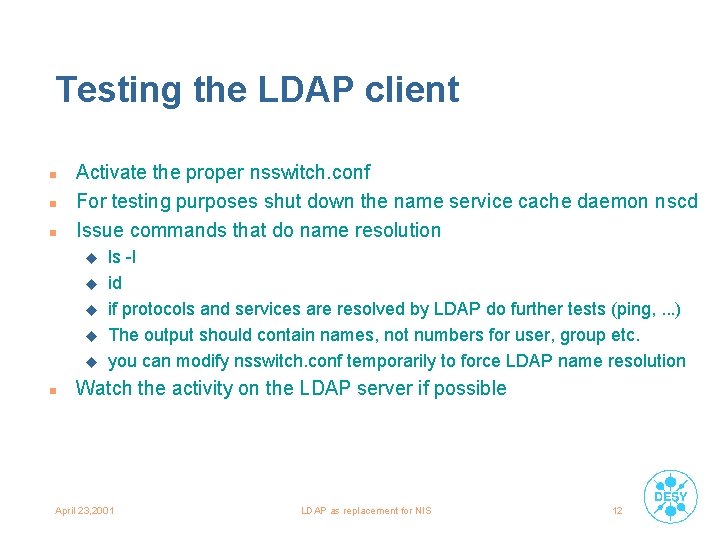

Testing the LDAP client n n n Activate the proper nsswitch. conf For testing purposes shut down the name service cache daemon nscd Issue commands that do name resolution u u u n ls -l id if protocols and services are resolved by LDAP do further tests (ping, . . . ) The output should contain names, not numbers for user, group etc. you can modify nsswitch. conf temporarily to force LDAP name resolution Watch the activity on the LDAP server if possible April 23, 2001 LDAP as replacement for NIS 12

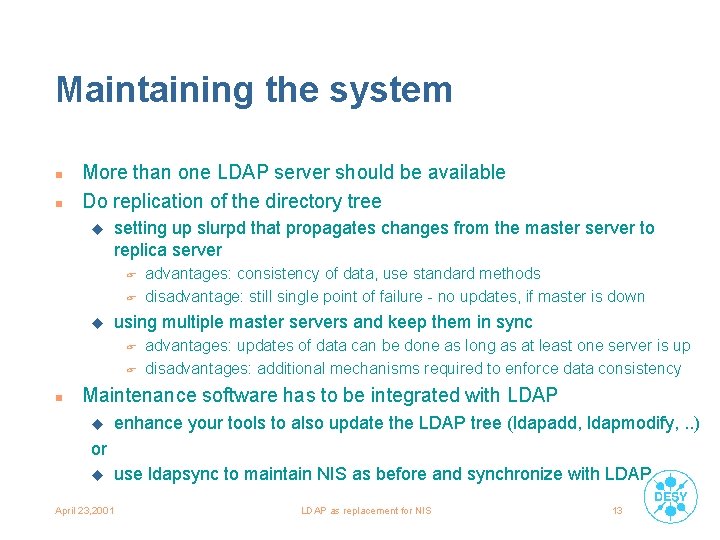

Maintaining the system n n More than one LDAP server should be available Do replication of the directory tree u setting up slurpd that propagates changes from the master server to replica server F F u using multiple master servers and keep them in sync F F n advantages: consistency of data, use standard methods disadvantage: still single point of failure - no updates, if master is down advantages: updates of data can be done as long as at least one server is up disadvantages: additional mechanisms required to enforce data consistency Maintenance software has to be integrated with LDAP u enhance your tools to also update the LDAP tree (ldapadd, ldapmodify, . . ) or u use ldapsync to maintain NIS as before and synchronize with LDAP April 23, 2001 LDAP as replacement for NIS 13

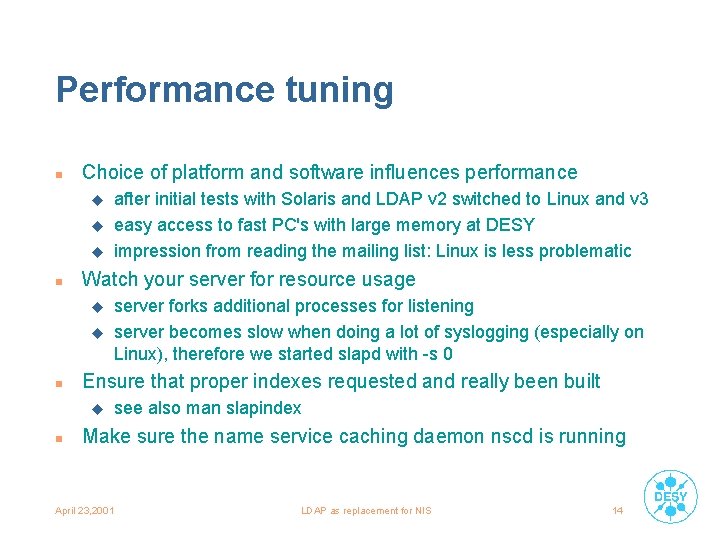

Performance tuning n Choice of platform and software influences performance u u u n Watch your server for resource usage u u n server forks additional processes for listening server becomes slow when doing a lot of syslogging (especially on Linux), therefore we started slapd with -s 0 Ensure that proper indexes requested and really been built u n after initial tests with Solaris and LDAP v 2 switched to Linux and v 3 easy access to fast PC's with large memory at DESY impression from reading the mailing list: Linux is less problematic see also man slapindex Make sure the name service caching daemon nscd is running April 23, 2001 LDAP as replacement for NIS 14

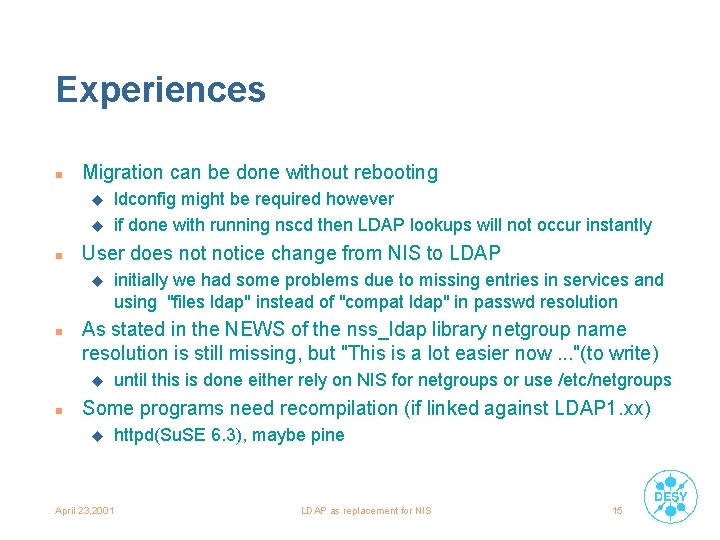

Experiences n Migration can be done without rebooting u u n User does notice change from NIS to LDAP u n initially we had some problems due to missing entries in services and using "files ldap" instead of "compat ldap" in passwd resolution As stated in the NEWS of the nss_ldap library netgroup name resolution is still missing, but "This is a lot easier now. . . "(to write) u n ldconfig might be required however if done with running nscd then LDAP lookups will not occur instantly until this is done either rely on NIS for netgroups or use /etc/netgroups Some programs need recompilation (if linked against LDAP 1. xx) u httpd(Su. SE 6. 3), maybe pine April 23, 2001 LDAP as replacement for NIS 15

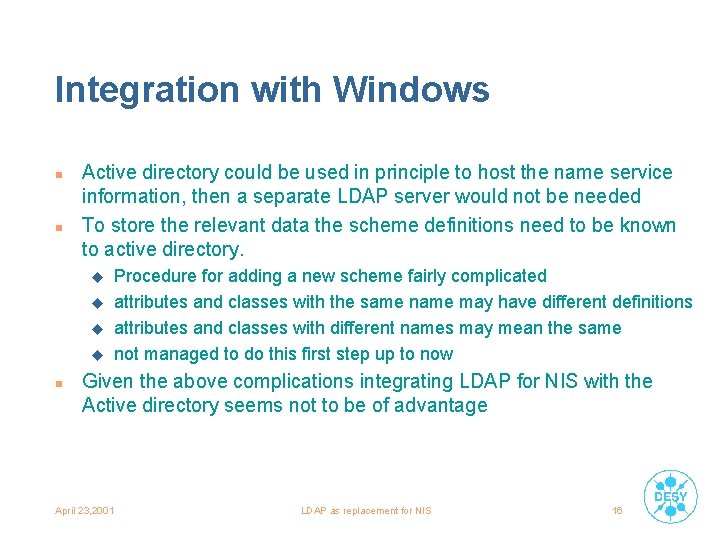

Integration with Windows n n Active directory could be used in principle to host the name service information, then a separate LDAP server would not be needed To store the relevant data the scheme definitions need to be known to active directory. u u n Procedure for adding a new scheme fairly complicated attributes and classes with the same name may have different definitions attributes and classes with different names may mean the same not managed to do this first step up to now Given the above complications integrating LDAP for NIS with the Active directory seems not to be of advantage April 23, 2001 LDAP as replacement for NIS 16

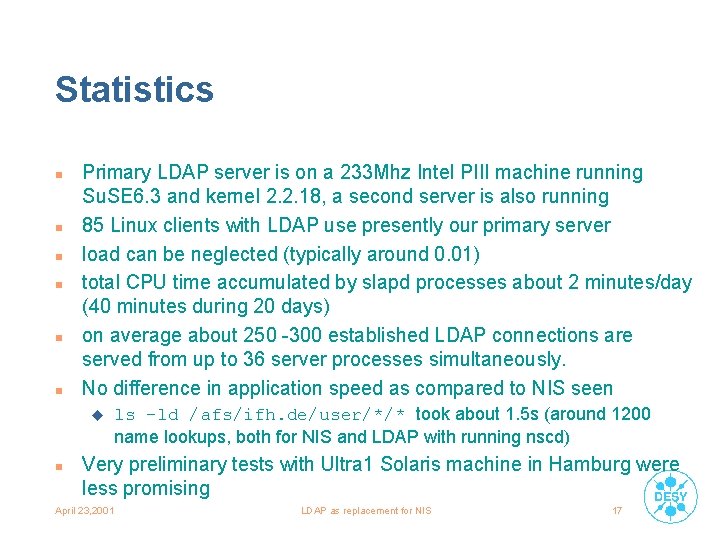

Statistics n n n Primary LDAP server is on a 233 Mhz Intel PIII machine running Su. SE 6. 3 and kernel 2. 2. 18, a second server is also running 85 Linux clients with LDAP use presently our primary server load can be neglected (typically around 0. 01) total CPU time accumulated by slapd processes about 2 minutes/day (40 minutes during 20 days) on average about 250 -300 established LDAP connections are served from up to 36 server processes simultaneously. No difference in application speed as compared to NIS seen u n ls -ld /afs/ifh. de/user/*/* took about 1. 5 s (around 1200 name lookups, both for NIS and LDAP with running nscd) Very preliminary tests with Ultra 1 Solaris machine in Hamburg were less promising April 23, 2001 LDAP as replacement for NIS 17

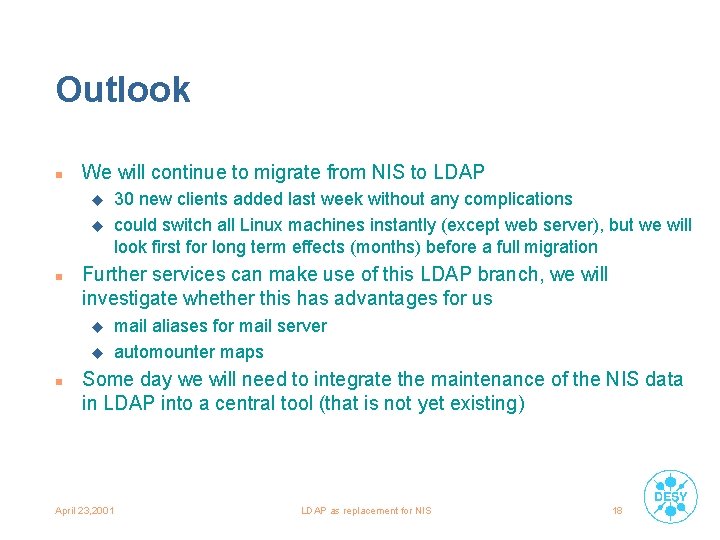

Outlook n We will continue to migrate from NIS to LDAP u u n Further services can make use of this LDAP branch, we will investigate whether this has advantages for us u u n 30 new clients added last week without any complications could switch all Linux machines instantly (except web server), but we will look first for long term effects (months) before a full migration mail aliases for mail server automounter maps Some day we will need to integrate the maintenance of the NIS data in LDAP into a central tool (that is not yet existing) April 23, 2001 LDAP as replacement for NIS 18
