Latent Variable Hierarchical Models in Computational Neural Science
Latent Variable / Hierarchical Models in Computational Neural Science Ying Nian Wu UCLA Department of Statistics March 30, 2011
Outline • • • Latent variable models in statistics Primary visual cortex (V 1) Modeling and learning in V 1 Layered hierarchical models Joint work with Song-Chun Zhu and Zhangzhang Si
Latent variable models Hidden Observed Learning: Inference: Examples

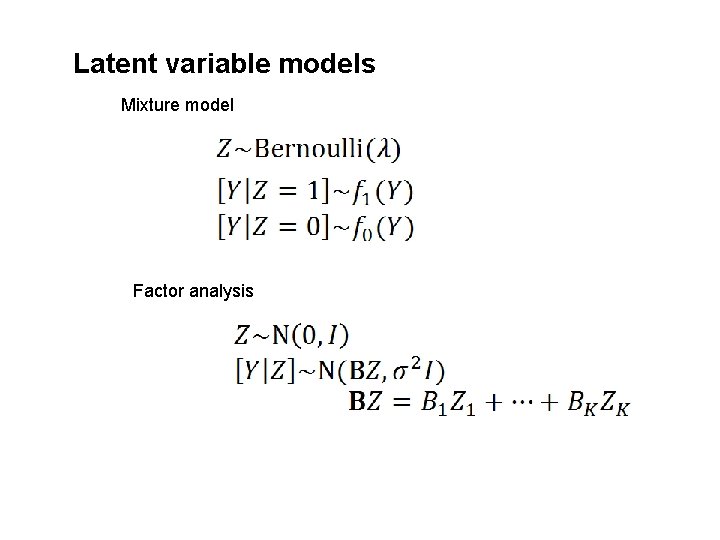

Latent variable models Mixture model Factor analysis
Latent variable models Hidden Observed Learning: Examples Maximum likelihood EM/gradient Inference / explaining away E-step / imputation
Computational neural science Hidden Observed Z: Internal representation by neurons Y: Sensory data from outside environment Connection weights Hierarchical extension: modeling Z by another layer of hidden variables explaining Y instead of Z Inference / explaining away
Visual cortex: layered hierarchical architecture bottom-up/top-down V 1: primary visual cortex simple cells complex cells Source: Scientific American, 1999
Simple V 1 cells Daugman, 1985 Gabor wavelets: localized sine and cosine waves Transation, rotation, dilation of the above function
V 1 simple cells respond to edges image pixels
Complex V 1 cells Riesenhuber and Poggio, 1999 • Larger receptive field • Less sensitive to deformation V 1 complex cells Local max V 1 simple cells Local sum Image pixels
Independent Component Analysis Bell and Sejnowski, 1996 Laplacian/Cauchy
Hyvarinen, 2000
Sparse coding Olshausen and Field, 1996 Laplacian/Cauchy/mixture Gaussians
Sparse coding / variable selection Inference: sparsification, non-linear lasso/basis pursuit/matching pursuit mode and uncertainty of p(C|I) explaining-away, lateral inhibition Learning: A dictionary of representational elements (regressors)
Olshausen and Field, 1996
Restricted Boltzmann Machine Hinton, Osindero and Teh, 20 hidden, binary visible P(V|H) P(H|V): factorized no-explaining away
Energy-based model Teh, Welling, Osindero and Hinton, 2003 Features, no explaining-away Maximum entropy with marginals Exponential family with sufficient stat Markov random field/Gibbs distribution Zhu, Wu, and Mumford, 1997 Wu, Liu, and Zhu, 2000

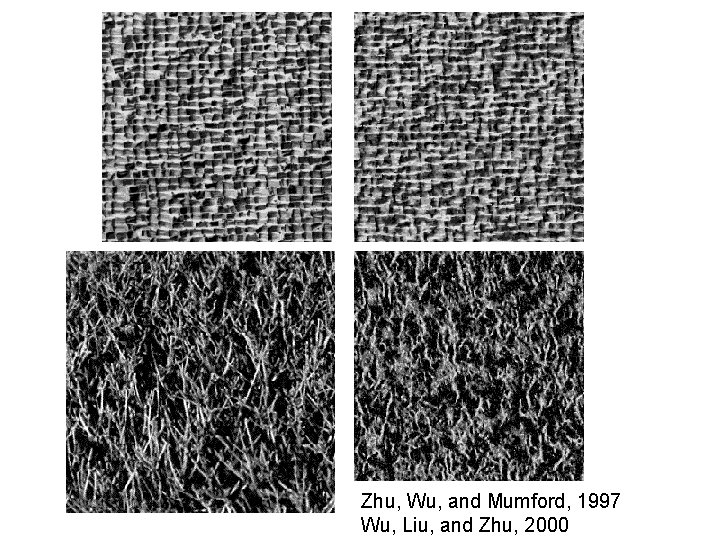

Zhu, Wu, and Mumford, 1997 Wu, Liu, and Zhu, 2000
Visual cortex: layered hierarchical architecture bottom-up/top-down What is beyond V 1? Hierarchical model? Source: Scientific American, 1999
Hierchical ICA/Energy-based model? Larger features Must introduce nonlinearities Purely bottom-up
Hierarchical RBM Hinton, Osindero and Teh, 2006 V’ Unfolding, untying, re-learning H I P(V, H) = P(H)P(V|H) Discriminative correction by back-propagation V P(H) P(V’, H)
Hierarchical sparse coding Attributed sparse coding elements transformation group topological neighborhood system Layer above : further coding of the attributes of selected sparse coding elements
Active basis model n-stroke template n = 40 to 60, box= 100 x 100 Wu, Si, Gong, Zhu, 10 Zhu, Guo, Wang, Xu, 05
Active basis model Wu, Si, Gong, Zhu, 10 Zhu, et al. , 05 n-stroke template n = 40 to 60, box= 100 x 100 Yuille, Hallinan, Cohen, 92
Simplicity • Simplest AND-OR graph (Pearl, 84; Zhu, Mumford 06) AND composition and OR perturbations or variations of basis elements • Simplest shape model: average + residual • Simplest modification of Olshausen-Field model • Further sparse coding of attributes of sparse coding elements
Bottom layer: sketch against texture p(C, U) = p(C) p(U|C) = p(C) q(U, C)/q(C) Maximum entropy (Della Pietra, Lafferty, 97; Zhu, Wu, Mumford, 97; Jin, S. Geman, 06; Wu, Guo, Zhu, 08) Special case: density substitution (Friedman, 87; Jin, S. Geman, 06) Only need to pool a marginal q(c) as null hypothesis • natural images explicit q(I) of Zhu, Mumford, 97 • this image explicit q(I) of Zhu, Wu, Mumford, 97

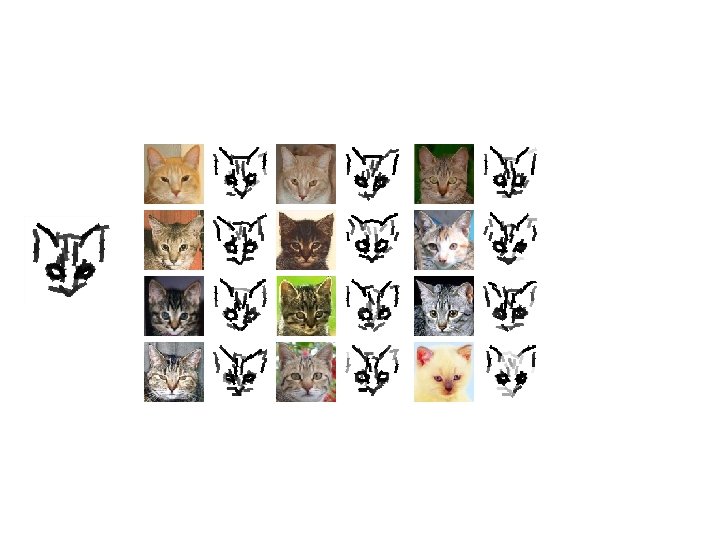

Shared sketch algorithm: maximum likelihood learning Finding n strokes to sketch M images simultaneously n = 60, M = 9 Prototype: shared matching pursuit (closed-form computation) Step 1: two max to explain images by maximum likelihood no early decision on edge detection Step 2: arg-max for inferring hidden variables Step 3: arg-max explains away, thus inhibits (matching pursuit, Mallat, Zhang, 93)
Cortex-like sum-max maps: maximum likelihood inference Bottom-up sum-max scoring (no early edge decision) Top-down arg-max sketching Scan over multiple resolutions SUM 1 layer: simple V 1 cells of Olshausen, Field, 96 MAX 1 layer: complex V 1 cells of Riesenhuber, Poggio, 99 1. 2. Reinterpreting MAX 1: OR-node of AND-OR, MAX for ARG-MAX in max-product algorithm Stick to Olshausen-Field sparse top-down model : AND-node of AND-OR Active basis, SUM 2 layer, “neurons” memorize shapes by sparse connections to MAX 1 layer Hierarchical, recursive AND-OR/ SUM-MAX Architecture: more top-down than bottom-up Neurons: more representational than operational (OR-neurons/AND-neurons)
Bottom-up scoring and top-down sketching SUM 2 MAX 1 arg MAX 1 SUM 1 Bottom-up detection Top-down sketching Sparse selective connection as a result of learning Explaining-away in learning but not in inference

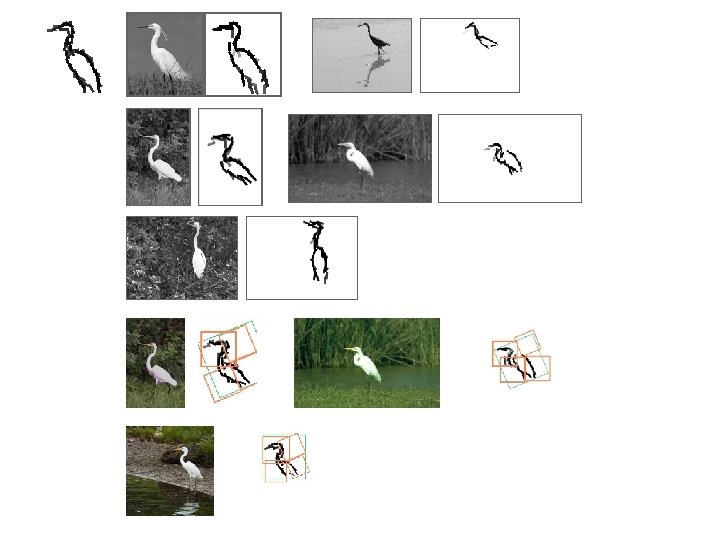

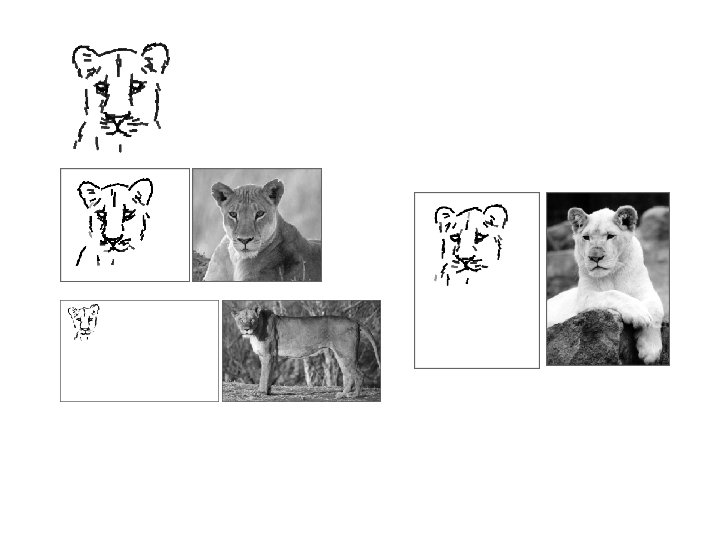

Scan over multiple resolutions and orientations (rotating template)
Classification based on log likelihood ratio score Freund, Schapire, 95; Viola, Jones, 04
Adjusting Active Basis Model by L 2 Regularized Logistic Regression By Ruixun Zhang L 2 regularized logistic regression re-estimated lambda’s Conditional on: (1) selected basis elements (2) inferred hidden variables (1) and (2) generative learning • Exponential family model, q(I) negatives Logistic regression for p(class | image), partial likelihood • Generative learning without negative examples basis elements and hidden variables • Discriminative adjustment with hugely reduced dimensionality correcting conditional independence assumption

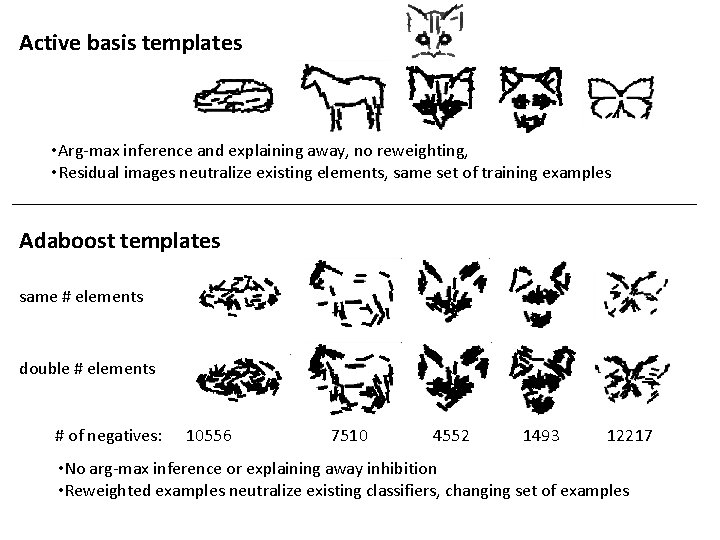

Active basis templates • Arg-max inference and explaining away, no reweighting, • Residual images neutralize existing elements, same set of training examples Adaboost templates same # elements double # elements # of negatives: 10556 7510 4552 1493 12217 • No arg-max inference or explaining away inhibition • Reweighted examples neutralize existing classifiers, changing set of examples

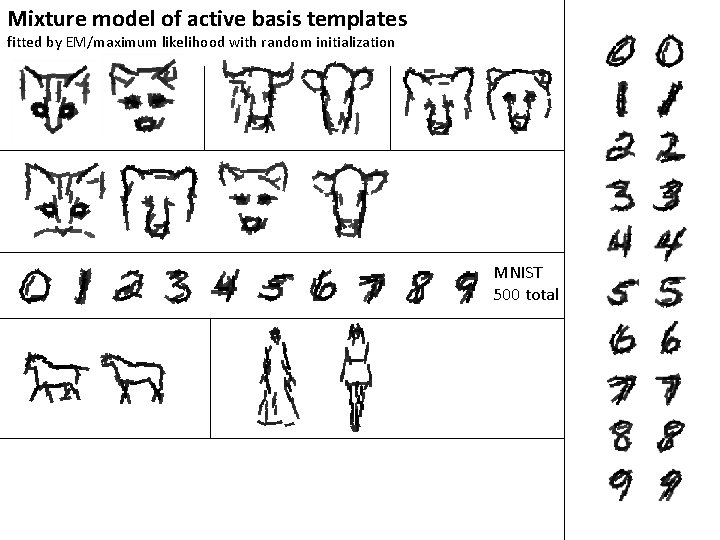

Mixture model of active basis templates fitted by EM/maximum likelihood with random initialization MNIST 500 total

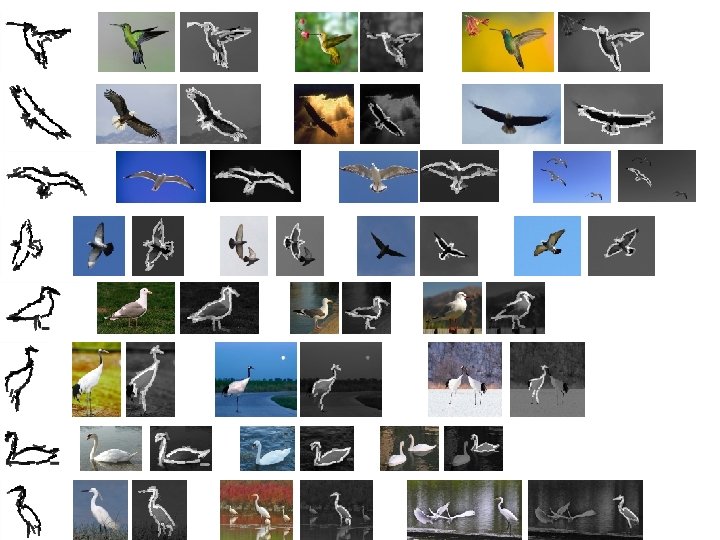

Learning active basis models from non-aligned image EM-type maximum likelihood learning, Initialized by single image learning
Learning active basis models from non-aligned image
Learning active basis models from non-aligned image

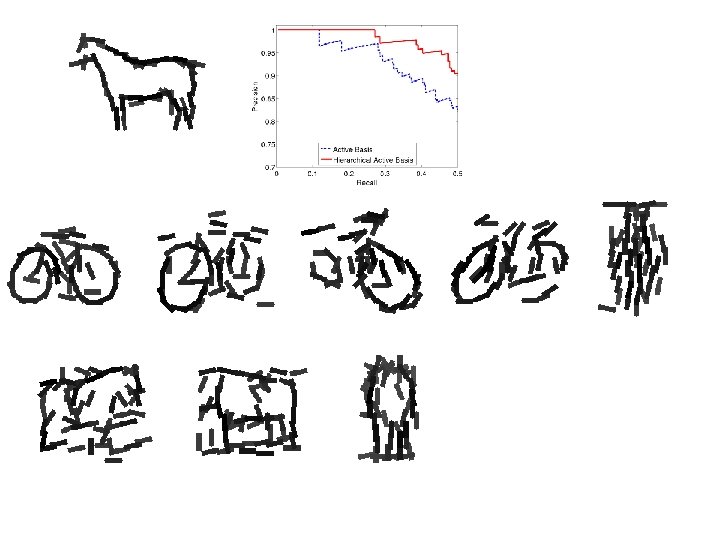

Hierarchical active basis by Zhangzhang Si et al. • And-OR graph: Pearl, 84; Zhu, Mumford, 06 • Compositionality and reusability: Geman, Potter, Chi, 02; L. Zhu, Lin, Huang, Chen, Yuille, 08 • Part-based method: everyone et al. • Latent SVM: Felzenszwalb, Mc. Allester, Ramanan, 08 • Constellation model: Weber, Welling, Perona, 00 Low log-likelihood High log-like
Simplicity • Simplest and purest recursive two-layer AND-OR graph • Simplest generalization of active basis model
AND-OR graph and SUM-MAX maps maximum likelihood inference Cortex-like, related to Riesenhuber, Poggio, 99 • Bottom-up sum-max scoring • Top-down arg-max sketching

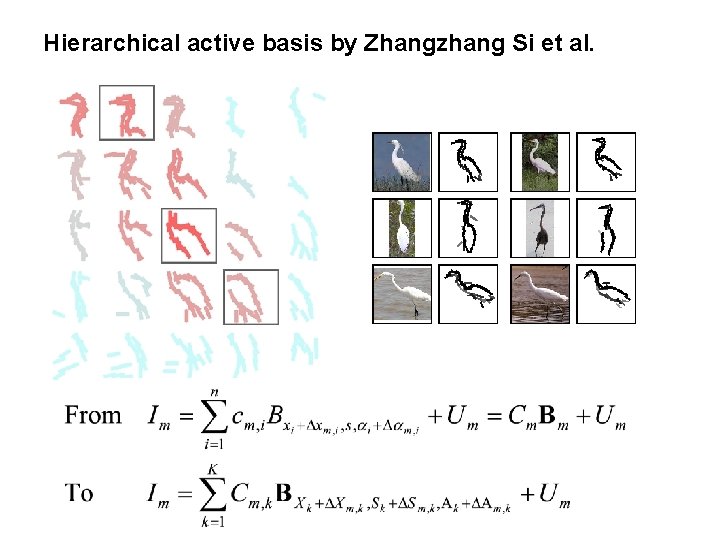

Hierarchical active basis by Zhangzhang Si et al.
Shape script by composing active basis shape motifs Representing elementary geometric shapes (shape motifs) by active bases (Si, Wu, 10) Geometry = sketch that can be parametrized
Summary Bottom-layer: Olshausen-Field (foreground) + Zhu-Wu-Mumford (background) Maximum entropy tilting (Della Pietra, Lafferty, 97) white noise texture (high entropy) sketch (low and mid entropy) (reverse the central limit theorem effect of information scaling) Build up layers: (1) AND-OR, SUM-MAX (top-down arg-MAX) (2) Perpetual sparse coding: further coding of attributes of the current sparse coding elements (a) residuals of attributes continuous OR-nodes (b) mixture model discrete OR-nodes
