Latching Relay for Lighting Control Application 2014 Panasonic Corporation Automotive & Industrial Systems Company Panasonic Corporation

Panasonic power latching relay line up　 To meet the Lighting application & Eco market demand , we are developing the new Power Latching Relays. Current 8 A 10 A 8 A/16 A 16 A/20 A 90 A 120 A DSP DK DW/DW-H DJ (DZ 90) DZ 29 x 13 x 16. 5 mm 38. 4 x 30 x 17. 5 mm 41 x 35 x 17. 5 mm 20 A, 230 VAC, 50 Kcyc 16 A, 277 VAC, 100 Kcyc 90 A, 250 VAC, 10, 000 cyc 120 A, 250 VAC, 10, 000 cyc 1. 5 w(1 coil) 3 W(2 coil) Relay type Size (L x W x H) 　　　　　 20. 2 x 11 x 10. 5 mm 20 x 12. 5 x 10 mm 8 A, 250 VAC, 100 K opes 10 A 250 VAC, 100 Kcyc Latching / 150 mw(1 coil) 300 m. W(2 coil) 100 mw(1 coil) 200 m. W(2 coil) 200 mw(1 coil) 400 m. W(2 coil) 150 mw(1 coil) 250 m. W(2 coil) Feature -Small size -Max. SW capacity; 2, 000 VA -Low Profile; 9. 7 mm -Safety standard UL/CSA/TUV/VDE -UL Lighting Rating -Miniature and high capacity = 16 A -PIP (IR reflow) - High insulation 8 mm Clearance and Creepage Rating Coil power 24 x 10 x 18. 8 mm DW-H 16 A, 277 VAC, 20 K opes DW 8 A, 277 VAC, 50 K opes Category : UC 2 (IEC 62055 -31) Short-circuit ; 2. 5 k. A/4. 5 k. A Category : UC 2 (IEC 62055 -31) Short-circuit ; 3 k. A/6 k. A Panasonic Corporation

DW-H relay / New Lineup〔Lighting control Series〕 DJ pre- con. type Inrush current ≧ 500 A DJ special contact 360 A ※High inrush current type NEW DK DW-H DJ standard 100 A DW 50 A Low Price high Panasonic Corporation

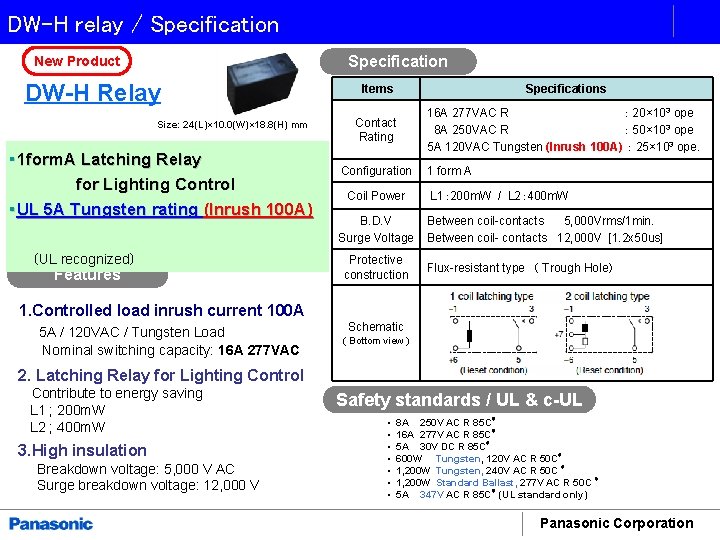

DW-H relay / Specification New Product DW-H Relay Size: 24(L)× 10. 0(W)× 18. 8(H) mm ・ 1 form. A Latching Relay 　　　　　　for Lighting Control　・UL 5 A Tungsten rating (Inrush 100 A) 　　　　（UL recognized） Features Items Specifications Contact Rating 16 A 277 VAC R ： 20× 103 ope 8 A 250 VAC R ： 50× 103 ope 5 A 120 VAC Tungsten (Inrush 100 A) ： 25× 103 ope. Configuration Coil Power B. D. V Surge Voltage Protective construction 1 form A L 1： 200 m. W / L 2： 400 m. W Between coil-contacts 5, 000 Vrms/1 min. Between coil- contacts 12, 000 V [1. 2 x 50 us] Flux-resistant type　（ Trough Hole） 1. Controlled load inrush current 100 A 　 5 A / 120 VAC / Tungsten Load Nominal switching capacity: 16 A 277 VAC Schematic ( Bottom view ) 2. Latching Relay for Lighting Control 　Contribute to energy saving L 1 ; 200 m. W L 2 ; 400 m. W 3. High insulation 　　Breakdown voltage: 5, 000 V AC 　　Surge breakdown voltage: 12, 000 V Safety standards / UL & c-UL • • 8 A 250 V AC R 85 C゜ 16 A 277 V AC R 85 C゜ 5 A 30 V DC R 85 C゜ 600 W Tungsten, 120 V AC R 50 C゜ 1, 200 W Tungsten, 240 V AC R 50 C ゜ 1, 200 W Standard Ballast, 277 V AC R 50 C ゜ 5 A 347 V AC R 85 C゜ (UL standard only) Panasonic Corporation

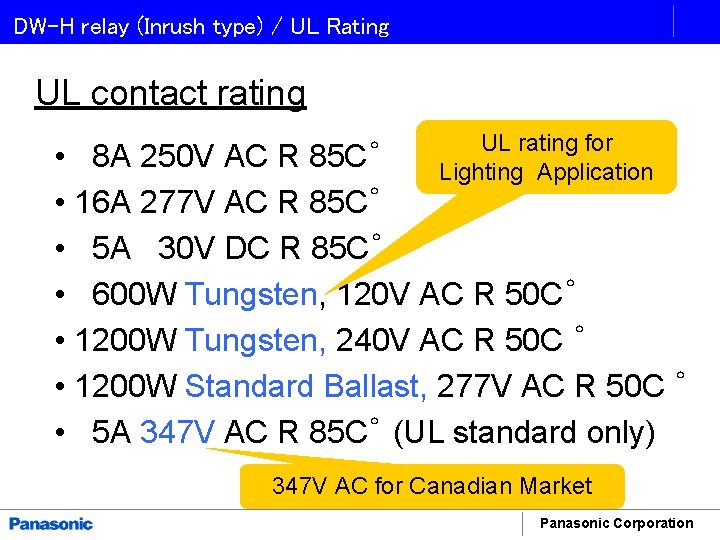

DW-H relay (Inrush type) / UL Rating UL contact rating UL rating for Lighting Application • 8 A 250 V AC R 85 C゜ • 16 A 277 V AC R 85 C゜ • 5 A 30 V DC R 85 C゜ • 600 W Tungsten, 120 V AC R 50 C゜ • 1200 W Tungsten, 240 V AC R 50 C ゜ • 1200 W Standard Ballast, 277 V AC R 50 C ゜ • 5 A 347 V AC R 85 C゜ (UL standard only) 347 V AC for Canadian Market Panasonic Corporation

DW-H relay (Inrush type) / Nomenclature H Panasonic Corporation

END Panasonic Corporation
