Latches and FlipFlops Discussion D 6 1 Latches
- Slides: 57
Latches and Flip-Flops Discussion D 6. 1
Latches and Flip-Flops • Latches – SR Latch – D Latch • Flip-Flops – D Flip-Flop – JK Flip-Flop – T Flip-Flop
Sequential Logic • Combinational Logic – Output depends only on current input • Sequential Logic – Output depends not only on current input but also on past input values – Need some type of memory to remember the past input values
Cross-coupled Inverters State 1 State 2
Latches and Flip-Flops • Latches – SR Latch – D Latch • Flip-Flops – D Flip-Flop – JK Flip-Flop – T Flip-Flop

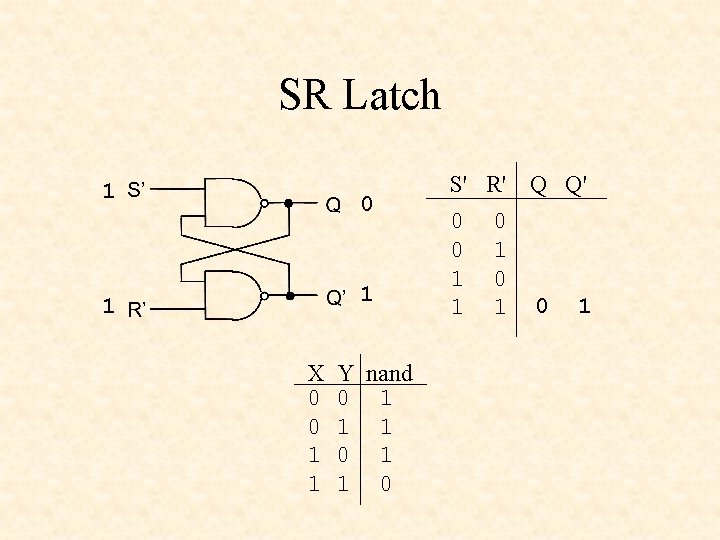

SR Latch 1 0 1 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 1
SR Latch 0 0 1 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 1
SR Latch 0 1 1 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 1
SR Latch 0 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 Set 1 0 1

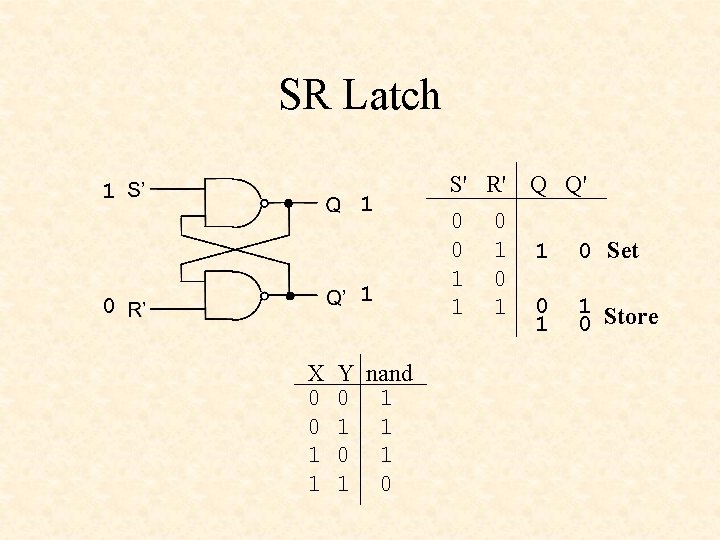

SR Latch 1 1 0 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 Set 1 0 1 Store 1 0
SR Latch 1 1 0 0 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 Set 1 0 1 Store 1 0
SR Latch 1 1 1 0 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 Set 1 0 1 Store 1 0
SR Latch 1 0 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 Set 1 0 0 1 Reset 1 1 0 1 Store 1 0
SR Latch 1 0 1 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 0 1 1 0 Set 1 0 0 1 Reset 1 1 0 1 Store 1 0
SR Latch 0 1 1 0 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 1 1 Disallowed 0 1 1 0 Set 1 0 0 1 Reset 1 1 0 1 Store 1 0 Q 0'
SR Latch 1 0 1 1 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 1 1 Disallowed 0 1 1 0 Set 1 0 0 1 Reset 1 1 0 1 Store 1 0 Q 0' To close or lock with or as if with a latch, To catch or fasten
SR Latch with Enable S S' Q EN Q' R S R EN 0 0 1 1 1 0 1 1 X X 0 R' S' 1 1 0 0 1 R' 1 0 1 Q Q 0 0 1 1 Q 0 Q' Q 0' 1 0 1 Q 0' Store Reset Set Disallowed Store
RS Latch R Q RS Latch S Q is set to 1 when S is asserted, and remains unchanged when S is disasserted. Q is reset to 0 when R is asserted, and remains unchanged when R is disasserted. Assertions can be active HIGH or active LOW
library IEEE; use IEEE. STD_LOGIC_1164. all; entity rslatch is port( R : in STD_LOGIC; S : in STD_LOGIC; Q : out STD_LOGIC ); end rslatch; R RS Latch S architecture rslatch of rslatch is begin process(R, S) begin if S = '1' and R = '0' then Q <= '1'; elsif S = '0' and R = '1' then Q <= '0'; end if; end process; end rslatch; Q Active HIGH
RS Latch -- Active High
library IEEE; use IEEE. STD_LOGIC_1164. all; entity rslatch is port( R : in STD_LOGIC; S : in STD_LOGIC; Q : out STD_LOGIC ); end rslatch; R RS Latch S architecture rslatch of rslatch is begin process(R, S) begin if S = '0' and R = '1' then Q <= '1'; elsif S = '1' and R = '0' then Q <= '0'; end if; end process; end rslatch; Q Active LOW
RS Latch -- Active Low
How can you make this RS latch from gates? R Q RS Latch S Q is set to 1 when S is asserted, and remains unchanged when S is disasserted. Q is reset to 0 when R is asserted, and remains unchanged when R is disasserted. Assertions can be active HIGH or active LOW
Q is set to 1 when S is asserted (1), and remains unchanged when S is disasserted (0). Q is reset to 0 when R is asserted (1), and remains unchanged when R is disasserted (0). R 0 0 1 1 S 0 0 1 1 Q 0 1 0 1 Q 0 1 1 1 0 0 0 1 R R 00 0 set reset 01 11 10 1 1 1 store Q = Q RS Latch S store SQ R'Q + R'S + SQ
RS Latch R 0 0 1 1 S 0 0 1 1 Q 0 1 0 1 Q 0 1 1 1 0 0 0 1 R set reset store Q RS Latch S store Q = R'Q + R'S + SQ

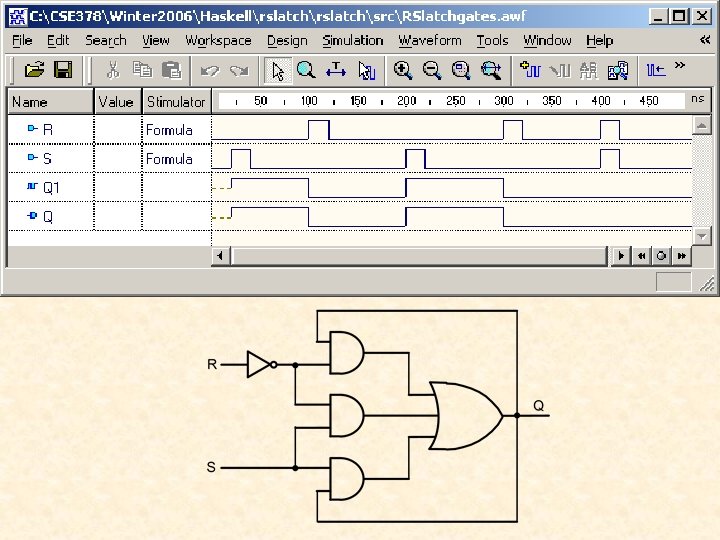

library IEEE; use IEEE. STD_LOGIC_1164. all; entity rslatchgates is port( R : in STD_LOGIC; S : in STD_LOGIC; Q : out STD_LOGIC ); end rslatchgates; architecture rslatchgates of rslatchgates is signal Q 1: std_logic; begin Q 1 <= (not R and Q 1) or (not R and S) or (S and Q 1); Q <= Q 1; end rslatchgates; Q 1
Latches and Flip-Flops • Latches – SR Latch – D Latch • Flip-Flops – D Flip-Flop – JK Flip-Flop – T Flip-Flop
D Latch D Q D Latch EN Q follows D when EN is high, and remains unchanged when EN is low. .
library IEEE; use IEEE. STD_LOGIC_1164. all; entity dlatch is port( D : in STD_LOGIC; EN : in STD_LOGIC; Q : out STD_LOGIC ); end dlatch; architecture dlatch of dlatch is begin process(D, EN) begin if EN = '1' then Q <= D; end if; end process; end dlatch; D Q D Latch EN
D Latch
D Latch S D S' Q EN Q' R' R D EN Q 0 1 1 1 X 0 Q' 1 0 Q 0' S 0 0 1 1 X R EN Q 0 1 1 0 0 1 1 1 X 0 Q' Q 0' 1 0 1 Q 0' Store Reset Set Disallowed Store

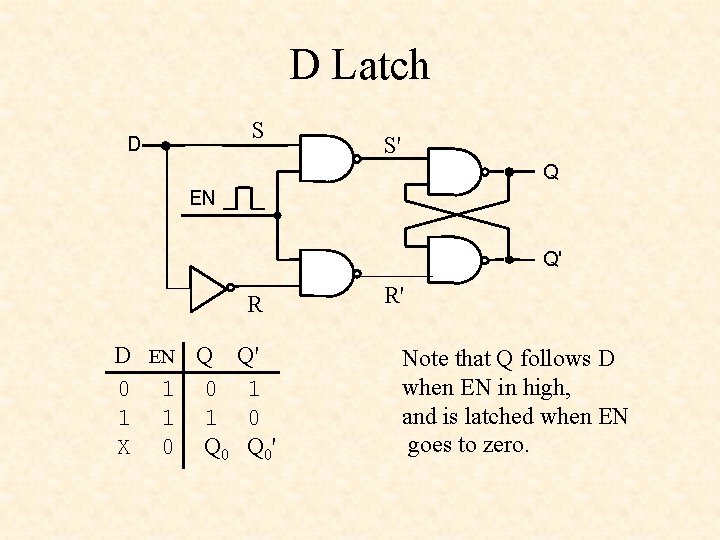

D Latch S D S' Q EN Q' R D EN Q 0 1 1 1 X 0 Q' 1 0 Q 0' R' Note that Q follows D when EN in high, and is latched when EN goes to zero.
Latches and Flip-Flops • Latches – SR Latch – D Latch • Flip-Flops – D Flip-Flop – JK Flip-Flop – T Flip-Flop
D Flip-Flop D clk Q 0 0 1 1 X 0 Q D clk Q' Q' 1 0 Q 0' Positive edge triggered D gets latched to Q on the rising edge of the clock. Behavior if rising_edge(clk) then Q <= D; end if;
library IEEE; use IEEE. STD_LOGIC_1164. all; entity dflipflop is port( D : in STD_LOGIC; clk : in STD_LOGIC; Q : out STD_LOGIC; Not. Q : out STD_LOGIC ); end dflipflop; architecture dflipflop of dflipflop is signal QS: STD_LOGIC; begin process(D, clk) begin if rising_edge(clk) then QS <= D; end if; end process; Q <= QS; Not. Q <= not QS; end dflipflop; D clk Q Q'
D Flip-Flop
library IEEE; use IEEE. STD_LOGIC_1164. all; entity dflipflop is port( D : in STD_LOGIC; clk : in STD_LOGIC; Q : out STD_LOGIC; Not. Q : out STD_LOGIC ); end dflipflop; architecture dflipflop of dflipflop is signal QS: STD_LOGIC; begin process(D, clk) begin if clk'event and clk = '1' then QS <= D; end if; end process; Q <= QS; Not. Q <= not QS; end dflipflop; D clk Q Q'
D Flip-Flop
Master-Slave D Flip-Flop
Master-Slave D Flip-Flop
Recall the SR Latch 0 1 1 0 X 0 0 1 1 Y nand 0 1 1 1 0 S' R' Q Q' 0 0 1 1 Disallowed 0 1 1 0 Set 1 0 0 1 Reset 1 1 0 1 Store 1 0 Q 0'

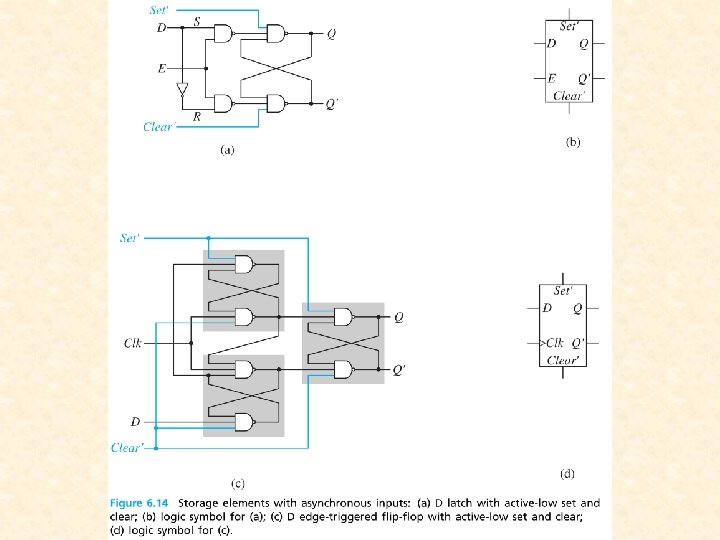

Edge-triggered D Flip-flop 1 0 1 1 1 0
Edge-triggered D Flip-flop 1 1 1 0 1 0
Edge-triggered D Flip-flop 1 1 1 0 0 1
Edge-triggered D Flip-flop 0 1 1 0 0 1
Edge-triggered D Flip-flop 0 0 1 1 0 1
Edge-triggered D Flip-flop 0 0 1 1 1
Edge-triggered D Flip-flop 1 0 0 1 1 0
Spartan 3 CLB slices
Latches and Flip-Flops • Latches – SR Latch – D Latch • Flip-Flops – D Flip-Flop – JK Flip-Flop – T Flip-Flop

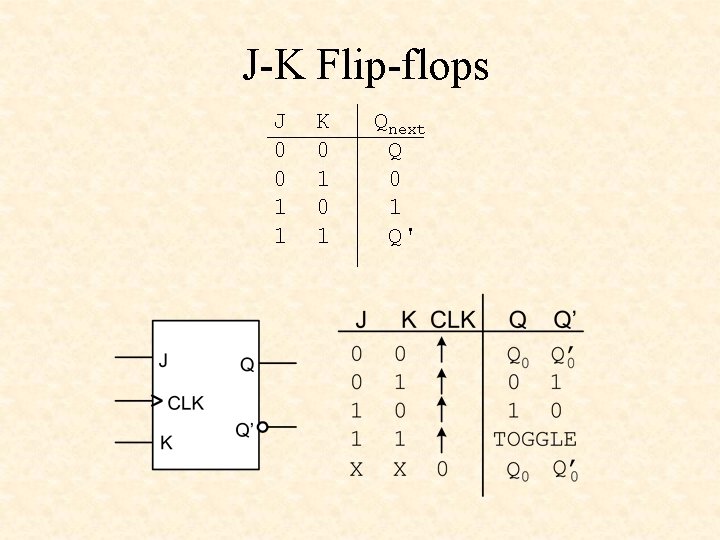

J-K Flip-flops Qnext = JQ' + K'Q J 0 0 1 1 K 0 1 Qnext Q 0 1 Q'
J-K Flip-flops J 0 0 1 1 K 0 1 Qnext Q 0 1 Q'
Latches and Flip-Flops • Latches – SR Latch – D Latch • Flip-Flops – D Flip-Flop – JK Flip-Flop – T Flip-Flop
T Flip-flops T 0 1 Qnext Q Q'
T Flip-flops T 0 1 Qnext Q Q'
