Last Time Filtering Box filter Bartlett filter Gaussian

Last Time • Filtering – – – Box filter Bartlett filter Gaussian Filter Edge-detect (high-pass) filter Enhancement filters • Resampling – Map the point from the new image back into the old image – Locally reconstruct the function using a filter – Today we’ll see why this is the right thing to do 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Today • Ideal reconstruction and aliasing • Compositing 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Ideal Reconstruction • When you display an image, ideally you would like to reconstruct the original (ideal) picture • When you resample, you would like to draw new samples from the perfect original function • Last time we saw you generally can’t do this because you need infinitely dense samples to reconstruct sharp edges • What’s the math? 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Sampling in Spatial Domain • Sampling in the spatial domain is like multiplying by a spike function • You take some ideal function and get data for a regular grid of points 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Sampling in Frequency Domain • Sampling in the frequency domain is like convolving with a spike function – Follows from the convolution theory: multiplication in spatial equals convolution in frequency – Spatial spike function in the frequency domain is also the spike function 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Reconstruction (Frequency Domain) • To reconstruct, we must restore the original spectrum • That can be done by multiplying by a square pulse 2/12/04 © University of Wisconsin, CS 559 Spring 2004

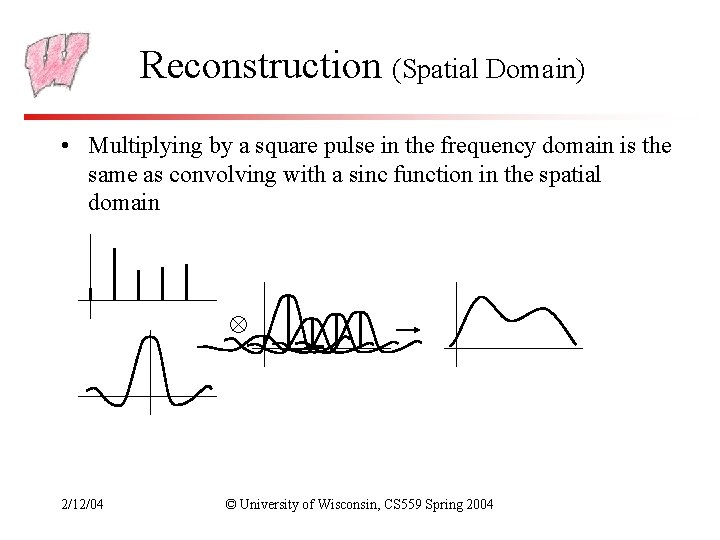

Reconstruction (Spatial Domain) • Multiplying by a square pulse in the frequency domain is the same as convolving with a sinc function in the spatial domain 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Aliasing Due to Under-sampling • If the sampling rate is too low, high frequencies get reconstructed as lower frequencies • High frequencies from one copy get added to low frequencies from another 2/12/04 © University of Wisconsin, CS 559 Spring 2004

More Aliasing • Poor reconstruction also results in aliasing • Consider a signal reconstructed with a box filter in the spatial domain (which means using a sinc in the frequency domain): 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Aliasing in Practice • We have two types of aliasing: – Aliasing due to insufficient sampling frequency – Aliasing due to poor reconstruction • You have some control over reconstruction – If resizing, for instance, use an approximation to the sinc function to reconstruct (instead of Bartlett, as we used last time) – Gaussian is closer to sinc than Bartlett – But note that sinc function goes on forever (infinite support), which is inefficient to evaluate • You have some control over sampling if creating images using a computer – Remove all sharp edges (high frequencies) from the scene before drawing it – That is, blur character and line edges before drawing 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Compositing • Compositing combines components from two or more images to make a new image • The basis for film special effects (even before computers) – Create digital imagery and composite it into live action • Important part of animation – even hand animation – Background change more slowly than foregrounds, so composite foreground elements onto constant background 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Very Simple Example over 2/12/04 = © University of Wisconsin, CS 559 Spring 2004

Mattes • A matte is an image that shows which parts of another image are foreground objects • Term dates from film editing and cartoon production • How would I use a matte to insert an object into a background? • How are mattes usually generated for television? 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Working with Mattes • To insert an object into a background – Call the image of the object the source – Put the background into the destination – For all the source pixels, if the matte is white, copy the pixel, otherwise leave it unchanged • To generate mattes: – Use smart selection tools in Photoshop or similar • They outline the object and convert the outline to a matte – Blue Screen: Photograph/film the object in front of a blue background, then consider all the blue pixels in the image to be the background 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Alpha • Basic idea: Encode opacity information in the image • Add an extra channel, the alpha channel, to each image – For each pixel, store R, G, B and Alpha – alpha = 1 implies full opacity at a pixel – alpha = 0 implies completely clear pixels • There are many interpretations of alpha – Is there anything in the image at that point (web graphics) – Transparency (real-time Open. GL) • Images are now in RGBA format, and typically 32 bits per pixel (8 bits for alpha) • All images in the project are in this format 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Pre-Multiplied Alpha • Instead of storing (R, G, B, ), store ( R, G, B, ) • The compositing operations in the next several slides are easier with pre-multiplied alpha • To display and do color conversions, must extract RGB by dividing out – =0 is always black – Some loss of precision as gets small, but generally not a big problem 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Compositing Assumptions • We will combine two images, f and g, to get a third composite image – Not necessary that one be foreground and background – Background can remain unspecified • Both images are the same size and use the same color representation • Multiple images can be combined in stages, operating on two at a time 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Image Decomposition • The composite image can be broken into regions – – Parts covered by f only Parts covered by g only Parts covered by f and g Parts covered by neither f nor g • Compositing operations define what should happen in each region: who (f or g) owns each region 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Basic Compositing Operation • At each pixel, combine the pixel data from f and the pixel data from g with the equation: • F and G describe how much of each input image survives, and cf and cg are pre-multiplied pixels, and all four channels are calculated • To define a compositing operation, define F and G 2/12/04 © University of Wisconsin, CS 559 Spring 2004

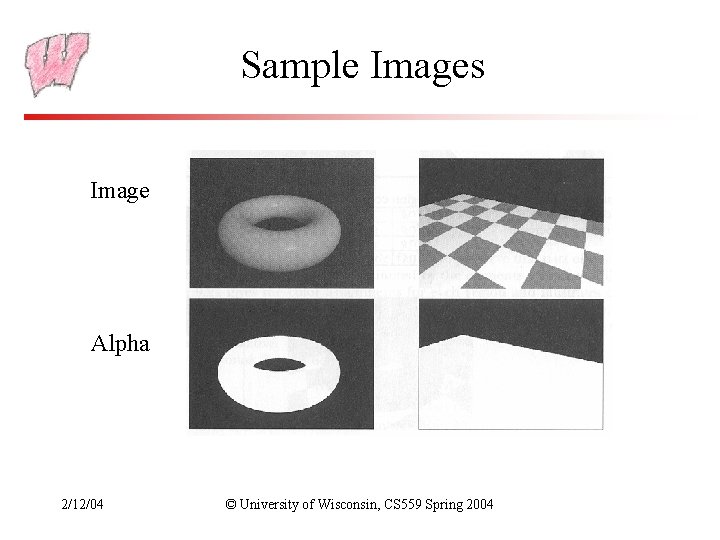

Sample Images Image Alpha 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Over” Operator 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Over” Operator • Computes composite with the rule that f covers g 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Inside” Operator 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Inside” Operator • Computes composite with the rule that only parts of f that are inside g contribute 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Outside” Operator 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Outside” Operator • Computes composite with the rule that only parts of f that are outside g contribute 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Atop” Operator 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Atop” Operator • Computes composite with the over rule but restricted to places where there is some g 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Xor” Operator • Computes composite with the rule that f contributes where there is no g, and g contributes where there is no f 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Xor” Operator 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Clear” Operator • Computes a clear composite • Note that (0, 0, 0, >0) is a partially opaque black pixel, whereas (0, 0, 0, 0) is fully transparent, and hence has no color 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“Set” Operator • Computes composite by setting it to equal f • Copies f into the composite 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Compositing Operations • F and G describe how much of each input image survives, and cf and cg are pre-multiplied pixels, and all four channels are calculated Operation Over Inside Outside Atop Xor Clear Set 2/12/04 © University of Wisconsin, CS 559 Spring 2004 F G

Unary Operators • Darken: Makes an image darker (or lighter) without affecting its opacity • Dissolve: Makes an image transparent without affecting its color 2/12/04 © University of Wisconsin, CS 559 Spring 2004

“PLUS” Operator • Computes composite by simply adding f and g, with no overlap rules • Useful for defining cross-dissolve in terms of compositing: 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Obtaining Values • Hand generate (paint a grayscale image) • Automatically create by segmenting an image into foreground background: – Blue-screening is the analog method • Remarkably complex to get right – “Lasso” is the Photoshop operation • With synthetic imagery, use a special background color that does not occur in the foreground – Brightest blue or green is common 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Compositing With Depth • Can store pixel “depth” instead of alpha • Then, compositing can truly take into account foreground and background • Generally only possible with synthetic imagery – Image Based Rendering is an area of graphics that, in part, tries to composite photographs taking into account depth 2/12/04 © University of Wisconsin, CS 559 Spring 2004

Where to now… • We are now almost done with images – Still have to take a quick look at painterly rendering • We will spend several weeks on the mechanics of 3 D graphics – – Coordinate systems and Viewing Clipping Drawing lines and polygons Lighting and shading • We will finish the semester with modeling and some additional topics 2/12/04 © University of Wisconsin, CS 559 Spring 2004
