LASERS Lasers First laser presented by T H
LASERS

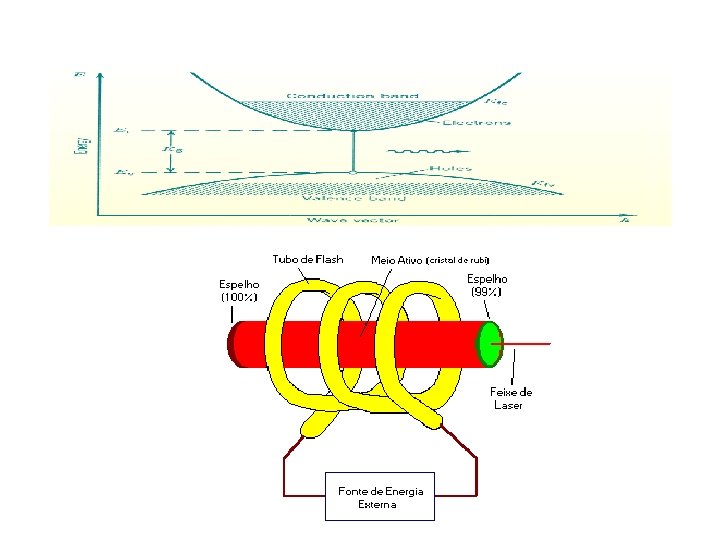

Lasers First laser presented by T. H. Maiman in 1960.
Applications Cutting Soldering Marking Etching Biomedical Telecom Military

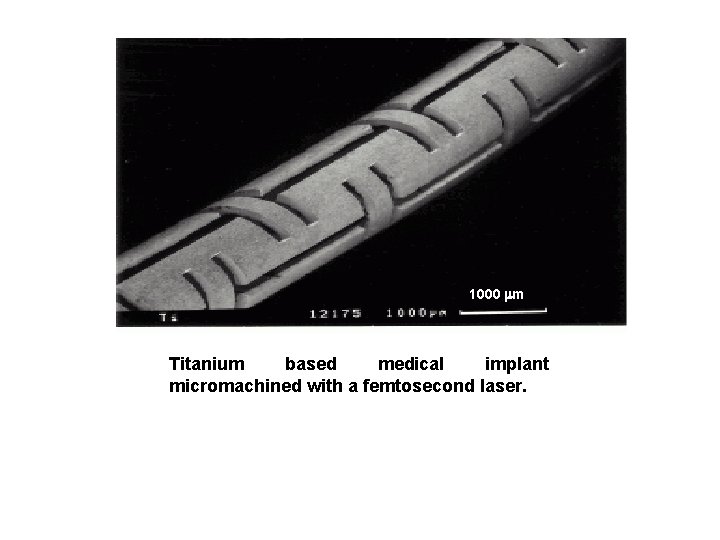

1000 m Titanium based medical implant micromachined with a femtosecond laser.

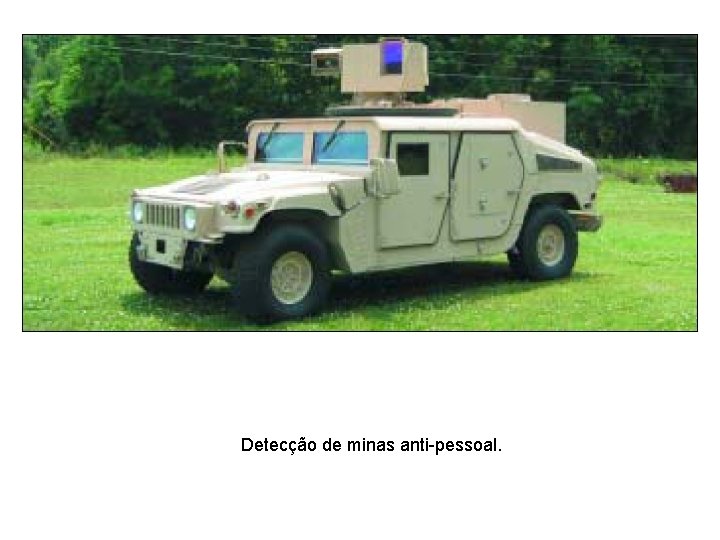

Detecção de minas anti-pessoal.

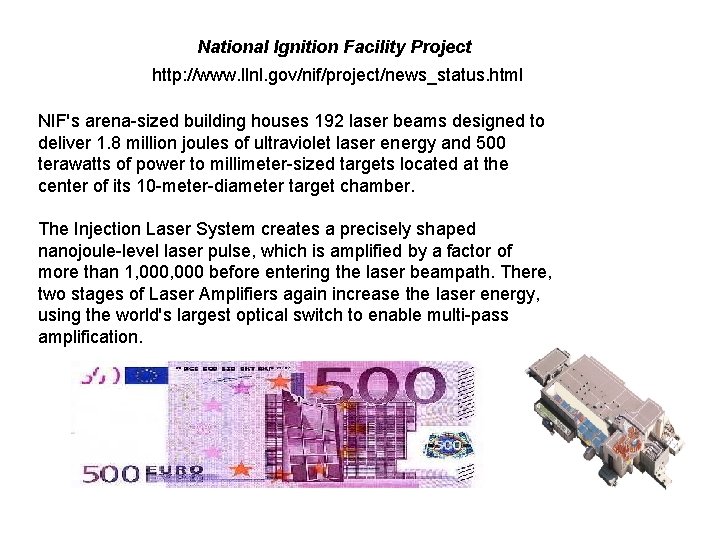

National Ignition Facility Project http: //www. llnl. gov/nif/project/news_status. html NIF's arena-sized building houses 192 laser beams designed to deliver 1. 8 million joules of ultraviolet laser energy and 500 terawatts of power to millimeter-sized targets located at the center of its 10 -meter-diameter target chamber. The Injection Laser System creates a precisely shaped nanojoule-level laser pulse, which is amplified by a factor of more than 1, 000 before entering the laser beampath. There, two stages of Laser Amplifiers again increase the laser energy, using the world's largest optical switch to enable multi-pass amplification.

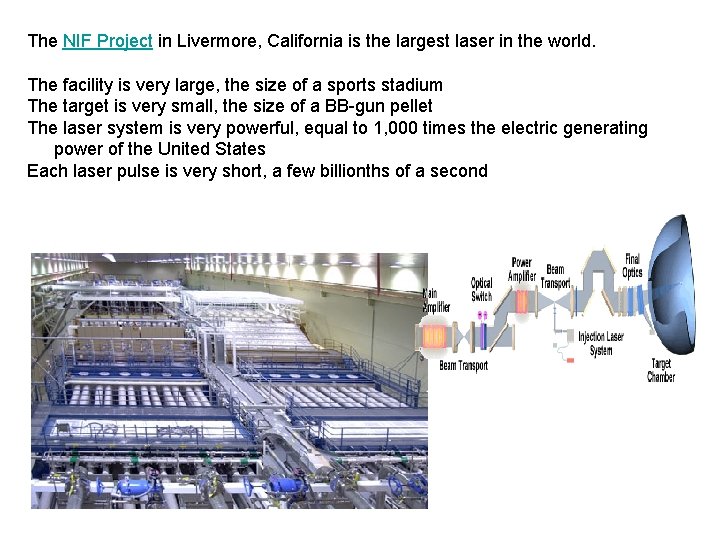

The NIF Project in Livermore, California is the largest laser in the world. The facility is very large, the size of a sports stadium The target is very small, the size of a BB-gun pellet The laser system is very powerful, equal to 1, 000 times the electric generating power of the United States Each laser pulse is very short, a few billionths of a second

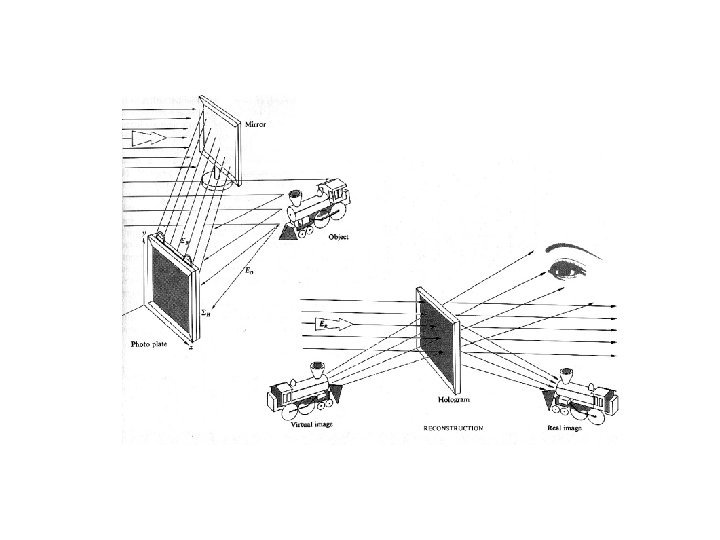

HOLOGRAFIA

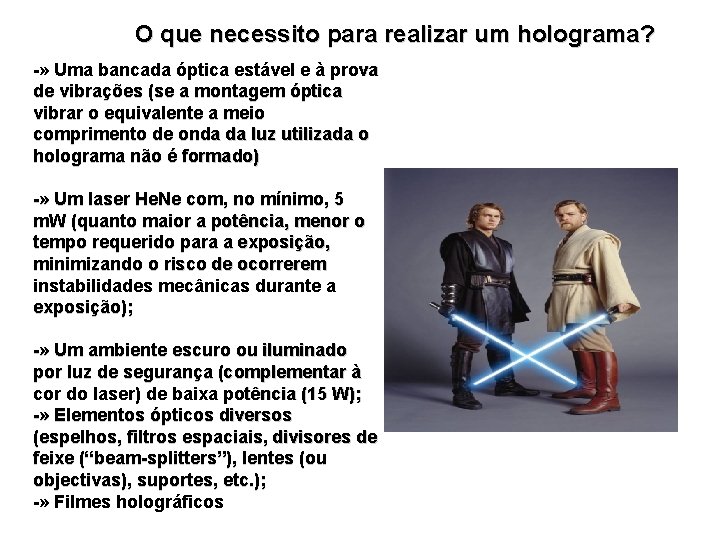

O que necessito para realizar um holograma? -» Uma bancada óptica estável e à prova de vibrações (se a montagem óptica vibrar o equivalente a meio comprimento de onda da luz utilizada o holograma não é formado) -» Um laser He. Ne com, no mínimo, 5 m. W (quanto maior a potência, menor o tempo requerido para a exposição, minimizando o risco de ocorrerem instabilidades mecânicas durante a exposição); -» Um ambiente escuro ou iluminado por luz de segurança (complementar à cor do laser) de baixa potência (15 W); -» Elementos ópticos diversos (espelhos, filtros espaciais, divisores de feixe (“beam-splitters”), lentes (ou objectivas), suportes, etc. ); -» Filmes holográficos
Beam Spliter (Divisor de Feixe) 90/10 Espelho LASER Objectiva Difusor Objectiva Placa Holográfica Espelho Objecto

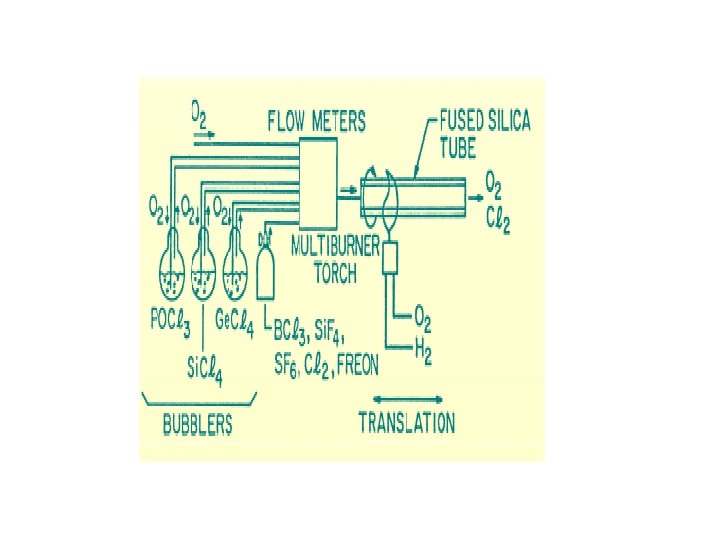

FIBRAS

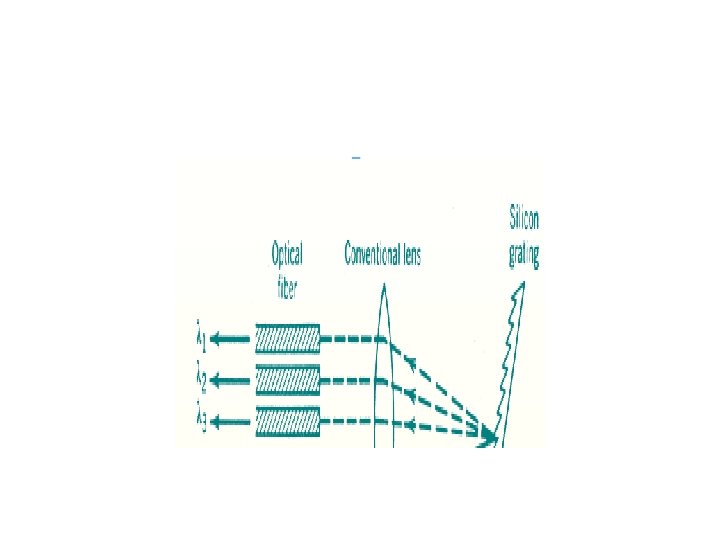

1 2 Fiber link 3 4 multiplexer demultiplexer

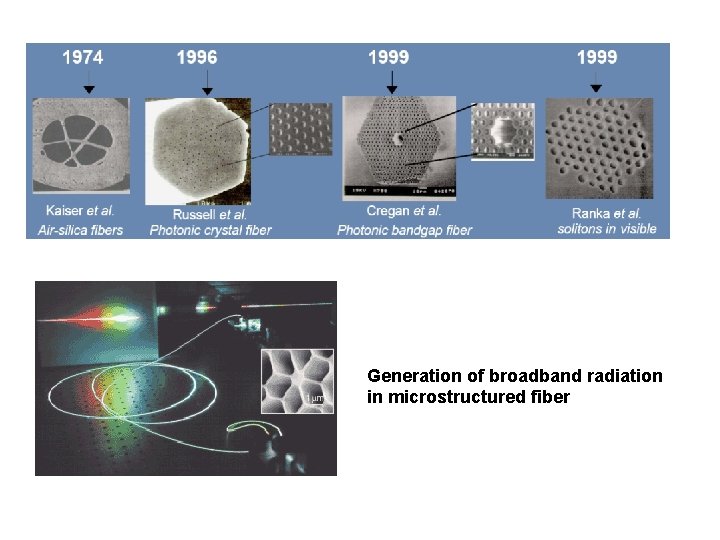

Generation of broadband radiation in microstructured fiber

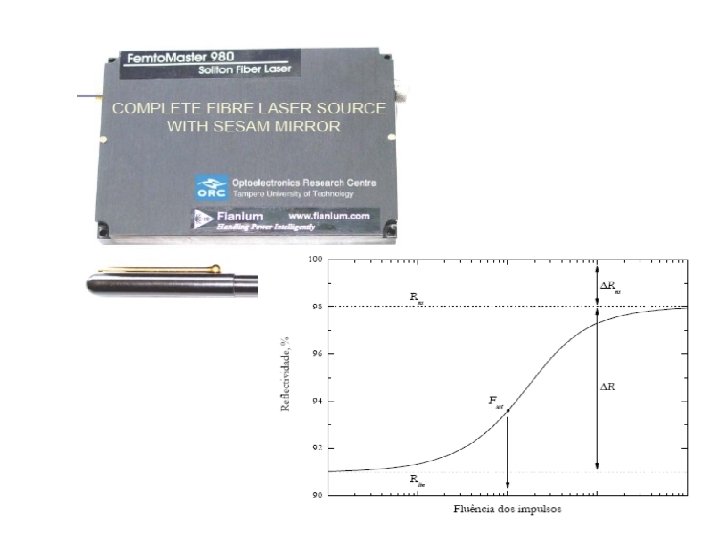

LASERS EM FIBRA

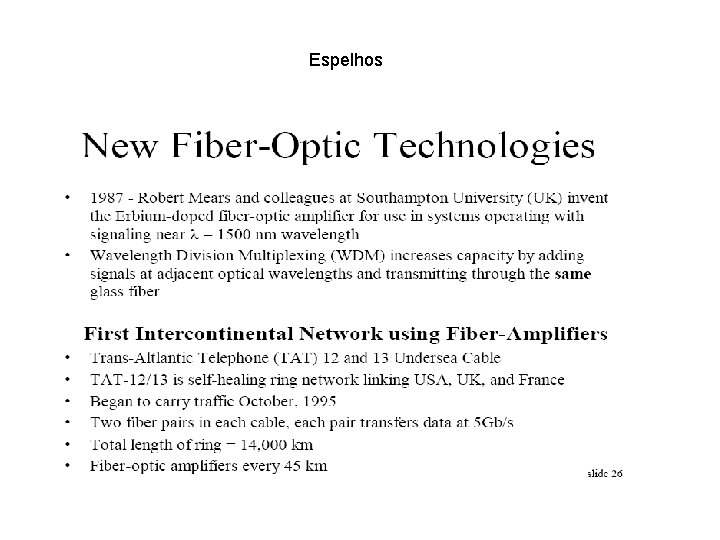

Espelhos

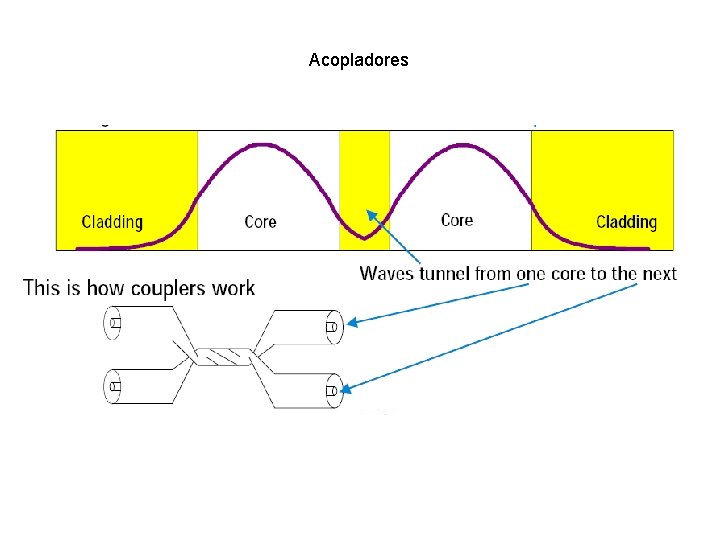

Acopladores
Meio de Ganho

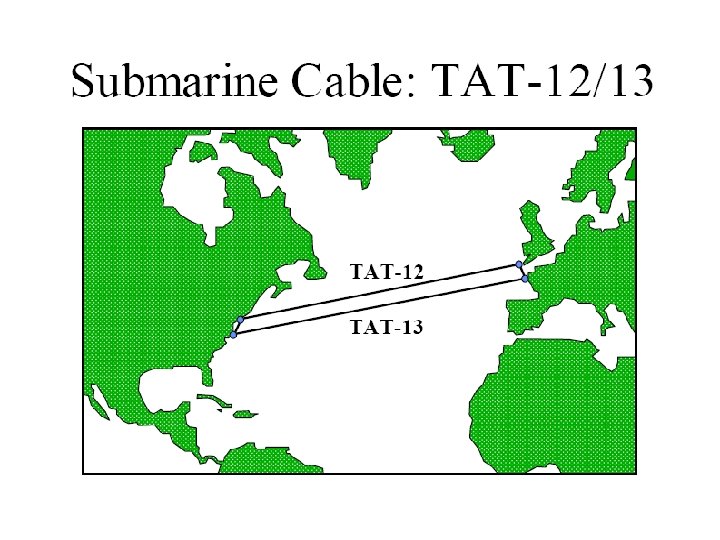

TELECOM
http: //www. anacom. pt Estatísticas : Anuários Estatísticos : 2004
1858

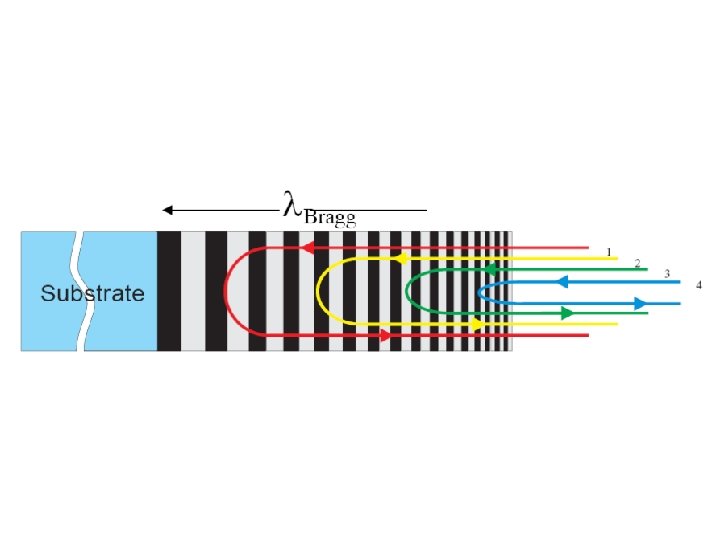

Incoming Spectrum Transmitted Spectrum Reflected Spectrum Layers Substrate
