Enclosure example • Example of enclosure made from Optical Density acrylics. This contains all

Enclosure example • Example of enclosure made from Optical Density acrylics. This contains all stray reflections inside the enclosure. This can be custom or home made

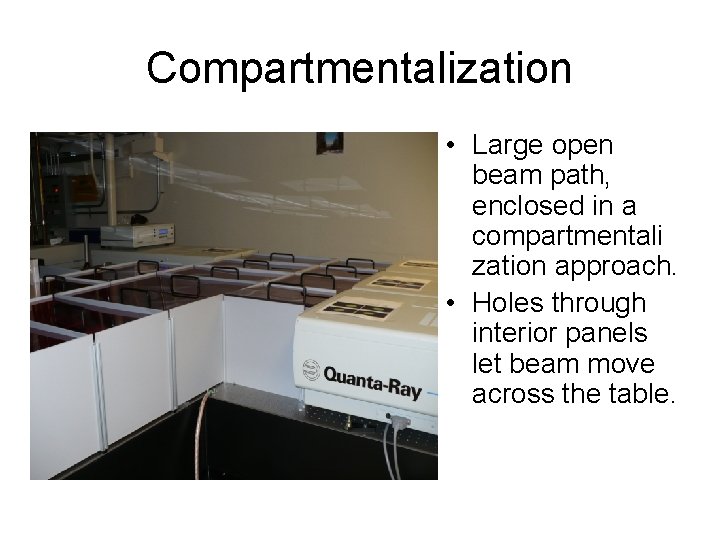

Compartmentalization • Large open beam path, enclosed in a compartmentali zation approach. • Holes

Compartmentalization • Large open beam path, enclosed in a compartmentali zation approach. • Holes through interior panels let beam move across the table.

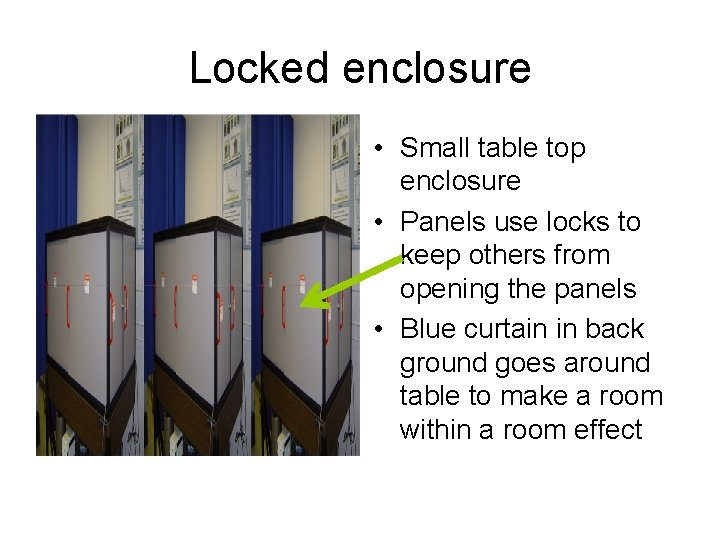

Locked enclosure • Small table top enclosure • Panels use locks to keep others

Locked enclosure • Small table top enclosure • Panels use locks to keep others from opening the panels • Blue curtain in back ground goes around table to make a room within a room effect

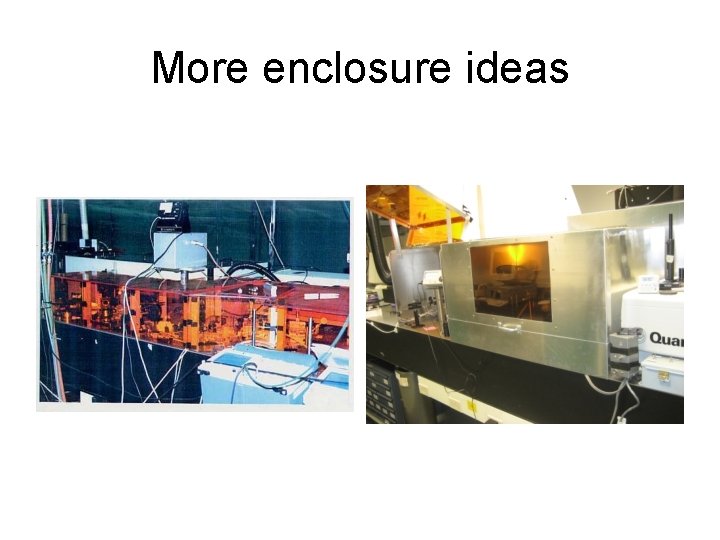

More enclosure ideas

More enclosure ideas

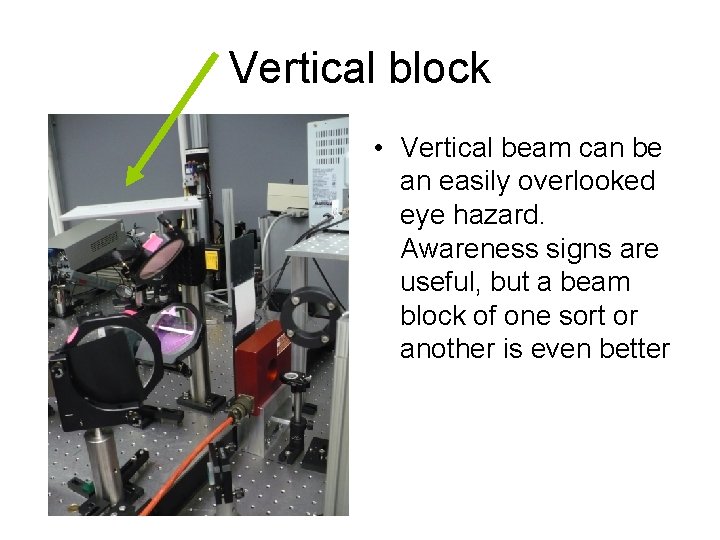

Vertical block • Vertical beam can be an easily overlooked eye hazard. Awareness signs

Vertical block • Vertical beam can be an easily overlooked eye hazard. Awareness signs are useful, but a beam block of one sort or another is even better

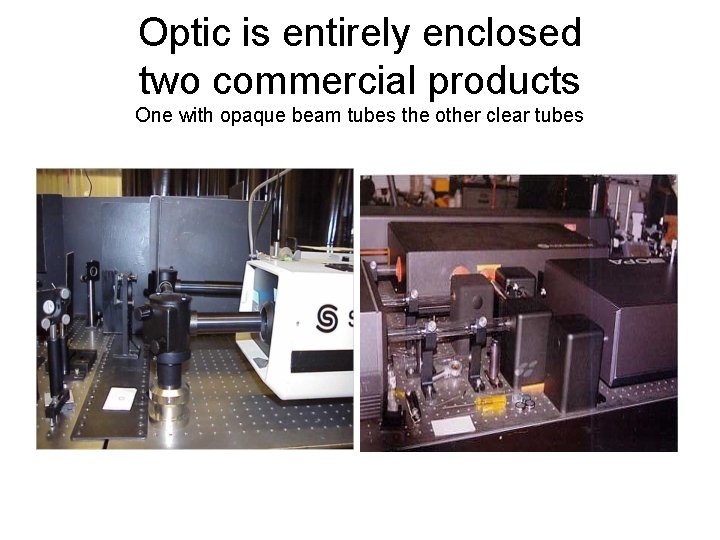

Optic is entirely enclosed two commercial products One with opaque beam tubes the other

Optic is entirely enclosed two commercial products One with opaque beam tubes the other clear tubes

Use beam blocks as often as needed or perimeter guard

Use beam blocks as often as needed or perimeter guard

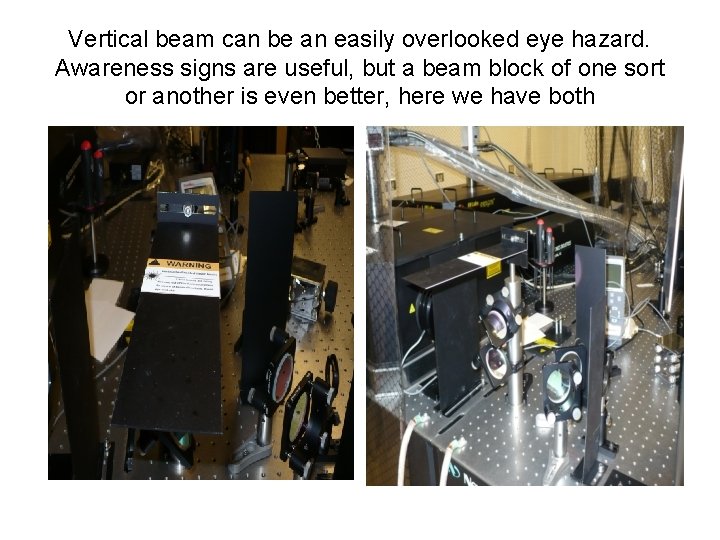

Vertical beam can be an easily overlooked eye hazard. Awareness signs are useful, but

Vertical beam can be an easily overlooked eye hazard. Awareness signs are useful, but a beam block of one sort or another is even better, here we have both

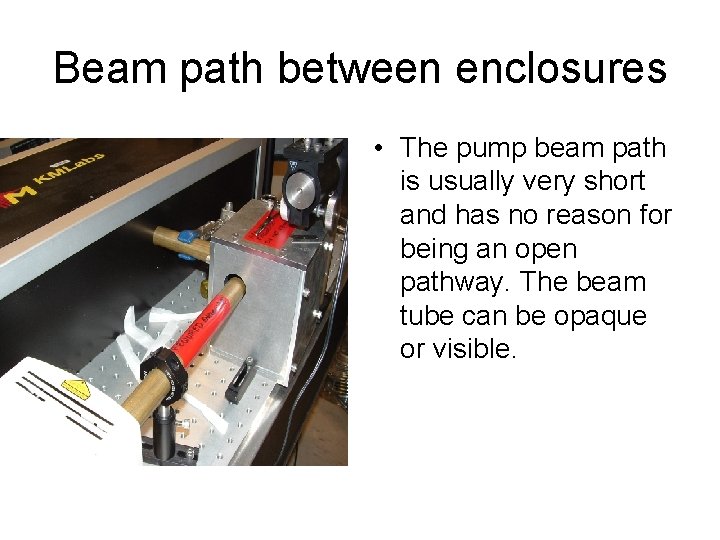

Beam path between enclosures • The pump beam path is usually very short and

Beam path between enclosures • The pump beam path is usually very short and has no reason for being an open pathway. The beam tube can be opaque or visible.

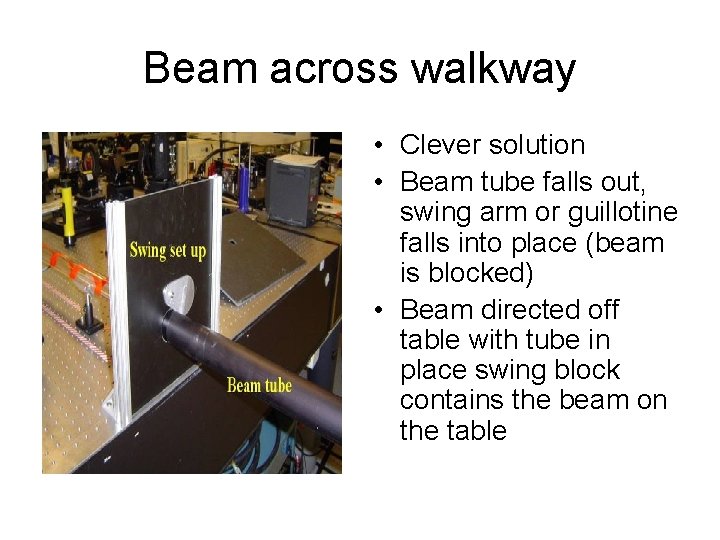

Beam across walkway • Clever solution • Beam tube falls out, swing arm or

Beam across walkway • Clever solution • Beam tube falls out, swing arm or guillotine falls into place (beam is blocked) • Beam directed off table with tube in place swing block contains the beam on the table

Curtains • Can be used to segregate a room into laser areas and laser

Curtains • Can be used to segregate a room into laser areas and laser free areas • Block stray beams from exiting the room – Door or windows • Reduce stray light onto experiment

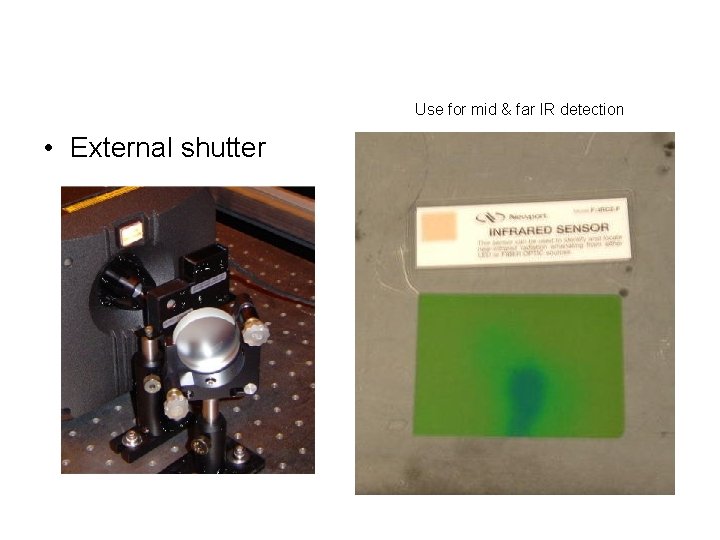

Use for mid & far IR detection • External shutter

Use for mid & far IR detection • External shutter

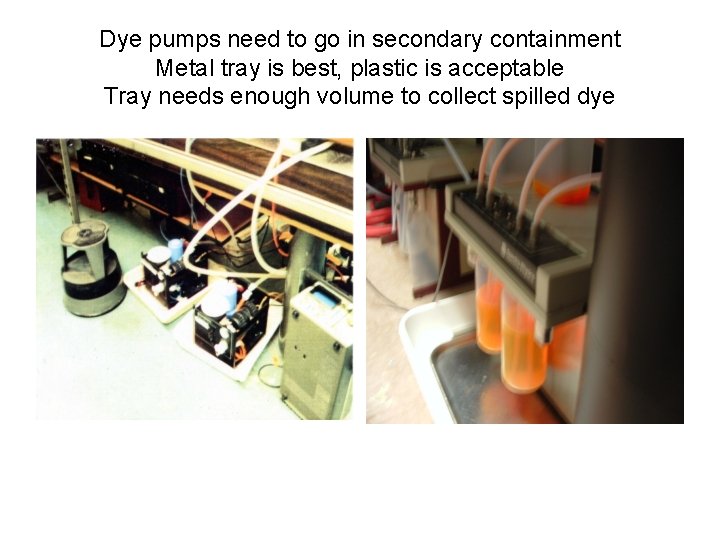

Dye pumps need to go in secondary containment Metal tray is best, plastic is

Dye pumps need to go in secondary containment Metal tray is best, plastic is acceptable Tray needs enough volume to collect spilled dye

Flashing LED • Can be used during special circumstances • Administrative controls • Interlock

Flashing LED • Can be used during special circumstances • Administrative controls • Interlock not functioning • Service work • Alignment • LEDs can be obtained from LSO

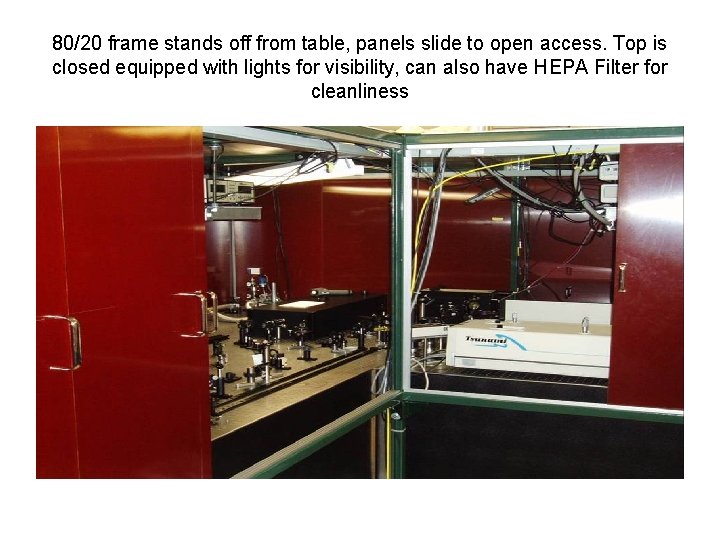

80/20 frame stands off from table, panels slide to open access. Top is closed

80/20 frame stands off from table, panels slide to open access. Top is closed equipped with lights for visibility, can also have HEPA Filter for cleanliness

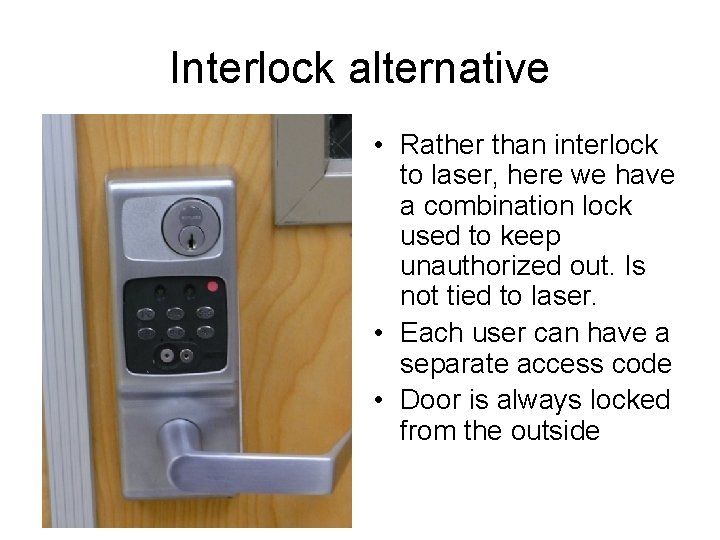

Interlock alternative • Rather than interlock to laser, here we have a combination lock

Interlock alternative • Rather than interlock to laser, here we have a combination lock used to keep unauthorized out. Is not tied to laser. • Each user can have a separate access code • Door is always locked from the outside

Eyewear storage Laser eyewer is best stored in one central location (not a box).

Eyewear storage Laser eyewer is best stored in one central location (not a box). The plastic holder is free from the LSO Eyewer does not have to be stored outside the lab Right inside the entrance is acceptable

Trip hazards, wires and hoses can be reduced with the use of these heavy

Trip hazards, wires and hoses can be reduced with the use of these heavy due plastic bridges. They contain pre-cut groves and can be linked together

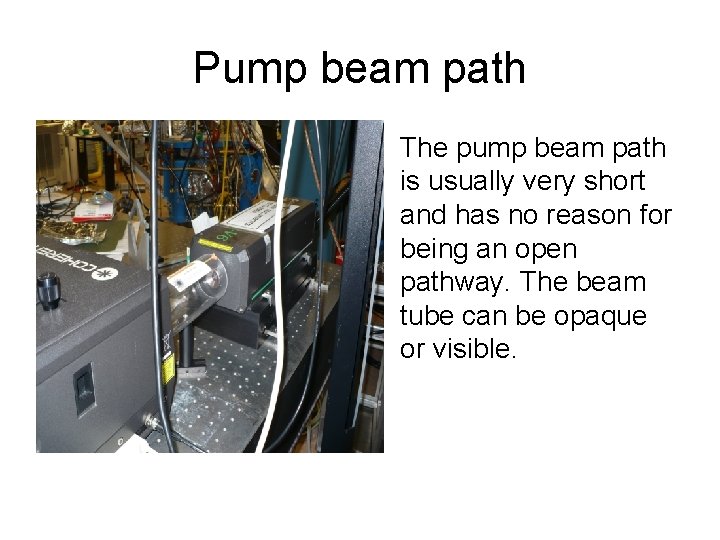

Pump beam path • The pump beam path is usually very short and has

Pump beam path • The pump beam path is usually very short and has no reason for being an open pathway. The beam tube can be opaque or visible.

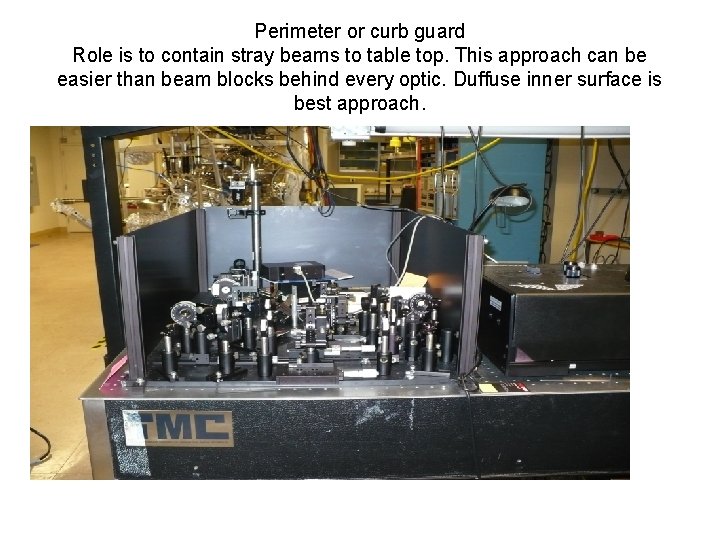

Perimeter or curb guard Role is to contain stray beams to table top. This

Perimeter or curb guard Role is to contain stray beams to table top. This approach can be easier than beam blocks behind every optic. Duffuse inner surface is best approach.

Port cover • Window leading into a vacuum chamber/end station • Controls in play

Port cover • Window leading into a vacuum chamber/end station • Controls in play – Plastic cover to block any stray reflections fro leaving te chamber – Warning label for hazard communication – Bolt lock to make a violation of this window willful
