Laser Notcher Status Dave Johnson Todd Johnson John

Laser Notcher Status Dave Johnson, Todd Johnson, John Sobolewski, Kevin Duel, Andrea Saewert September 11, 2013

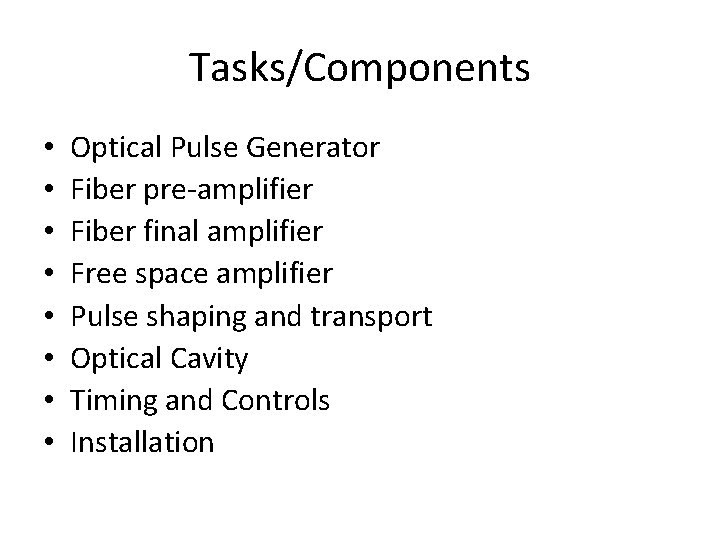

Tasks/Components • • Optical Pulse Generator Fiber pre-amplifier Fiber final amplifier Free space amplifier Pulse shaping and transport Optical Cavity Timing and Controls Installation

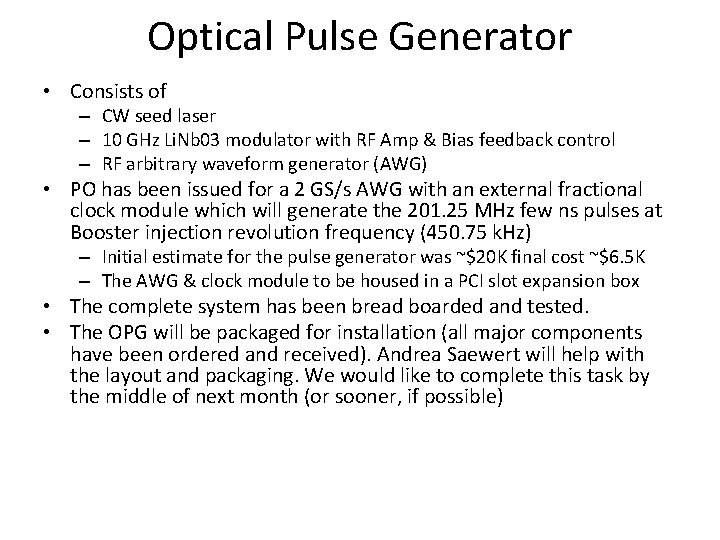

Optical Pulse Generator • Consists of – CW seed laser – 10 GHz Li. Nb 03 modulator with RF Amp & Bias feedback control – RF arbitrary waveform generator (AWG) • PO has been issued for a 2 GS/s AWG with an external fractional clock module which will generate the 201. 25 MHz few ns pulses at Booster injection revolution frequency (450. 75 k. Hz) – Initial estimate for the pulse generator was ~$20 K final cost ~$6. 5 K – The AWG & clock module to be housed in a PCI slot expansion box • The complete system has been bread boarded and tested. • The OPG will be packaged for installation (all major components have been ordered and received). Andrea Saewert will help with the layout and packaging. We would like to complete this task by the middle of next month (or sooner, if possible)

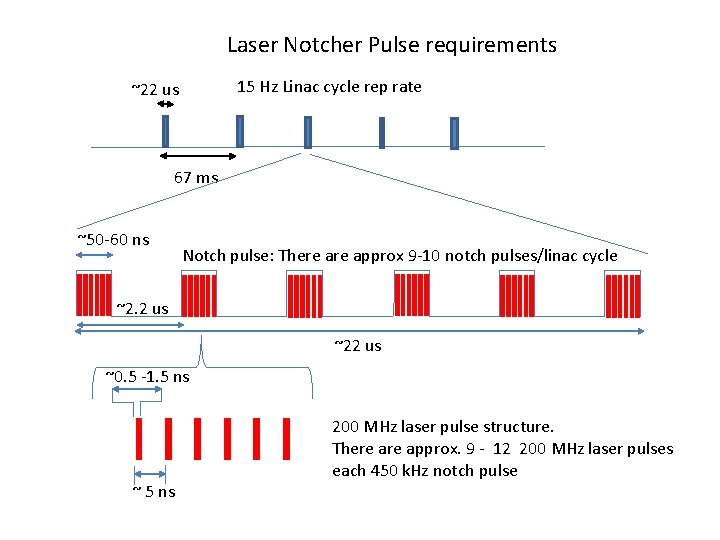

Laser Notcher Pulse requirements 15 Hz Linac cycle rep rate ~22 us 67 ms ~50 -60 ns Notch pulse: There approx 9 -10 notch pulses/linac cycle ~2. 2 us ~22 us ~0. 5 -1. 5 ns ~ 5 ns 200 MHz laser pulse structure. There approx. 9 - 12 200 MHz laser pulses each 450 k. Hz notch pulse

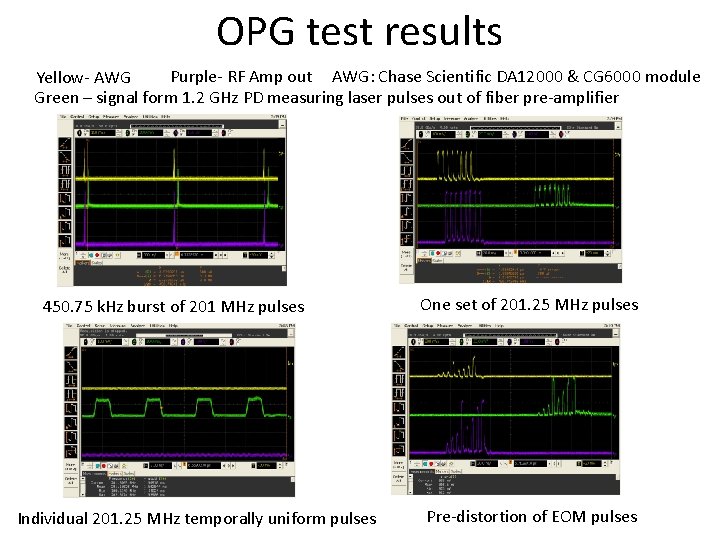

OPG test results Purple- RF Amp out AWG: Chase Scientific DA 12000 & CG 6000 module Yellow- AWG Green – signal form 1. 2 GHz PD measuring laser pulses out of fiber pre-amplifier 450. 75 k. Hz burst of 201 MHz pulses Individual 201. 25 MHz temporally uniform pulses One set of 201. 25 MHz pulses Pre-distortion of EOM pulses

Fiber pre-Amplifier • We have verified the operation of the 100 m. W and 2 Watt fiber pre-amplifiers from Pri. Tel meet specifications. • Neither were spec’d for “auto shutdown” to turn off pump when laser seed goes away or drops below s threshold – If the fiber is pumped with out a seed present it can “auto qswitch” and potentially damage itself or other components. – This occurred in the 2 W amp when the preamp power was at a low amplification. Consequently, the pump diode on the 100 m. W pre-amp was damaged and several fiber connectors in the chain were damaged. This was repaired by Pri. Tel under warranty. • The two amplifiers are to be returned to Pri. Tel to combine them in a single unit adding the “auto shutdown” feature, computer control, and fusion splicing the two amplifiers together. This will be re-packaged into a compact 19” rack mount module. Could be done this year. Est. on the order of $5 K.

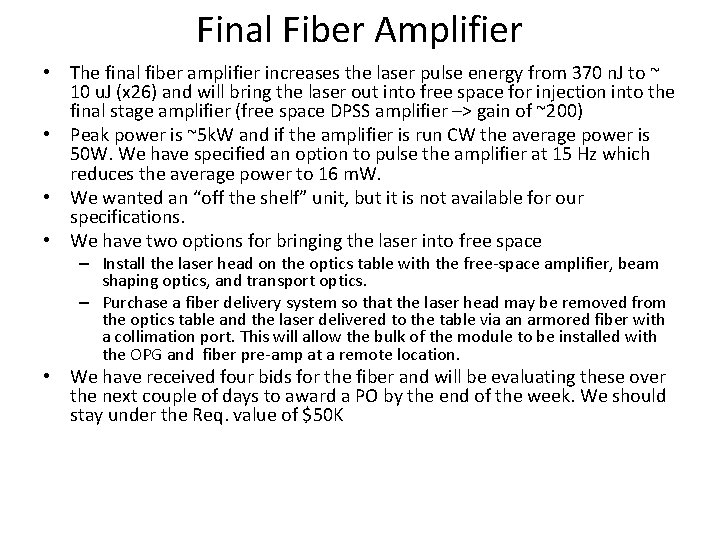

Final Fiber Amplifier • The final fiber amplifier increases the laser pulse energy from 370 n. J to ~ 10 u. J (x 26) and will bring the laser out into free space for injection into the final stage amplifier (free space DPSS amplifier –> gain of ~200) • Peak power is ~5 k. W and if the amplifier is run CW the average power is 50 W. We have specified an option to pulse the amplifier at 15 Hz which reduces the average power to 16 m. W. • We wanted an “off the shelf” unit, but it is not available for our specifications. • We have two options for bringing the laser into free space – Install the laser head on the optics table with the free-space amplifier, beam shaping optics, and transport optics. – Purchase a fiber delivery system so that the laser head may be removed from the optics table and the laser delivered to the table via an armored fiber with a collimation port. This will allow the bulk of the module to be installed with the OPG and fiber pre-amp at a remote location. • We have received four bids for the fiber and will be evaluating these over the next couple of days to award a PO by the end of the week. We should stay under the Req. value of $50 K

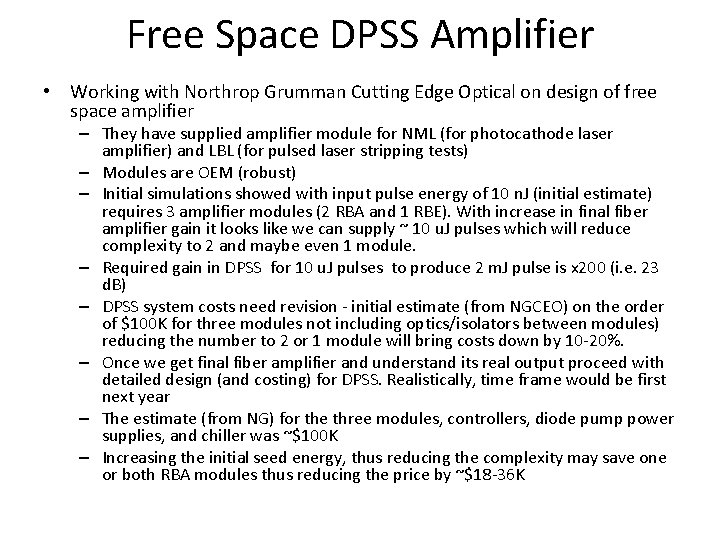

Free Space DPSS Amplifier • Working with Northrop Grumman Cutting Edge Optical on design of free space amplifier – They have supplied amplifier module for NML (for photocathode laser amplifier) and LBL (for pulsed laser stripping tests) – Modules are OEM (robust) – Initial simulations showed with input pulse energy of 10 n. J (initial estimate) requires 3 amplifier modules (2 RBA and 1 RBE). With increase in final fiber amplifier gain it looks like we can supply ~ 10 u. J pulses which will reduce complexity to 2 and maybe even 1 module. – Required gain in DPSS for 10 u. J pulses to produce 2 m. J pulse is x 200 (i. e. 23 d. B) – DPSS system costs need revision - initial estimate (from NGCEO) on the order of $100 K for three modules not including optics/isolators between modules) reducing the number to 2 or 1 module will bring costs down by 10 -20%. – Once we get final fiber amplifier and understand its real output proceed with detailed design (and costing) for DPSS. Realistically, time frame would be first next year – The estimate (from NG) for the three modules, controllers, diode pump power supplies, and chiller was ~$100 K – Increasing the initial seed energy, thus reducing the complexity may save one or both RBA modules thus reducing the price by ~$18 -36 K

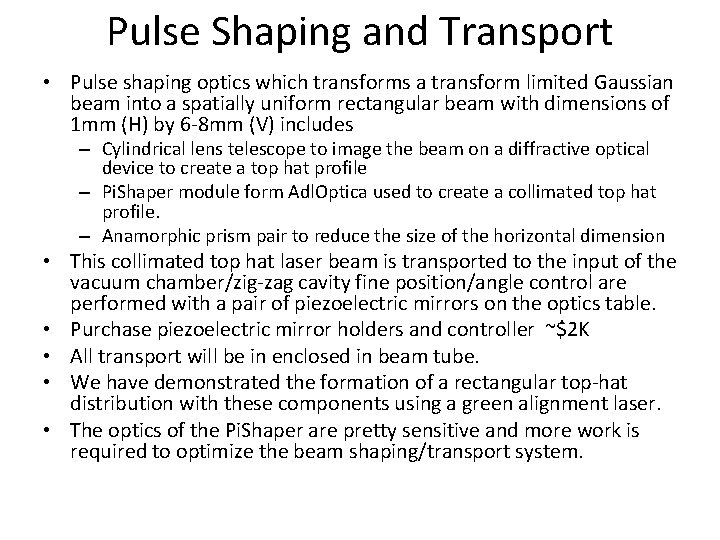

Pulse Shaping and Transport • Pulse shaping optics which transforms a transform limited Gaussian beam into a spatially uniform rectangular beam with dimensions of 1 mm (H) by 6 -8 mm (V) includes – Cylindrical lens telescope to image the beam on a diffractive optical device to create a top hat profile – Pi. Shaper module form Adl. Optica used to create a collimated top hat profile. – Anamorphic prism pair to reduce the size of the horizontal dimension • This collimated top hat laser beam is transported to the input of the vacuum chamber/zig-zag cavity fine position/angle control are performed with a pair of piezoelectric mirrors on the optics table. • Purchase piezoelectric mirror holders and controller ~$2 K • All transport will be in enclosed in beam tube. • We have demonstrated the formation of a rectangular top-hat distribution with these components using a green alignment laser. • The optics of the Pi. Shaper are pretty sensitive and more work is required to optimize the beam shaping/transport system.

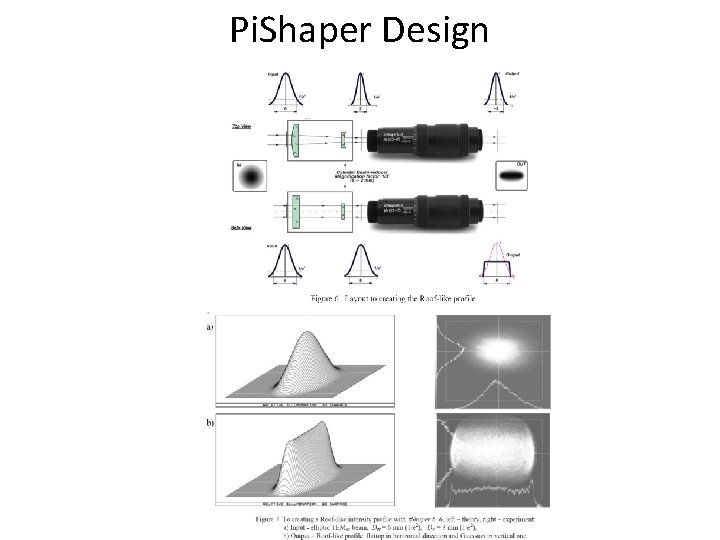

Pi. Shaper Design

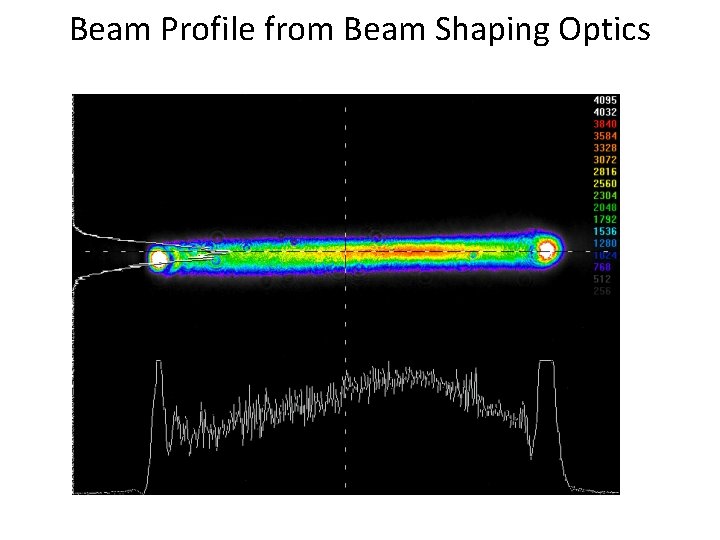

Beam Profile from Beam Shaping Optics

Optical Cavity • • • Optical cavity design highly constrained due to limited space. < 2” from RFQ flange sealing surface. Number of bounces (21) reduces required laser power by factor of 21. Laser path matches velocity of H- which determines mirror separation (3. 37 cm) and reflection angle (2. 288 o) John Sobolewski (M. S. co-op) made 3 D design and model with input from Todd Johnson and Dave Johnson 3 D model tested with 532 nm laser (it worked very nicely) Test highlighted changes to better optimize design Kevin Duel/Todd Johnson to work with Fred Mach (ADMS contract drafter) to finalize changes and produce fabrication prints -> would like to have drawings by mid-October University of Born ( Igor Kreslo & Michele Weber) interested in collaboration > potential fabrication of vacuum chamber and optical cavity Mirror alignment done on bench – no alignment after installation Need to order optical view ports (AR coated for 1064 nm) ~$1800 Need to order final cavity mirrors (>99. 95% reflectivity) ~ $3800 Need design for optical BPM’s and diagnostic camera/beam dump for tuning the laser through the optical cavity.

Optical cavity 3 D printed prototype Attach to RFQ Laser IN Laser OUT Interface with MEBT Mirrors at 2. 288 o wrt H- beam showing 21 interactions

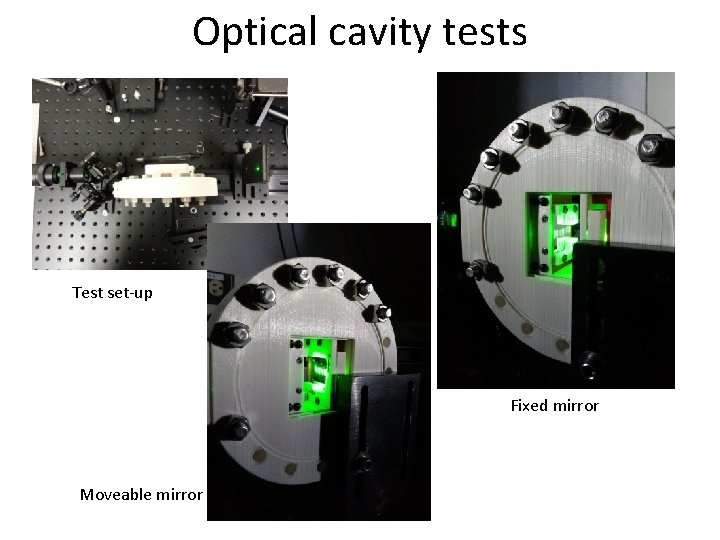

Optical cavity tests Test set-up Fixed mirror Moveable mirror

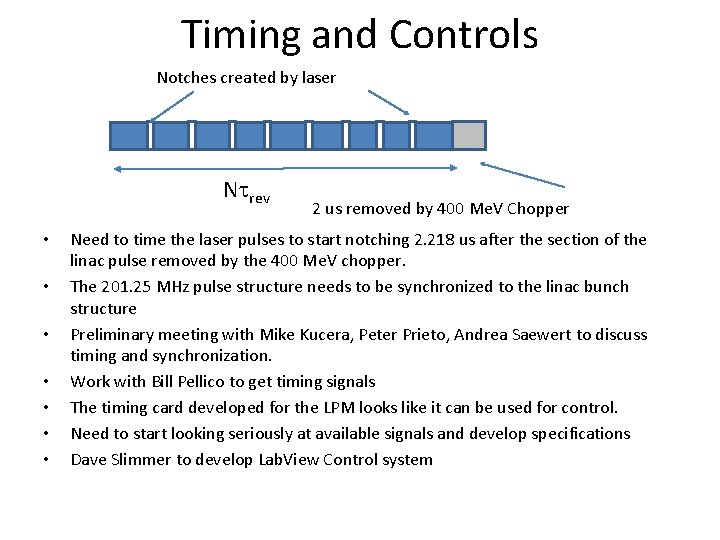

Timing and Controls Notches created by laser Ntrev • • 2 us removed by 400 Me. V Chopper Need to time the laser pulses to start notching 2. 218 us after the section of the linac pulse removed by the 400 Me. V chopper. The 201. 25 MHz pulse structure needs to be synchronized to the linac bunch structure Preliminary meeting with Mike Kucera, Peter Prieto, Andrea Saewert to discuss timing and synchronization. Work with Bill Pellico to get timing signals The timing card developed for the LPM looks like it can be used for control. Need to start looking seriously at available signals and develop specifications Dave Slimmer to develop Lab. View Control system

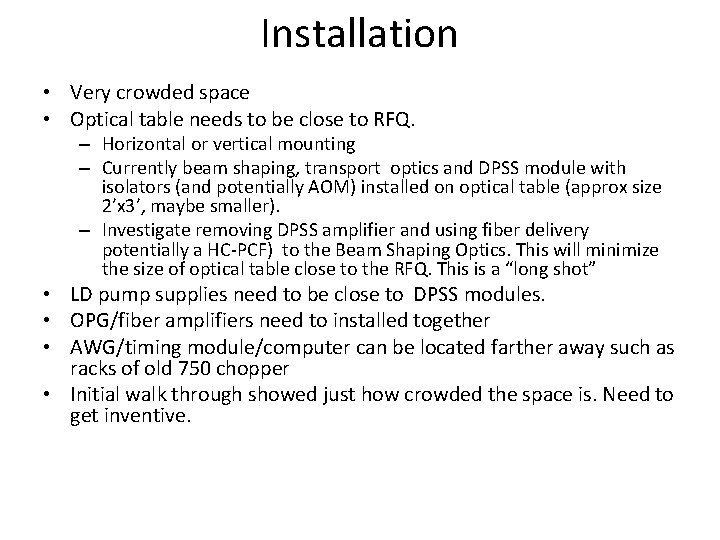

Installation • Very crowded space • Optical table needs to be close to RFQ. – Horizontal or vertical mounting – Currently beam shaping, transport optics and DPSS module with isolators (and potentially AOM) installed on optical table (approx size 2’x 3’, maybe smaller). – Investigate removing DPSS amplifier and using fiber delivery potentially a HC-PCF) to the Beam Shaping Optics. This will minimize the size of optical table close to the RFQ. This is a “long shot” • LD pump supplies need to be close to DPSS modules. • OPG/fiber amplifiers need to installed together • AWG/timing module/computer can be located farther away such as racks of old 750 chopper • Initial walk through showed just how crowded the space is. Need to get inventive.

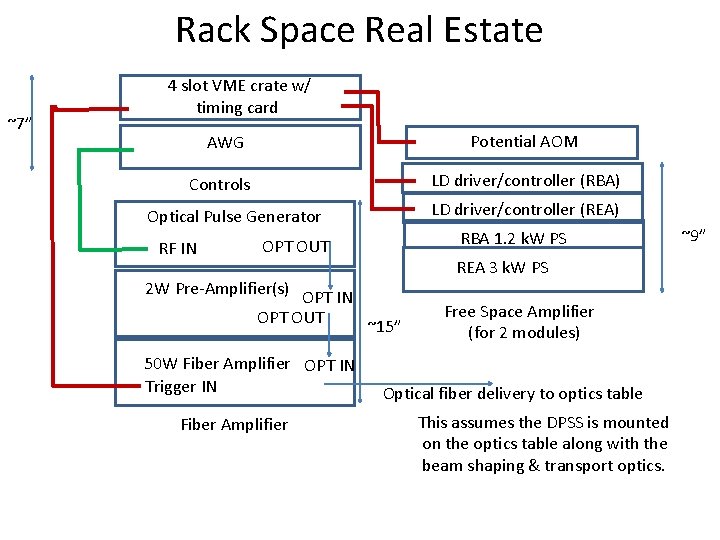

Rack Space Real Estate ~7” 4 slot VME crate w/ timing card Potential AOM AWG LD driver/controller (RBA) Controls LD driver/controller (REA) Optical Pulse Generator RF IN RBA 1. 2 k. W PS OPT OUT REA 3 k. W PS 2 W Pre-Amplifier(s) OPT IN OPT OUT 50 W Fiber Amplifier OPT IN Trigger IN Fiber Amplifier ~15” Free Space Amplifier (for 2 modules) Optical fiber delivery to optics table This assumes the DPSS is mounted on the optics table along with the beam shaping & transport optics. ~9”

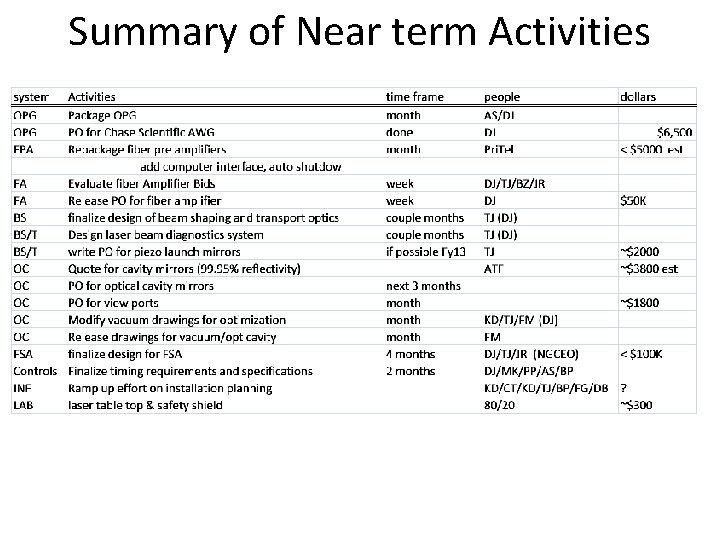

Summary of Near term Activities
