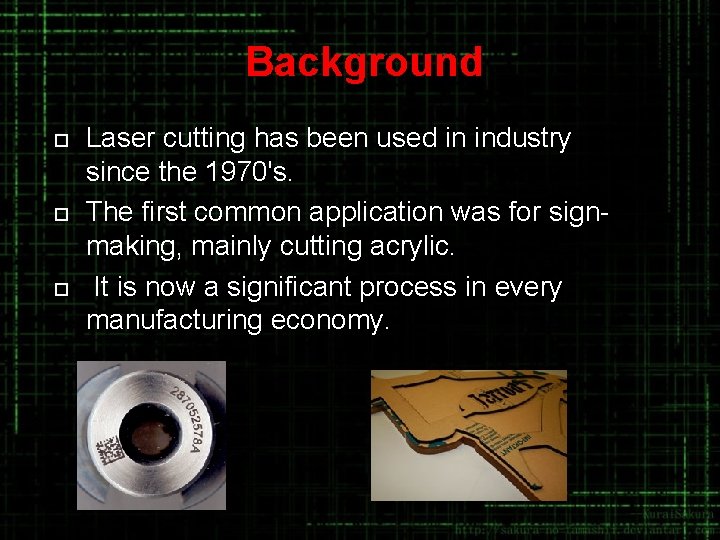

Background ¨ ¨ ¨ Laser cutting has been used in industry since the 1970's. The first common application was for signmaking, mainly cutting acrylic. It is now a significant process in every manufacturing economy.
Introduction ¨ Laser cutting is a technology that uses a laser to cut precise patterns in most all types of materials such as metal, ceramic , paper and so on.

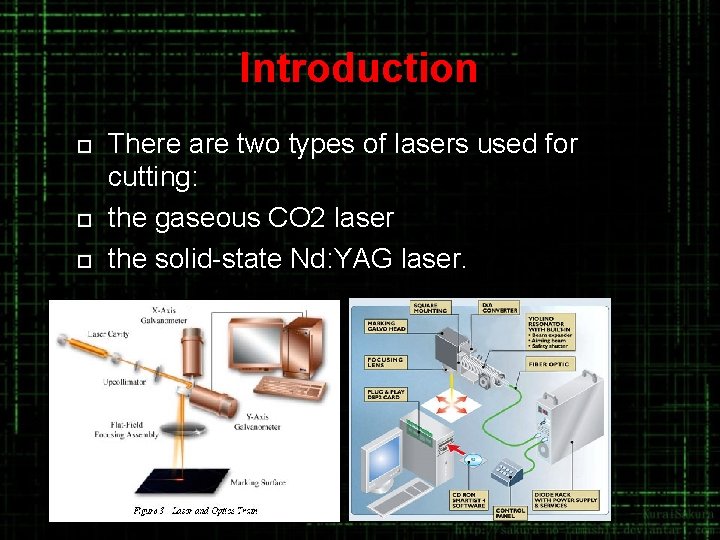

Introduction ¨ ¨ ¨ There are two types of lasers used for cutting: the gaseous CO 2 laser the solid-state Nd: YAG laser.

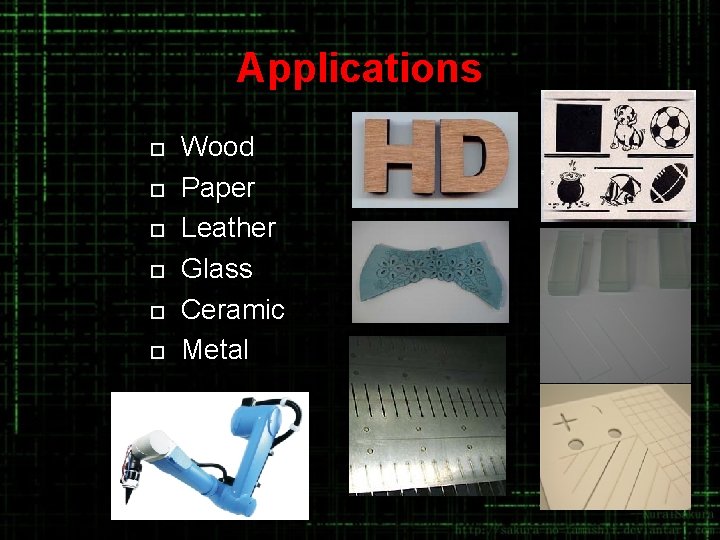

Applications ¨ ¨ ¨ Wood Paper Leather Glass Ceramic Metal
Benefits ¨ ¨ The flexibility and precision cutting of simple or complex parts; A non contact cut which means no marks or contamination of the material; A high quality cut with no extra finishing required; The ability to cut almost any material.

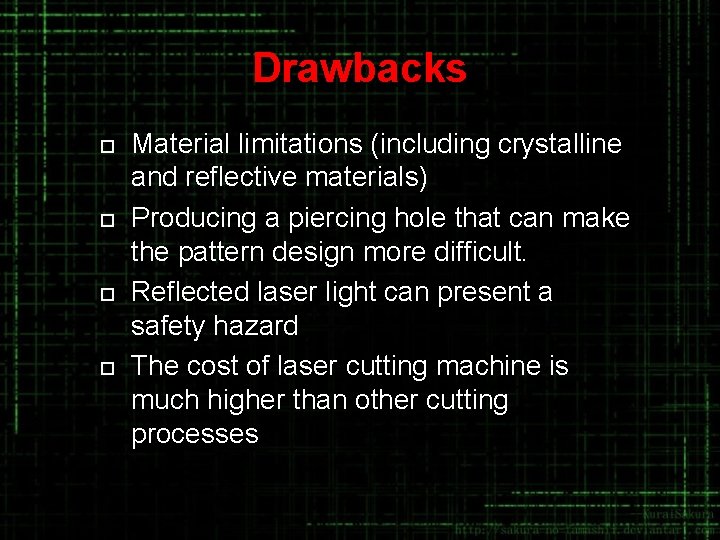

Drawbacks ¨ ¨ Material limitations (including crystalline and reflective materials) Producing a piercing hole that can make the pattern design more difficult. Reflected laser light can present a safety hazard The cost of laser cutting machine is much higher than other cutting processes
Components of System ¨ ¨ ¨ Control Unit (CNC program) Power supply (120 or 240 v) Work piece positioning table ¡ may be fixed or move in up to 2 directions ¡ May contain fastening devices ¡ scrap removal system ¨ Optics Unit (focusing unit) ¡ mirrors, focusing lens, ¨ ¨ Fasteners Gas/debris removal system
Optical Unit ¨ ¨ ¨ Mirrors direct the beam from the source down to the lens then focuses the beam into the desired geometry finally the assist gas is added to remove the molten metal
Capabilities ¨ Materials ¡ Steel, Titanium, Paper, Wood, Leather, Wax, Plastic, Fabric ¨ ¨ Easily cuts. 5 inch stainless steel Limitations ¡ Reflective materials, highly conductive ¨ Many applications
Examples Use ¨ Hobby shop ¡ Small production runs ¡ Used for prototyping and hobbies ¡ Generally use a Moving Optics configuration ¡ Connected to fume hood for ventilation ¡ May be home made

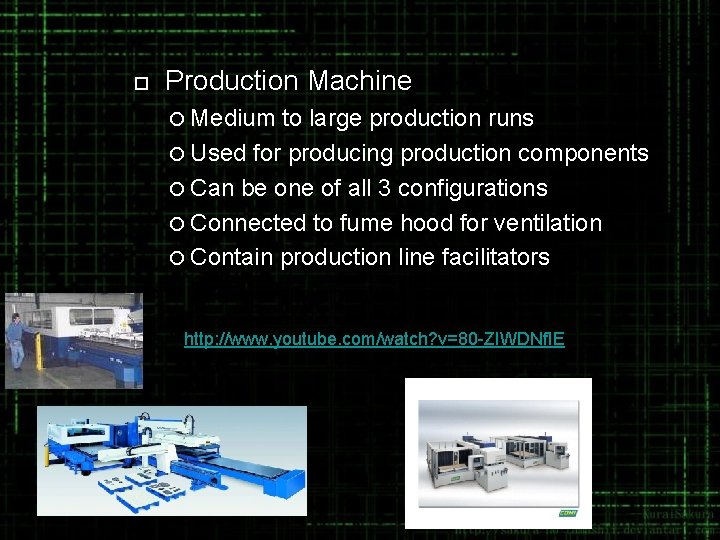

¨ Production Machine ¡ Medium to large production runs ¡ Used for producing production components ¡ Can be one of all 3 configurations ¡ Connected to fume hood for ventilation ¡ Contain production line facilitators http: //www. youtube. com/watch? v=80 -ZIWDNf. IE
Processes and Practices • Laser Cutting Results Majority of applications are in 2 D • Extreme precision can be achieved • Capable of providing high tolerances and providing high quality surface finishes • • Results on the Material May affect hardness • Possible change in grain size • Narrow heat-affected zone •

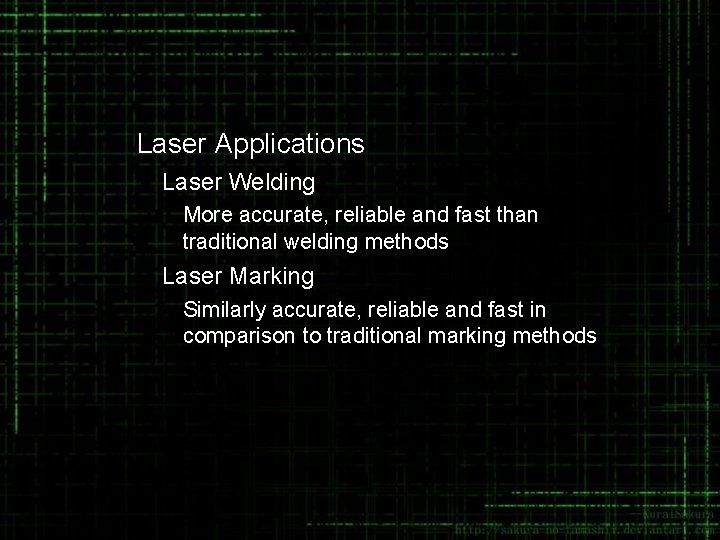

• Laser Applications • Laser Welding • More accurate, reliable and fast than traditional welding methods • Laser Marking • Similarly accurate, reliable and fast in comparison to traditional marking methods

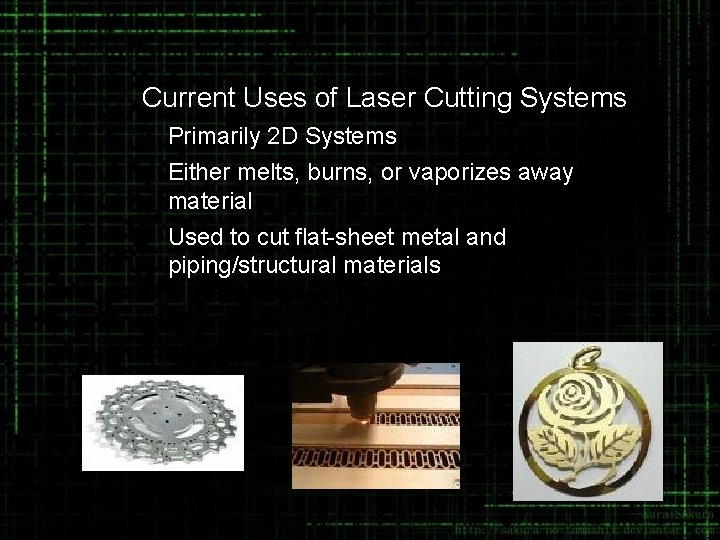

• Current Uses of Laser Cutting Systems Primarily 2 D Systems • Either melts, burns, or vaporizes away material • Used to cut flat-sheet metal and piping/structural materials •

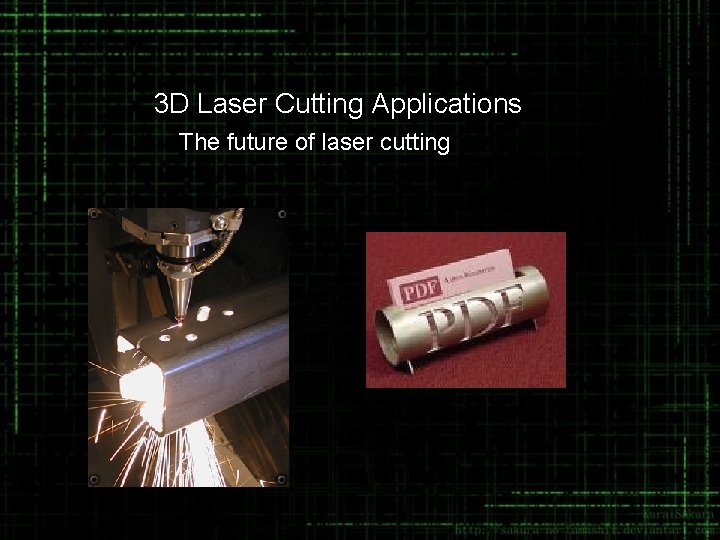

• 3 D Laser Cutting Applications • The future of laser cutting
• About 3 D Laser Cutters 6 -axis rotary head to allow beveled and mitered cuts • Capable of cutting round, square, channel, angle and other structural shapes • Up to ¾” cut thickness • Industries Served • • Automotive, industrial, electrical, constructions and aerospace
Economics of Laser Cutters ¨High Initial Costs, some machines $300, 000 + ¨Protective glass, gas nozzles, dust and particle filters need replacement ¨High use of cutting gasses 500 -2000 L of O 2 or N 2 (. 36 $/L)
• • • Efficient use of Laser Cutters is very material and application dependent Initial startup costs are high, but the larger cost is the gas used to expel the material out of the cut Creates very precise cuts with little to no finishing work required
Safety Hazards ¨ ¨ Contact with hot workpiece Hand/eye contact with beam Inhalation of fumes Smoke, Fumes, dust particles have environmental risks
5 Words ¨ ¨ ¨ Laser cutting - Laserski razrez Crystal Line materiales - Kristalni materiali Fasteners - Vijaki Initial Costs - Začetni stroški Vaporize away material - uparjevanje materiala stran 21
