LargeScale Deployments With Pogo At Yahoo Mike Schilli

Large-Scale Deployments With Pogo At Yahoo! Mike Schilli YAPC: : NA 06/14/2012

What’s Pogo? • Yahoo’s deployment system – Highly scalable (thousands of targets) – Highly parallelized rollouts – In active use for several years • Open Source version available (pre-alpha)

Pogo in a CI environment

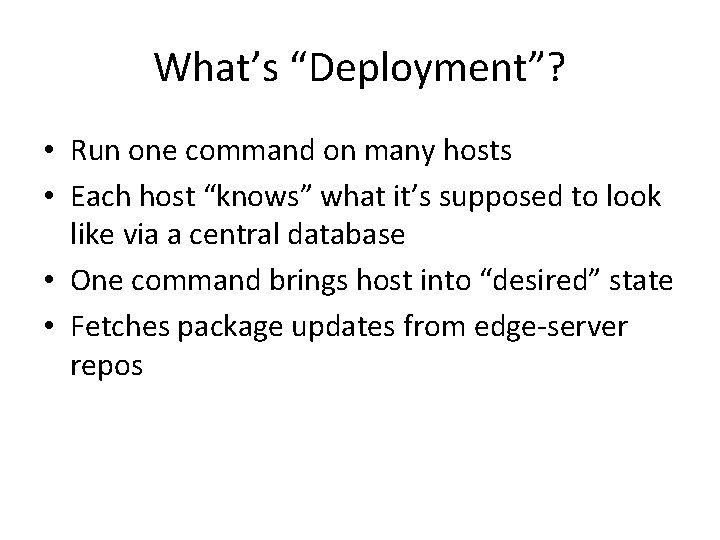

What’s “Deployment”? • Run one command on many hosts • Each host “knows” what it’s supposed to look like via a central database • One command brings host into “desired” state • Fetches package updates from edge-server repos

Run one command on many hosts • Act on all hosts immediately

Run one command on many hosts • Act on all hosts immediately

Example Server Farm

Pogo Features • • • Sequences Parallelizes with constraints Halts if errors violate constraints Runs health checks (pre/post hooks) Command agnostic (rpm, apt-get, custom, etc. )

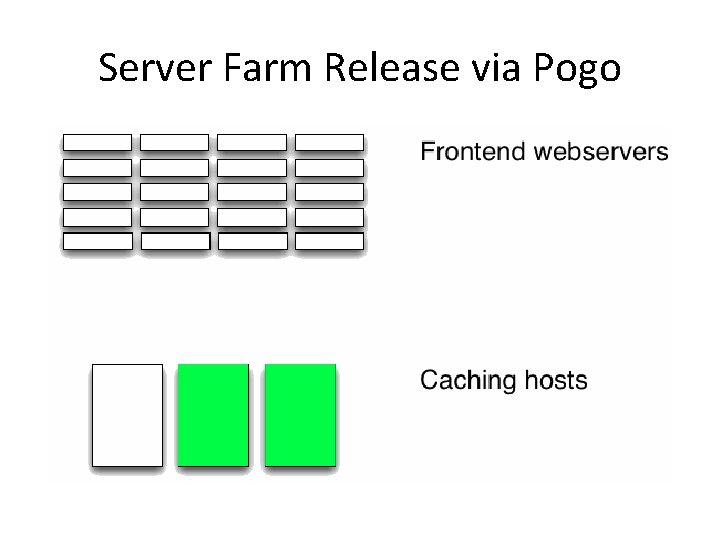

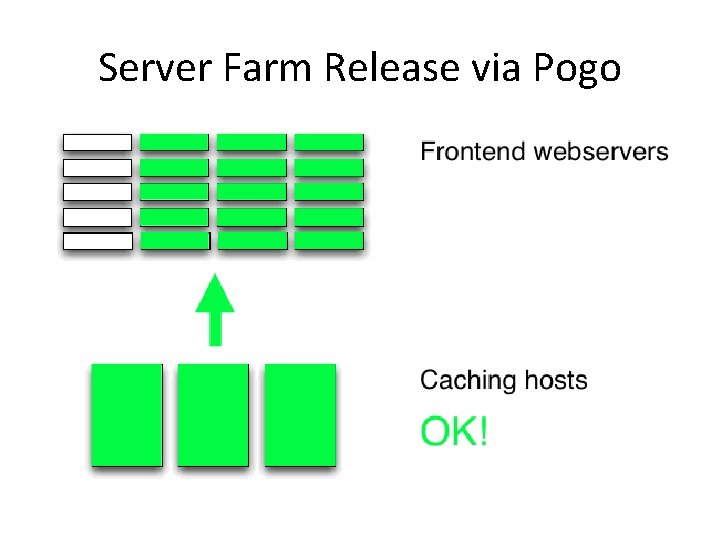

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Server Farm Release via Pogo

Pogo Configuration

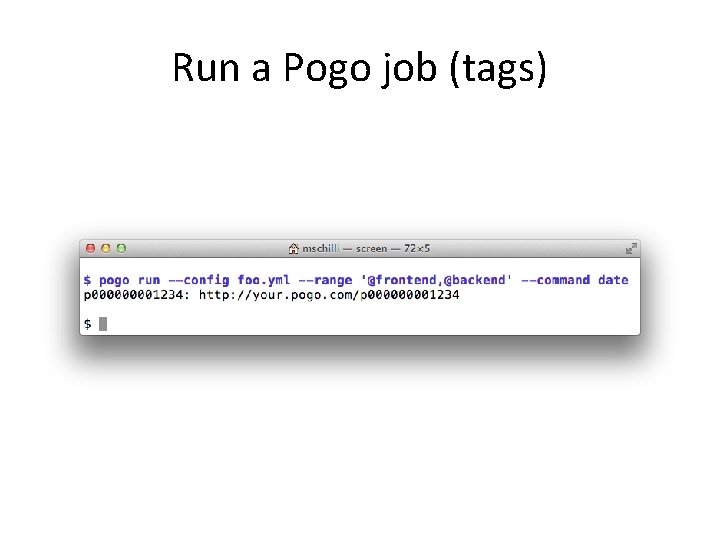

Run a Pogo job (tags)

Pogo UI – Single Job View

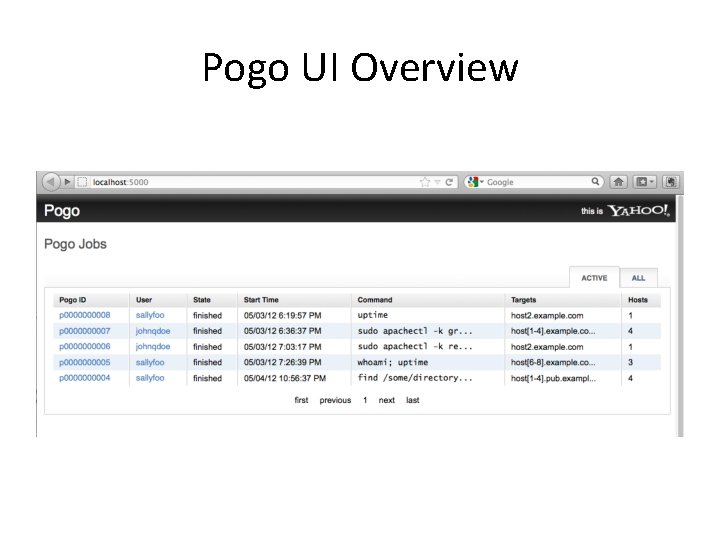

Pogo UI Overview

Pogo UI – Host View

Pogo UI – Start it Up $ perl -Ilib bin/pogo-api-28> Listening on 0. 0: 7657 $ perl -Ilib bin/pogo-ui -v pogo-ui-22> Listening on port 5000

Run a Pogo job (targets)

Pogo Configuration

State of Pogo • Pre-alpha Open Source version on Github • OSS Pogo will be completed in the coming months

Pogo on Github • Developed in the open: – https: //github. com/ytoolshed/pogo • Internally used with plugins to adapt to specific data sources

CI Tests with travis-ci. org

The Gory Details

Pogo – User View

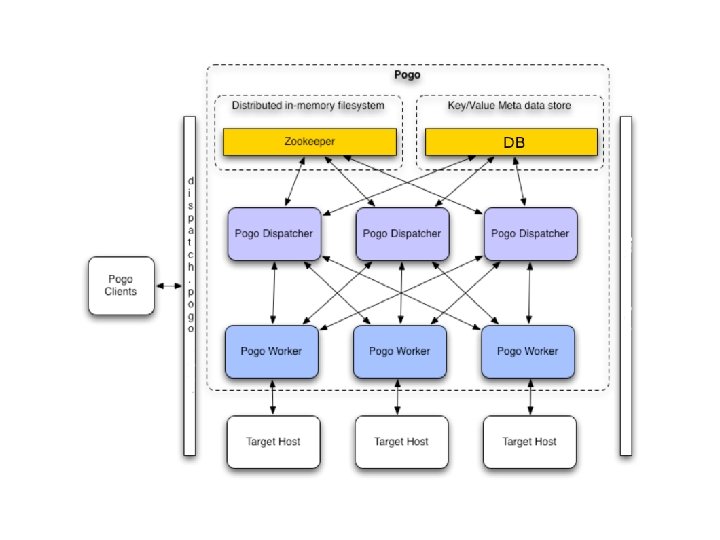

Pogo Workflow

Authentication/Authorization • Web server authentication for submitting jobs • Target authentication via passwords or priv/pub keys • Credentials encrypted with worker pubkey • Credentials never stored persistently (or Zoo. Keeper)

Pogo “Hooks” • Scripts that run before or after Pogo commands • Used to prepare host, perform check health, or other functions • Installed locally on target hosts • rc. d style invocation: run in alphanumeric order

Pogo “Hooks” (cont. ) • Two types: – pre hook: run before the specified command – post hook: run after the specified command • If any hook script fails: – No further scripts or commands run – Host is marked as failed

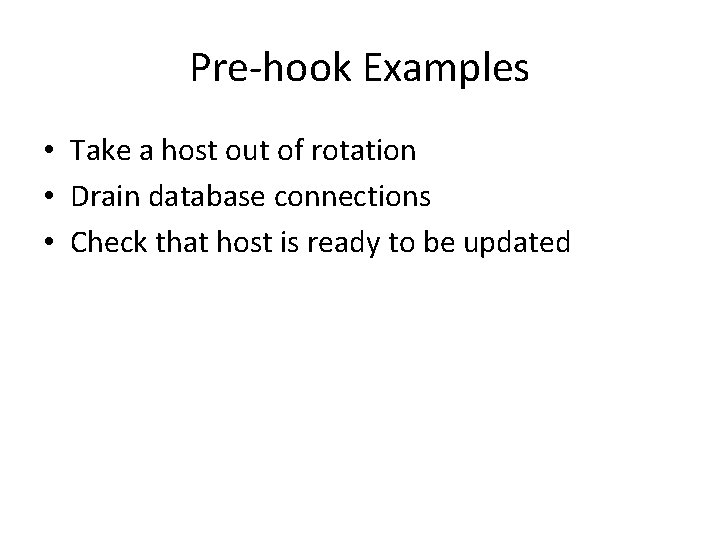

Pre-hook Examples • Take a host out of rotation • Drain database connections • Check that host is ready to be updated

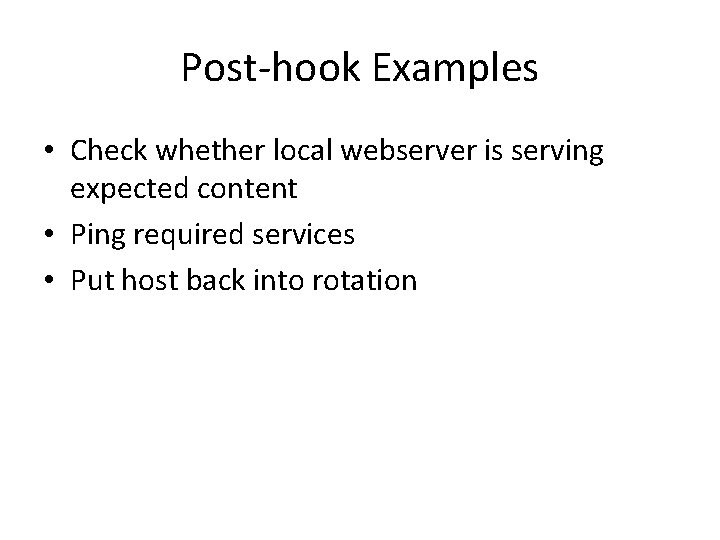

Post-hook Examples • Check whether local webserver is serving expected content • Ping required services • Put host back into rotation

Host Failures and Concurrency • If a host fails: – Command returns non-zero – Pre- or post-hook returns non-zero • The failed host counts against the acceptable number/percent of unavailable hosts • Example: – Four hosts in an app can run at a time – One host in the app fails – Only three hosts will be acted on at a time going forward

Implementation • Any. Event Framework • Asynchronous, event-based • Added Object: : Event for event pub/sub

HTTP Client in Any. Event

HTTP Client in Any. Event

HTTP Client in Any. Event

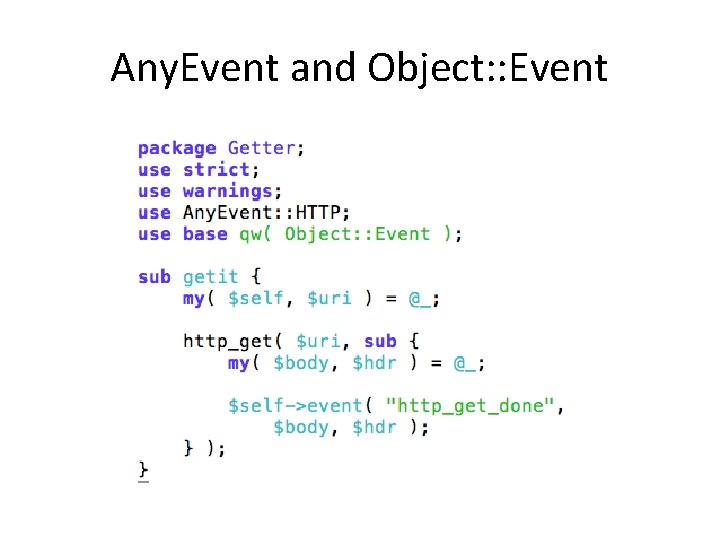

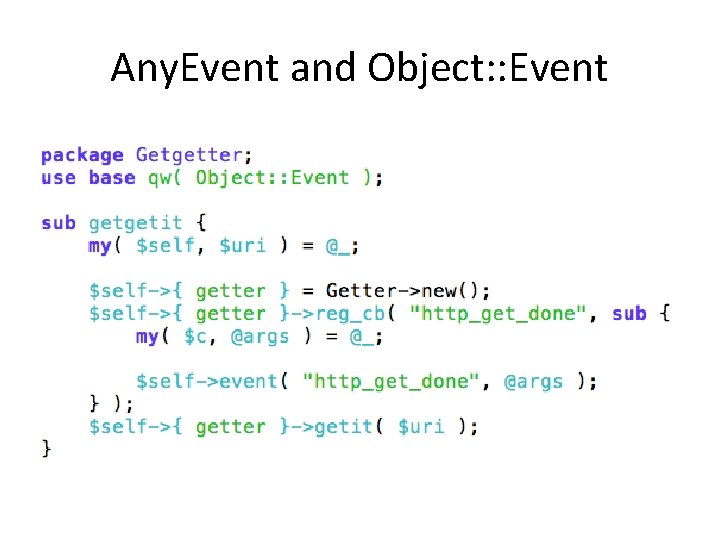

Any. Event and Object: : Event

Any. Event and Object: : Event

Any. Event and Object: : Event

Queue Processor with Any. Event and Object: : Event

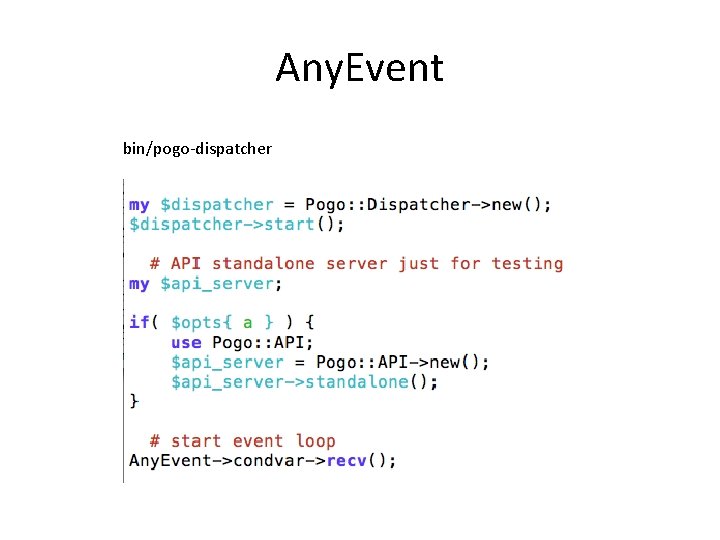

Any. Event bin/pogo-dispatcher

Testing Any. Event Components

All Pogo Components

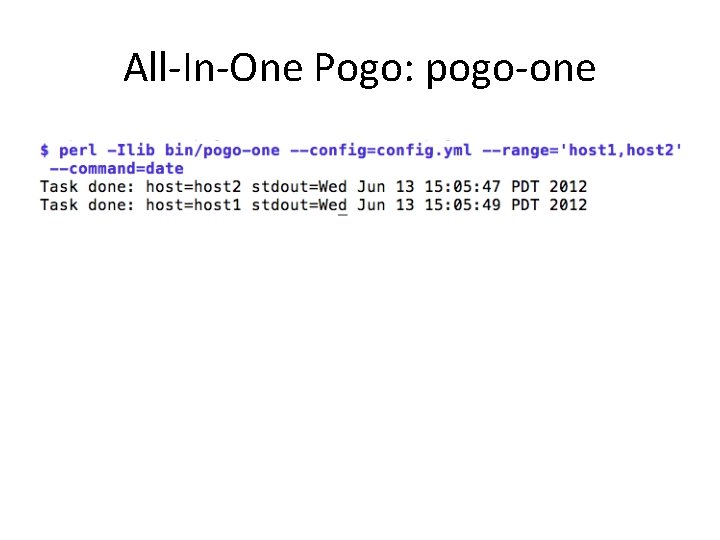

All-In-One Pogo: pogo-one

All-In-One Pogo: pogo-one

All-In-One Pogo: pogo-one

Questions?

Thanks! • Pogo on Github: – http: //github. com/ytoolshed/pogo

Lessons learned along the Way

Set up Unit Tests with Travis-ci. org

Runs immediately after Github checkins

CI Tests with travis-ci. org

Configure CI with travis-ci. org

Select Github project

Authorize travis-ci. org

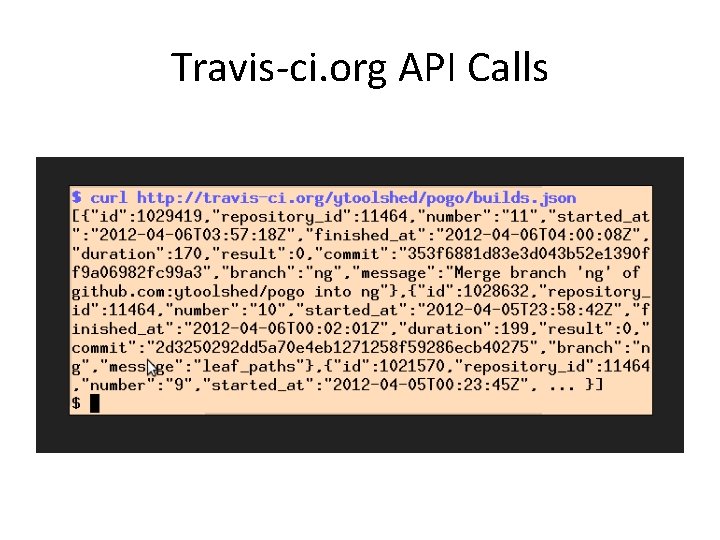

Travis-ci. org API Calls

Filling in Passwords

Filling in Passwords • • Test logging into machines without sshkeys Convenient for testing Answer to sudo prompts on targets Answer to prompts for encrypted packages

Filling in Passwords • Good password prompt: mschilli@localhost's password: • Not password prompt! … user ''@'localhost' (using password: NO)

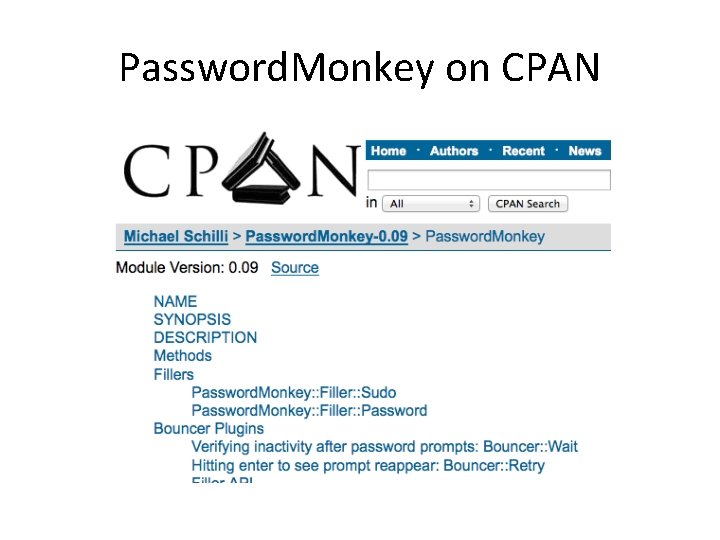

Password. Monkey on CPAN

Plack

Plack

Plack/PSGI • Plack used for server-independent web application – API – Dispatcher Control Port

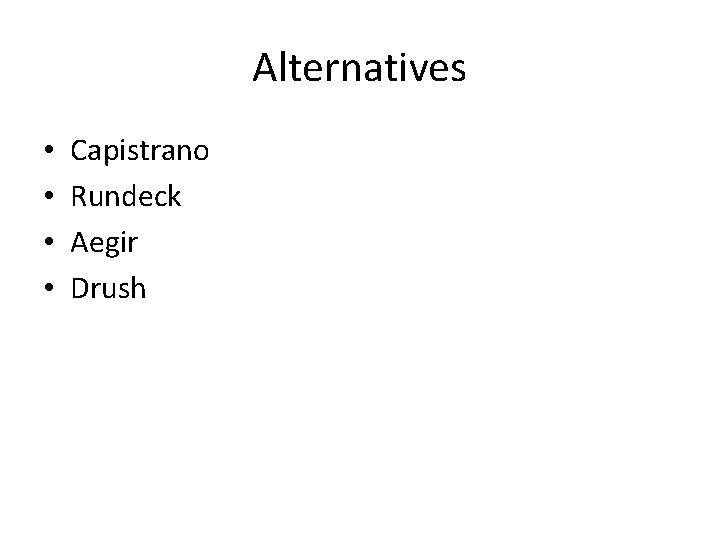

Alternatives • • Capistrano Rundeck Aegir Drush

Pogo UI – Start it Up $ perl -Ilib bin/pogo-api-28> Listening on 0. 0: 7657 $ perl -Ilib bin/pogo-ui -v pogo-ui-22> Listening on port 5000

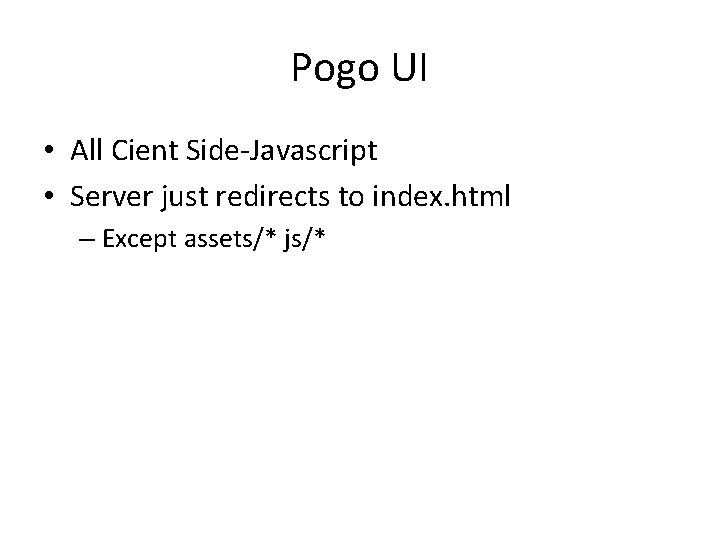

Pogo UI • All Cient Side-Javascript • Server just redirects to index. html – Except assets/* js/*

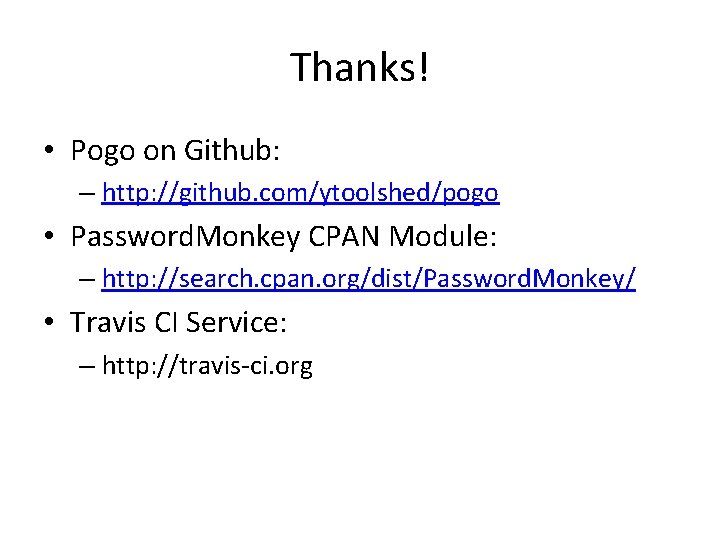

Thanks! • Pogo on Github: – http: //github. com/ytoolshed/pogo • Password. Monkey CPAN Module: – http: //search. cpan. org/dist/Password. Monkey/ • Travis CI Service: – http: //travis-ci. org
