LANSCE Update for BESAC February 26, 2002 Paul W. Lisowski LANSCE Division Leader Los Alamos National Laboratory

Outline • LANSCE Overview • LANSCE Governance/Management • CY 2001 Run Cycle • Outage progress • Summary

LANSCE is a Unique Multidisciplinary Facility for Science and Technology - User Facility Areas Lujan Neutron Scattering Center Proton Radiography Weapons Neutron Research UCN Experiment Isotope Production 800 Me. V Proton Linear Accelerator

We are working to follow the November 2000 BESAC review recommendations Recommendation Action • Provide a single Steward of this facility • Responsibility assigned to NNSA, Executive Council established • Develop an adequately-funded, actionable implementation plan for FY 2002, sustainable over the period 2002 -2008 • Completed externally and internally peer-reviewed bottomup cost estimate for LANSCE • Specify a ramp-up schedule for LANSCE/Lujan to full functional status by FY 2003 • Completed as part of cost estimate. Funding increment of $10 M in 2003 LANSCE operations budget planned • Began process with successful CY 2001 operating cycle - 270 user visits, 150 unique users • Increase the LANSCE/Lujan user base to ~1000 by 2006

Los Alamos goal: deliver neutrons and protons safely and reliably for All LANSCE users The LANSCE Mission: Deliver neutrons and protons safely and reliably for all LANSCE users. The Los Alamos Neutron Science Center (LANSCE) is defined by its high current 800 -Me. V linear accelerator and its capability of delivering beam to a variety of targets for different scientific purposes. These include the neutron production targets of the Lujan Neutron Scattering Center and the Weapons Neutron Research (WNR) facility, an isotope production facility (now under construction), and areas for proton radiography research and for fundamental nuclear science. The complexity of targets and programming sponsors makes LANSCE a challenging facility to manage. The institutional goal is to create a world-class national user facility for all program sponsors and all users. LANL Institutional Goal, http: //int. lanl. gov/goals/lansce. shtml

Los Alamos is meeting its commitment to NNSA, SC, and NE for a safe, reliable national user facility Isotope Production Facility (construction) Area C Proton Radiography Line B Ultra-Cold Neutrons (future) H+ Source H- Source Area A (inactive) Drift Tube Linear Accelerator Side-Coupled Linear Accelerator Line D “I want to state my personal commitment to the success of LANSCE and its national user program. ” Lujan Center LANL Director John Browne in a letter to Patricia Dehmer and David Crandall 1/4/2001 PSR 9 10 “…LANSCE will manage each of its major capabilities -proton radiography, Lujan Center, and WNR - as national user facilities. ” James Van Fleet, Director, Office of Defense Science letter to LANSCE Director, 11/28/2001 “…LANSCE is and will be the flagship of Los Alamos and shall be supported as such. ” 4 5 60 R Target 4 The Los Alamos Senior Executive Team, December 17 -19, 2001 90 L Weapons Neutron 30 R 15 R Research Facility 15 L 30 L 14 15 16 3 120 L 90 R 12 13 8 6 Target 1 Target 2 11 A/B ER-1 7 1 2 ER-2

LANSCE met the goals of reliable, predictable operations in CY 2001 at 55 microamperes and a successful user program • Proton Radiography – 94% availability for 411 scheduled hours, 466 total hours (20% more than scheduled) – 100% beam delivery during dynamic events – Very highly successful experimental program: 36 shots • Weapons Neutron Research – 92% availability for 2501 scheduled hours – Very highly successful user program: 300 user visits, 36 experiments • Lujan Center – – 91% availability for 2, 734 scheduled hours Beam down times of longer than 8 hours, was outstanding at 1. 7% Beam current at 55 microamperes due to target/moderator problems Very highly successful user program: 270 user visits, 113 experiments

Lujan scientists accomplished much in the CY 2001 Run Cycle • Served over 270 users, performed over 113 user experiments with 91% beam delivery reliability and over 95% instrument availability. • Commissioned five new scattering instruments and one nuclear science instrument. – – – Lujan Center Materials Science SMARTS HIPPO PROTEIN PHAROS (rebuilt) ASTERIX DANCE • Developed and implemented a new generation of data acquisition and chopper control systems. • Actinide Basis for Interim Operations approved by DOE; initiated Plutonium experiments. Plutonium Science Characterizing Materials

Current (m. A) Minutes Scheduled beam availability for the Lujan Center was unprecedented at 91. 4% July December • Beam current limited to 55 m. A because of target reflector cooling problems

HIPPO, located on flight path #4, is a high-intensity powder diffractometer optimized for texture measurements 1384 detectors 4. 6 m 2 Top of HIPPO, looking toward the beam stop, shows the crane, door, and DAQ racks Bob Von Dreele - LANSCE Kristin Bennett - LANSCE Rudy Wenk - UCB Inside the cave, showing detector panels, frame, and sample chamber

SMARTS, located on flight path #2, is a powder diffractometer for materials engineering applications Load frame and furnace set - tension or compression up to 40, 000 lbs and temperature up to 1500 o. C Mark Bourke - LANL-MST David Dunand - Northwestern Ersan Ustundag - Cal. Tech Translator is located in a pit in the cave floor and has a capacity of 3000 lbs

The Protein Crystallography instrument, located on flight path #15 will be used for biological applications Benno Schoenborn - LANL-B Paul Langan - LANL-B Gail Greene - LANL-B Veljko Radeka - BNL Experimental cave and beam stop BNL 120º 2 -D thermal neutron detector

A Detector for Advanced Neutron Capture Experiments DANCE is being installed at Lujan on Flight Path #14 • Neutron capture studies on unstable nuclei for stockpile stewardship and • • nuclear astrophysics 4 gamma ray detector - 160 Ba. F 2 scintillators Crystal fabrication about 10 per month, complete array in fall, 2002 First beam to flight path on Sept 17, 2001 Partial DANCE array has taken data for (n, ) experiments on: 171 Tm, 234 U, 242 Pu, and 151 Sm DANCE Detector Support Flight Path 14, Construction complete

A sampling of the science done by Lujan scientists this year • High temperature measurement of tool cermet under load reveals partitioning of stress that leads to creep. • Protein x-ray crystallography from powder samples, once thought to be impossible, promises rapid advances in proteomics. Work wins cover of Acta Crystallographica D (December 2001). • New small-angle scattering studies of high explosives leads to new understanding of segregation of plasticizers in HE aging. • Reflectivity study of lung surfactants shows why and how certain peptides affect aggregation; important news for premature newborns and populations under respirable bio-threat agents. • Polarized-neutron study of magnetic antidots measures magnetic domain structure factor in high performance disk materials from two-micron lattice. • New fluidic high pressure systems commissioned allow hydrostatic pressure studies to 8 Mbar. • First neutron scattering studies of methane hydrates at high pressure provide insights into formation of this almost limitless supply of energy from sea beds. • Zeolite-rho materials exhibit high chemisorption capacity for hydrocarbons as revealed by neutron spectroscopy. • New studies of stresses and texture resulting from Be joining processes provide needed data for weapons production.

A Lujan Scientist showed that protein structure can be solved by scattering from powders This breakthrough overcomes the need to grow large single crystals of proteins—often lengthy, sometimes impossible. Success with synchrotron radiation now being attempted with neutrons. Bob Von Dreele, new Fellow of the Mineralogical Society of America

We made major progress towards establishing a significant user base performing science at Lujan 250. 0 LANSCE User Program Statistics 270 Number 200. 0 User Visits Unique Users Experiments Run 150. 0 100. 0 50. 0 CY 1997 CY 1998 CY 1999 CY 2000 CY 2001

2001 Lujan Center run statistics by instrument

2001 Lujan Center user demographics By Affiliation By Age (30 not reporting)

2001 Lujan Center proposal statistics Funding Agency Discipline

Snapshot comparison 1997 vs. 2001 Lujan Center run cycle

2001 user satisfaction survey results for Lujan Center -questions 1 -12 Response rate as of January 21, 2002: 29% by proposal; 29% by unique user *Negative/positive (yes/no) questions.

A well-planned outage started in December, 2001 and the user program is planned to restart in July, 2002 • The outage has a detailed plan and resource-loaded schedule of 2155 prioritized activities • Major Tasks are : – Lujan Replacement – Target Moderator system – IPF Beam Line Components – High priority accelerator and facility maintenance and connection of new cooling tower – Switchyard Kicker – Experimental area activities – Lower priority accelerator and facility maintenance, including demolition of three old cooling towers

Work is underway to replace the Lujan Target Moderator Reflector System during the FY 2002 outage • • • Neutronics design complete Mechanical design substantially complete Procurements underway Proton Beam window and guard ring Service Connections LH 2 Moderator Upper Lead Reflector Beam Diagnostic Upper tungsten target Beryllium Reflectors Lower flight path liners and water moderators Lower Lead Reflector

Beam delivery to the user facilities will be simplified by installation of a switchyard kicker in the 2003 outage Isotope Production Facility (construction) Area C Line B Ultra-Cold Neutrons (future) Proton Radiography H+ Source H- Source Area A (inactive) Drift Tube Linear Accelerator Side-Coupled Linear Accelerator Line D Lujan Center PSR 9 10 4 5 60 R Target 4 90 L Weapons Neutron 30 R 15 R Research Facility 15 L 30 L 14 15 16 3 120 L 90 R 12 13 8 6 Target 1 Target 2 11 A/B ER-1 7 1 2 ER-2

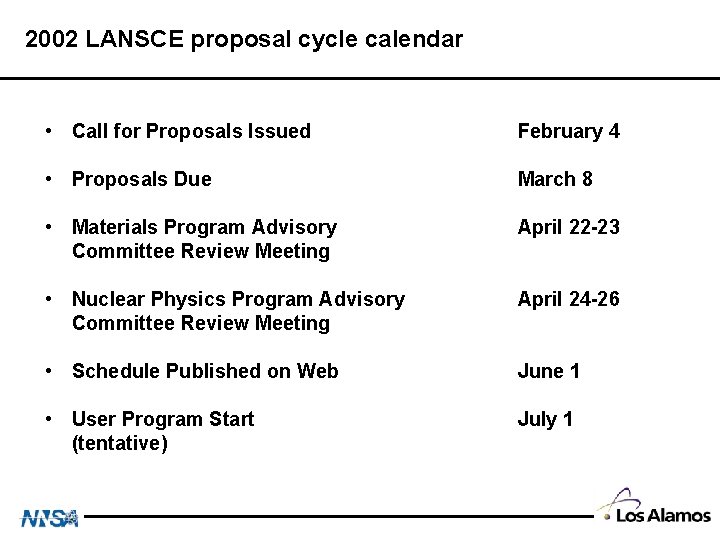

2002 LANSCE proposal cycle calendar • Call for Proposals Issued February 4 • Proposals Due March 8 • Materials Program Advisory Committee Review Meeting April 22 -23 • Nuclear Physics Program Advisory Committee Review Meeting April 24 -26 • Schedule Published on Web June 1 • User Program Start (tentative) July 1

LANSCE will use a standard 28 -day operating cycle with contingency in 2002 based on the successful 2001 cycle DRAFT LANSCE Operating Schedule for CY 2001 May June July August September October November December Turn-on Contingency For Turn-on 1 L Maintenance Lujan/ WNR User Program Prad, NRS, …. Reserve or Contingency 2002 Outage • Incorporated formal change control and contingency allocation process

Summary • The priority for LANSCE within Los Alamos has been strongly supported by Los Alamos Senior Management • LANSCE governance model is in place and working • With increased planning and a heroic effort from the staff, LANSCE improved the reliability and carried out a successful scientific program • Annual outage is underway – No unexpected maintenance or repair issues to date – Lujan Target/Moderator/Reflector system replacement and kicker projects are underway • Proposal call completed • User program restart scheduled for July, 2002
