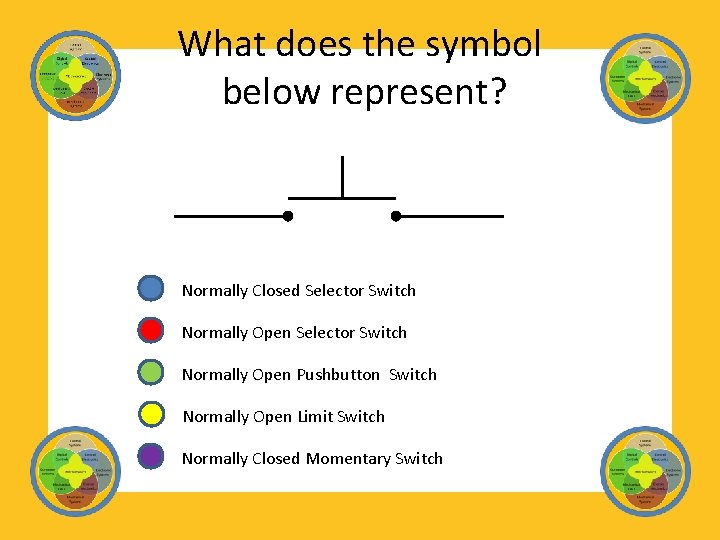

What does the symbol below represent? Normally Closed Selector Switch Normally Open Pushbutton Switch Normally Open Limit Switch Normally Closed Momentary Switch

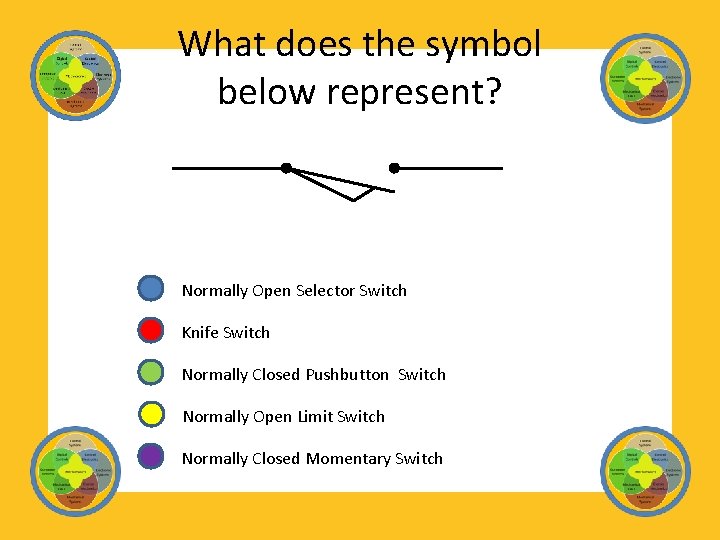

What does the symbol below represent? Normally Open Selector Switch Knife Switch Normally Closed Pushbutton Switch Normally Open Limit Switch Normally Closed Momentary Switch

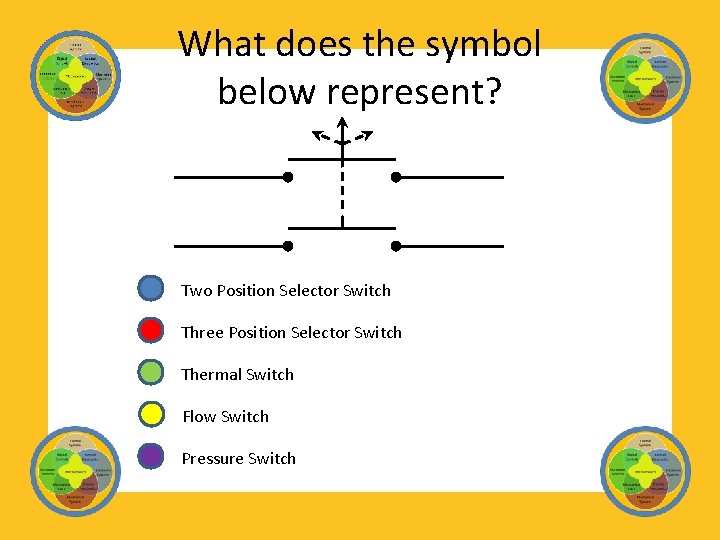

What does the symbol below represent? Two Position Selector Switch Three Position Selector Switch Thermal Switch Flow Switch Pressure Switch

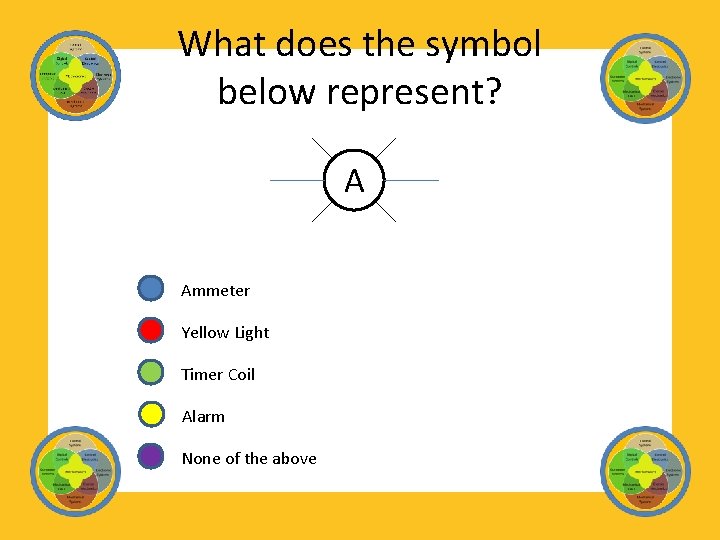

What does the symbol below represent? A Ammeter Yellow Light Timer Coil Alarm None of the above

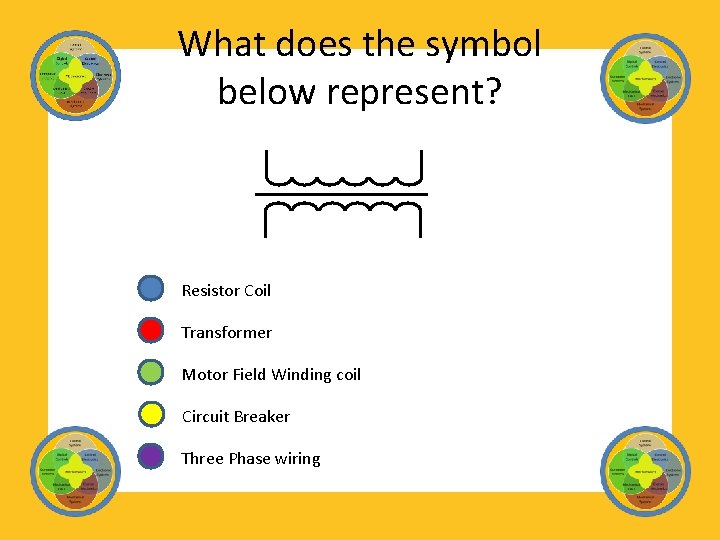

What does the symbol below represent? Resistor Coil Transformer Motor Field Winding coil Circuit Breaker Three Phase wiring

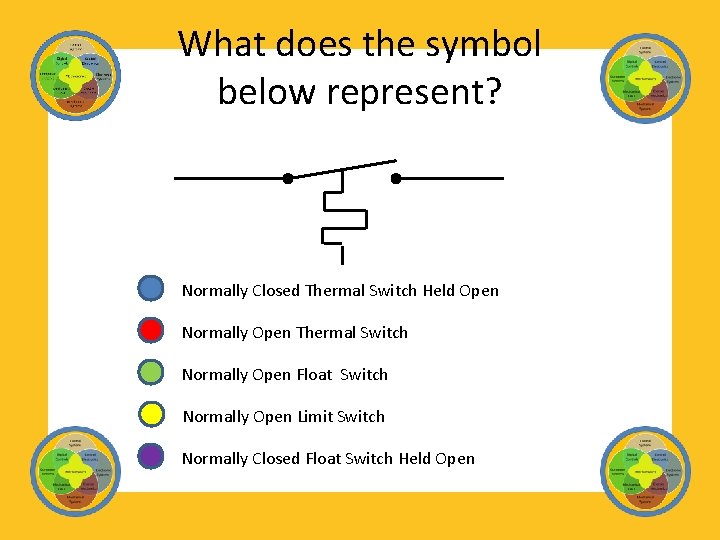

What does the symbol below represent? Normally Closed Thermal Switch Held Open Normally Open Thermal Switch Normally Open Float Switch Normally Open Limit Switch Normally Closed Float Switch Held Open

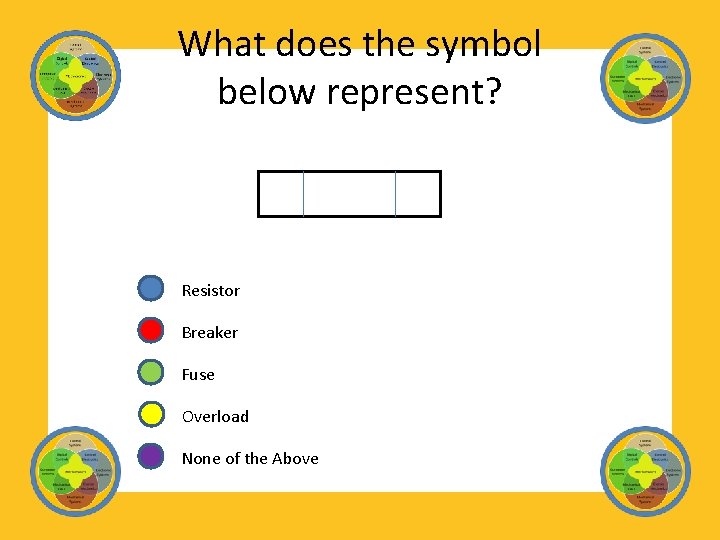

What does the symbol below represent? Resistor Breaker Fuse Overload None of the Above

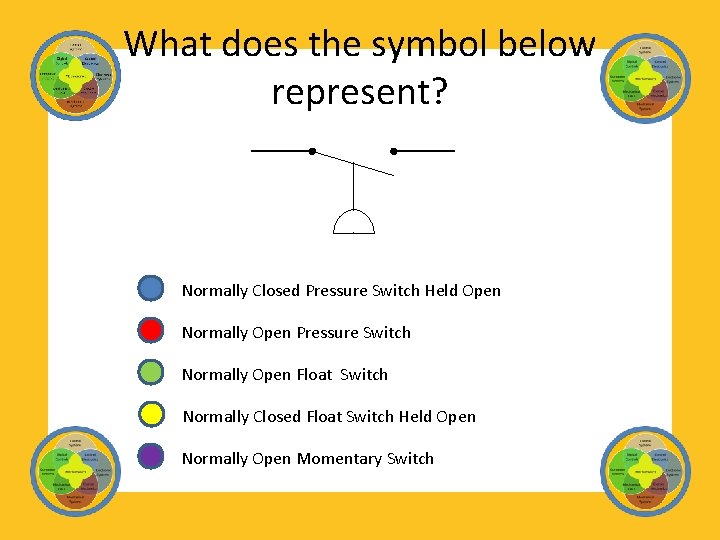

What does the symbol below represent? Normally Closed Pressure Switch Held Open Normally Open Pressure Switch Normally Open Float Switch Normally Closed Float Switch Held Open Normally Open Momentary Switch

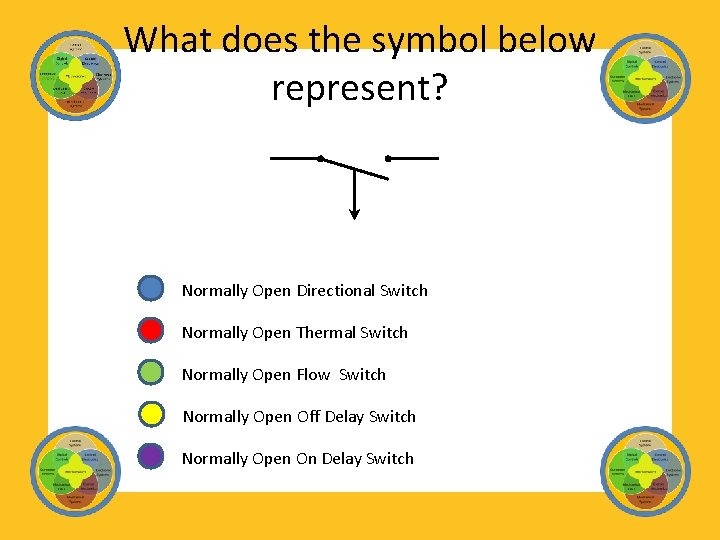

What does the symbol below represent? Normally Open Directional Switch Normally Open Thermal Switch Normally Open Flow Switch Normally Open Off Delay Switch Normally Open On Delay Switch

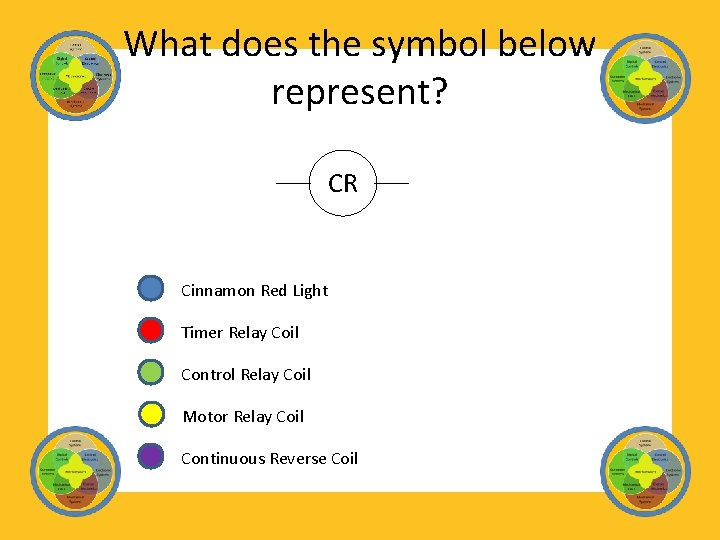

What does the symbol below represent? CR Cinnamon Red Light Timer Relay Coil Control Relay Coil Motor Relay Coil Continuous Reverse Coil

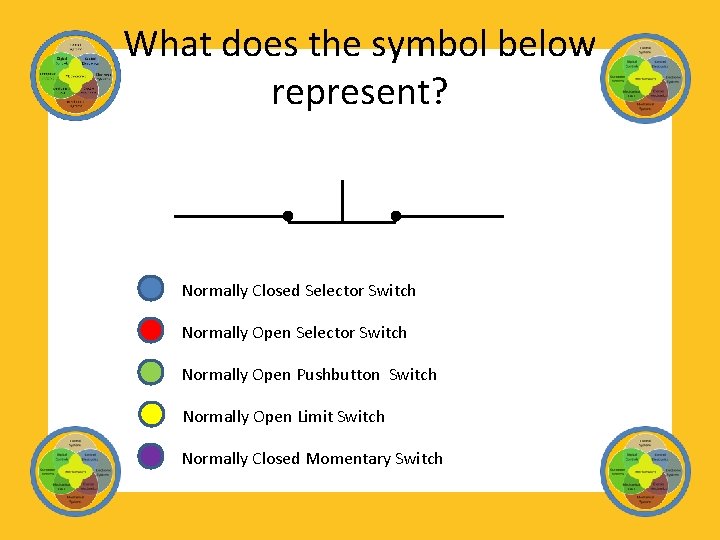

What does the symbol below represent? Normally Closed Selector Switch Normally Open Pushbutton Switch Normally Open Limit Switch Normally Closed Momentary Switch

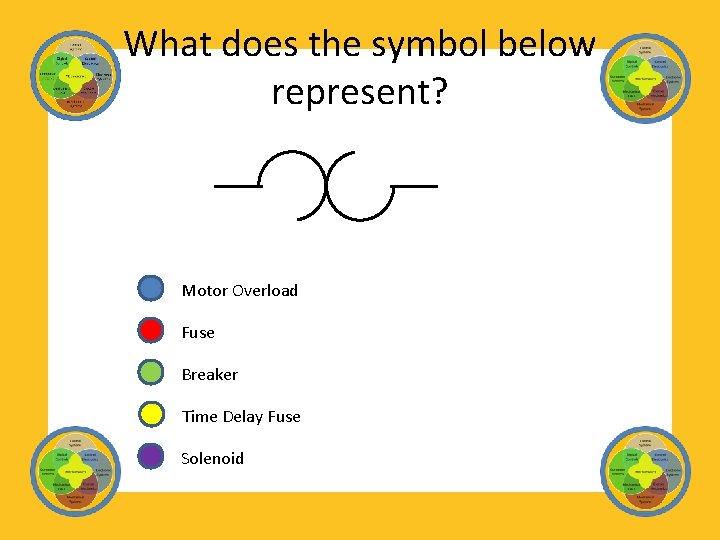

What does the symbol below represent? Motor Overload Fuse Breaker Time Delay Fuse Solenoid

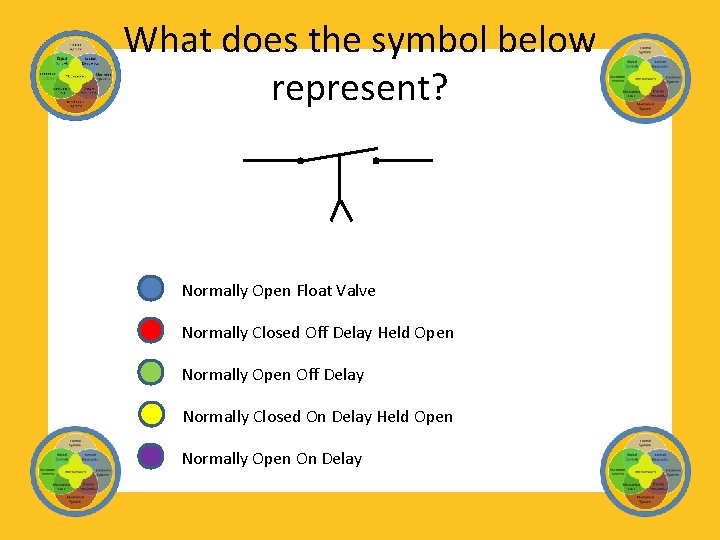

What does the symbol below represent? Normally Open Float Valve Normally Closed Off Delay Held Open Normally Open Off Delay Normally Closed On Delay Held Open Normally Open On Delay

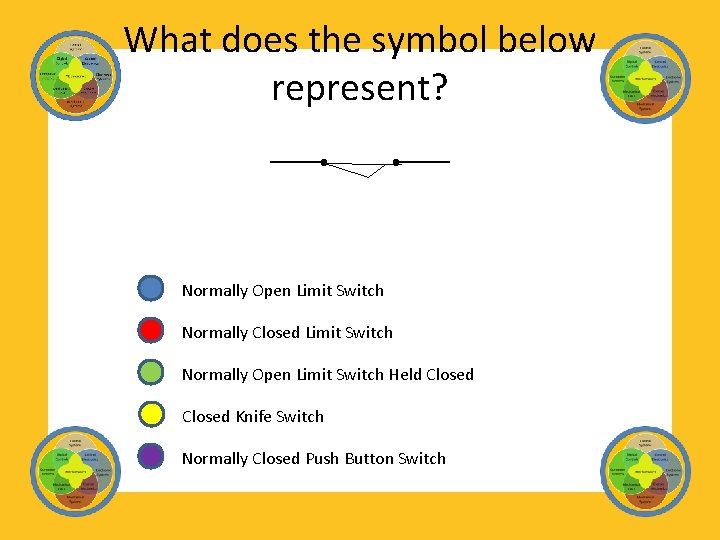

What does the symbol below represent? Normally Open Limit Switch Normally Closed Limit Switch Normally Open Limit Switch Held Closed Knife Switch Normally Closed Push Button Switch

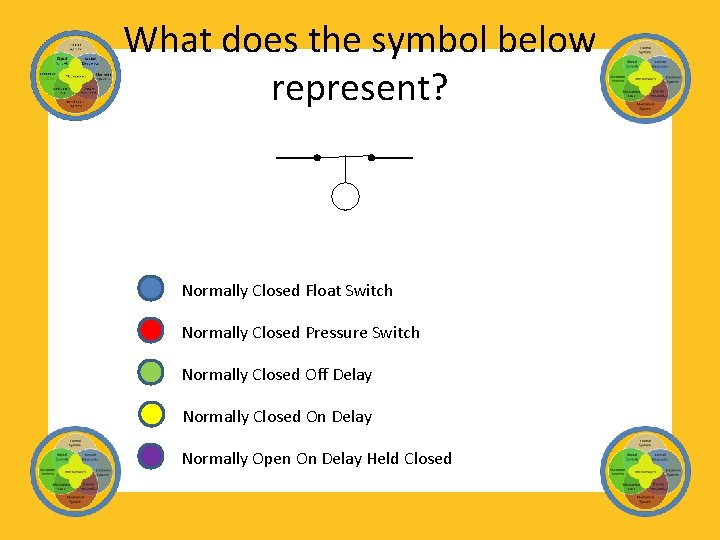

What does the symbol below represent? Normally Closed Float Switch Normally Closed Pressure Switch Normally Closed Off Delay Normally Closed On Delay Normally Open On Delay Held Closed

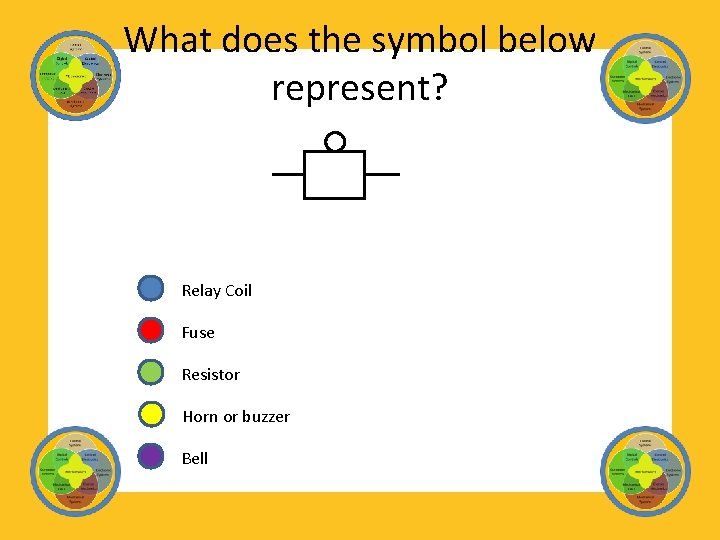

What does the symbol below represent? Relay Coil Fuse Resistor Horn or buzzer Bell

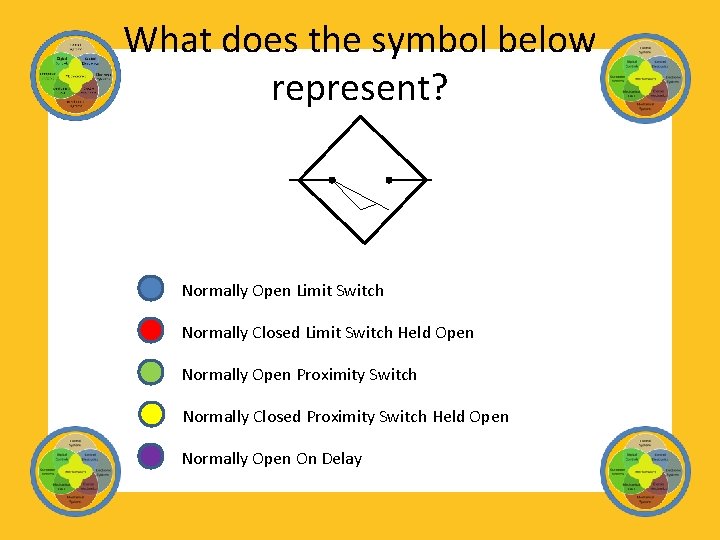

What does the symbol below represent? Normally Open Limit Switch Normally Closed Limit Switch Held Open Normally Open Proximity Switch Normally Closed Proximity Switch Held Open Normally Open On Delay

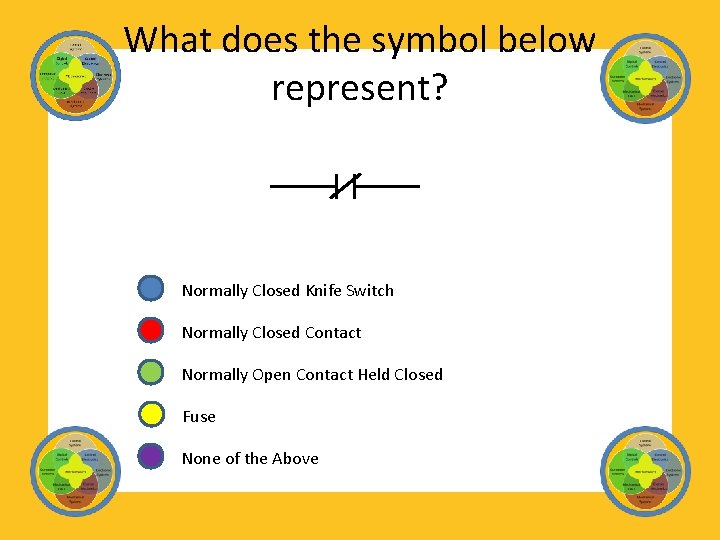

What does the symbol below represent? Normally Closed Knife Switch Normally Closed Contact Normally Open Contact Held Closed Fuse None of the Above

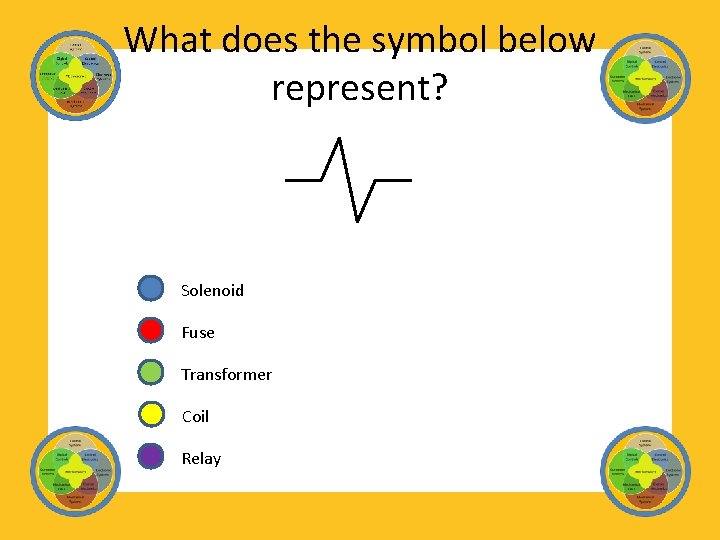

What does the symbol below represent? Solenoid Fuse Transformer Coil Relay
