Lac Core National Lacustrine Core Facility Anders Noren
- Slides: 40
Lac. Core National Lacustrine Core Facility Anders Noren, Curator

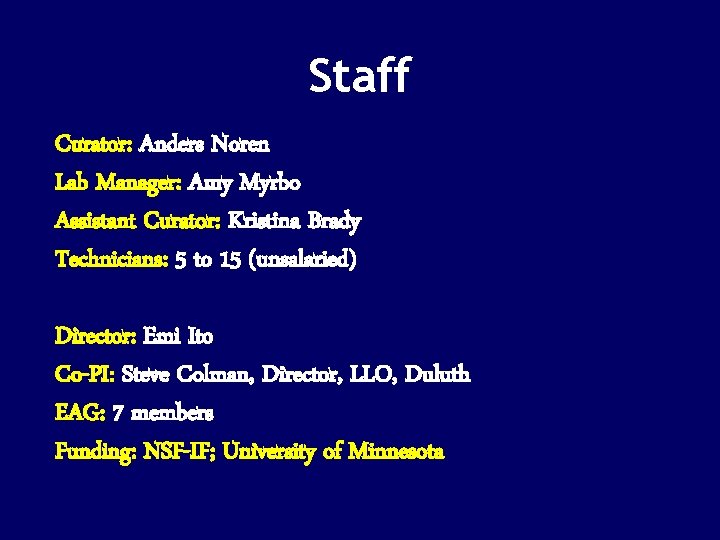

Staff Curator: Anders Noren Lab Manager: Amy Myrbo Assistant Curator: Kristina Brady Technicians: 5 to 15 (unsalaried) Director: Emi Ito Co-PI: Steve Colman, Director, LLO, Duluth EAG: 7 members Funding: NSF-IF; University of Minnesota

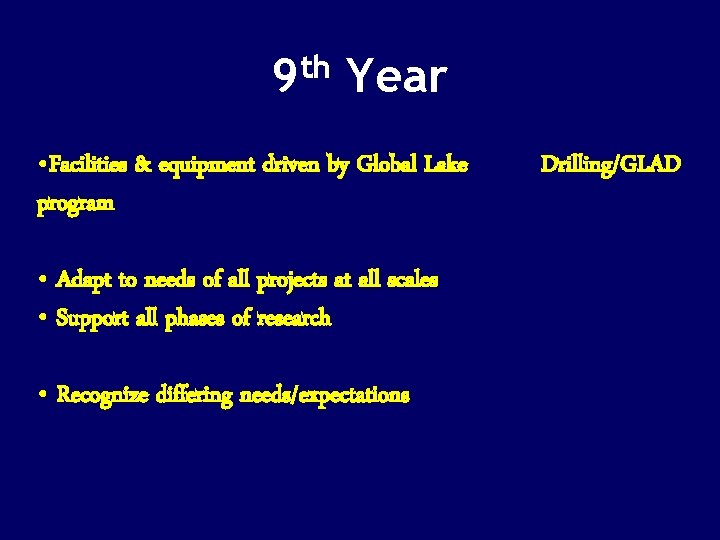

th 9 Year • Facilities & equipment driven by Global Lake program • Adapt to needs of all projects at all scales • Support all phases of research • Recognize differing needs/expectations Drilling/GLAD

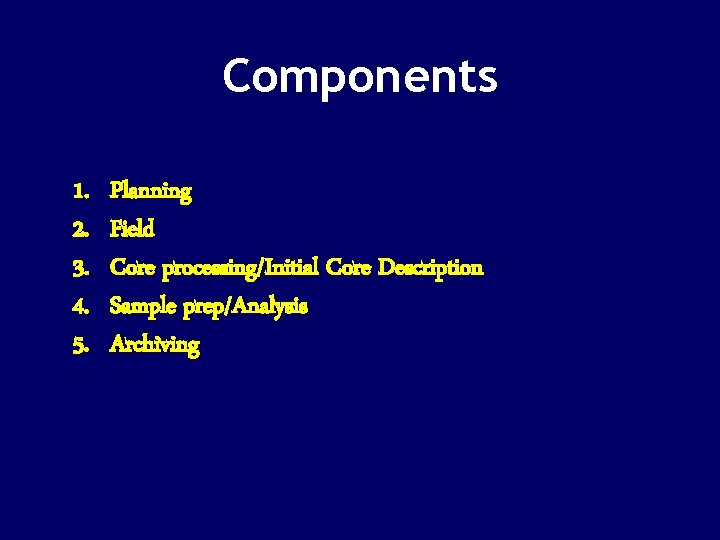

Components 1. 2. 3. 4. 5. Planning Field Core processing/Initial Core Description Sample prep/Analysis Archiving

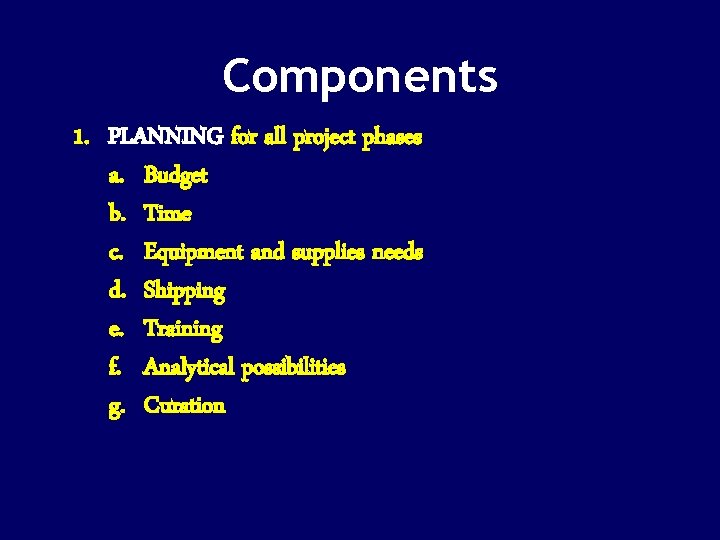

Components 1. PLANNING for all project phases a. Budget b. Time c. Equipment and supplies needs d. Shipping e. Training f. Analytical possibilities g. Curation

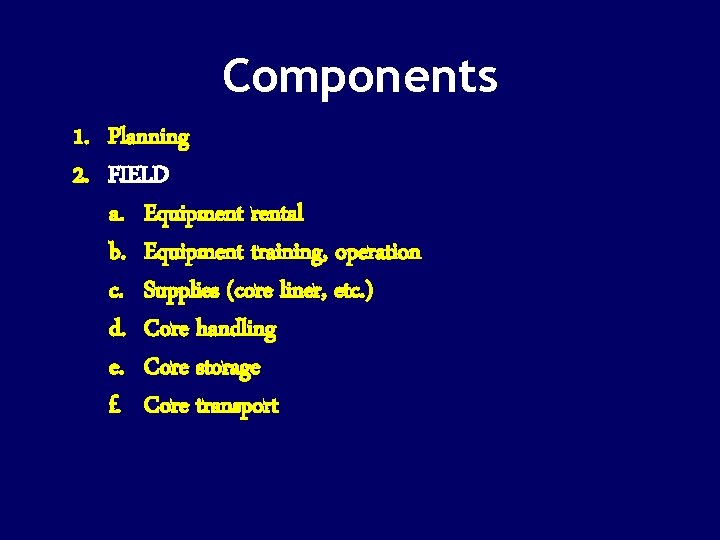

Components 1. Planning 2. FIELD a. Equipment rental b. Equipment training, operation c. Supplies (core liner, etc. ) d. Core handling e. Core storage f. Core transport

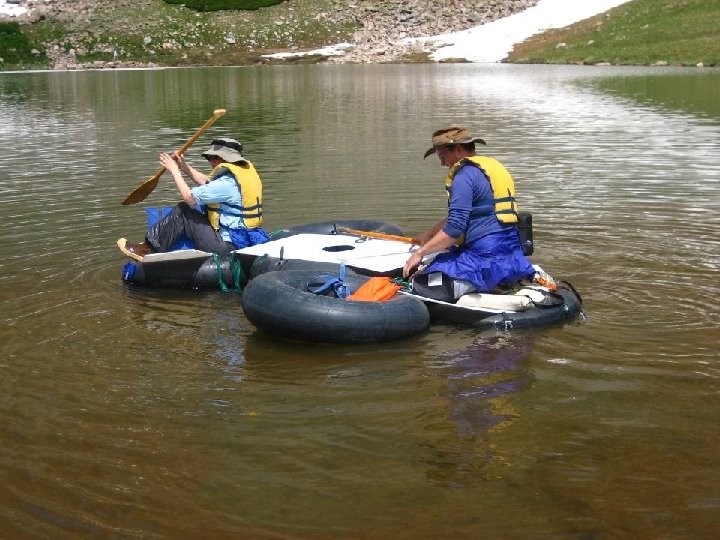

Field Equipment 1. Surface cores: push, gravity, freeze, Hongve, Eckman dredge 2. Long cores: Kullenberg, Livingstone (with or without single-use liner modification), Mackereth, Nesje, vibracorer 3. Vessels: 18 -foot row/motorboat, 4 canoes, two Carolina Skiff boats for Kullenberg (23 -foot tower), pontoon, cataraft, innertube. (All moonpooled) 4. GPR 5. Water sampling and analysis 6. Climate-controlled shipping container 7. Two 4 x 4 trucks

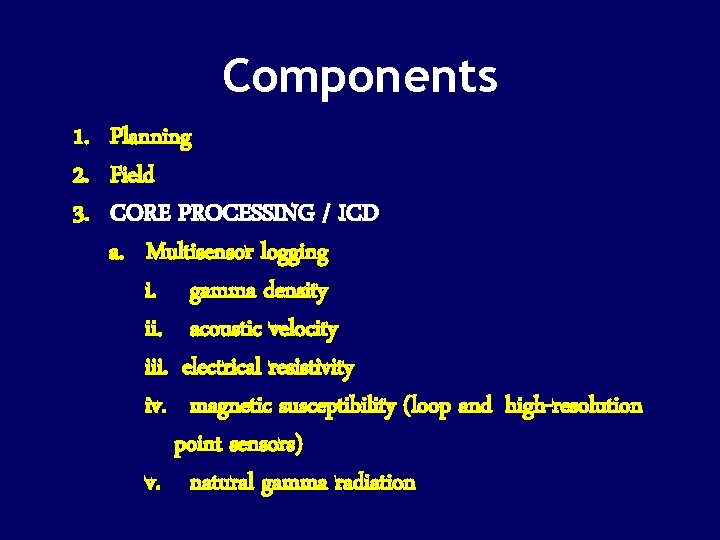

Components 1. Planning 2. Field 3. CORE PROCESSING / ICD a. Multisensor logging i. gamma density ii. acoustic velocity iii. electrical resistivity iv. magnetic susceptibility (loop and high-resolution point sensors) v. natural gamma radiation
Components 1. Planning 2. Field 3. CORE PROCESSING / ICD a. Multisensor logging b. High-resolution digital imaging

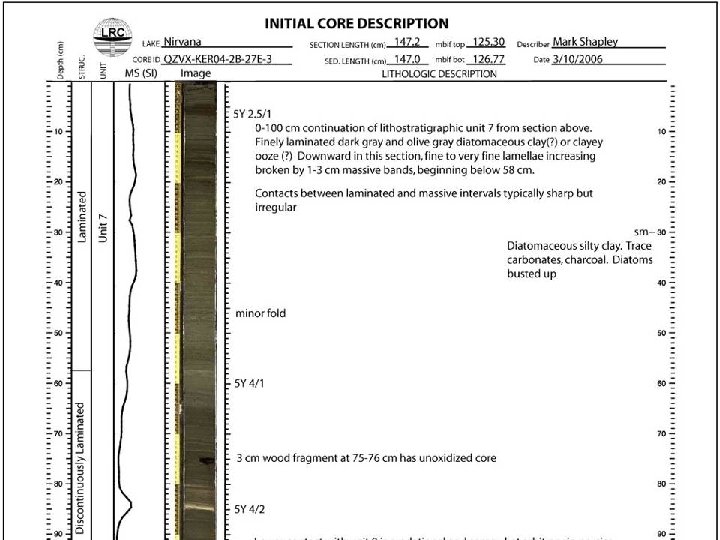

Components 1. Planning 2. Field 3. CORE PROCESSING / ICD a. Multisensor logging b. High-resolution digital imaging c. Description i. macro-scale: color, texture, structure ii. micro-scale: mineralogical and biological components
Core. Wall
Components 1. 2. 3. 4. Planning Field Core processing/ICD SAMPLE PREP/ANALYSIS a. Dedicated stations for each analysis b. Technicians available

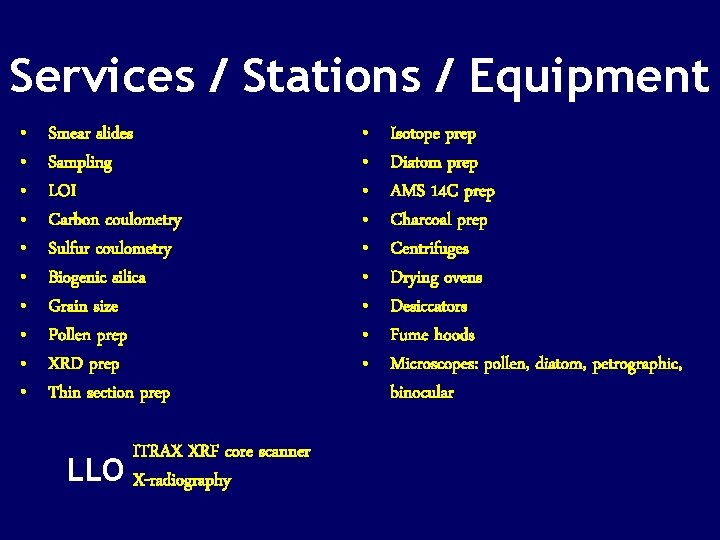

Services / Stations / Equipment • • • Smear slides Sampling LOI Carbon coulometry Sulfur coulometry Biogenic silica Grain size Pollen prep XRD prep Thin section prep LLO ITRAX XRF core scanner X-radiography • • • Isotope prep Diatom prep AMS 14 C prep Charcoal prep Centrifuges Drying ovens Desiccators Fume hoods Microscopes: pollen, diatom, petrographic, binocular

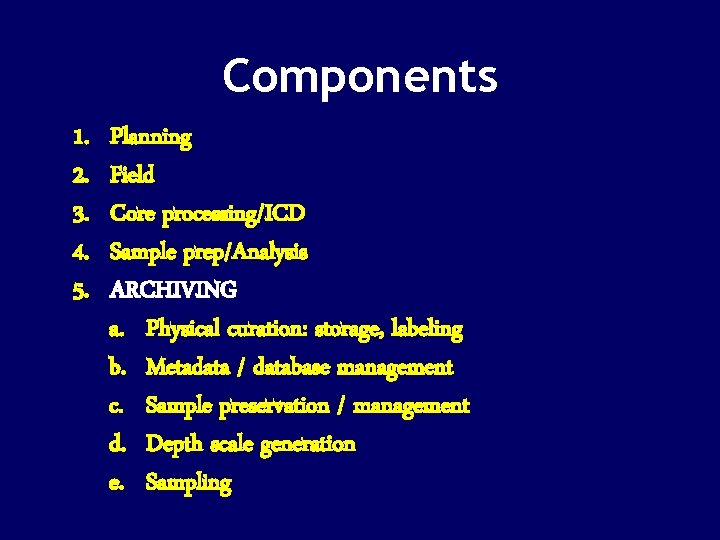

Components 1. 2. 3. 4. 5. Planning Field Core processing/ICD Sample prep/Analysis ARCHIVING a. Physical curation: storage, labeling b. Metadata / database management c. Sample preservation / management d. Depth scale generation e. Sampling

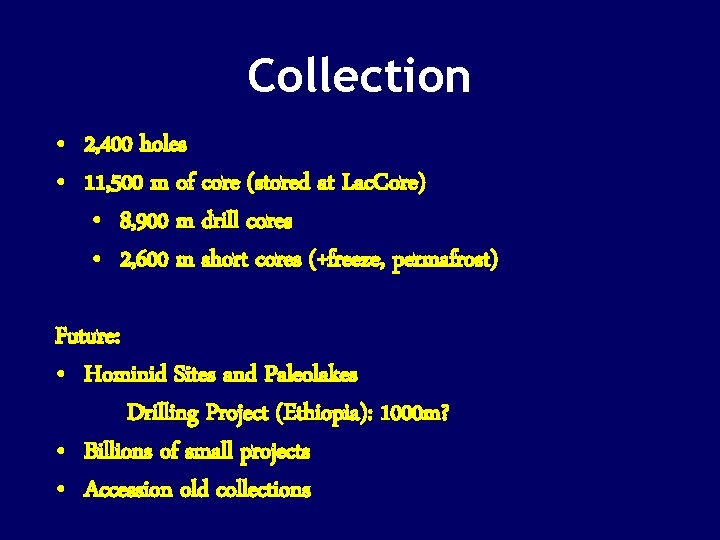

Collection • 2, 400 holes • 11, 500 m of core (stored at Lac. Core) • 8, 900 m drill cores • 2, 600 m short cores (+freeze, permafrost) Future: • Hominid Sites and Paleolakes Drilling Project (Ethiopia): 1000 m? • Billions of small projects • Accession old collections

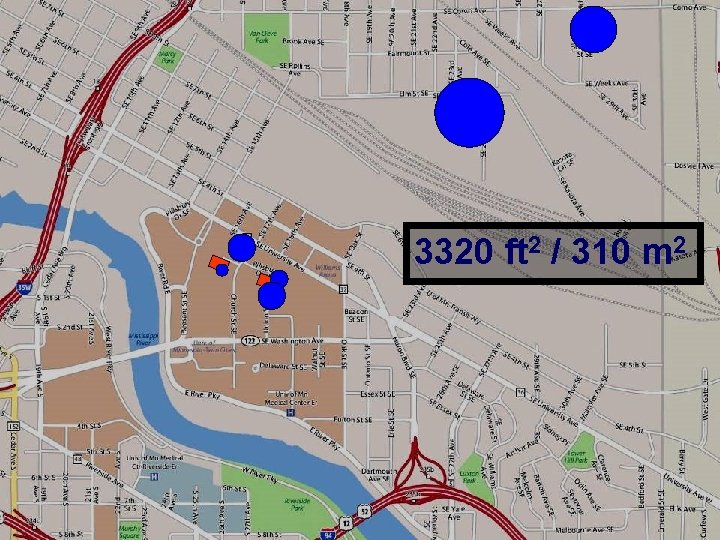

3320 ft 2 / 310 m 2

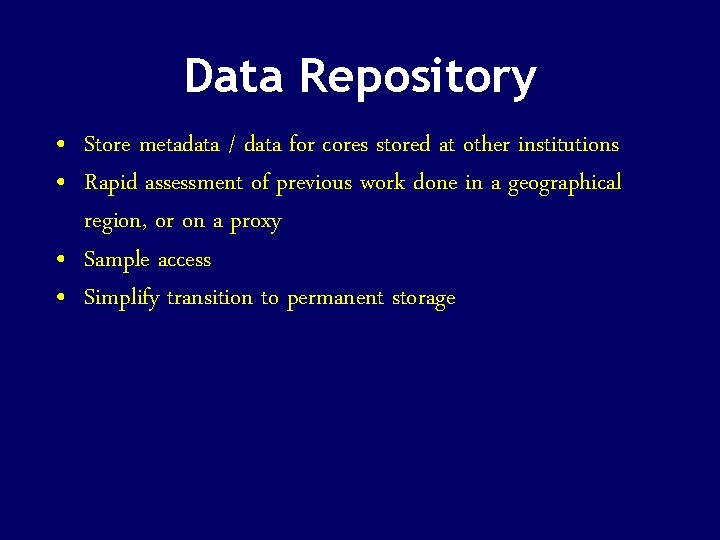

Data Repository • Store metadata / data for cores stored at other institutions • Rapid assessment of previous work done in a geographical region, or on a proxy • Sample access • Simplify transition to permanent storage

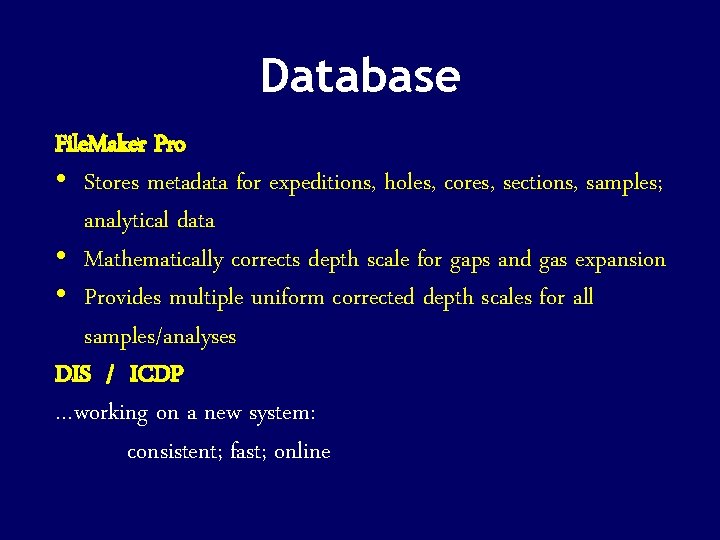

Database File. Maker Pro • Stores metadata for expeditions, holes, cores, sections, samples; analytical data • Mathematically corrects depth scale for gaps and gas expansion • Provides multiple uniform corrected depth scales for all samples/analyses DIS / ICDP …working on a new system: consistent; fast; online

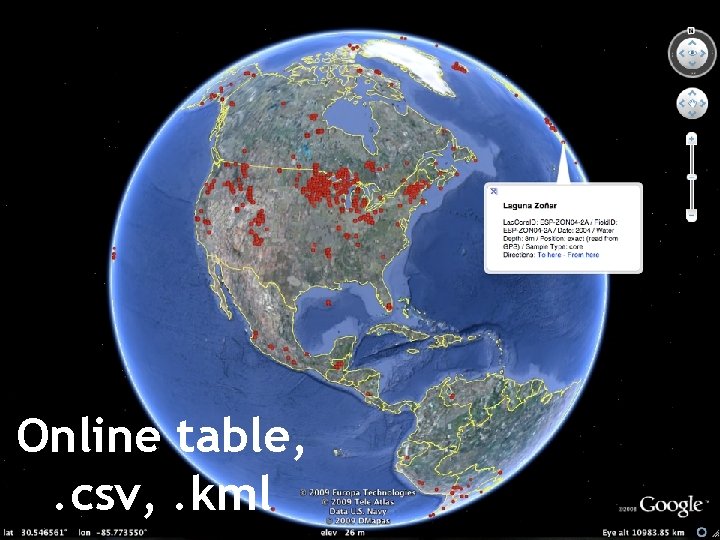

Online table, . csv, . kml

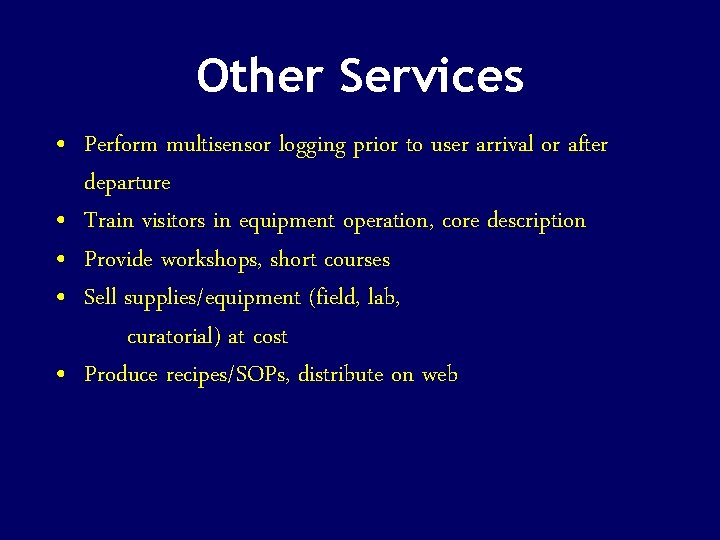

Other Services • Perform multisensor logging prior to user arrival or after departure • Train visitors in equipment operation, core description • Provide workshops, short courses • Sell supplies/equipment (field, lab, curatorial) at cost • Produce recipes/SOPs, distribute on web
Costs / Fees • • • field equipment rental shipping sample prep / analysis supplies

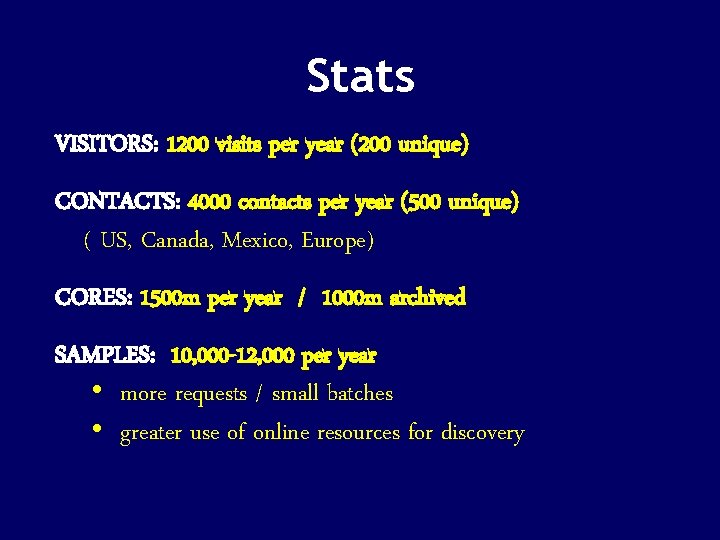

Stats VISITORS: 1200 visits per year (200 unique) CONTACTS: 4000 contacts per year (500 unique) ( US, Canada, Mexico, Europe) CORES: 1500 m per year / 1000 m archived SAMPLES: 10, 000 -12, 000 per year • more requests / small batches • greater use of online resources for discovery

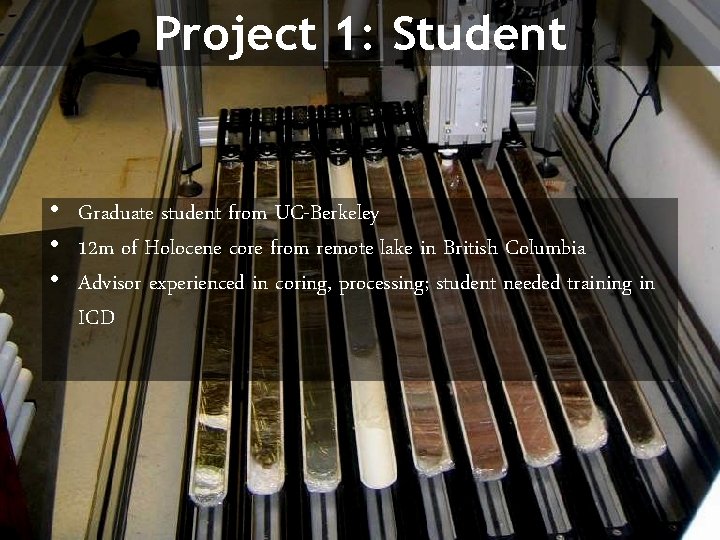

Project 1: Student • Graduate student from UC-Berkeley • 12 m of Holocene core from remote lake in British Columbia • Advisor experienced in coring, processing; student needed training in ICD
• Minimal local facilities: MSCL, linescan cameras, scope camera, sample prep • Shipped cores to Minneapolis, spent five days • Archived half of each core

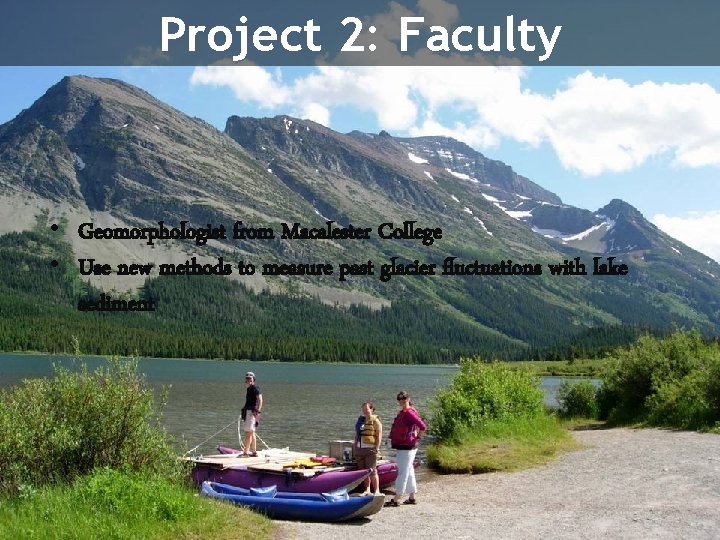

Project 2: Faculty • Geomorphologist from Macalester College • Use new methods to measure past glacier fluctuations with lake sediment

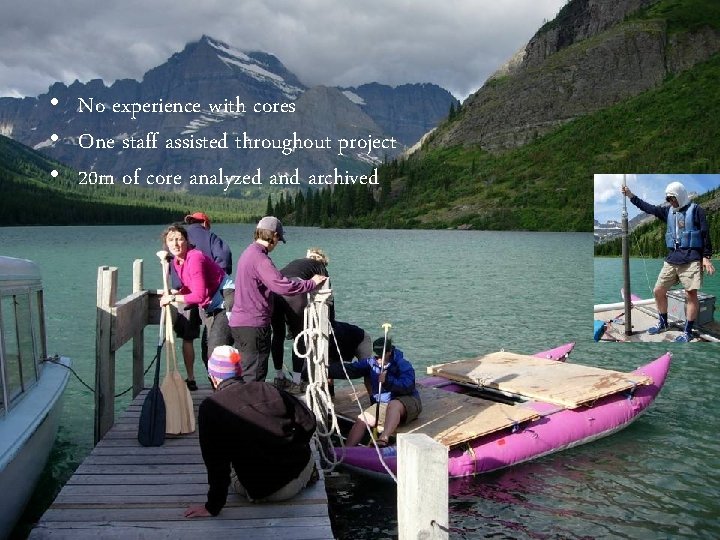

• No experience with cores • One staff assisted throughout project • 20 m of core analyzed and archived
Project 3: El’gygytgyn • Major international expedition: ~50 people from US, Germany, Russia, Canada
Camp
Ice road

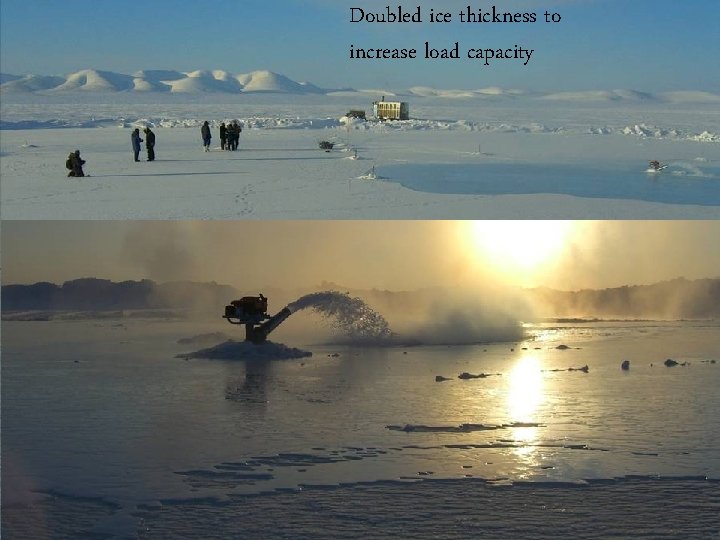

Doubled ice thickness to increase load capacity
120 miles from nearest road All materials hauled overland

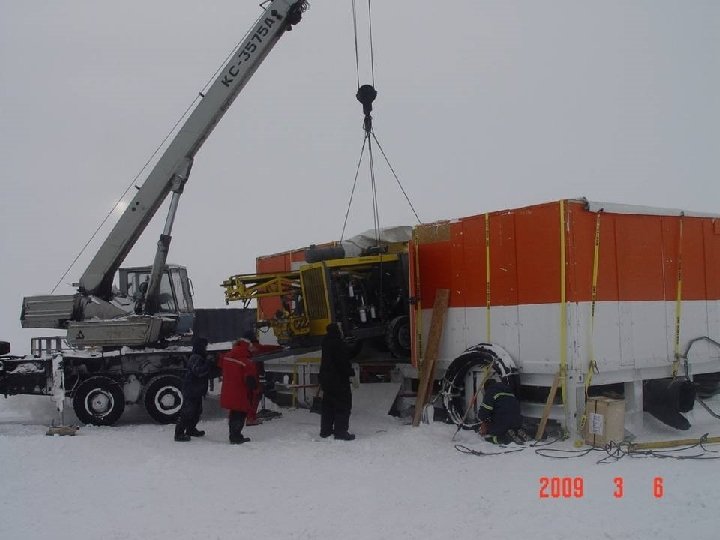

No crane? No problem!

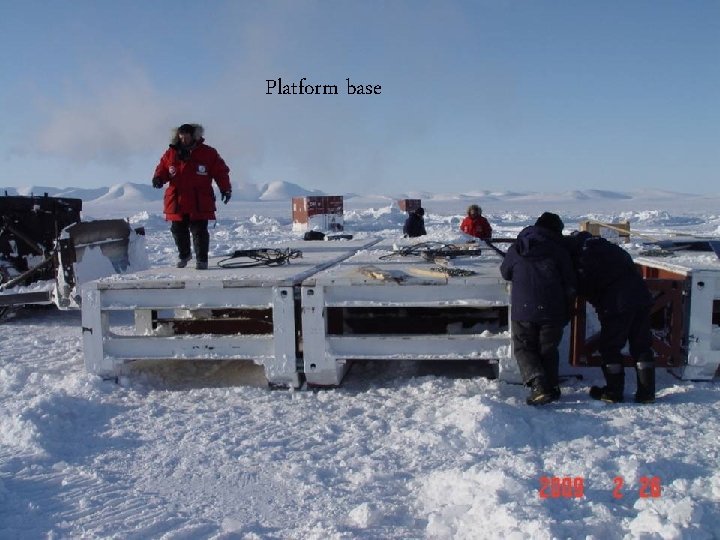

Platform base
Platform walls
Storm
• 400 m sediment; 110 m impact rock • 3. 6 Myr climate record Lac. Core: field curation; permanent archiving
