Laboratory instrument Amar m saeed 1 Autoclave 2

Laboratory instrument Amar m saeed

1. Autoclave 2. Incubator 3. Hot air oven 4. Vortex mixer / shaker. 5. Water bath 6. Refrigerator 7. Balance 8. Microscope 9. Centrifuges 10. Colorimeter 11. Microtome 12. Tissue processor

Autoclaves • autoclave sterilizes items by heating them with steam to a very high temperature • (121 degrees° C/15 p. si, and 15 -20 min). The advantage of using an autoclave is that it can reach temperatures higher than boiling water alone , so it can kill not only bacteria e. g: lab coat, culture media

Incubator • Incubator is a warm cabinet for incubation of microbes for growth. • a good temperature for most bacteria is About 35ºc and a good temperature for most fungi is 25°c.

Hot air oven • This kind of dry heat sterilization is recommended when it is undesirable that hot air make contact with the material to be sterilized. • E. g: glass wares – glass Petri dish, Pipettes as well as for substances like oil, powder, etc. 160 ᵒc ……… 1 h 170 ᵒc ……… 40 min 180 ᵒc ………. 30 min

Vortex mixer This equipment is used for mixing liquids kept in a test tube

Inoculating loop This is a tool for transferring and streaking cultures.

Water bath / Boiling water bath Water bath is used for: 1. heating and melting of media, solutions, samples etc. at 2. temperatures below 100°C It can also be used to maintain constant temperature that is required in microbiology lab work.

Refrigerator This equipment is used in preserve substances, solutions that need cold temperature

Balance is needed in lab for weighing chemicals, samples, media, etc. Digital balances are fast to work with but needs frequent calibration.

The Microscope for examination of sample

centrifuge • A centrifuge sediments particles • Separate blood sample

Colorimeter • is used to measure the concentration • of a substance in a patient’s sample

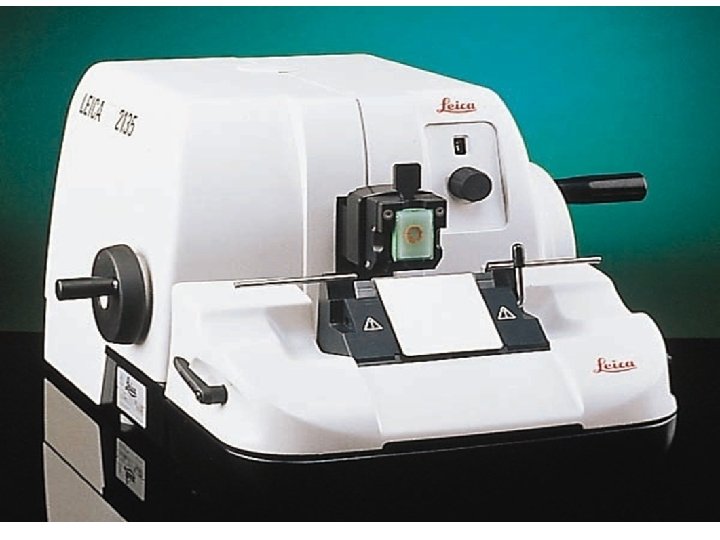

Microtome Machines that cut extremely thin sections from a sample for applications in histology or pathology

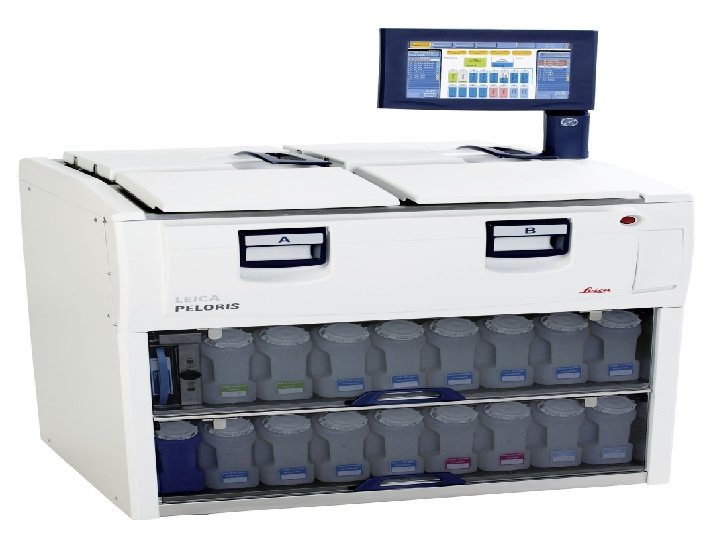

Tissue Processor Machine used in histopathology lab to treatment tissue by certain solution to prepare it for cutting by microtome

Any questions …!!!
