藍天電腦電磁相容設計部 Label control of Safety & EMI Guideline Presented by Stanley

Label control of Safety & EMI Guideline 1. General rule of label marking requirement. 2. Different certified logo for different country or area 3. Additional requirement from IATA of cell & battery pack 4. Where you can find safety & EMI documents? 5. Conclusion & QA April - 9 - 2009 2 of 31 2

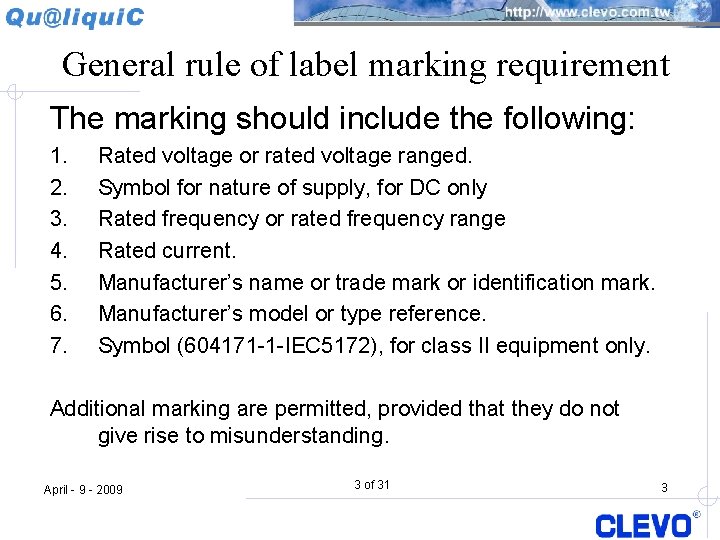

General rule of label marking requirement The marking should include the following: 1. 2. 3. 4. 5. 6. 7. Rated voltage or rated voltage ranged. Symbol for nature of supply, for DC only Rated frequency or rated frequency range Rated current. Manufacturer’s name or trade mark or identification mark. Manufacturer’s model or type reference. Symbol (604171 -1 -IEC 5172), for class II equipment only. Additional marking are permitted, provided that they do not give rise to misunderstanding. April - 9 - 2009 3 of 31 3

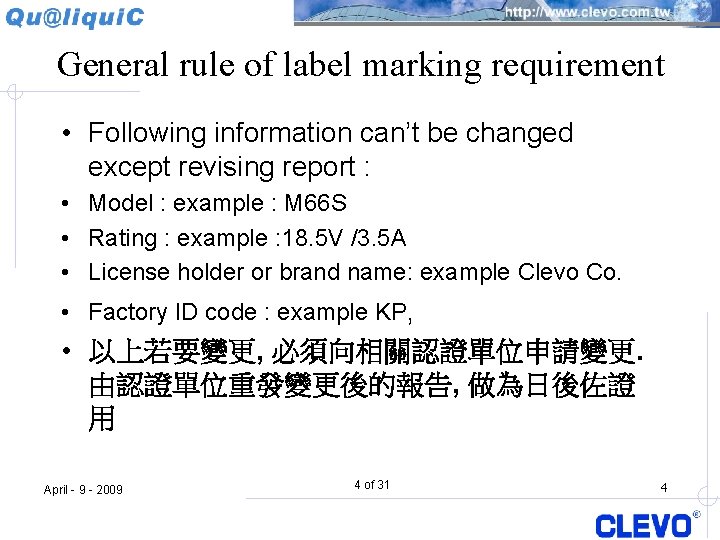

General rule of label marking requirement • Following information can’t be changed except revising report : • Model : example : M 66 S • Rating : example : 18. 5 V /3. 5 A • License holder or brand name: example Clevo Co. • Factory ID code : example KP, • 以上若要變更, 必須向相關認證單位申請變更. 由認證單位重發變更後的報告, 做為日後佐證 用 April - 9 - 2009 4 of 31 4

Certified logo for Taiwan • 若是產品同時有包含通訊類功能, 則必須有臺 灣國家通訊傳播委員會所發的NCC證書, (95 -9 之前是電信總局所發的DGT 證書), 搭配safety & EMI report才可以申請 • 95 -9月之前DGT的certified logo CCXXxx. YYyyy. Zz. W • • 95 -9月之後NCC的certified logo April - 9 - 2009 8 of 31 8

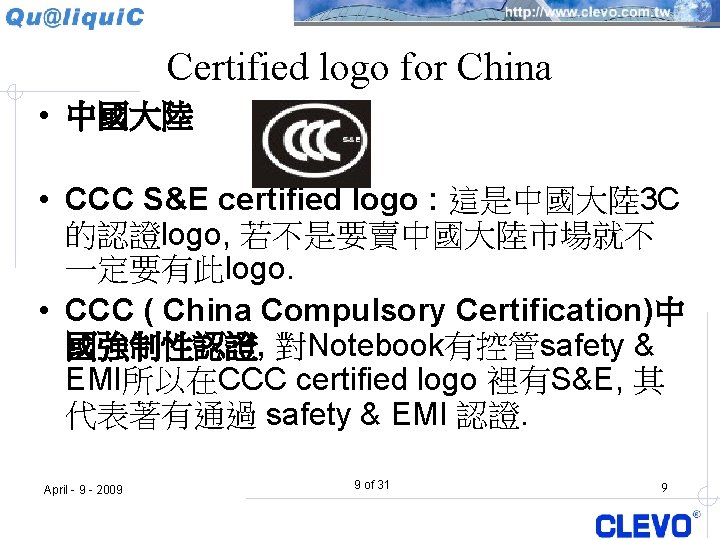

Certified logo for China • 中國大陸 • CCC S&E certified logo : 這是中國大陸 3 C 的認證logo, 若不是要賣中國大陸市場就不 一定要有此logo. • CCC ( China Compulsory Certification)中 國強制性認證, 對Notebook有控管safety & EMI所以在CCC certified logo 裡有S&E, 其 代表著有通過 safety & EMI 認證. April - 9 - 2009 9 of 31 9

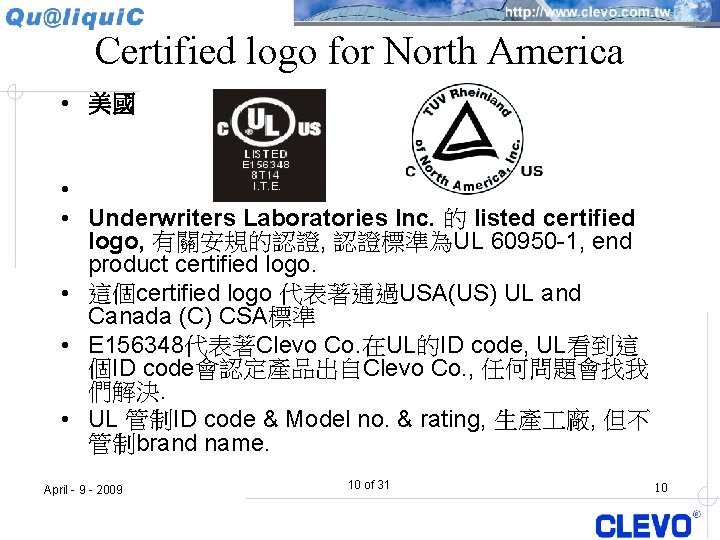

Certified logo for North America • 美國 • • Underwriters Laboratories Inc. 的 listed certified logo, 有關安規的認證, 認證標準為UL 60950 -1, end product certified logo. • 這個certified logo 代表著通過USA(US) UL and Canada (C) CSA標準 • E 156348代表著Clevo Co. 在UL的ID code, UL看到這 個ID code會認定產品出自Clevo Co. , 任何問題會找我 們解決. • UL 管制ID code & Model no. & rating, 生產 廠, 但不 管制brand name. April - 9 - 2009 10 of 31 10

Certified logo for North america • This logo issued by TUV/Rheinland. • US represented USA and C represented Canada. • This logo without license hold’s name, so we have to register brand name for which wants to bear the logo. April - 9 - 2009 11 of 31 11

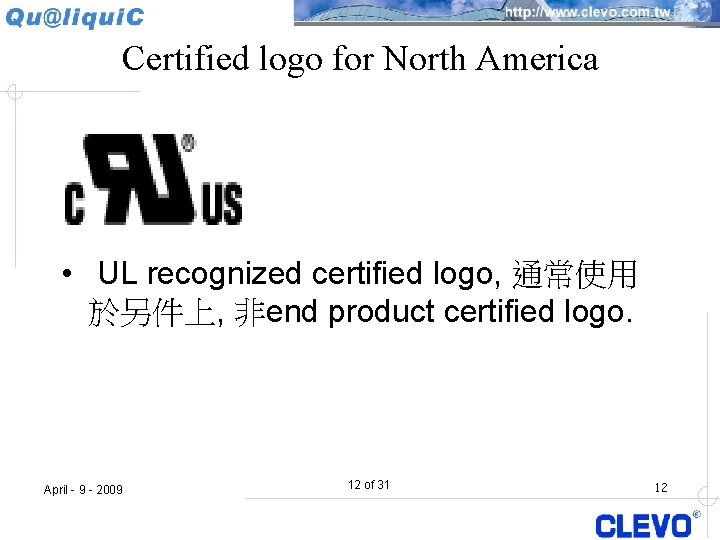

Certified logo for North America • UL recognized certified logo, 通常使用 於另件上, 非end product certified logo. April - 9 - 2009 12 of 31 12

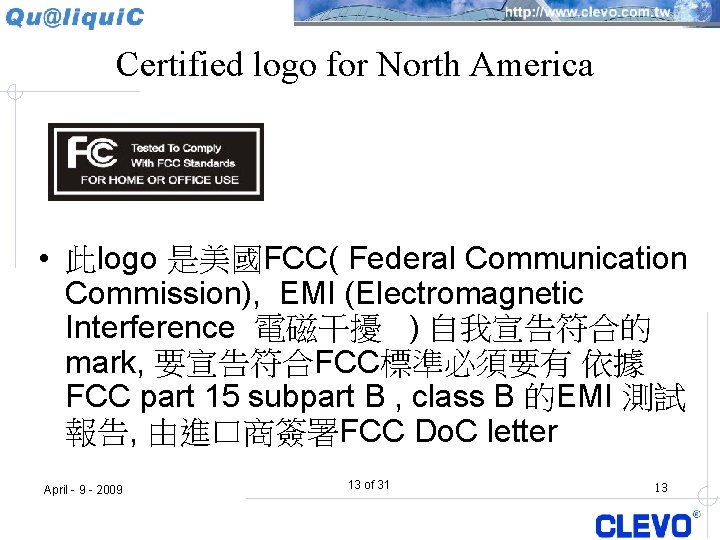

Certified logo for North America • 此logo 是美國FCC( Federal Communication Commission), EMI (Electromagnetic Interference 電磁干擾 ) 自我宣告符合的 mark, 要宣告符合FCC標準必須要有 依據 FCC part 15 subpart B , class B 的EMI 測試 報告, 由進口商簽署FCC Do. C letter April - 9 - 2009 13 of 31 13

Certified logo for EU market • TUV/BAUART product safety mark, 目前我們是透過 TUV/ Rheinland 認證, 歐洲共同市場所需的CE Do. C 必須包括 safety report, 我們目前是申請TUV /Rhienland 的safety report, 來佐證我們的Notebook 是符合歐盟安規指令. • 適用標準為EN 60950 -1 -2003 • 同時我們也申請CB report and certificate, 適用標準為IEC 60950 -1 -2001 • BAUART mark非強制性, 可有可無. • Rheinland 管制 Brand name & Model no & rating, 不管制 生產 廠, 也沒有ID code. April - 9 - 2009 15 of 31 15

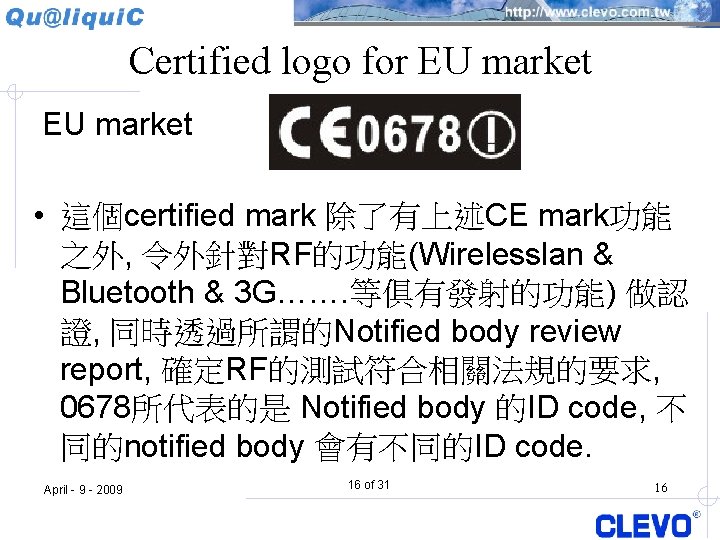

Certified logo for EU market • 這個certified mark 除了有上述CE mark功能 之外, 令外針對RF的功能(Wirelesslan & Bluetooth & 3 G……. 等俱有發射的功能) 做認 證, 同時透過所謂的Notified body review report, 確定RF的測試符合相關法規的要求, 0678所代表的是 Notified body 的ID code, 不 同的notified body 會有不同的ID code. April - 9 - 2009 16 of 31 16

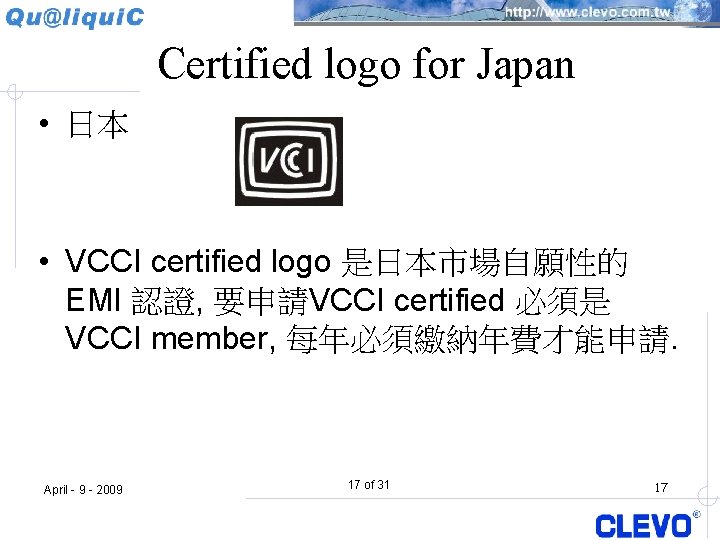

Certified logo for Japan • 日本 • VCCI certified logo 是日本市場自願性的 EMI 認證, 要申請VCCI certified 必須是 VCCI member, 每年必須繳納年費才能申請. April - 9 - 2009 17 of 31 17

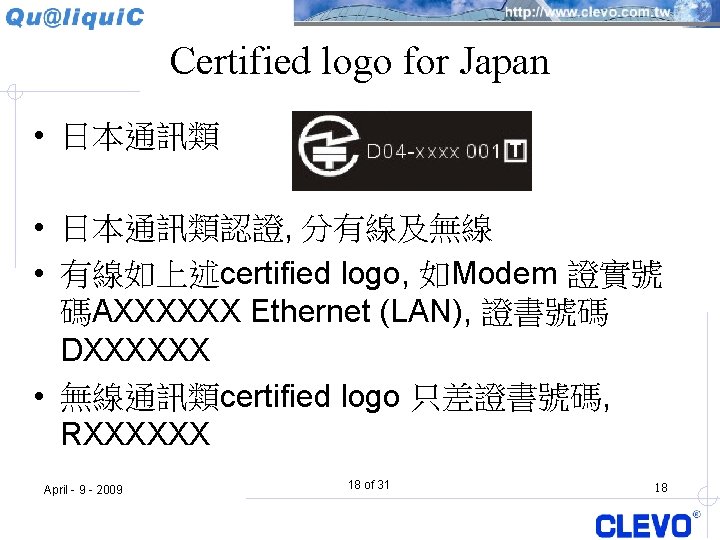

Certified logo for Japan • 日本通訊類認證, 分有線及無線 • 有線如上述certified logo, 如Modem 證實號 碼AXXXXXX Ethernet (LAN), 證書號碼 DXXXXXX • 無線通訊類certified logo 只差證書號碼, RXXXXXX April - 9 - 2009 18 of 31 18

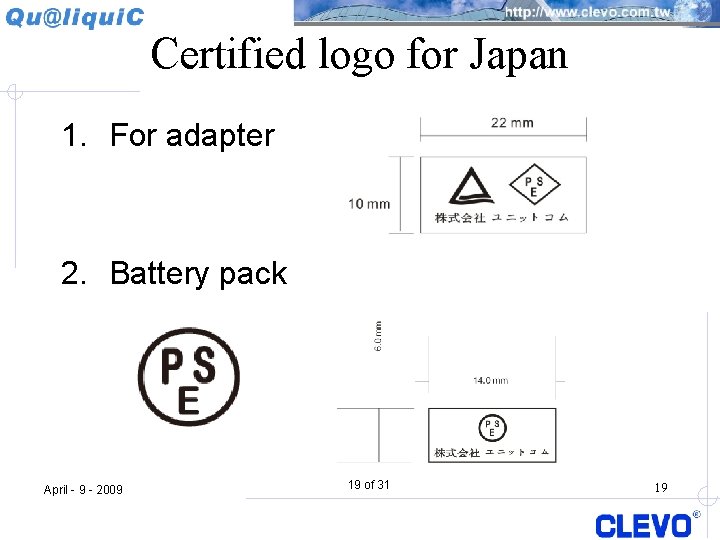

Certified logo for Japan 1. For adapter 2. Battery pack April - 9 - 2009 19 of 31 19

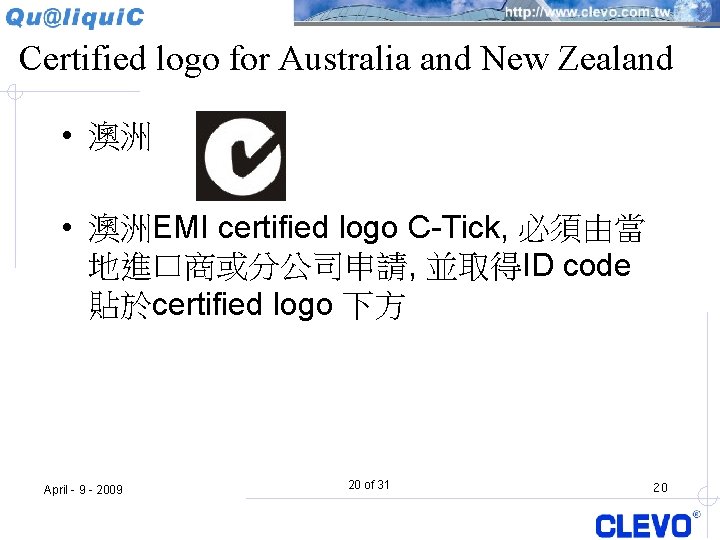

Certified logo for Australia and New Zealand • 澳洲EMI certified logo C-Tick, 必須由當 地進口商或分公司申請, 並取得ID code 貼於certified logo 下方 April - 9 - 2009 20 of 31 20

Certified logo for Brazil April - 9 - 2009 21 of 31 21

Certified logo for Korea April - 9 - 2009 22 of 31 22

Certified logo for Singapore April - 9 - 2009 23 of 31 23

Certified logo for Russia April - 9 - 2009 24 of 31 24

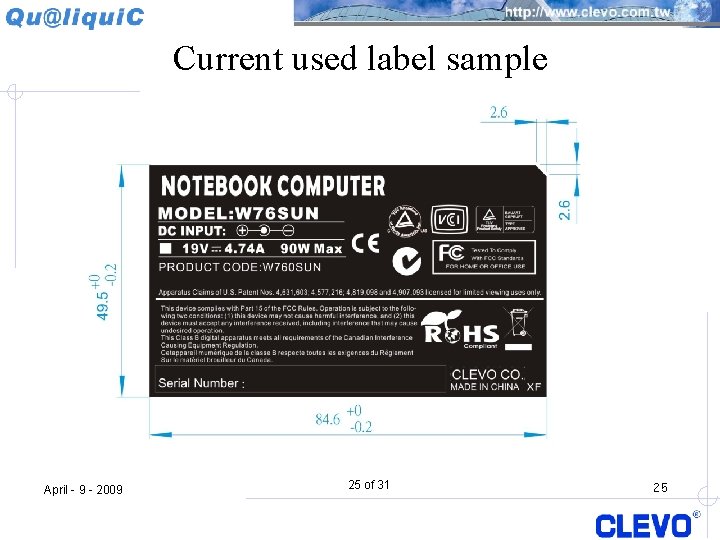

Current used label sample April - 9 - 2009 25 of 31 25

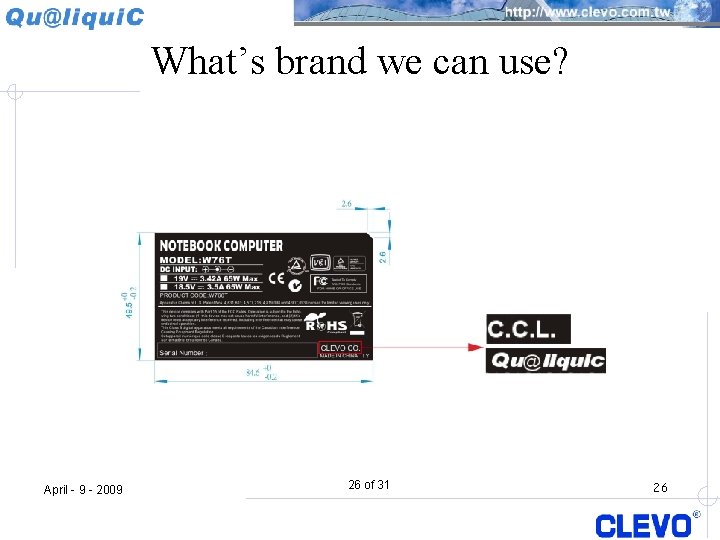

What’s brand we can use? April - 9 - 2009 26 of 31 26

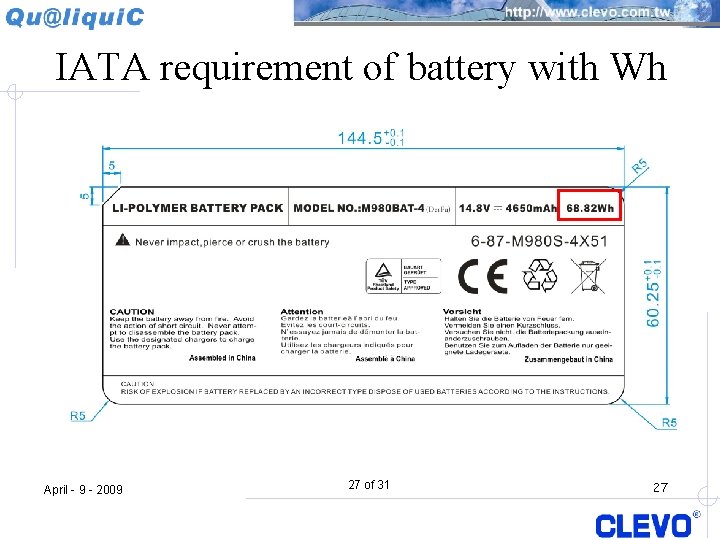

IATA requirement of battery with Wh April - 9 - 2009 27 of 31 27

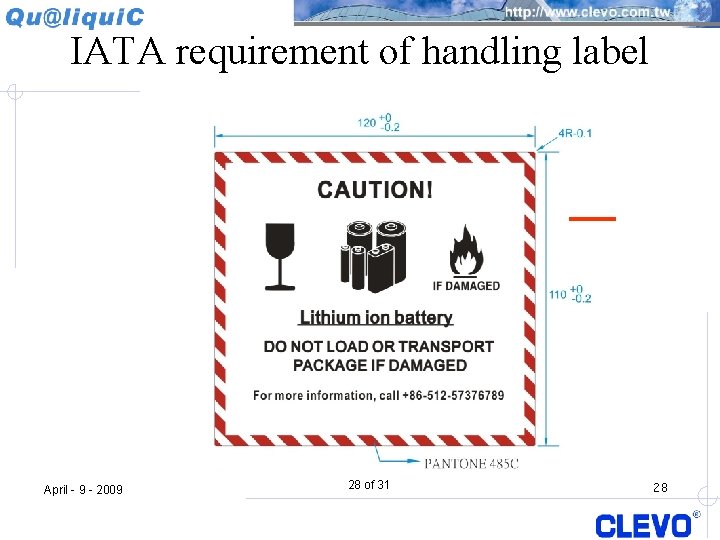

IATA requirement of handling label April - 9 - 2009 28 of 31 28

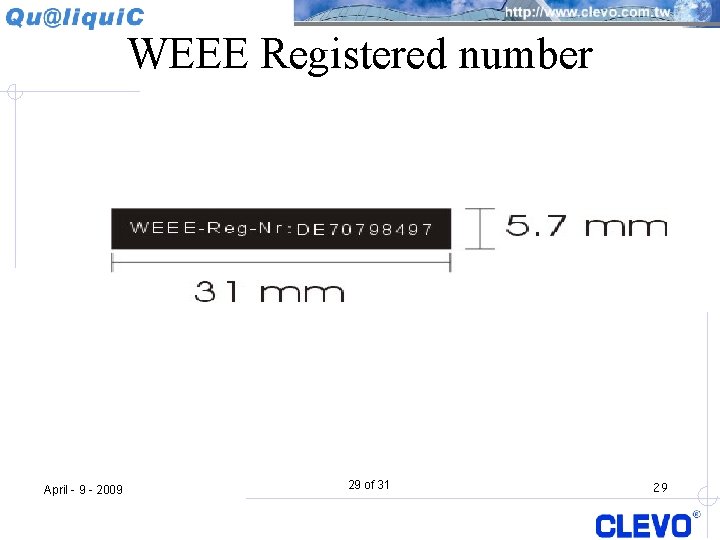

WEEE Registered number April - 9 - 2009 29 of 31 29

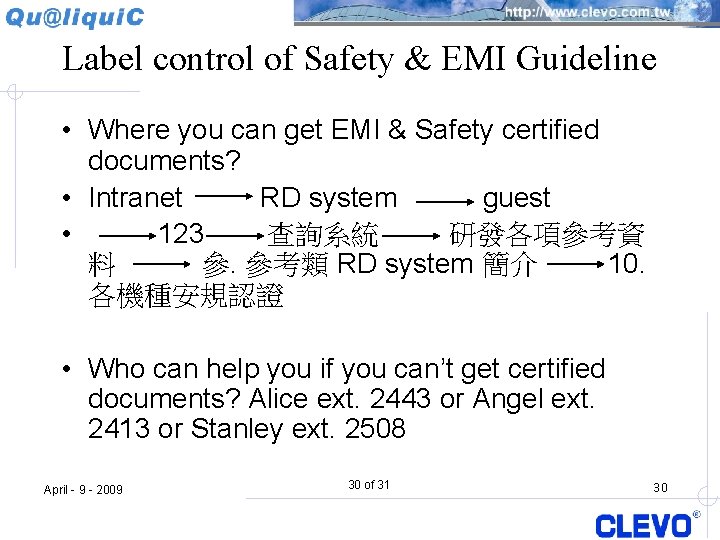

Label control of Safety & EMI Guideline • Where you can get EMI & Safety certified documents? • Intranet RD system guest • 123 查詢系統 研發各項參考資 料 參. 參考類 RD system 簡介 10. 各機種安規認證 • Who can help you if you can’t get certified documents? Alice ext. 2443 or Angel ext. 2413 or Stanley ext. 2508 April - 9 - 2009 30 of 31 30

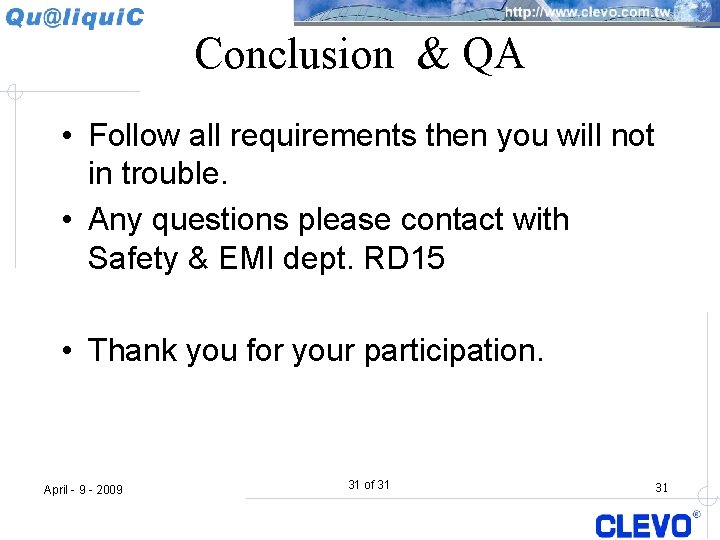

Conclusion & QA • Follow all requirements then you will not in trouble. • Any questions please contact with Safety & EMI dept. RD 15 • Thank you for your participation. April - 9 - 2009 31 of 31 31
