LAB2 Two Types of 7 Segment display PART

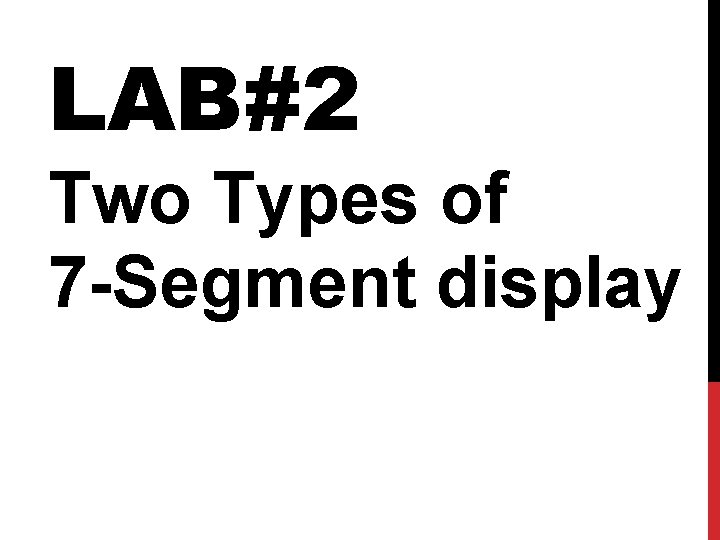

LAB#2 Two Types of 7 -Segment display

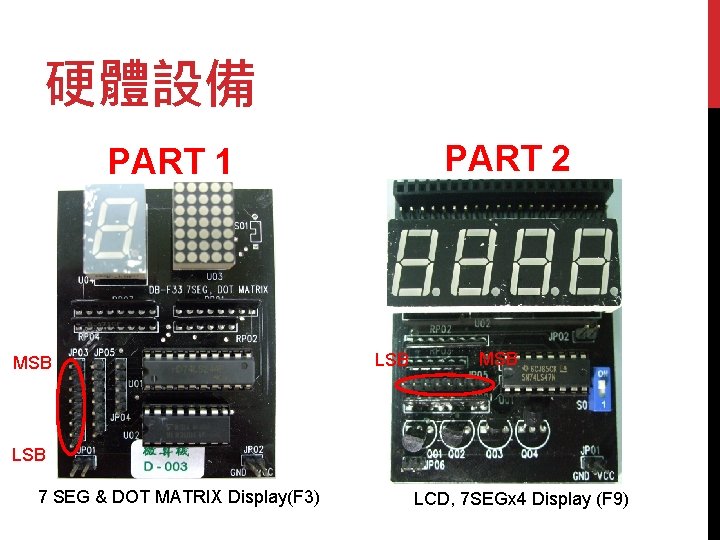

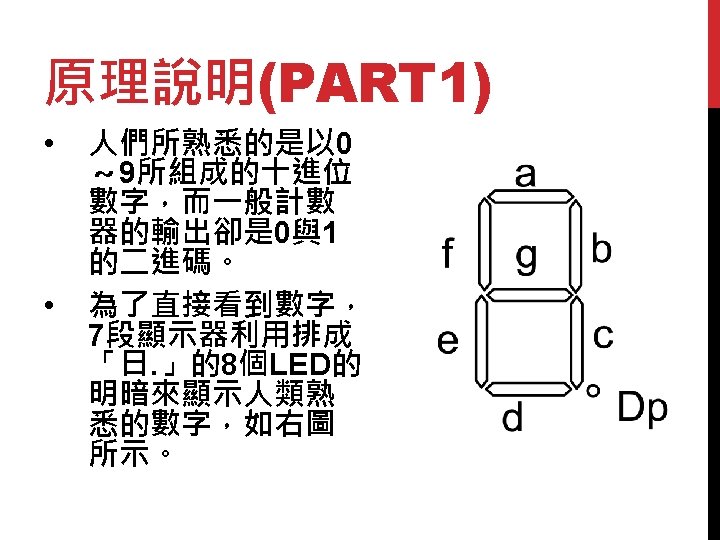

硬體設備 PART 2 PART 1 MSB LSB 7 SEG & DOT MATRIX Display(F 3) LCD, 7 SEGx 4 Display (F 9)

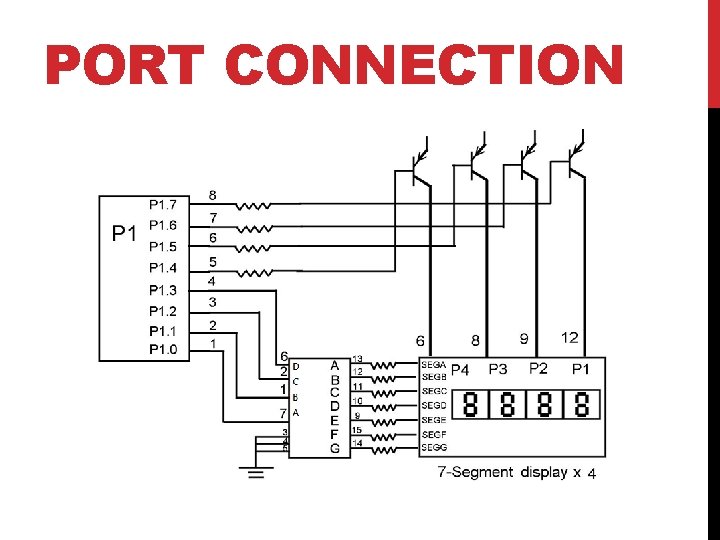

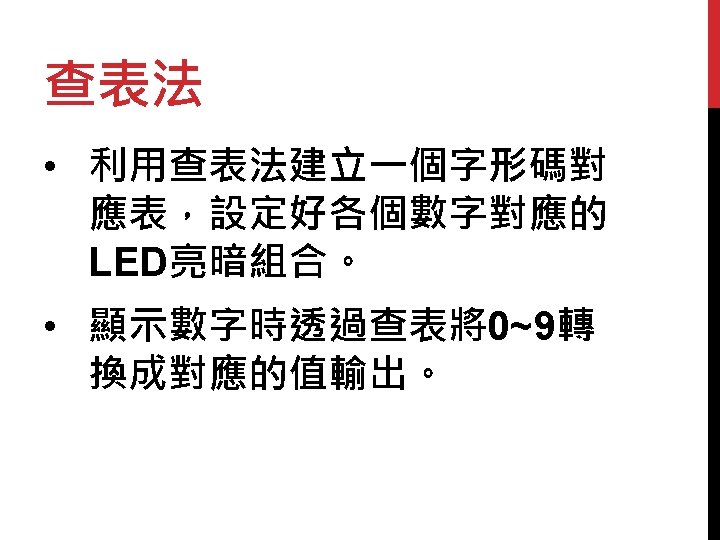

PORT CONNECTION

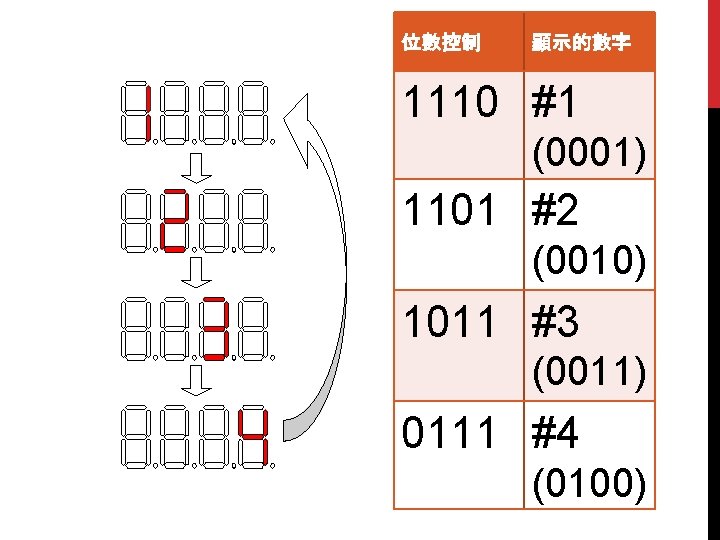

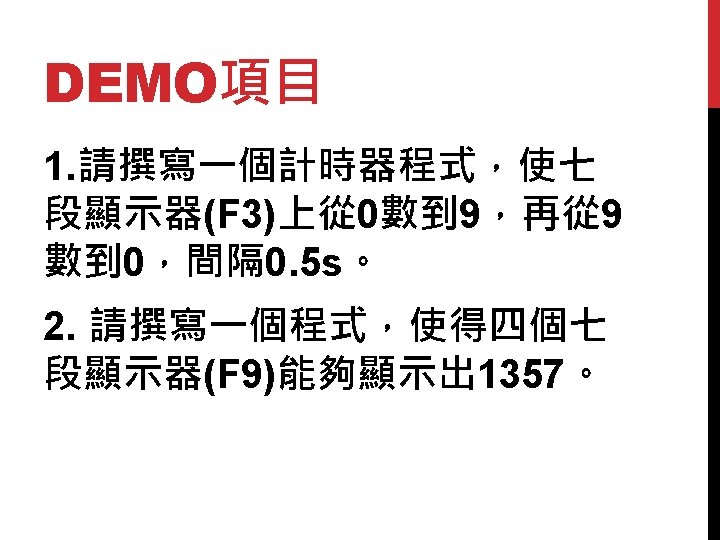

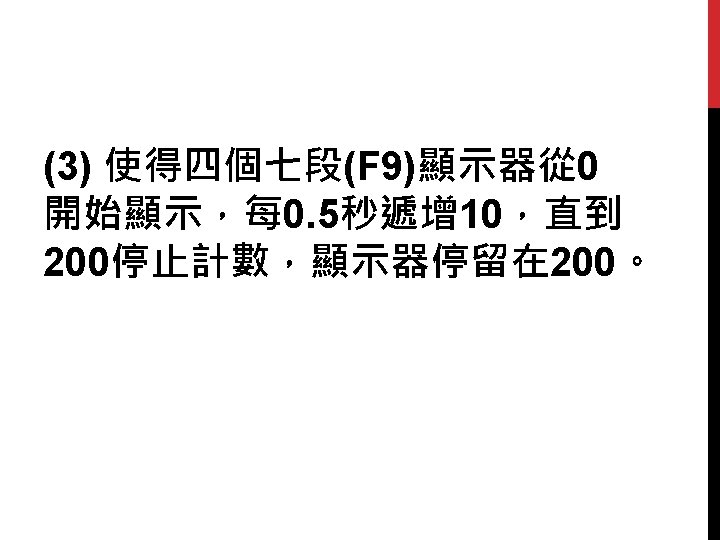

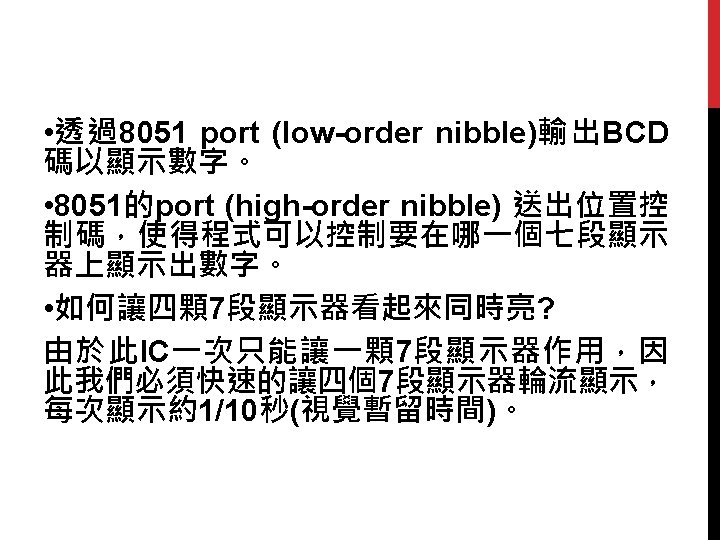

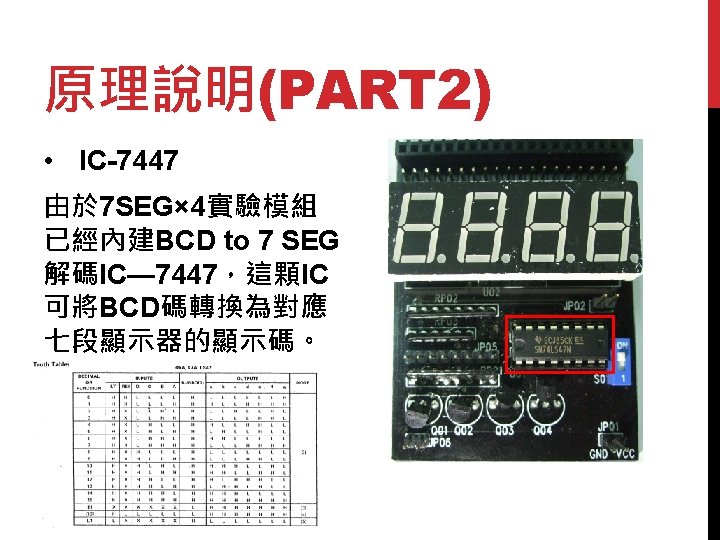

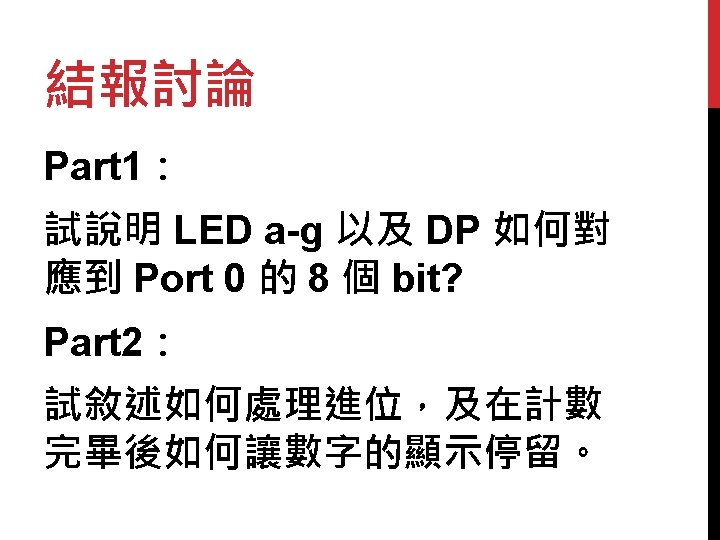

位數控制 顯示的數字 1110 #1 (0001) 1101 #2 (0010) 1011 #3 (0011) 0111 #4 (0100)
