Lab. VIEW PROFIBUS VISA Driver PROFIBUS DP for Lab. VIEW § Real-time PROFIBUS DP connection for National Instruments Lab. VIEW § Developed for the COMSOFT DF PROFI II board, available in the PCI, PCIe, Compact. PCI and PC 104+ format § Installation in a classical PC system under Lab. VIEW for Windows is just as possible as in a real-time PXI system under Lab. VIEW RT § Supports DP Master and DP Slave mode Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
Lab. VIEW PROFIBUS VISA Driver Architecture Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009

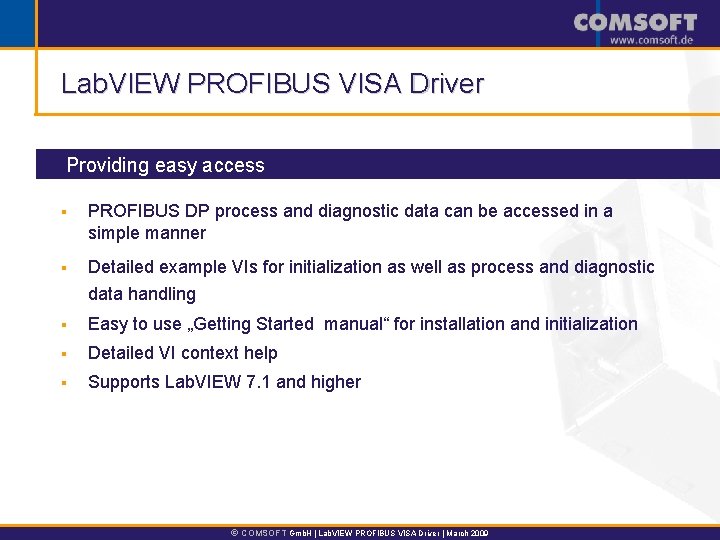

Lab. VIEW PROFIBUS VISA Driver Providing easy access § PROFIBUS DP process and diagnostic data can be accessed in a simple manner § Detailed example VIs for initialization as well as process and diagnostic data handling § Easy to use „Getting Started manual“ for installation and initialization § Detailed VI context help § Supports Lab. VIEW 7. 1 and higher Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
Lab. VIEW PROFIBUS VISA Driver Easy to use interface with Lab. VIEW standard and Lab. VIEW express VIs § § Standard VI DP Master Standard VI DP Slave Express VI DP Master Express VI DP Slave Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
Lab. VIEW PROFIBUS VISA Driver Easy to use interface with Lab. VIEW standard and Lab. VIEW express VIs § Standard VI DP Master Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009

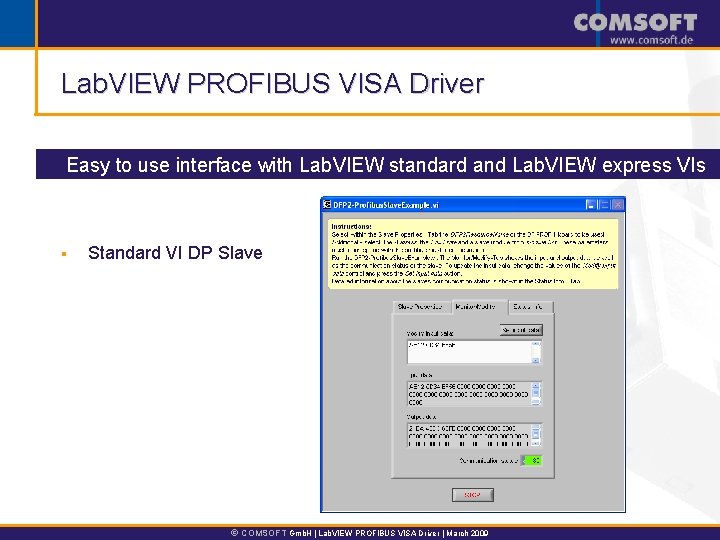

Lab. VIEW PROFIBUS VISA Driver Easy to use interface with Lab. VIEW standard and Lab. VIEW express VIs § Standard VI DP Slave Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
Lab. VIEW PROFIBUS VISA Driver Easy to use interface with Lab. VIEW standard and Lab. VIEW express VIs § Express VI DP Master Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
Lab. VIEW PROFIBUS VISA Driver Easy to use interface with Lab. VIEW standard and Lab. VIEW express VIs § Express VI DP Slave Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009

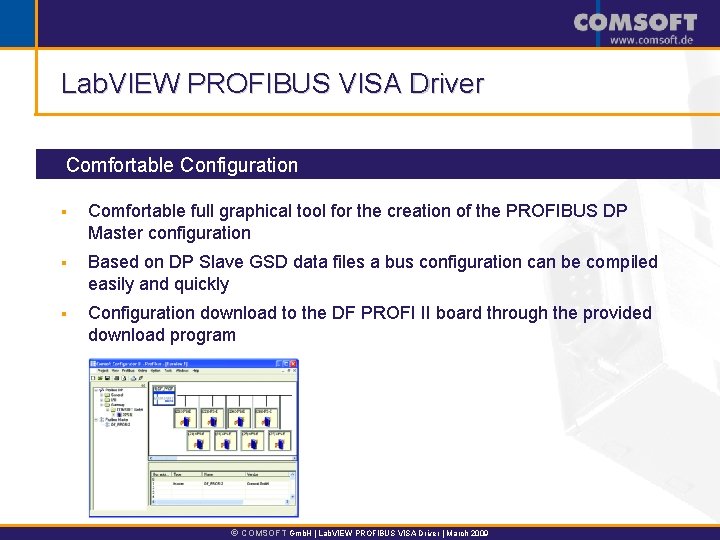

Lab. VIEW PROFIBUS VISA Driver Comfortable Configuration § Comfortable full graphical tool for the creation of the PROFIBUS DP Master configuration § Based on DP Slave GSD data files a bus configuration can be compiled easily and quickly § Configuration download to the DF PROFI II board through the provided download program Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
Lab. VIEW PROFIBUS VISA Driver DF PROFI II PCI / PCIe / CPCI / PC 104+ § DPV 0 Master class 1 und DP Slave § DPV 1 Master class 2 § Hardware watchdog function § Process data image with time stamp § Process data access < 1 ms § Flashable PROFIBUS configuration § Configuration tool based on PROFIBUS GSD files § PROFIBUS 1. 2 FDT Communication DTM available § OPC-Server available Ó COMSOFT Gmb. H | Lab. VIEW PROFIBUS VISA Driver | March 2009
