Lab VIEW a Visual Programming Language 08 Introduction

Lab. VIEW, a Visual Programming Language 수학과 08학번 권혁준

Introduction

People Who need Programming, But not a Programmer

People Who need Programming, But not a Programmer

People Who need Programming, But not a Programmer

People Who need Programming, But not a Programmer CSED 101 C받은 학우

Lab. VIEW, from National Instruments, may good solution for them!!

A Visual Programming Language • int A • Int Sum (int A, int B);

예제 4(Math. Script)

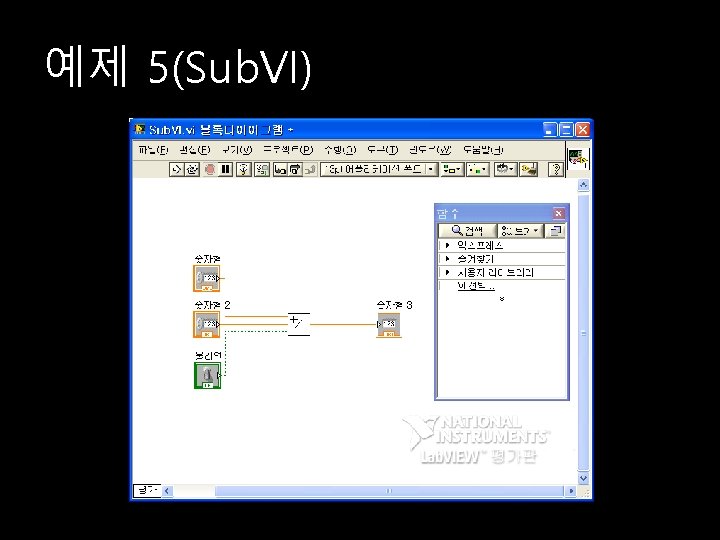

예제 5(Sub. VI)

장점 2 – Multi core Programming

장점 3 – Hardware Support

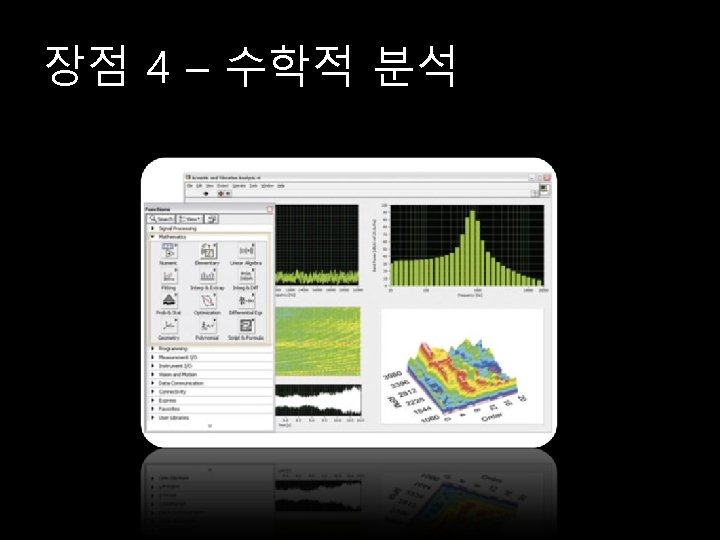

장점 4 – 수학적 분석 제 2종 타원함수 Runge Kutta Method Matrix Exponential Bessel Function 상관계수 Eigenvalue, Eigenvector ODE 해답기 수치 적분 QR Decomposition

단점 1 – 비싸다… • Base – $1, 249 • Full – $2, 599 • Professional – $4, 299 • NI Developer Suite – $4, 699

단점 2 – 특정한 목적에만 적합 • Not a general purpose language NO RECU RSIONS!!

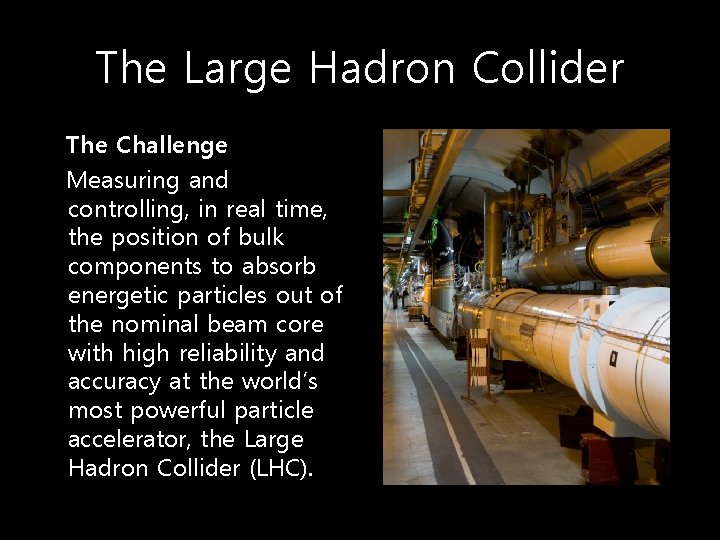

The Large Hadron Collider The Challenge Measuring and controlling, in real time, the position of bulk components to absorb energetic particles out of the nominal beam core with high reliability and accuracy at the world’s most powerful particle accelerator, the Large Hadron Collider (LHC).

References • 곽두영, 『컴퓨터 기반의 제어와 계측 Lab. VIEW』, Ohm사 • http: //wikipedia. org/ 『Wikipedia, The Free Encyclopedia』 • http: //www. mylv. net/ 『 마이랩뷰 Lab. VIEW 개발자 커뮤니티』 • http: //www. ni. com/『 National Instrument』

Any Questions?
