Lab Satellite 1 Lab satellite 2 Channels Channel

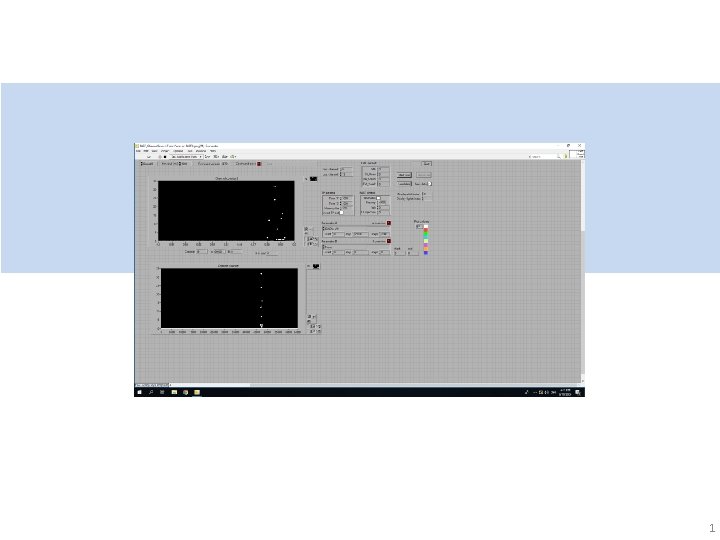

Lab Satellite 1
Lab satellite 2

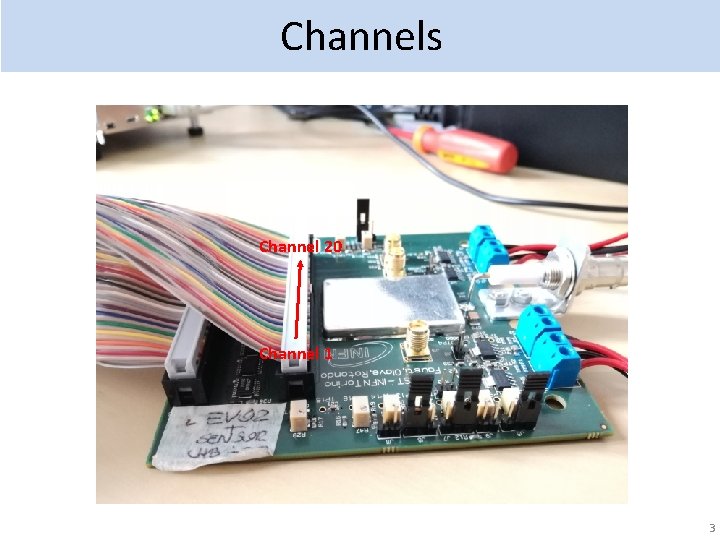

Channels Channel 20 Channel 1 3

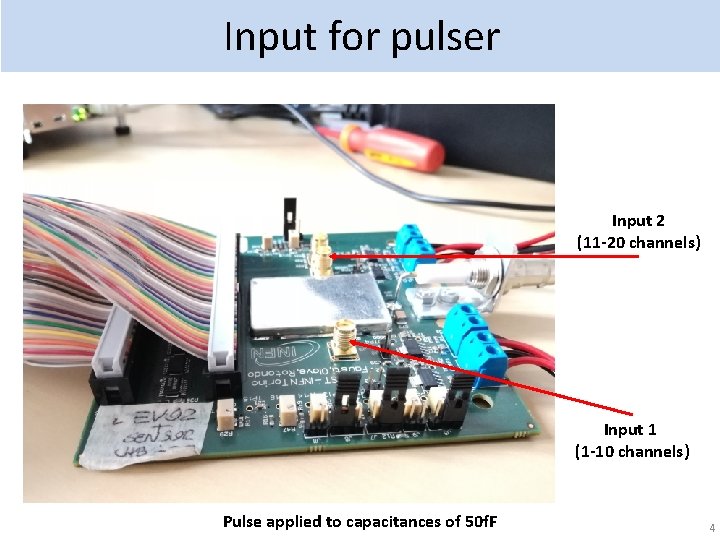

Input for pulser Input 2 (11 -20 channels) Input 1 (1 -10 channels) Pulse applied to capacitances of 50 f. F 4
Board-FPGA connection Output connector (to be connected with the second connector on the FPGA) FPGA connector (to be connected with the first connector on the FPGA) 5
Jumper position Jumpers To keep fixed in position Jumpers Position for FPGA threshold scan (for a manual scan must be moved to the right pin). V_th can be fixed externally with a bias applied to the central pin of J 8 6

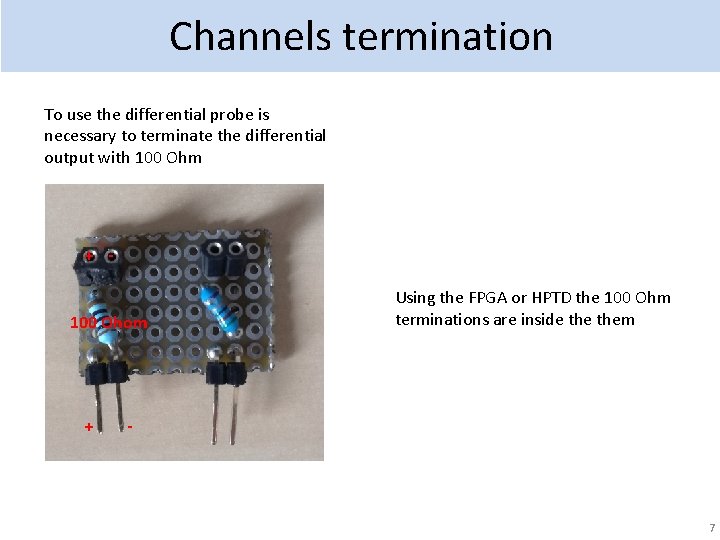

Channels termination To use the differential probe is necessary to terminate the differential output with 100 Ohm + - 100 Ohom + Using the FPGA or HPTD the 100 Ohm terminations are inside them - 7

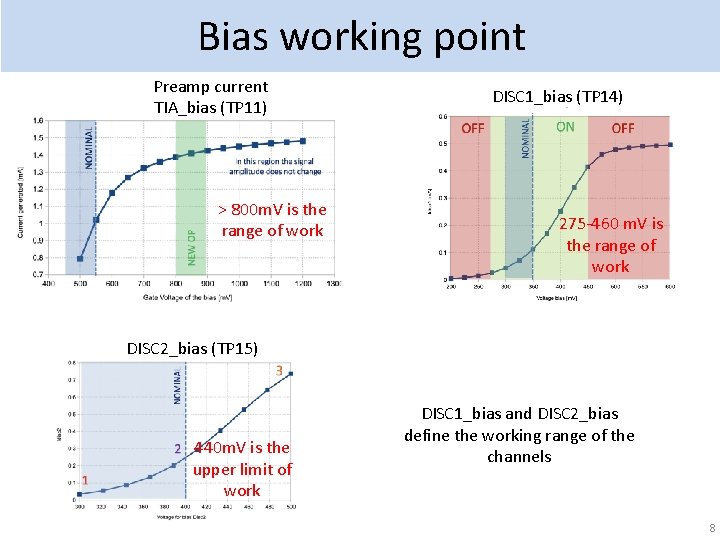

Bias working point Preamp current TIA_bias (TP 11) > 800 m. V is the range of work DISC 1_bias (TP 14) 275 -460 m. V is the range of work DISC 2_bias (TP 15) 440 m. V is the upper limit of work DISC 1_bias and DISC 2_bias define the working range of the channels 8

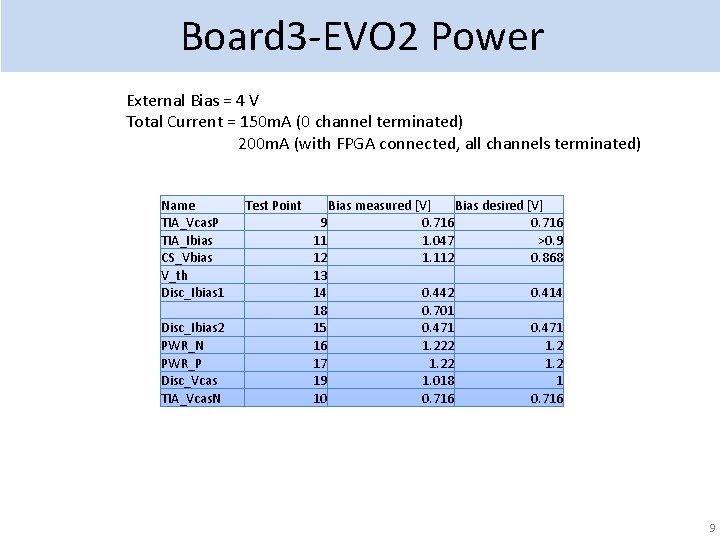

Board 3 -EVO 2 Power External Bias = 4 V Total Current = 150 m. A (0 channel terminated) 200 m. A (with FPGA connected, all channels terminated) Name TIA_Vcas. P TIA_Ibias CS_Vbias V_th Disc_Ibias 1 Disc_Ibias 2 PWR_N PWR_P Disc_Vcas TIA_Vcas. N Test Point Bias measured [V] Bias desired [V] 9 0. 716 11 1. 047 >0. 9 12 1. 112 0. 868 13 14 0. 442 0. 414 18 0. 701 15 0. 471 16 1. 222 1. 2 17 1. 22 1. 2 19 1. 018 1 10 0. 716 9
Board 3 -EVO 2 threshold scan 10

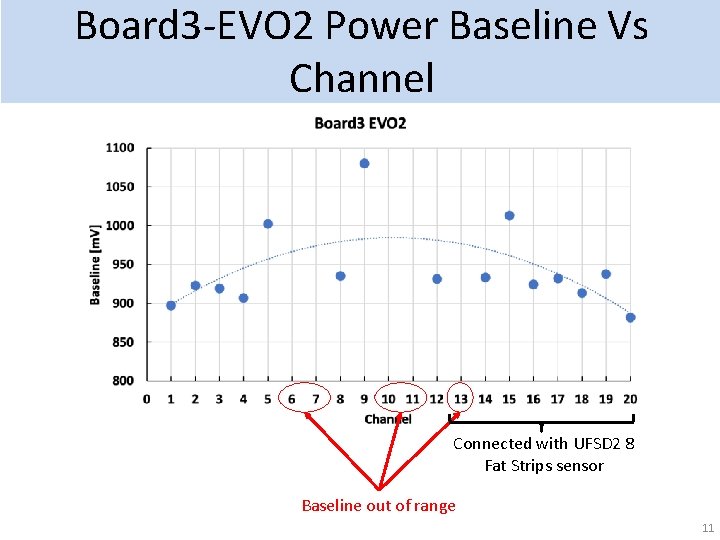

Board 3 -EVO 2 Power Baseline Vs Channel Connected with UFSD 2 8 Fat Strips sensor Baseline out of range 11
