Lab meeting Transmission Electron Microscopy Microbial Ecology Lab
Lab. meeting Transmission Electron Microscopy <투과전자현미경> 이시원 Microbial Ecology Lab. Dep. of Microbiology Dankook Univ. 2010. 11. 05. Sat.

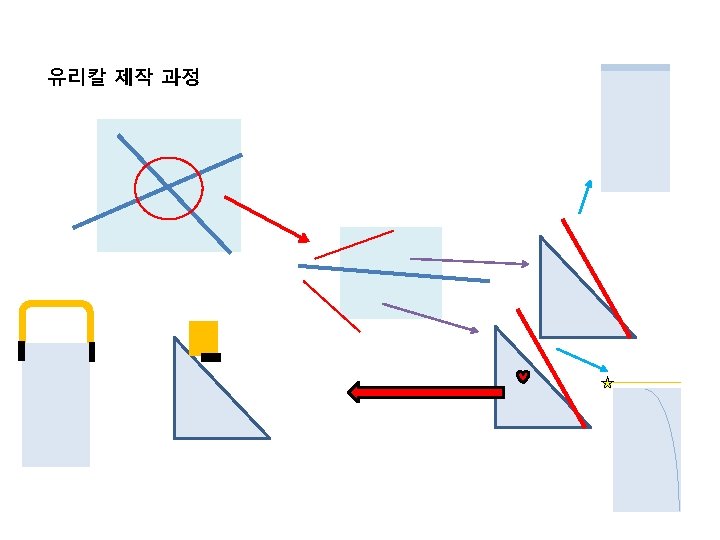

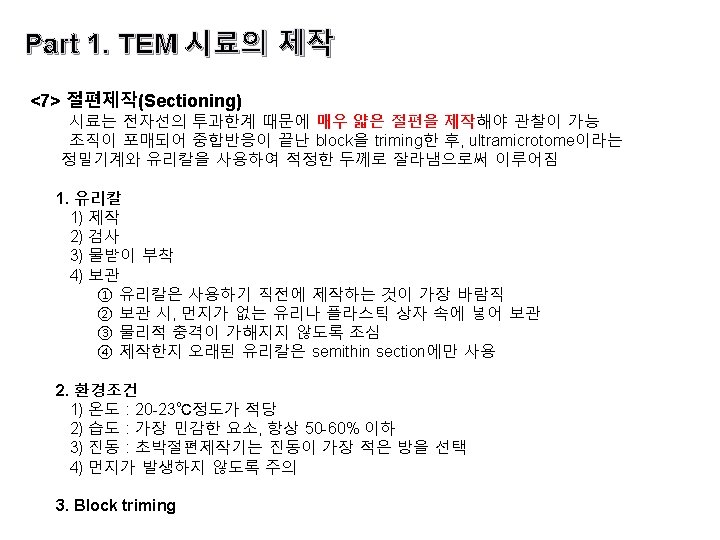

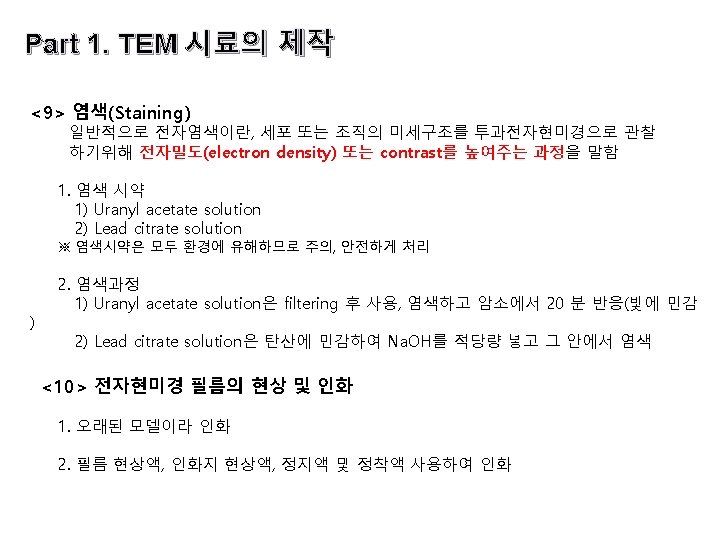

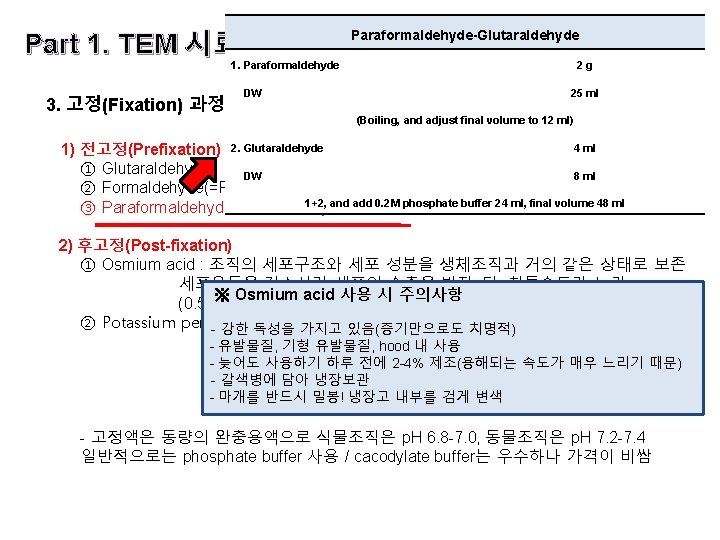

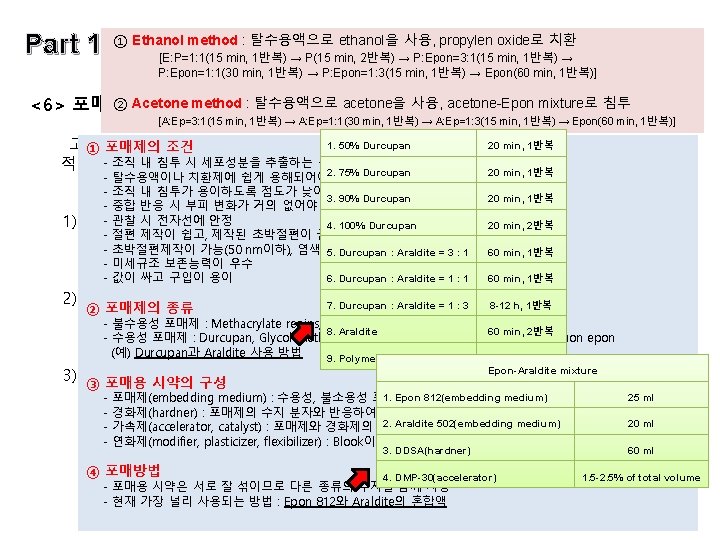

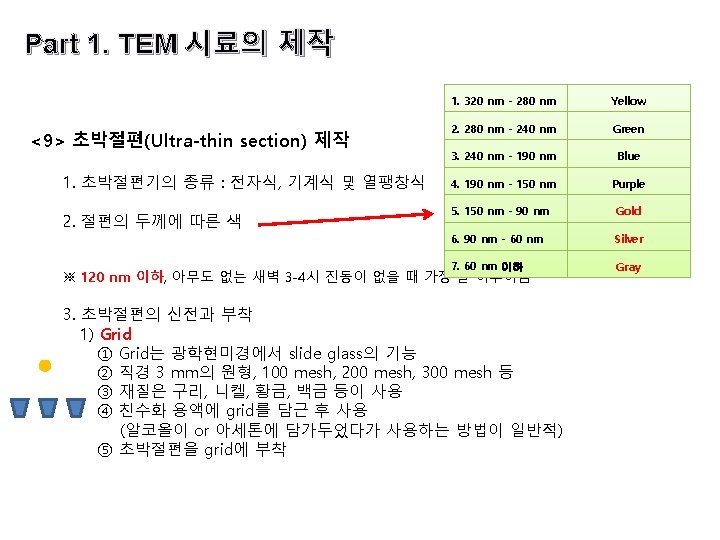

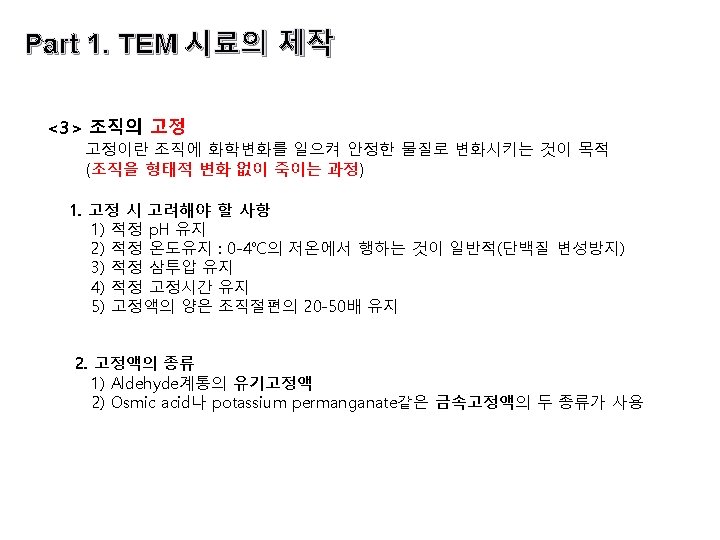

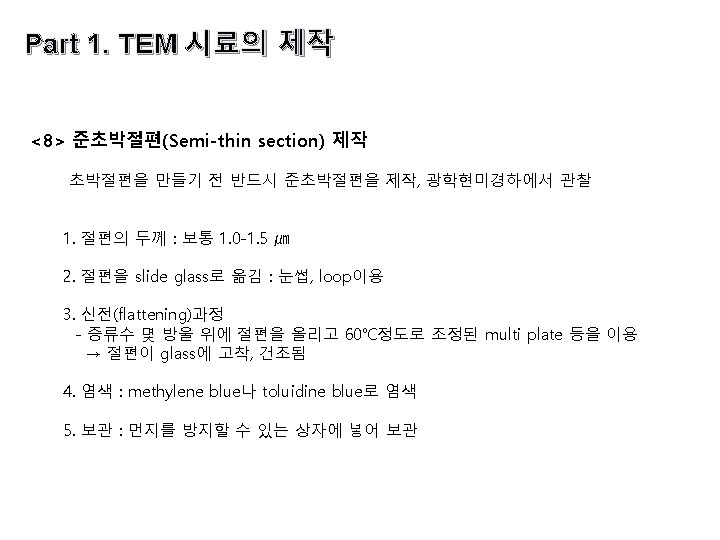

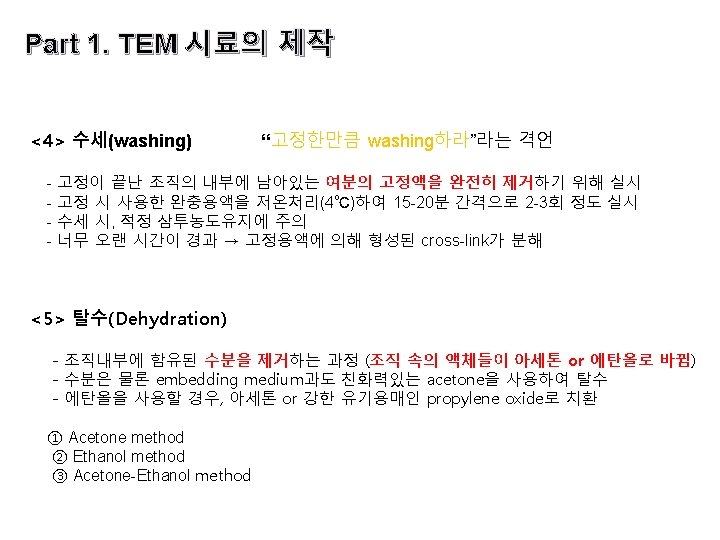

CONTENTS Part 1. TEM 시료의 제작 <1> 전자현미경 관찰을 위한 준비 <2> 조직의 해부 (Extraction) <3> 조직의 고정 (Fixation) <4> 수세 (Washing) <5> 탈수 (Dehydration) <6> 포매 (Embedding) <7> 절편제작 (Sectioning) <8> 초박절편의 신전과 부착 (Flattening & Mounting) <9> 염색 (Staining) <10> 필름 현상 및 인화 (Developing & Printing) Part 2. TEM 사용방법
Part 1. TEM 시료의 제작 <1> 전자현미경 관찰을 위한 준비 1. Osmium tetroxide(Os. O 4) 앰플과 Os. O 4 sol. 을 보관한 시약병(glassware)를 glassware cleaning sol. 에 처리 → 화학적 청결상태유지 2. 작업2 -3일전에 필요한 양 만큼의 dehydrating sol. 을 준비 (탈수과정) Glassware cleaning solution <2> 조직의 해부 1. Potassium dichromate 2. DW 1. 마취 2. 생리식염용액 3. 조직의 크기 100 g 1, 000 ml (Heating and stirring until solution dissolves, cool to room temperature) 3. Concentrated sulfuric acid (H 2 SO 4) 100 ml

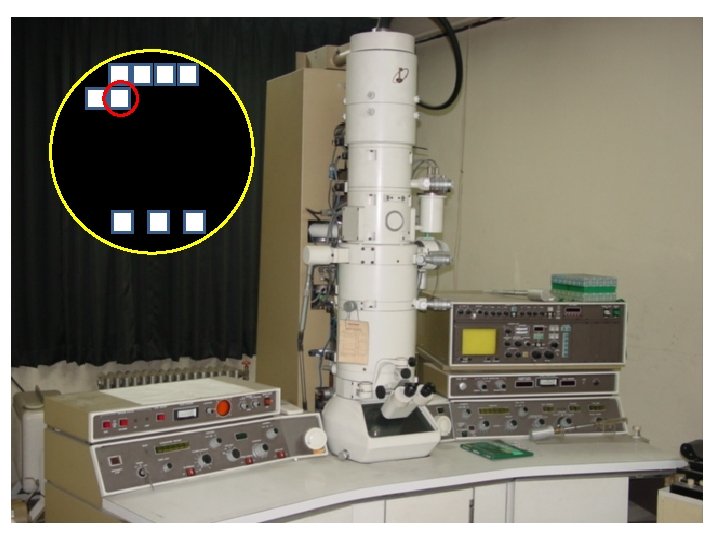

Part 2. TEM 사용방법
- Slides: 17
