Lab Exercise The Axial Skeleton Skull Virtual Lab

Lab Exercise: The Axial Skeleton Skull Virtual Lab As a note: I did not have a picture that showed the following structures well. You are still responsible for them: • Sagittal suture • Stylomastoid foramen • Mandibular fossa • Middle nasal conchae • Incisive fossa • Mandibular notch • Mandibular foramen • The sinuses

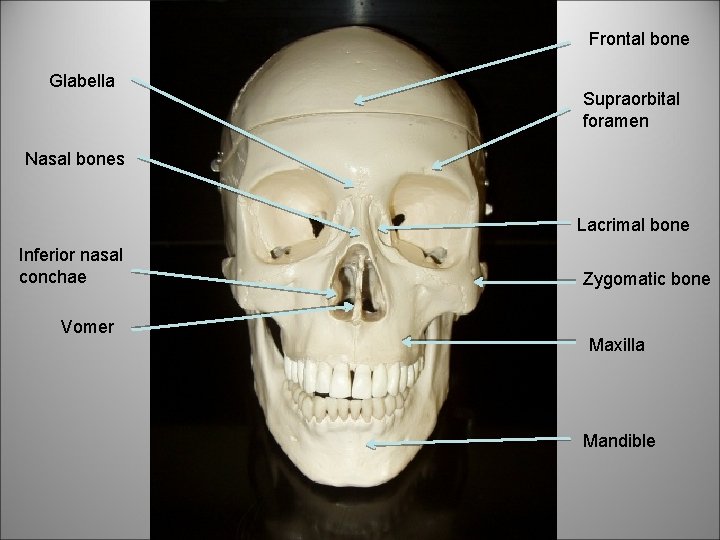

Frontal bone Glabella Supraorbital foramen Nasal bones Lacrimal bone Inferior nasal conchae Vomer Zygomatic bone Maxilla Mandible

Infraorbital foramen Mental foramen Alveolar margin of the maxilla Mandibular symphysis Alveolar margin of the mandible

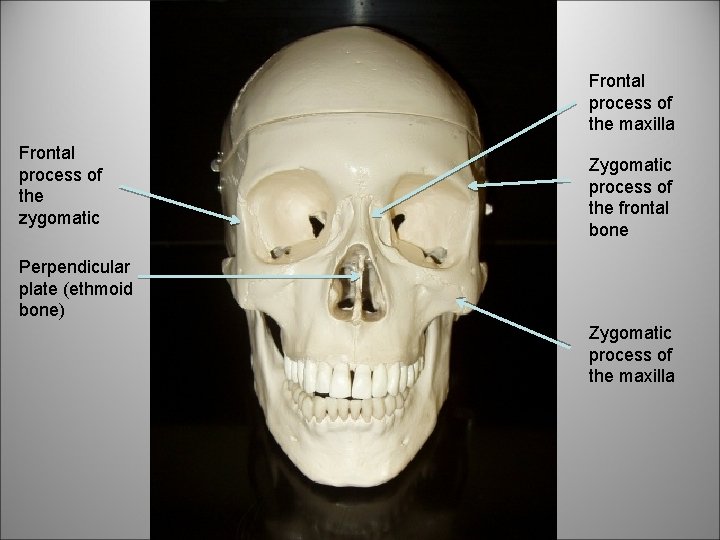

Frontal process of the maxilla Frontal process of the zygomatic Zygomatic process of the frontal bone Perpendicular plate (ethmoid bone) Zygomatic process of the maxilla

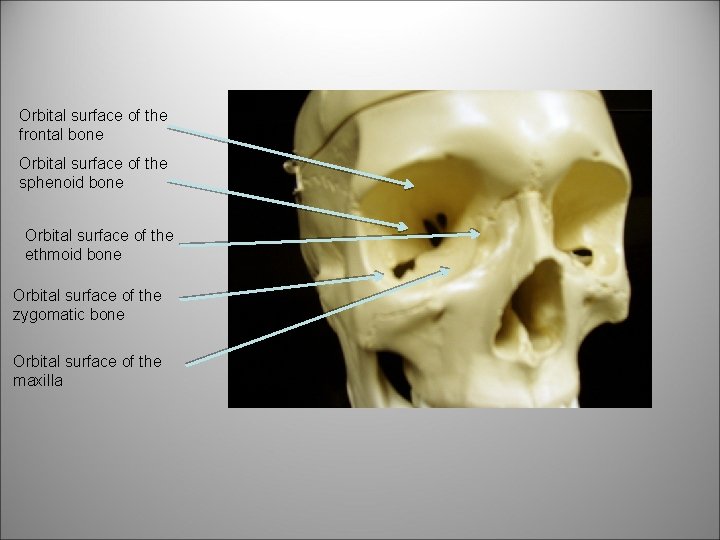

Orbital surface of the frontal bone Orbital surface of the sphenoid bone Orbital surface of the ethmoid bone Orbital surface of the zygomatic bone Orbital surface of the maxilla

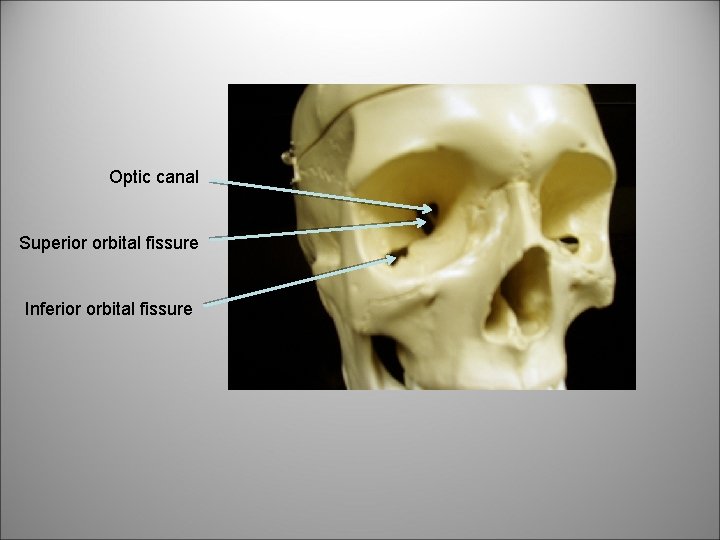

Optic canal Superior orbital fissure Inferior orbital fissure

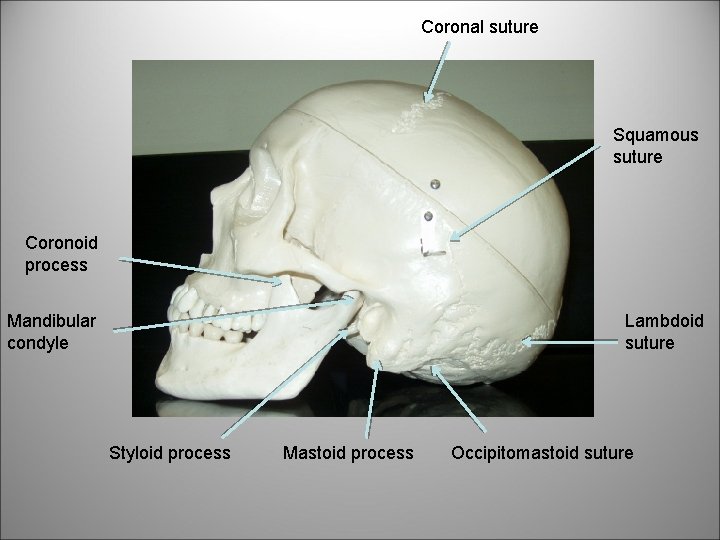

Coronal suture Squamous suture Coronoid process Mandibular condyle Lambdoid suture Styloid process Mastoid process Occipitomastoid suture

Squamous region of temporal bone External acoustic (auditory) meatus Tympanic region Mastoid region Body of mandible Mandibular angle Mandibular ramus (Ramus of Mandible)

Zygomatic process of the frontal bone Frontal process of the zygomatic bone Temporal process of the zygomatic bone Zygomatic process of the temporal bone

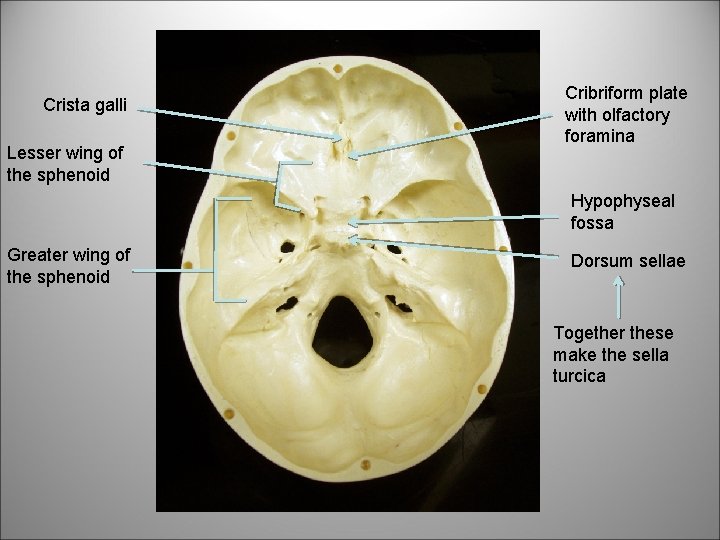

Crista galli Lesser wing of the sphenoid Cribriform plate with olfactory foramina Hypophyseal fossa Greater wing of the sphenoid Dorsum sellae Together these make the sella turcica

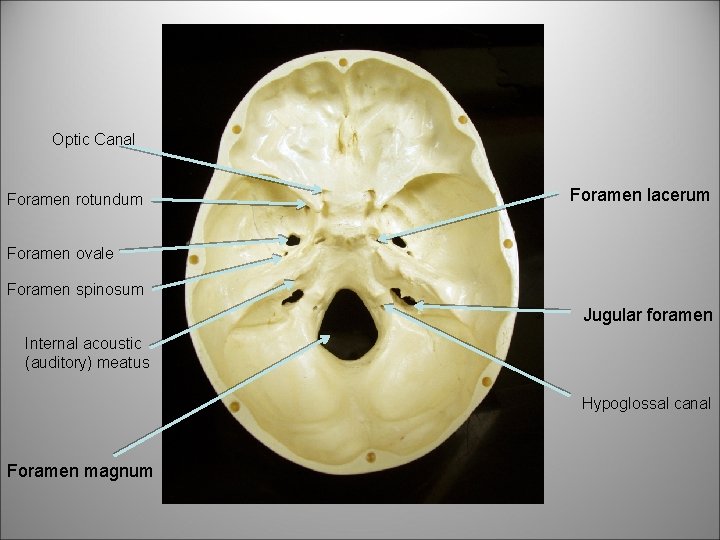

Optic Canal Foramen rotundum Foramen lacerum Foramen ovale Foramen spinosum Jugular foramen Internal acoustic (auditory) meatus Hypoglossal canal Foramen magnum

Palatine process of maxilla Palatine bone Foramen lacerum Petrous region of the temporal bone Carotid canal Jugular foramen Occipital condyle External occipital protuberance

Now quiz yourself!

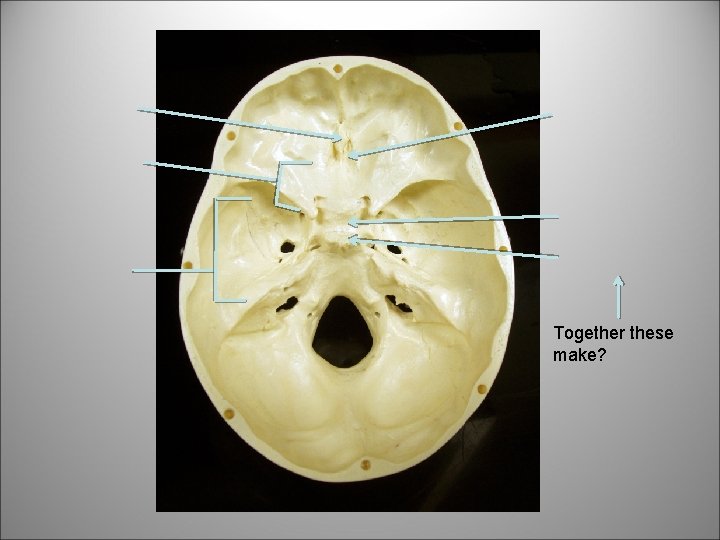

Together these make?
