Lab 9 Reflection and Refraction Law of Reflection
Lab 9: Reflection and Refraction – – Law of Reflection Law of Refraction (Snell’s Law) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Index of Refraction The Critical Angle Total Internal Reflection Dispersion Light Passing through a Window Pane or Prism How Large does a Mirror Need to be? Location of Mirror Image Rainbows Corner Reflectors Fiber Optics Polarization by Reflection

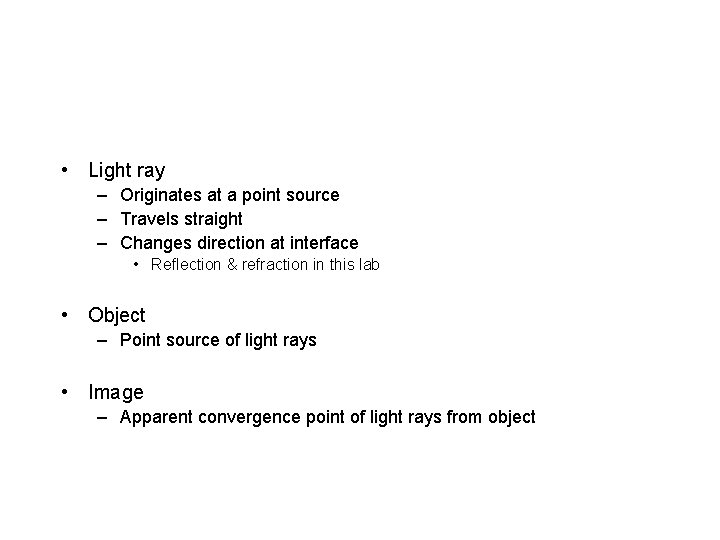

• Light ray – Originates at a point source – Travels straight – Changes direction at interface • Reflection & refraction in this lab • Object – Point source of light rays • Image – Apparent convergence point of light rays from object
• Draw diagrams involving – Light rays – Interface – Angles • Estimate angles to the tenth of a degree – Take several measurements and then average them

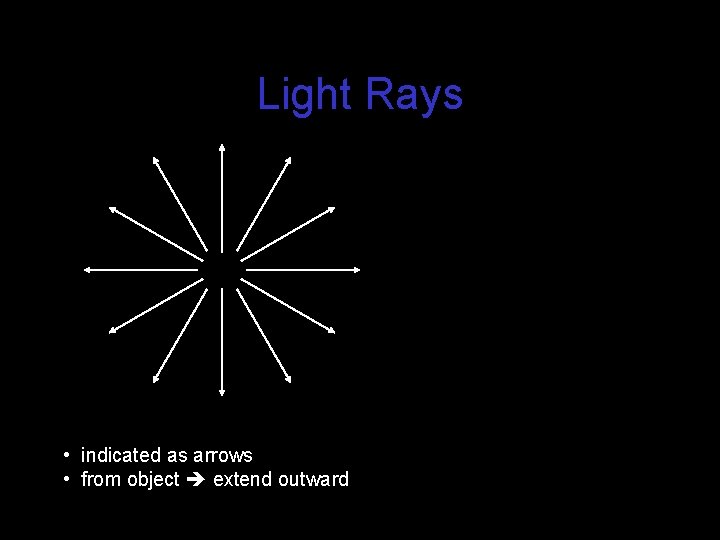

Light Rays • indicated as arrows • from object extend outward
Light Rays white light unit: a ray of light made by a slit

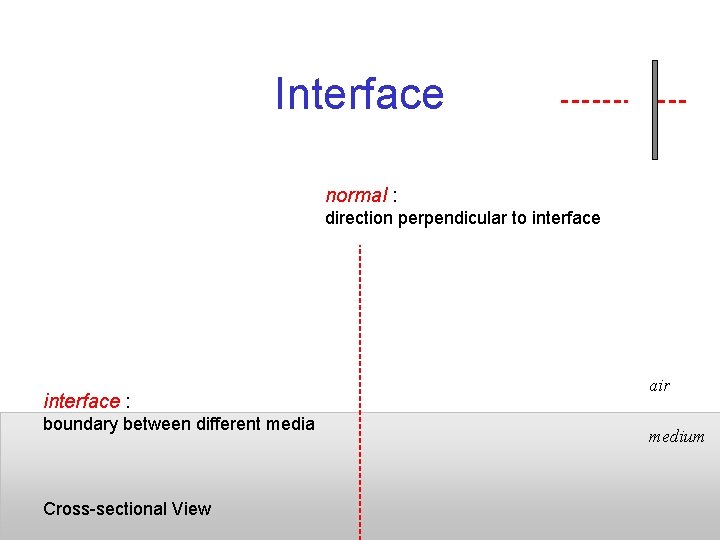

Interface normal : direction perpendicular to interface : boundary between different media Cross-sectional View air medium

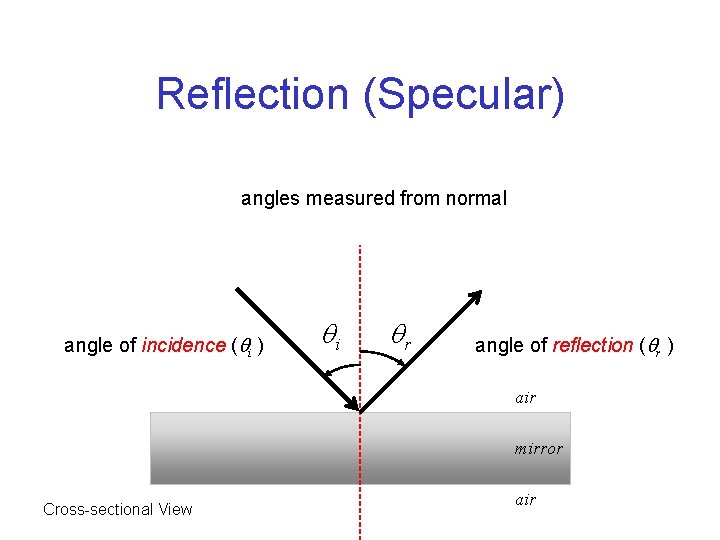

Reflection (Specular) angles measured from normal angle of incidence (qi ) qi qr angle of reflection (qr ) air mirror Cross-sectional View air

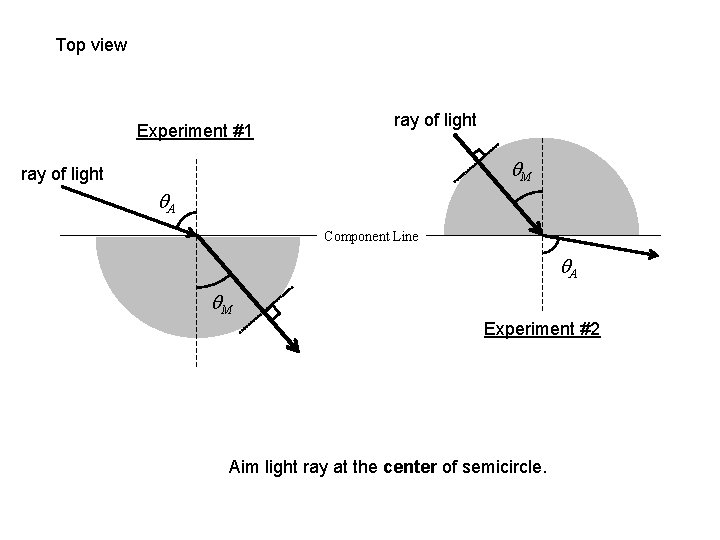

Top view Experiment #1 ray of light q. M ray of light q. A Component Line q. A q. M Experiment #2 Aim light ray at the center of semicircle.

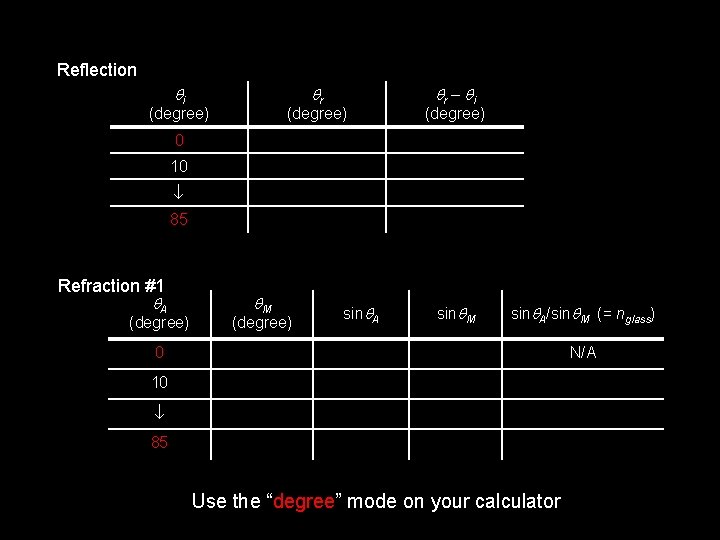

Reflection qi qr (degree) qr – qi (degree) 0 10 85 Refraction #1 q. A (degree) q. M (degree) sinq. A sinq. M sinq. A/sinq. M (= nglass) 0 N/A 10 85 Use the “degree” mode on your calculator
