Lab 9 Building a Soil Moisture Characteristic Curve

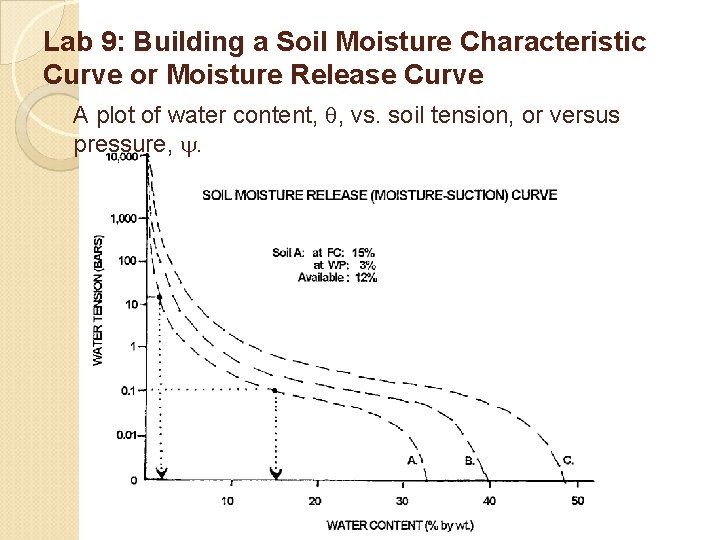

Lab 9: Building a Soil Moisture Characteristic Curve or Moisture Release Curve A plot of water content, , vs. soil tension, or versus pressure, .

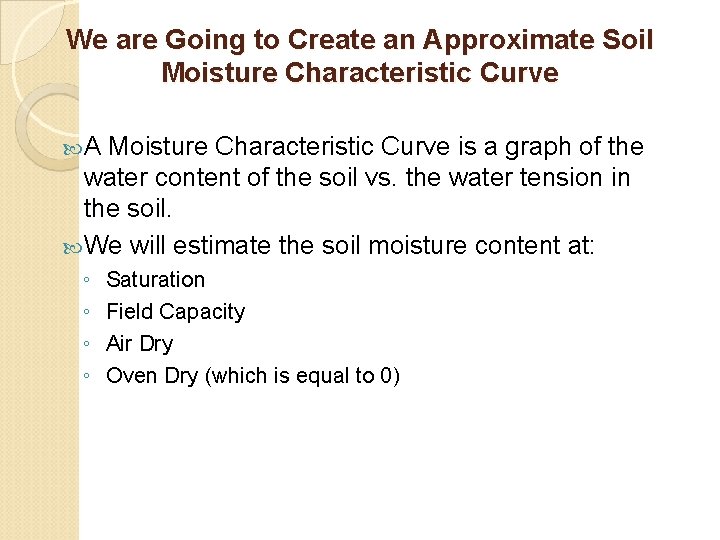

We are Going to Create an Approximate Soil Moisture Characteristic Curve A Moisture Characteristic Curve is a graph of the water content of the soil vs. the water tension in the soil. We will estimate the soil moisture content at: ◦ ◦ Saturation Field Capacity Air Dry Oven Dry (which is equal to 0)

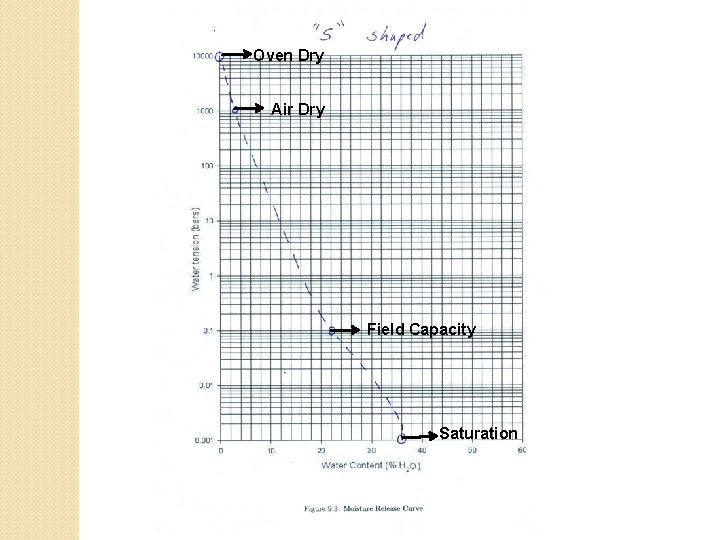

Oven Dry Air Dry Field Capacity Saturation

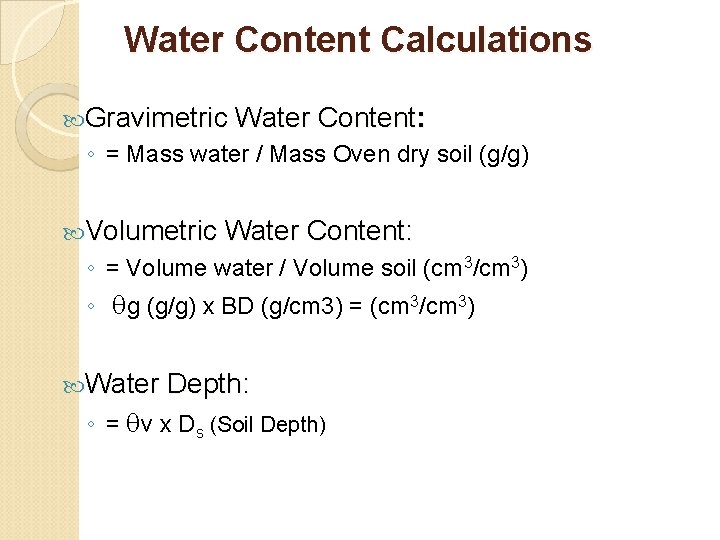

Water Content Calculations Gravimetric Water Content: ◦ = Mass water / Mass Oven dry soil (g/g) Volumetric Water Content: ◦ = Volume water / Volume soil (cm 3/cm 3) ◦ g (g/g) x BD (g/cm 3) = (cm 3/cm 3) Water Depth: ◦ = v x Ds (Soil Depth)

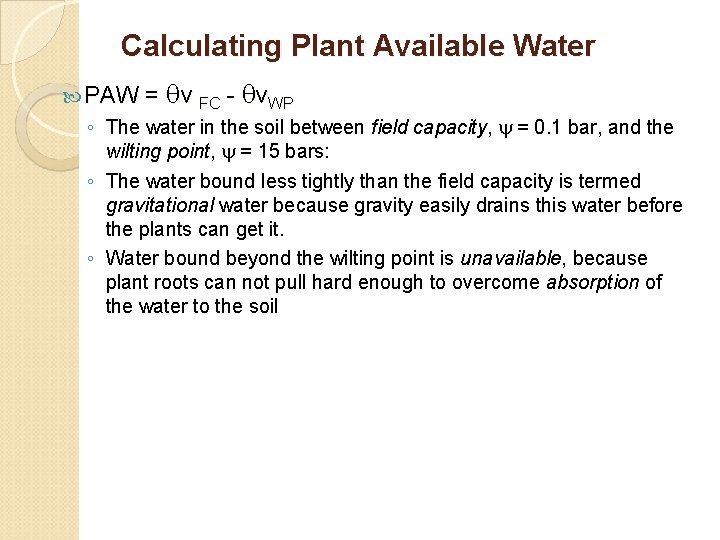

Calculating Plant Available Water PAW = v FC - v. WP ◦ The water in the soil between field capacity, = 0. 1 bar, and the wilting point, = 15 bars: ◦ The water bound less tightly than the field capacity is termed gravitational water because gravity easily drains this water before the plants can get it. ◦ Water bound beyond the wilting point is unavailable, because plant roots can not pull hard enough to overcome absorption of the water to the soil

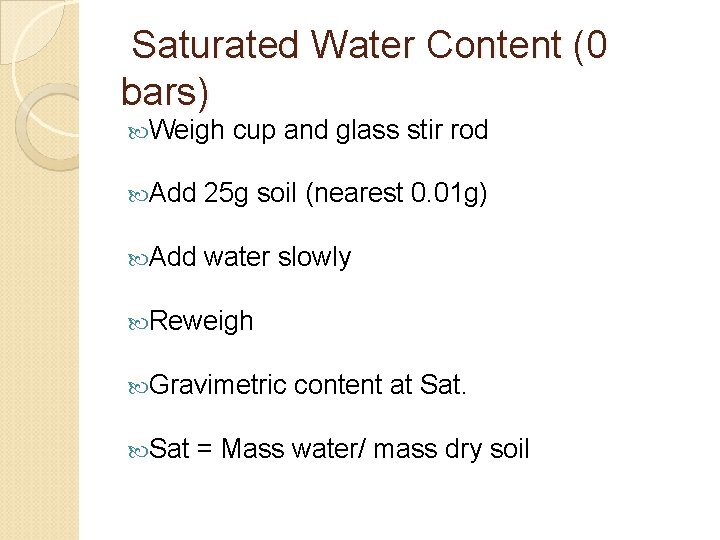

Saturated Water Content (0 bars) Weigh cup and glass stir rod Add 25 g soil (nearest 0. 01 g) Add water slowly Reweigh Gravimetric Sat content at Sat. = Mass water/ mass dry soil

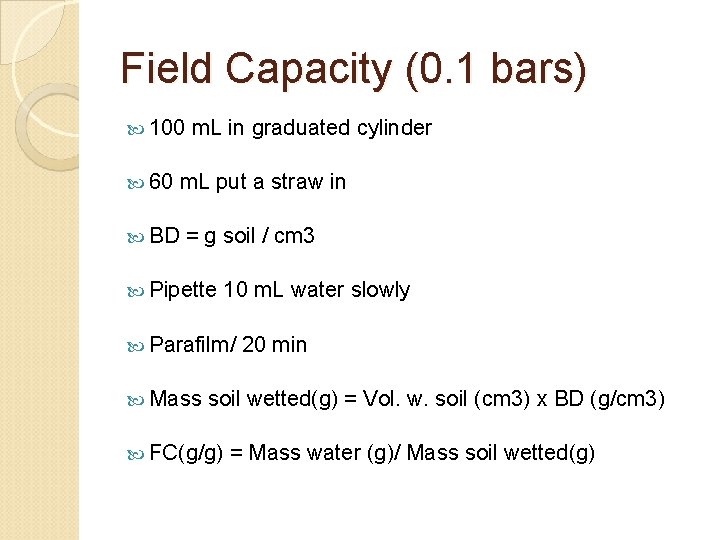

Field Capacity (0. 1 bars) 100 60 BD m. L in graduated cylinder m. L put a straw in = g soil / cm 3 Pipette 10 m. L water slowly Parafilm/ Mass 20 min soil wetted(g) = Vol. w. soil (cm 3) x BD (g/cm 3) FC(g/g) = Mass water (g)/ Mass soil wetted(g)

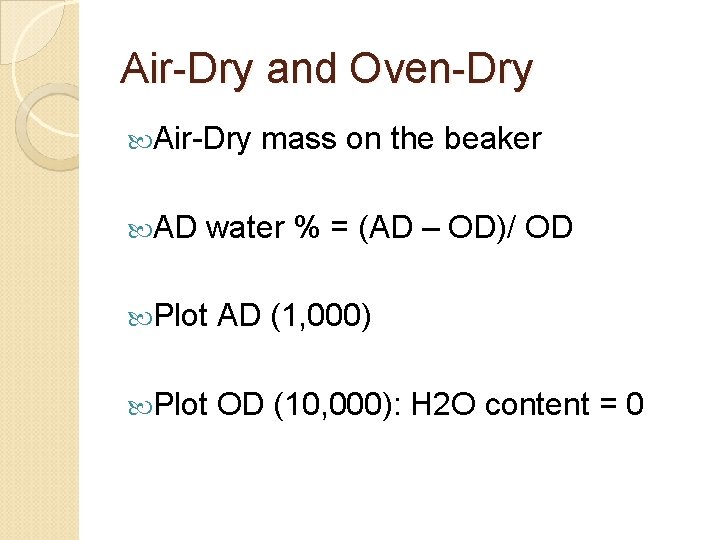

Air-Dry and Oven-Dry Air-Dry AD mass on the beaker water % = (AD – OD)/ OD Plot AD (1, 000) Plot OD (10, 000): H 2 O content = 0

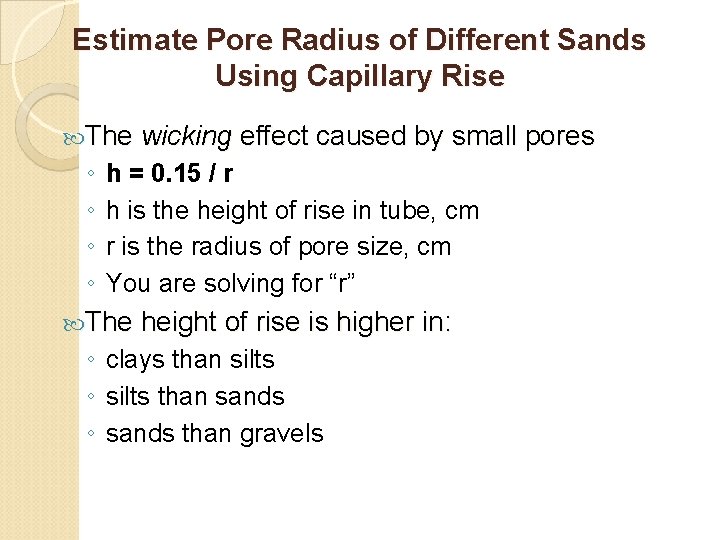

Estimate Pore Radius of Different Sands Using Capillary Rise The wicking effect caused by small pores ◦ ◦ h = 0. 15 / r h is the height of rise in tube, cm r is the radius of pore size, cm You are solving for “r” The height of rise is higher in: ◦ clays than silts ◦ silts than sands ◦ sands than gravels

Soil Tensiometer Used to measure soil tension (pressure) A pressure gage is connected to a water column A porous ceramic cup lets water move, but not air Time Domain Reflectometer Used to measure soil moisture An electrical pulse is sent down the rod The pulse bounces off the end and returns to the source The wetter the soil, the longer the delay in returning
