LAB 5 THE CELL Biology department KINGDOM PLANTAE

LAB 5 : THE CELL Biology department

KINGDOM: PLANTAE Ø Ø Ø § § Like all eukaryotic cells, including animal cells, plant cells contain membrane-bounded organelles. Some of these organelles, and other structures, are common to all eukaryotes, while others are found in plant cells but not in animal cells. Among the distinguished features of plant cells are: Plastid cell wall intercellular connection. Central Vacuole

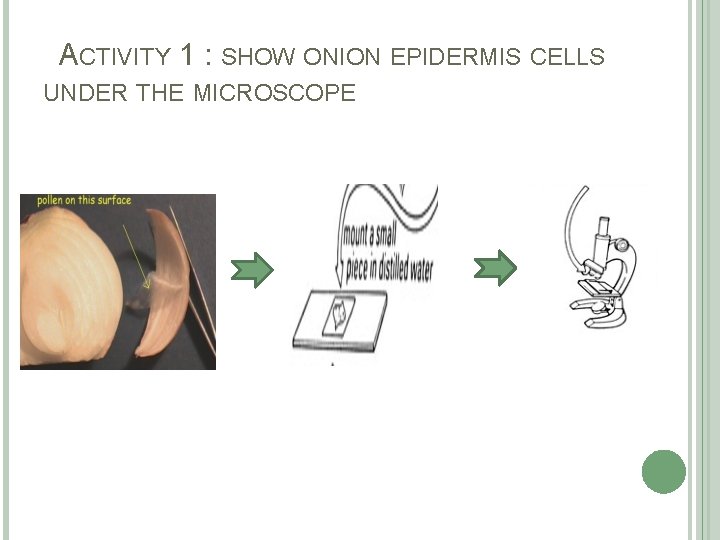

ACTIVITY 1 : SHOW ONION EPIDERMIS CELLS UNDER THE MICROSCOPE

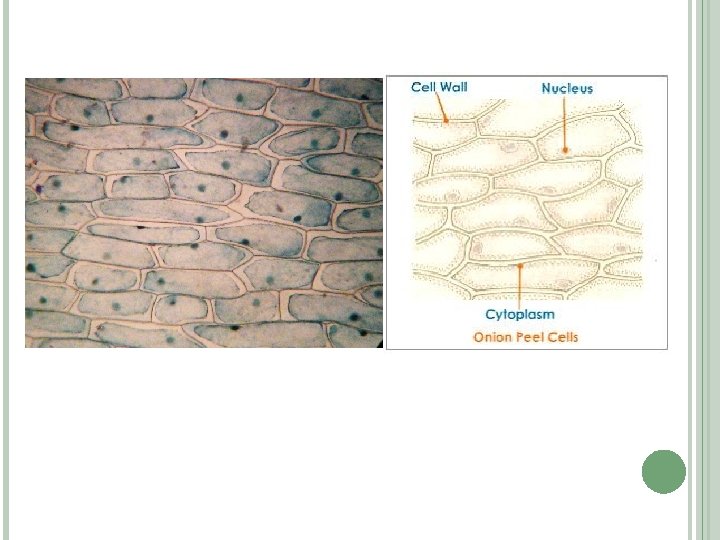

ONION EPIDERMIS CELLS

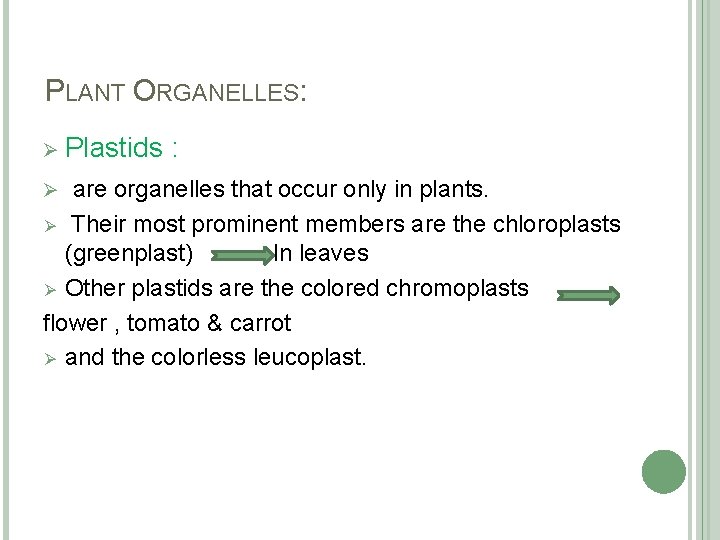

PLANT ORGANELLES: Ø Plastids : Ø are organelles that occur only in plants. Their most prominent members are the chloroplasts (greenplast) In leaves Ø Other plastids are the colored chromoplasts flower , tomato & carrot Ø and the colorless leucoplast. Ø

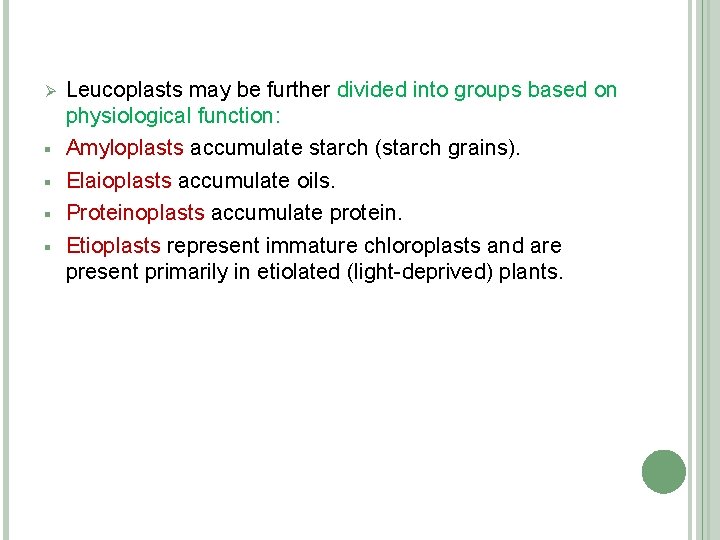

Ø § § Leucoplasts may be further divided into groups based on physiological function: Amyloplasts accumulate starch (starch grains). Elaioplasts accumulate oils. Proteinoplasts accumulate protein. Etioplasts represent immature chloroplasts and are present primarily in etiolated (light-deprived) plants.

Examples of different plastids: a) is a chromoplast; b) is a leucoplast; c) is a chloroplast.

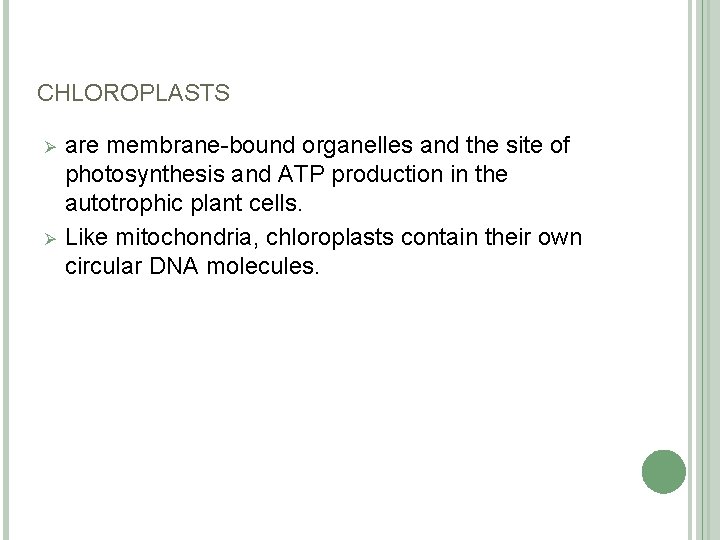

CHLOROPLASTS Ø Ø are membrane-bound organelles and the site of photosynthesis and ATP production in the autotrophic plant cells. Like mitochondria, chloroplasts contain their own circular DNA molecules.

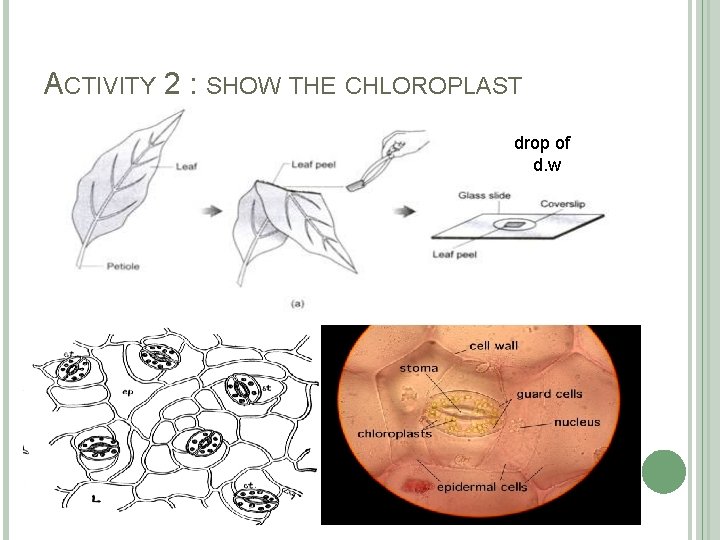

ACTIVITY 2 : SHOW THE CHLOROPLAST drop of d. w

CHROMOPLASTS IN TOMATO

CHROMOPLASTS IN CARROT :

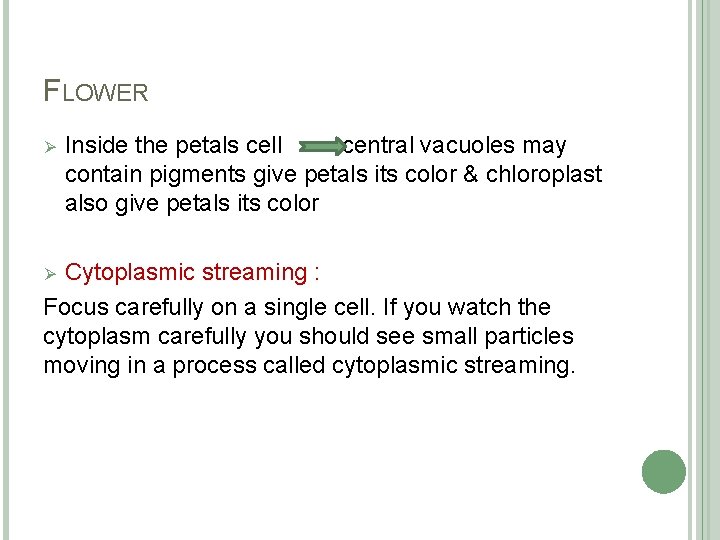

FLOWER Ø Inside the petals cell central vacuoles may contain pigments give petals its color & chloroplast also give petals its color Cytoplasmic streaming : Focus carefully on a single cell. If you watch the cytoplasm carefully you should see small particles moving in a process called cytoplasmic streaming. Ø

STARCH GRAIN IN POTATO

ALGAE : Ø Ø Ø Among Protista Have chloroplasts photosynthesis Have many form Examples : Chlamydomonas ( cup – shaped chloroplast ) Spirogyra (spiral chloroplasts)

SPIROGYRA

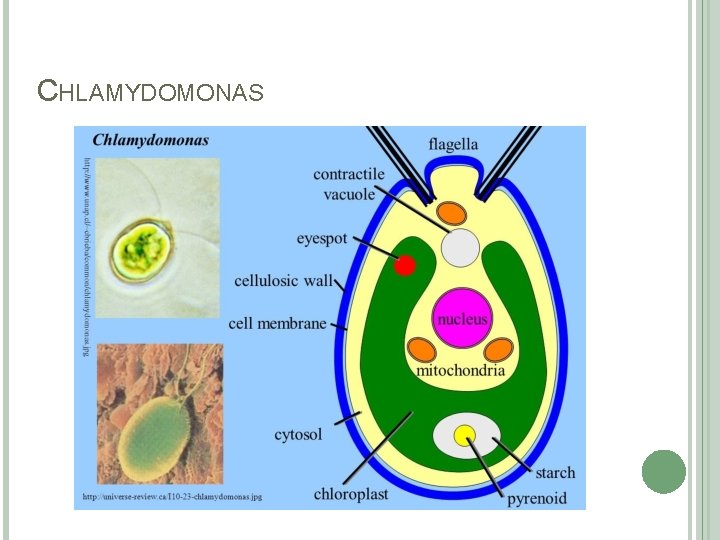

CHLAMYDOMONAS
