Lab 2 Peptides Proteins Sum of aminoacids One

Lab 2 -Peptides

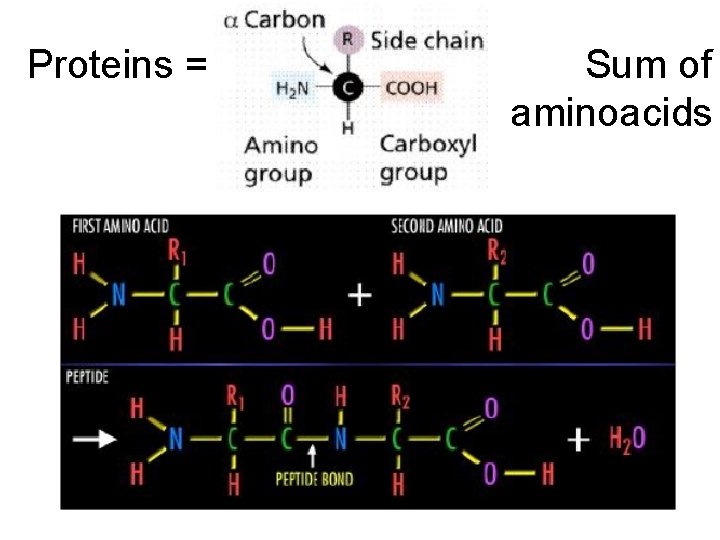

Proteins = Sum of aminoacids

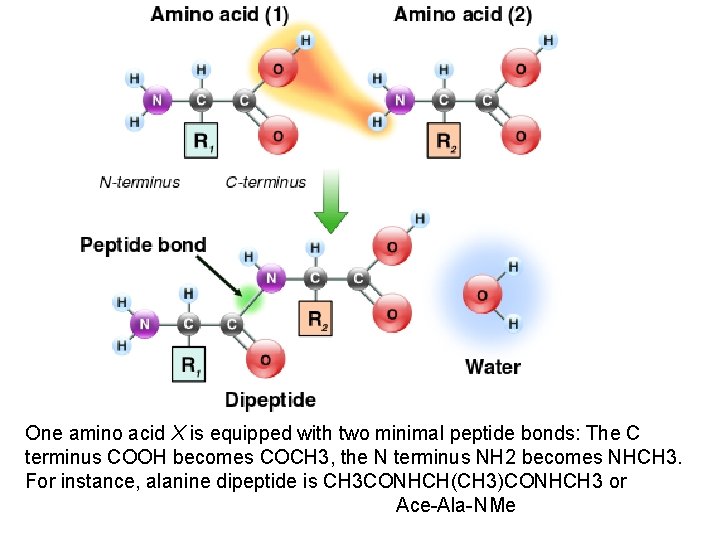

One amino acid X is equipped with two minimal peptide bonds: The C terminus COOH becomes COCH 3, the N terminus NH 2 becomes NHCH 3. For instance, alanine dipeptide is CH 3 CONHCH(CH 3)CONHCH 3 or Ace-Ala-NMe

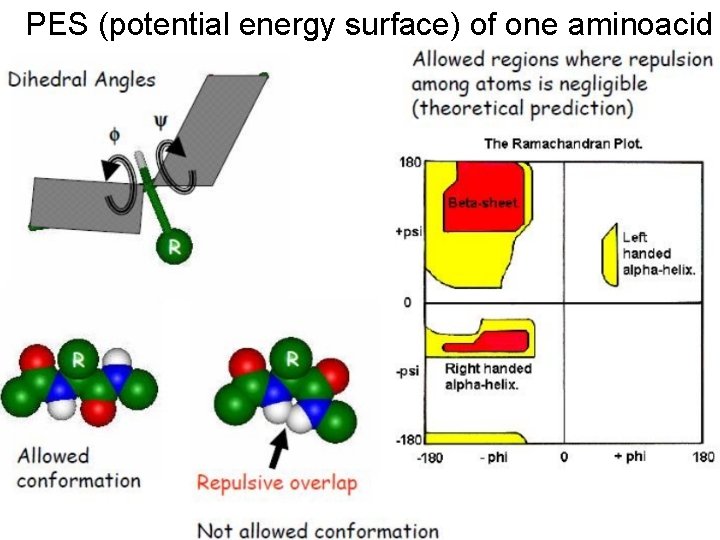

PES (potential energy surface) of one aminoacid

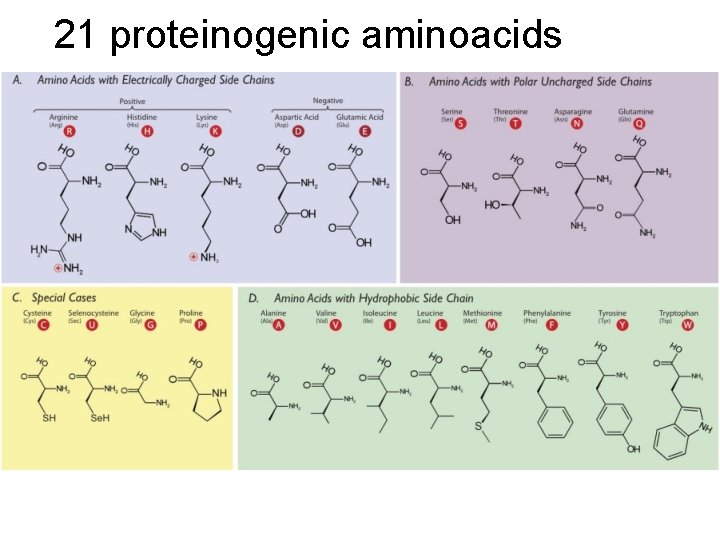

21 proteinogenic aminoacids

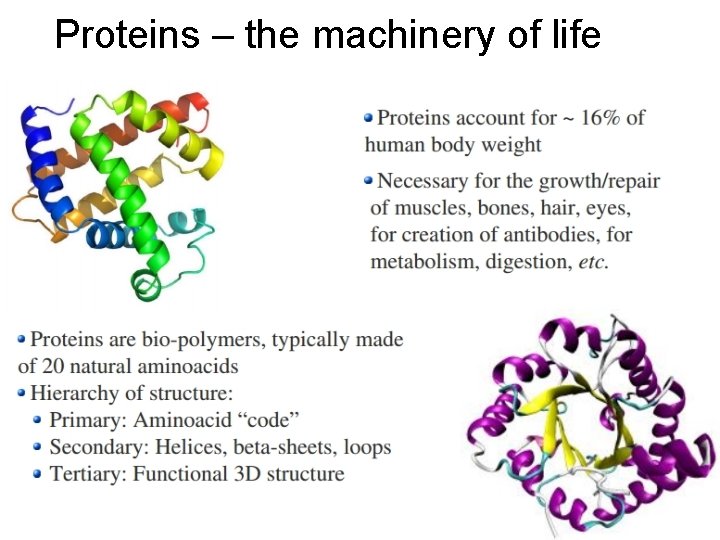

Proteins – the machinery of life

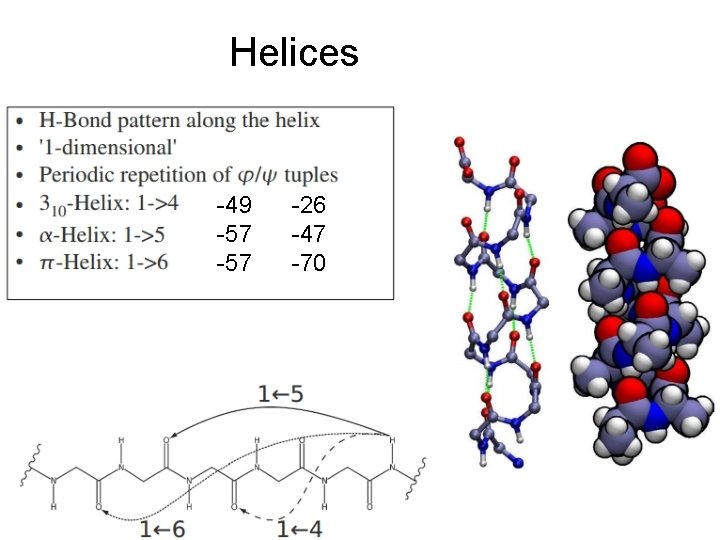

Helices -49 -57 -26 -47 -70

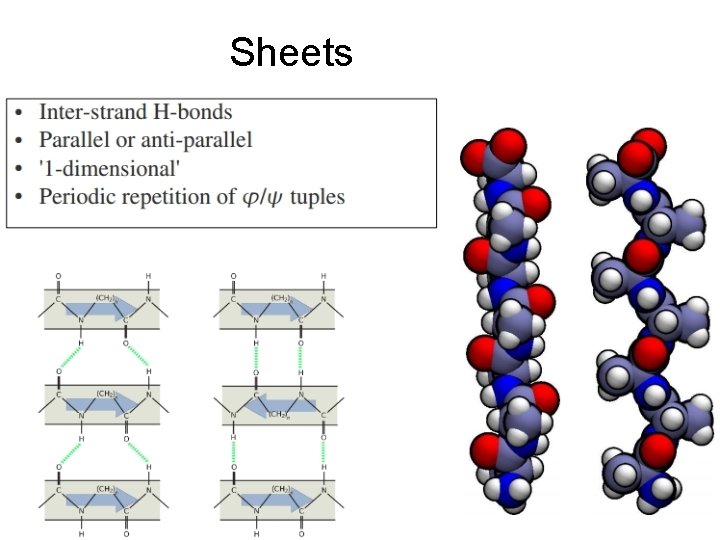

Sheets

Loops and turns

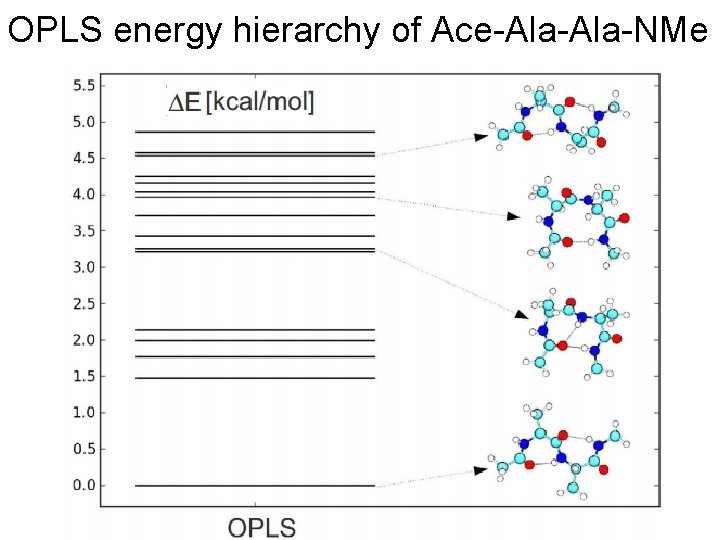

OPLS energy hierarchy of Ace-Ala-NMe

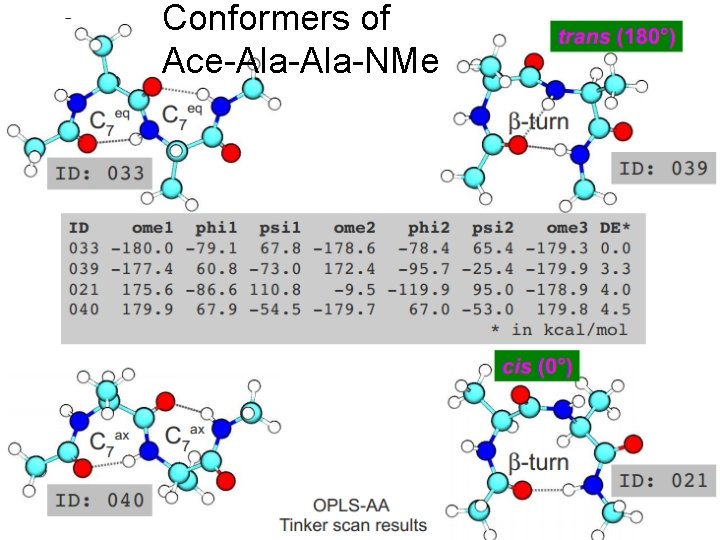

Conformers of Ace-Ala-NMe

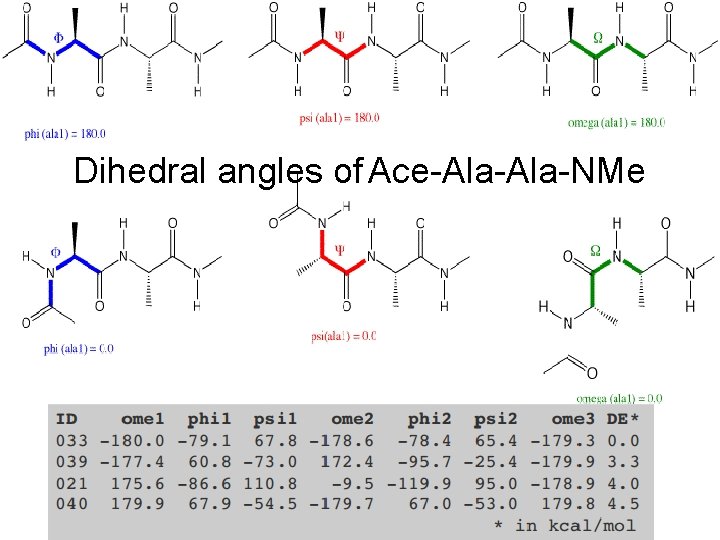

Dihedral angles of Ace-Ala-NMe

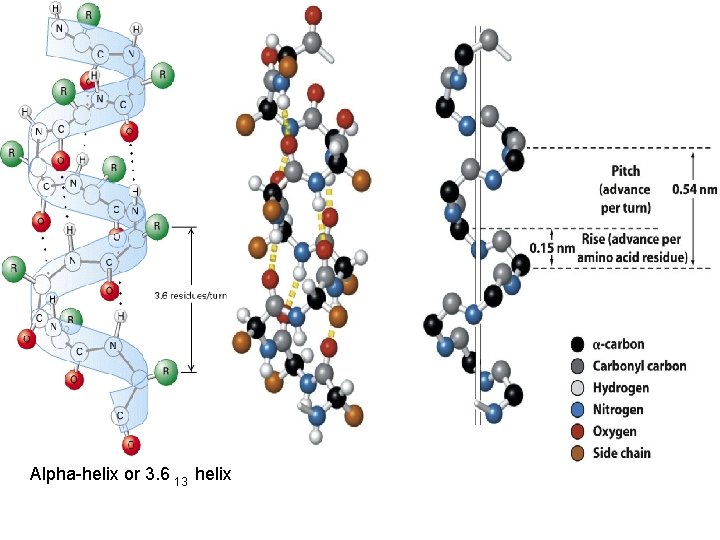

Alpha-helix or 3. 6 13 helix

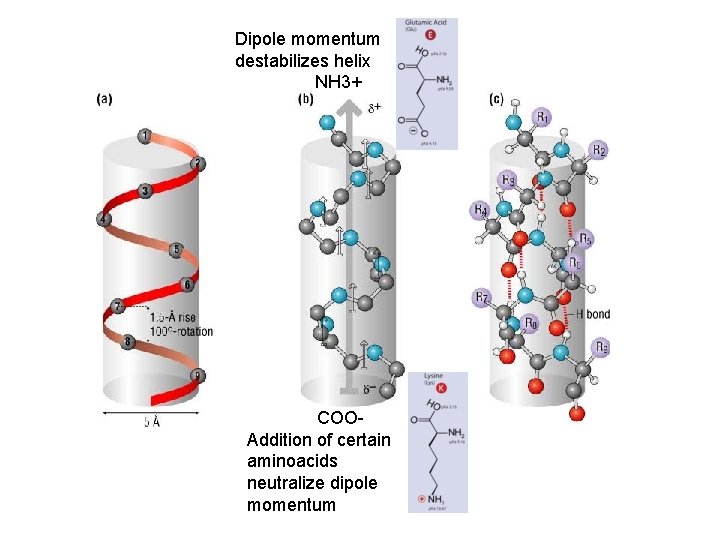

Dipole momentum destabilizes helix NH 3+ COOAddition of certain aminoacids neutralize dipole momentum

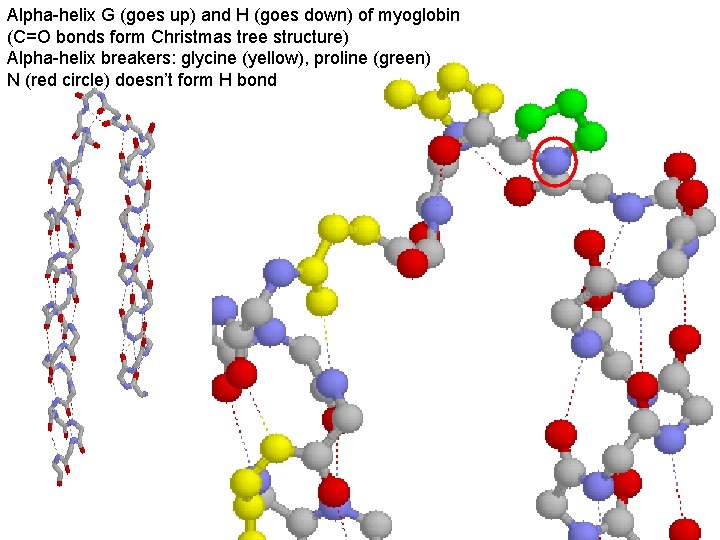

Alpha-helix G (goes up) and H (goes down) of myoglobin (C=O bonds form Christmas tree structure) Alpha-helix breakers: glycine (yellow), proline (green) N (red circle) doesn’t form H bond

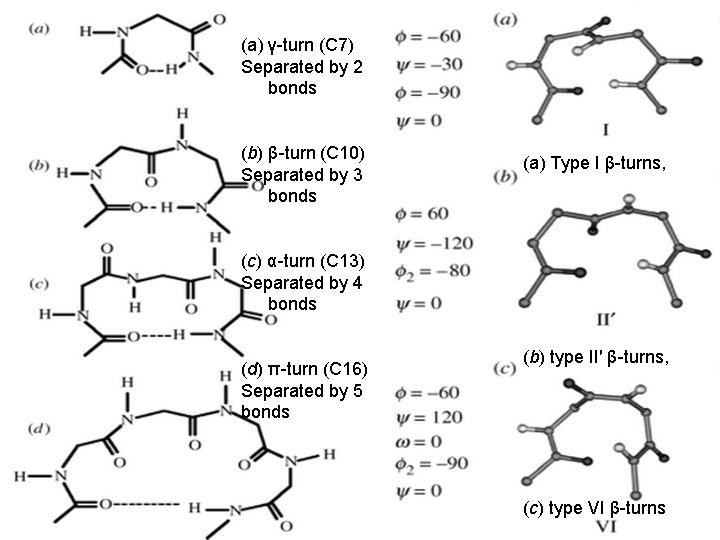

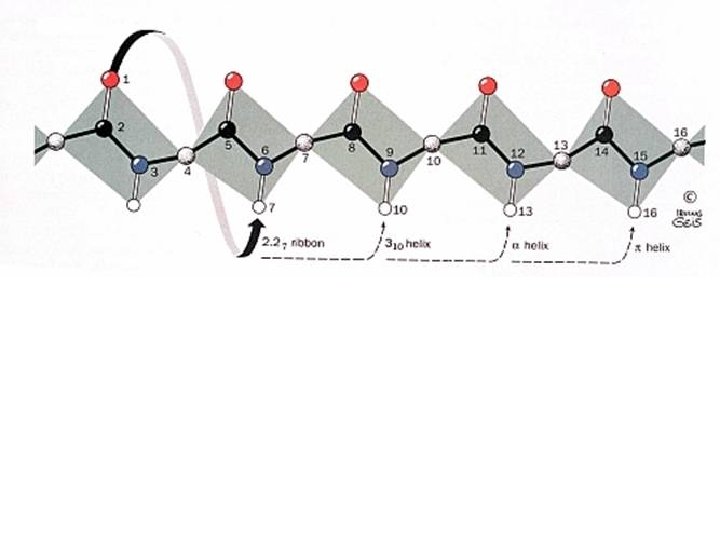

(a) γ-turn (C 7) Separated by 2 bonds (b) β-turn (C 10) Separated by 3 bonds (a) Type I β-turns, (c) α-turn (C 13) Separated by 4 bonds (d) π-turn (C 16) Separated by 5 bonds (b) type II′ β-turns, (c) type VI β-turns

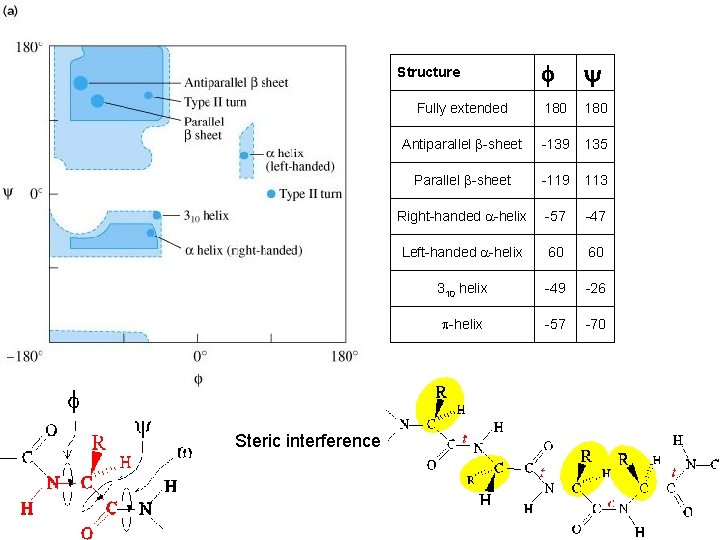

f y Fully extended 180 Antiparallel b-sheet -139 135 Parallel b-sheet -119 113 Right-handed a-helix -57 -47 Left-handed a-helix 60 60 310 helix -49 -26 p-helix -57 -70 Structure Steric interference

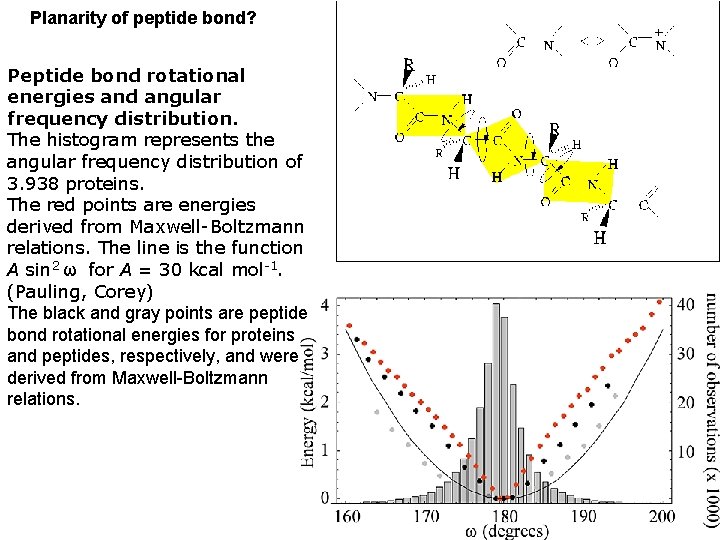

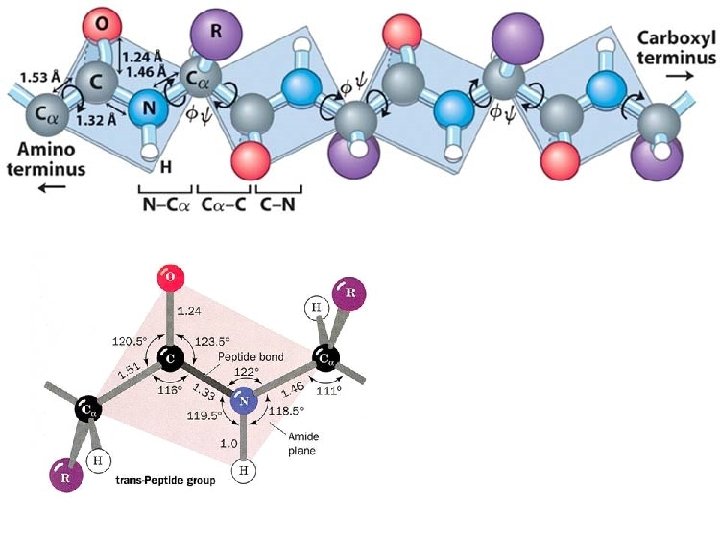

Planarity of peptide bond? Peptide bond rotational energies and angular frequency distribution. The histogram represents the angular frequency distribution of 3. 938 proteins. The red points are energies derived from Maxwell-Boltzmann relations. The line is the function A sin 2 ω for A = 30 kcal mol-1. (Pauling, Corey) The black and gray points are peptide bond rotational energies for proteins and peptides, respectively, and were derived from Maxwell-Boltzmann relations.
