Lab 1 Measurement and Microscopy GENERAL BIOLOGY I

Lab 1 – Measurement and Microscopy GENERAL BIOLOGY I LAB BSC 2010 L

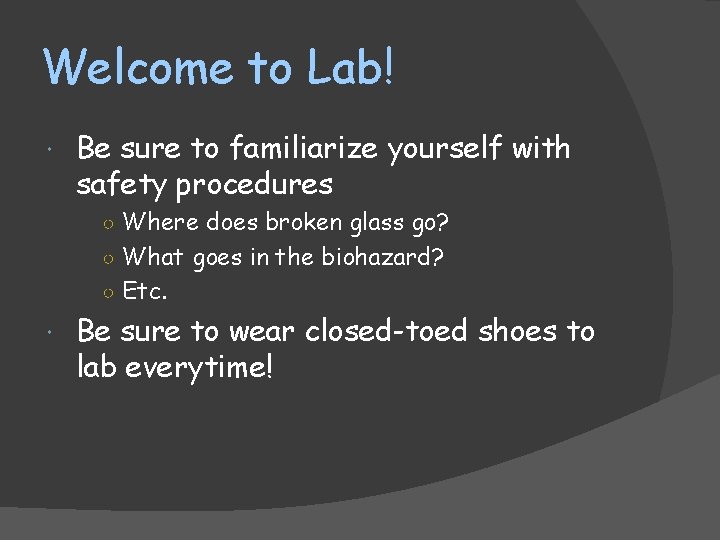

Welcome to Lab! Be sure to familiarize yourself with safety procedures ○ Where does broken glass go? ○ What goes in the biohazard? ○ Etc. Be sure to wear closed-toed shoes to lab everytime!

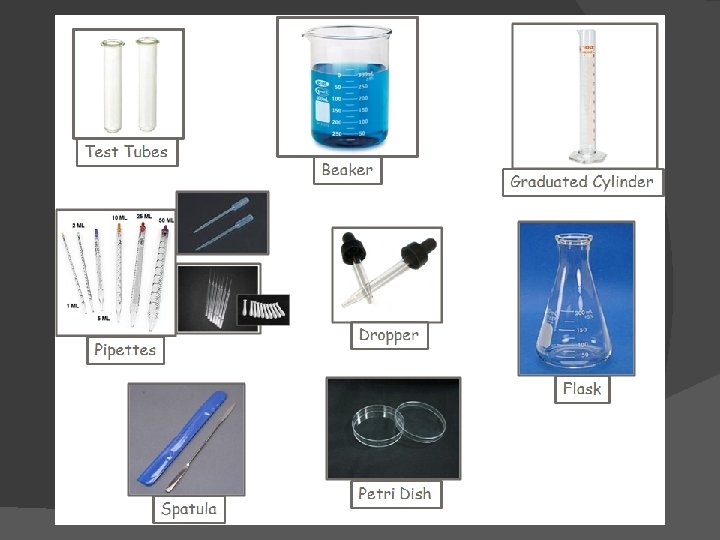

Properly reading Graduated Cylinder Always use graduated cylinder to measure volume Do not use a beaker!

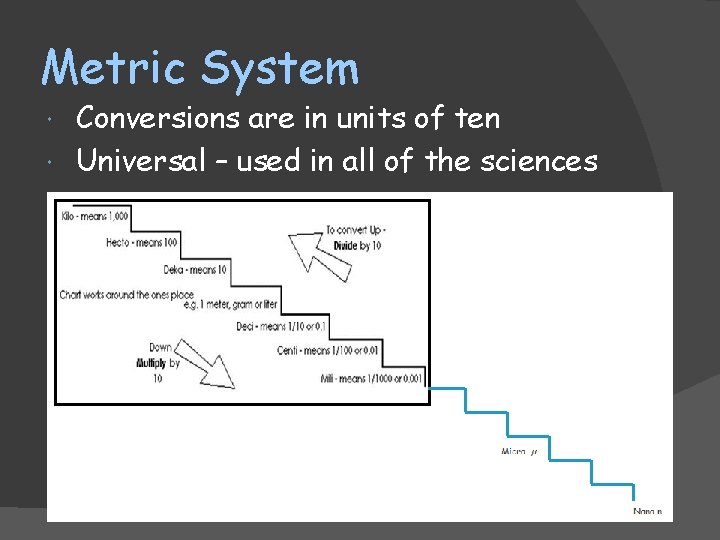

Metric System Conversions are in units of ten Universal – used in all of the sciences

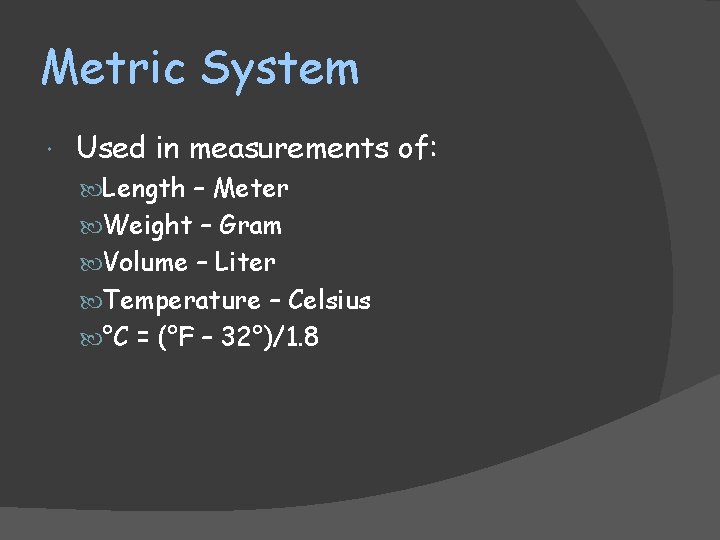

Metric System Used in measurements of: Length – Meter Weight – Gram Volume – Liter Temperature – Celsius °C = (°F – 32°)/1. 8

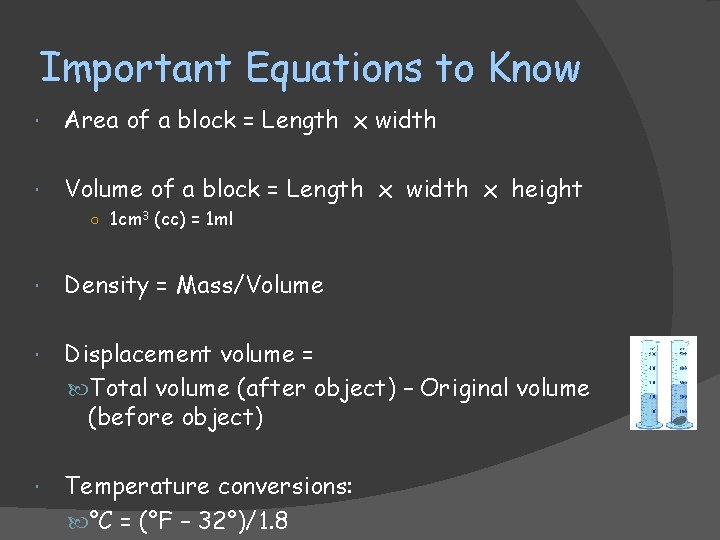

Important Equations to Know Area of a block = Length x width Volume of a block = Length x width x height ○ 1 cm 3 (cc) = 1 ml Density = Mass/Volume Displacement volume = Total volume (after object) – Original volume (before object) Temperature conversions: °C = (°F – 32°)/1. 8

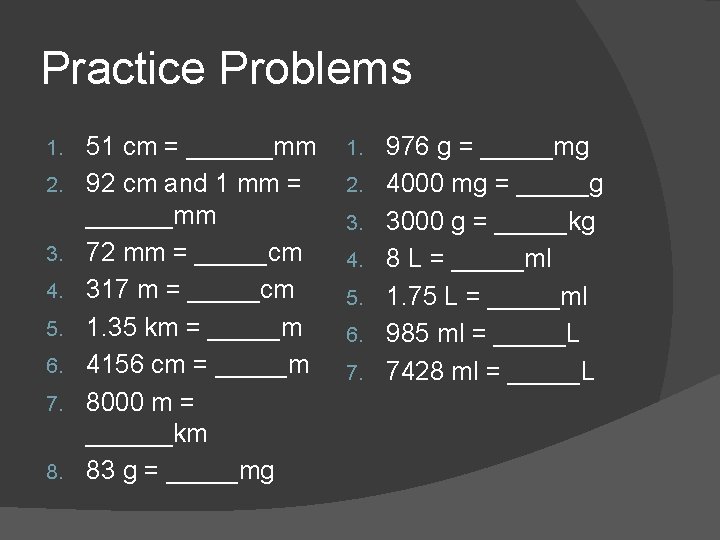

Practice Problems 1. 2. 3. 4. 5. 6. 7. 8. 51 cm = ______mm 92 cm and 1 mm = ______mm 72 mm = _____cm 317 m = _____cm 1. 35 km = _____m 4156 cm = _____m 8000 m = ______km 83 g = _____mg 1. 2. 3. 4. 5. 6. 7. 976 g = _____mg 4000 mg = _____g 3000 g = _____kg 8 L = _____ml 1. 75 L = _____ml 985 ml = _____L 7428 ml = _____L

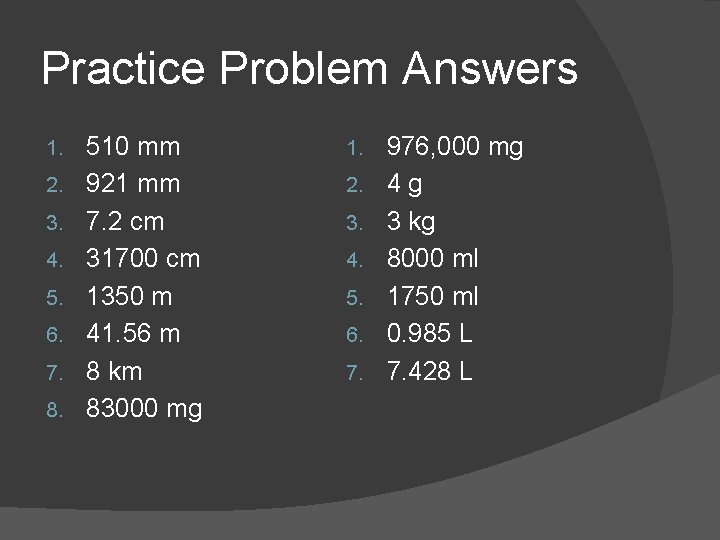

Practice Problem Answers 1. 2. 3. 4. 5. 6. 7. 8. 510 mm 921 mm 7. 2 cm 31700 cm 1350 m 41. 56 m 8 km 83000 mg 1. 2. 3. 4. 5. 6. 7. 976, 000 mg 4 g 3 kg 8000 ml 1750 ml 0. 985 L 7. 428 L

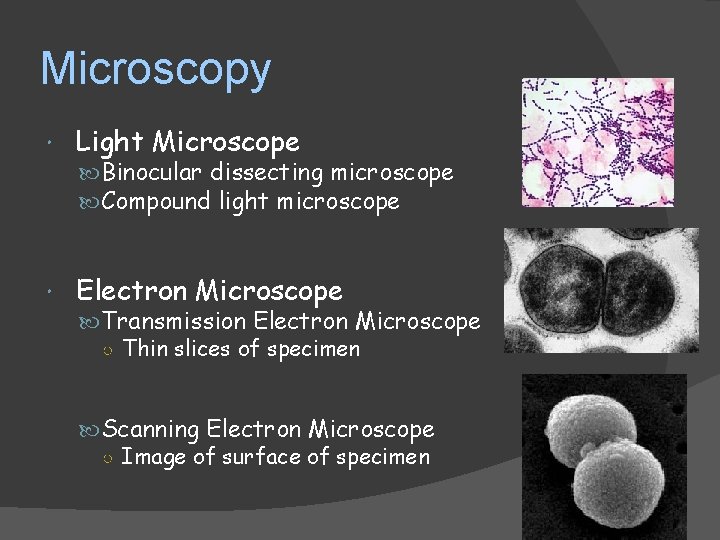

Microscopy Light Microscope Electron Microscope Binocular dissecting microscope Compound light microscope Transmission Electron Microscope ○ Thin slices of specimen Scanning Electron Microscope ○ Image of surface of specimen

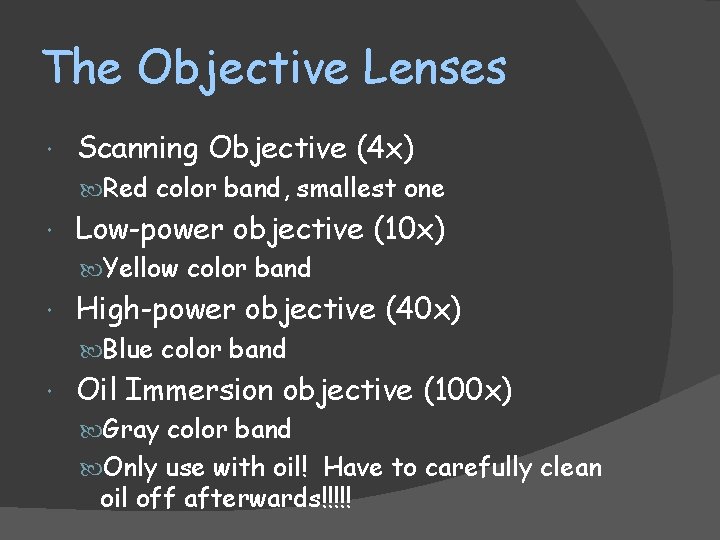

The Objective Lenses Scanning Objective (4 x) Red color band, smallest one Low-power objective (10 x) Yellow color band High-power objective (40 x) Blue color band Oil Immersion objective (100 x) Gray color band Only use with oil! Have to carefully clean oil off afterwards!!!!!

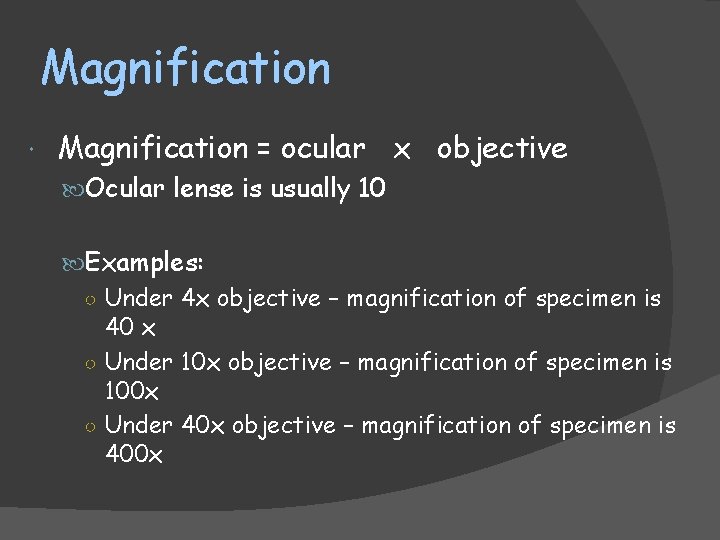

Magnification = ocular x objective Ocular lense is usually 10 Examples: ○ Under 4 x objective – magnification of specimen is 40 x ○ Under 10 x objective – magnification of specimen is 100 x ○ Under 40 x objective – magnification of specimen is 400 x

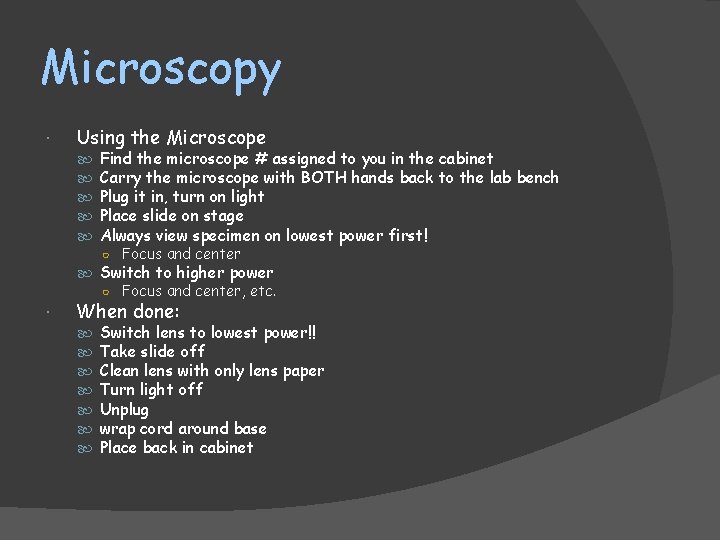

Microscopy Using the Microscope Find the microscope # assigned to you in the cabinet Carry the microscope with BOTH hands back to the lab bench Plug it in, turn on light Place slide on stage Always view specimen on lowest power first! ○ Focus and center Switch to higher power ○ Focus and center, etc. When done: Switch lens to lowest power!! Take slide off Clean lens with only lens paper Turn light off Unplug wrap cord around base Place back in cabinet

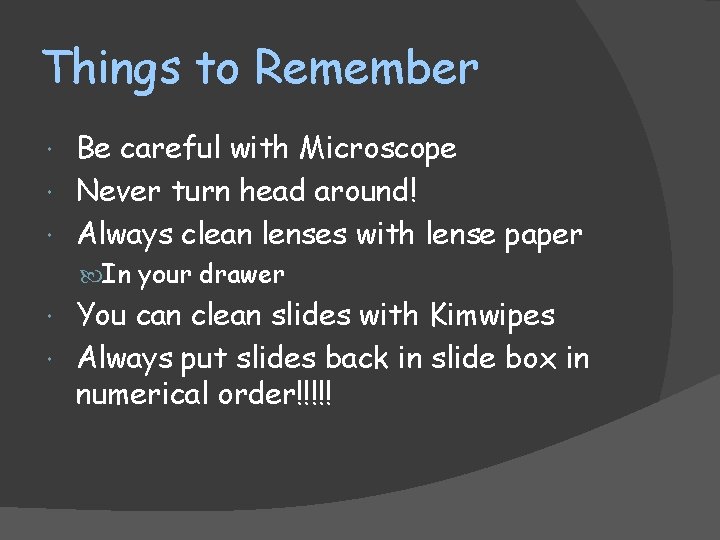

Things to Remember Be careful with Microscope Never turn head around! Always clean lenses with lense paper In your drawer You can clean slides with Kimwipes Always put slides back in slide box in numerical order!!!!!

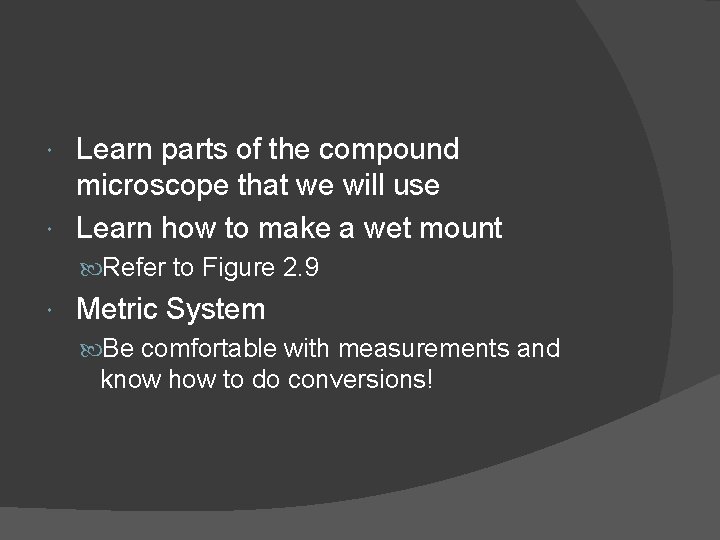

Learn parts of the compound microscope that we will use Learn how to make a wet mount Refer to Figure 2. 9 Metric System Be comfortable with measurements and know how to do conversions!
