La organización de las grandes escalas en flujos de pared Master Universitario en Ingeniería Aeronáutica Autor Tutor Sergio Gandía Barberá Dr. Sergio Hoyas Calvo serganba@etsid. upv. es serhocal@mot. upv. es In collaboration with: M. Oberlack and S. Kraheberger TU DARMSTADT July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 1

Content § Motivation § Objectives § Summary of cases § Velocity fields and counter-rotating rolls § Vortex properties § Conclusions July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 2

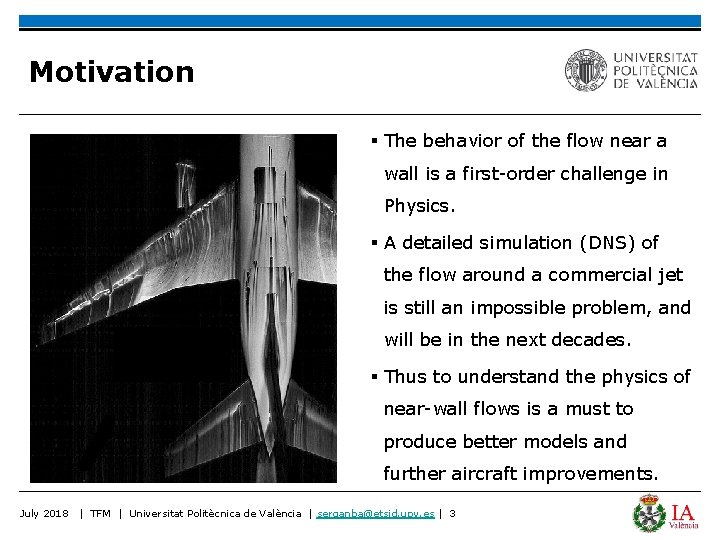

Motivation § The behavior of the flow near a wall is a first-order challenge in Physics. § A detailed simulation (DNS) of the flow around a commercial jet is still an impossible problem, and will be in the next decades. § Thus to understand the physics of near-wall flows is a must to produce better models and further aircraft improvements. July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 3

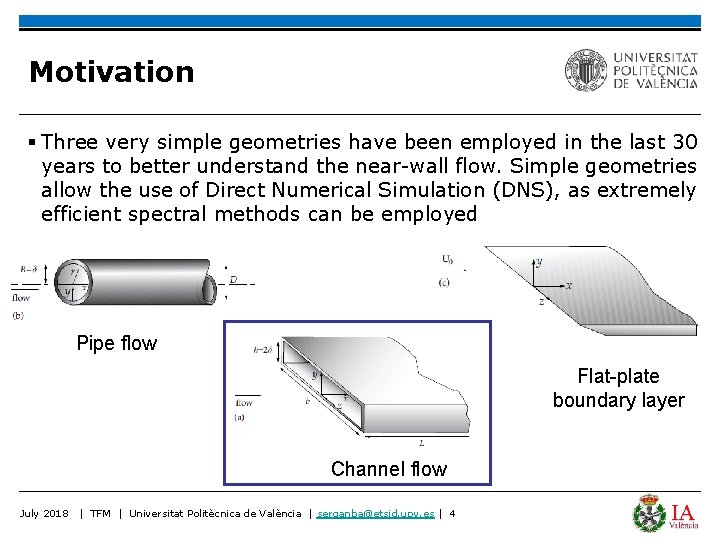

Motivation § Three very simple geometries have been employed in the last 30 years to better understand the near-wall flow. Simple geometries allow the use of Direct Numerical Simulation (DNS), as extremely efficient spectral methods can be employed Pipe flow Flat-plate boundary layer Channel flow July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 4

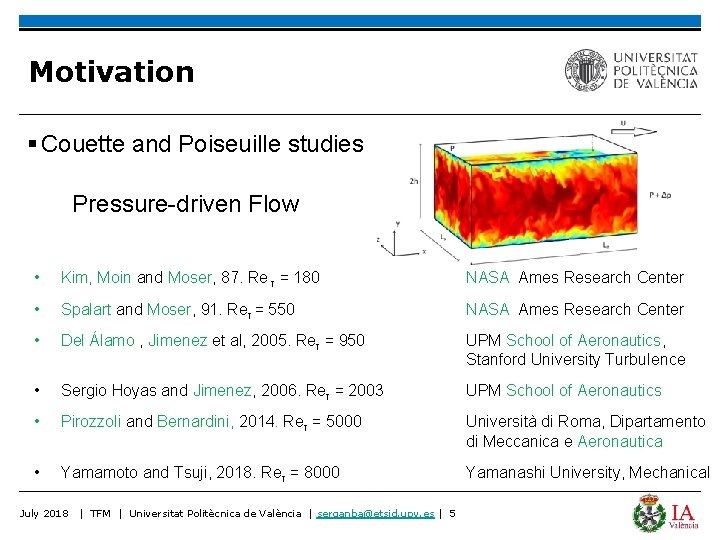

Motivation § Couette and Poiseuille studies Pressure-driven Flow • Kim, Moin and Moser, 87. Re τ = 180 NASA Ames Research Center • Spalart and Moser, 91. Reτ = 550 NASA Ames Research Center • Del Álamo , Jimenez et al, 2005. Reτ = 950 UPM School of Aeronautics, Stanford University Turbulence • Sergio Hoyas and Jimenez, 2006. Reτ = 2003 UPM School of Aeronautics • Pirozzoli and Bernardini, 2014. Reτ = 5000 Università di Roma, Dipartamento di Meccanica e Aeronautica • Yamamoto and Tsuji, 2018. Reτ = 8000 Yamanashi University, Mechanical July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 5

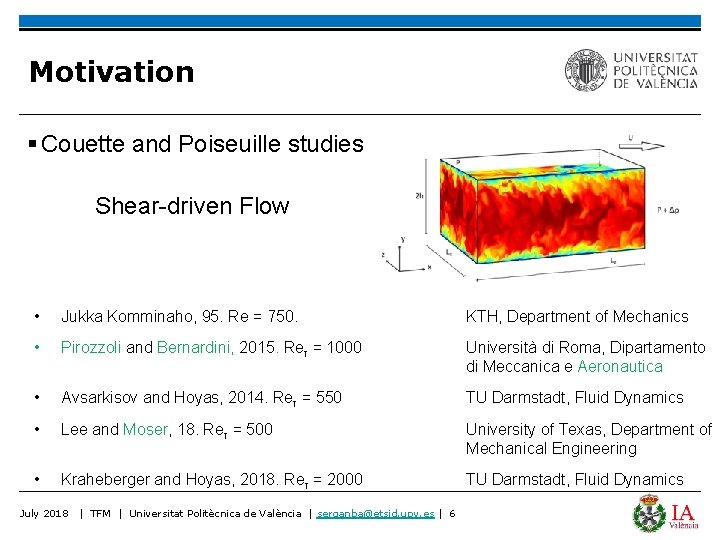

Motivation § Couette and Poiseuille studies Shear-driven Flow • Jukka Komminaho, 95. Re = 750. KTH, Department of Mechanics • Pirozzoli and Bernardini, 2015. Reτ = 1000 Università di Roma, Dipartamento di Meccanica e Aeronautica • Avsarkisov and Hoyas, 2014. Reτ = 550 TU Darmstadt, Fluid Dynamics • Lee and Moser, 18. Reτ = 500 University of Texas, Department of Mechanical Engineering • Kraheberger and Hoyas, 2018. Reτ = 2000 TU Darmstadt, Fluid Dynamics July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 6

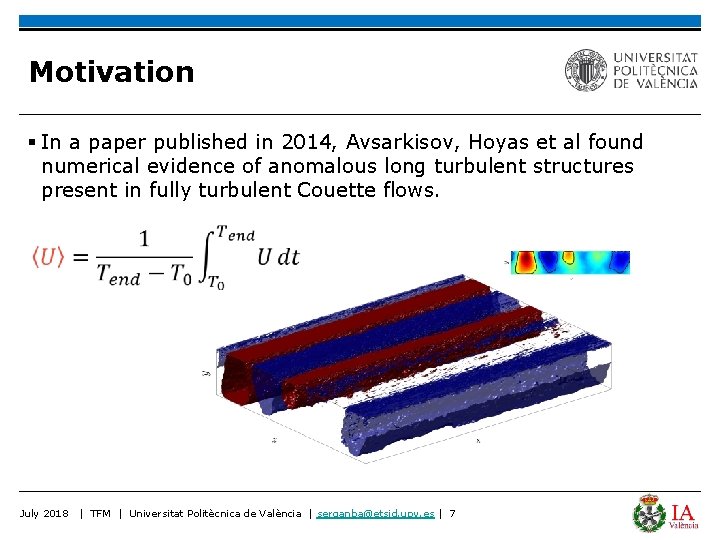

Motivation § In a paper published in 2014, Avsarkisov, Hoyas et al found numerical evidence of anomalous long turbulent structures present in fully turbulent Couette flows. July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 7

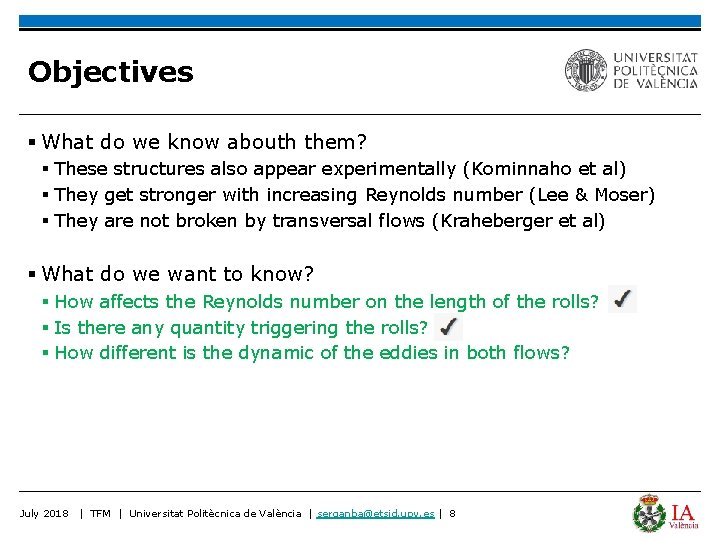

Objectives § What do we know abouth them? § These structures also appear experimentally (Kominnaho et al) § They get stronger with increasing Reynolds number (Lee & Moser) § They are not broken by transversal flows (Kraheberger et al) § What do we want to know? § How affects the Reynolds number on the length of the rolls? § Is there any quantity triggering the rolls? § How different is the dynamic of the eddies in both flows? July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 8

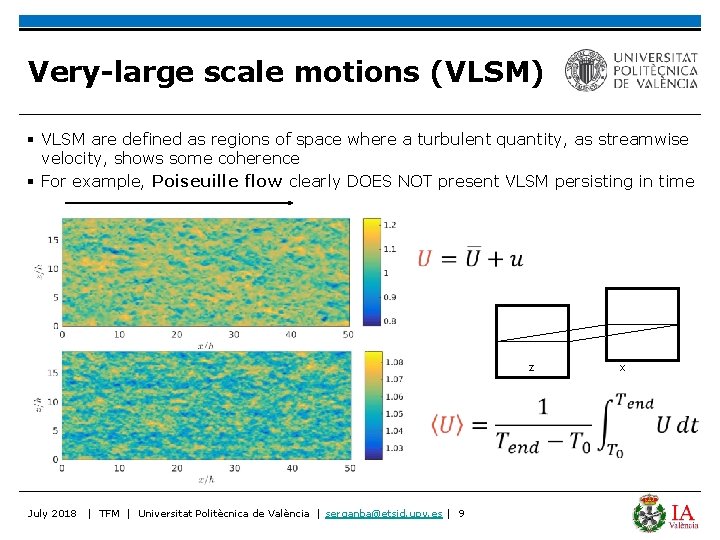

Very-large scale motions (VLSM) § VLSM are defined as regions of space where a turbulent quantity, as streamwise velocity, shows some coherence § For example, Poiseuille flow clearly DOES NOT present VLSM persisting in time z July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 9 x

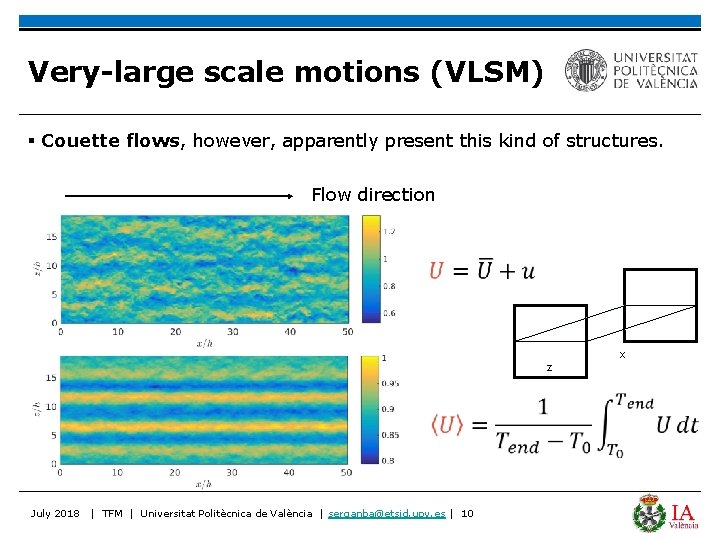

Very-large scale motions (VLSM) § Couette flows, however, apparently present this kind of structures. Flow direction x z July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 10

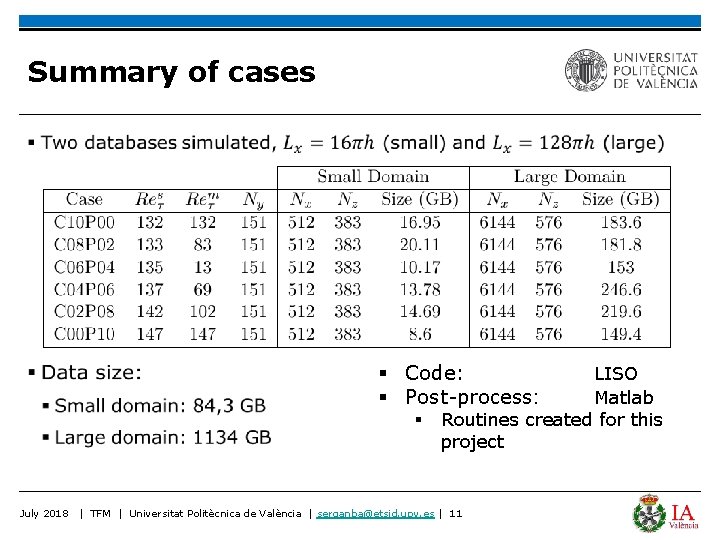

Summary of cases § § Code: § Post-process: § LISO Matlab Routines created for this project July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 11

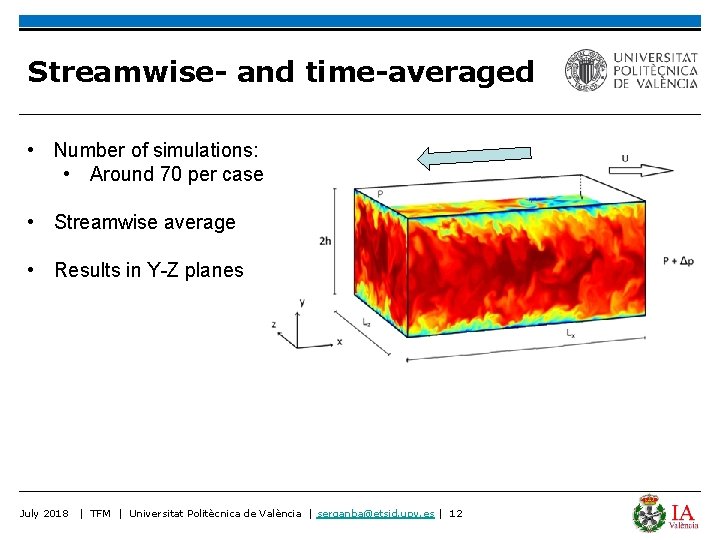

Streamwise- and time-averaged • Number of simulations: • Around 70 per case • Streamwise average • Results in Y-Z planes July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 12

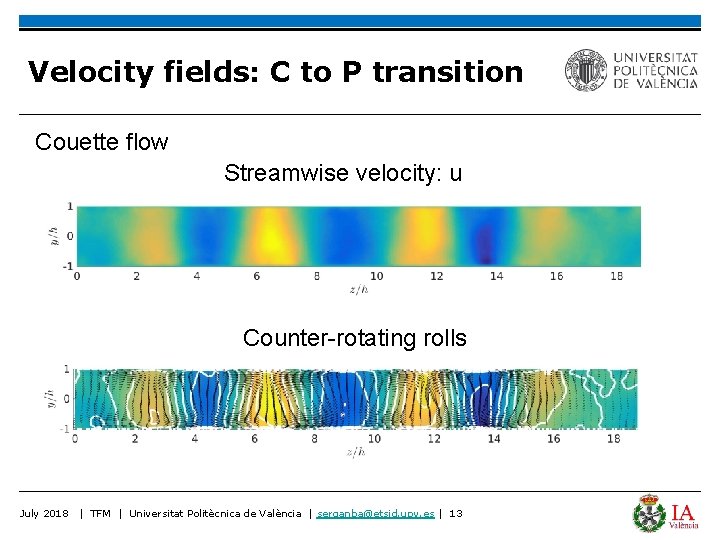

Velocity fields: C to P transition Couette flow Streamwise velocity: u Counter-rotating rolls July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 13

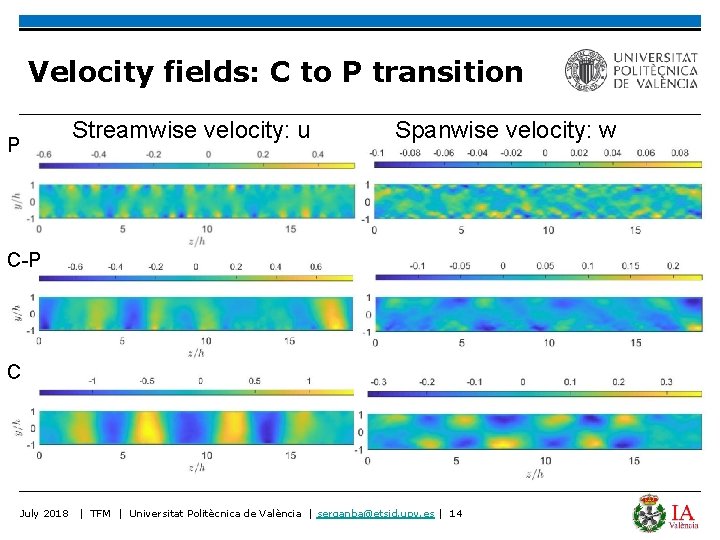

Velocity fields: C to P transition P Streamwise velocity: u Spanwise velocity: w C-P C July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 14

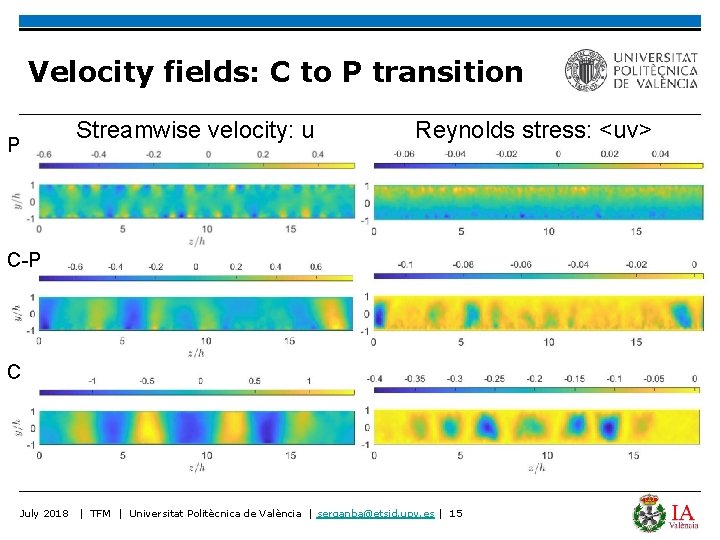

Velocity fields: C to P transition P Streamwise velocity: u Reynolds stress: <uv> C-P C July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 15

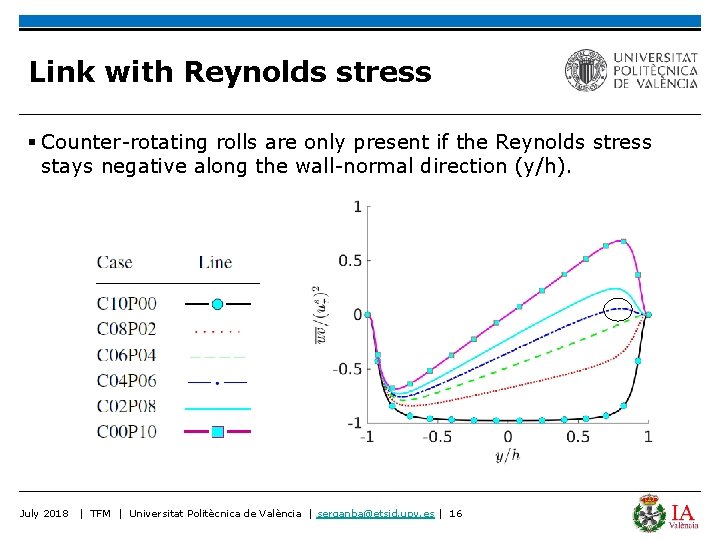

Link with Reynolds stress § Counter-rotating rolls are only present if the Reynolds stress stays negative along the wall-normal direction (y/h). July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 16

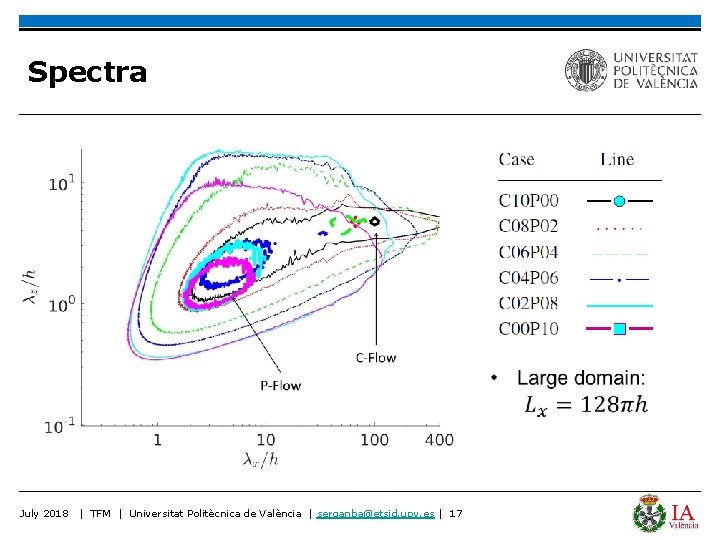

Spectra July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 17

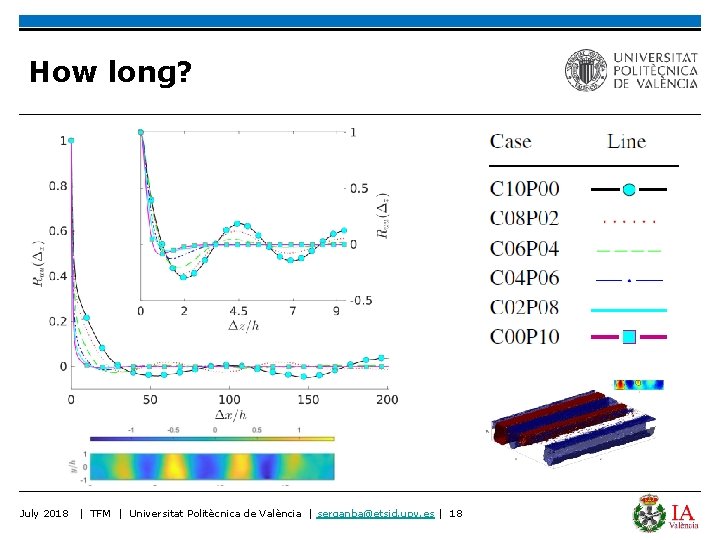

How long? July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 18

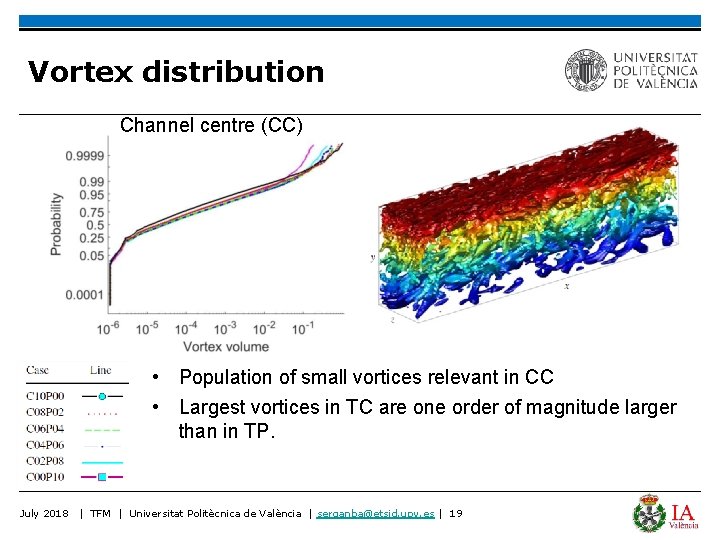

Vortex distribution Channel centre (CC) • Population of small vortices relevant in CC • Largest vortices in TC are one order of magnitude larger than in TP. July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 19

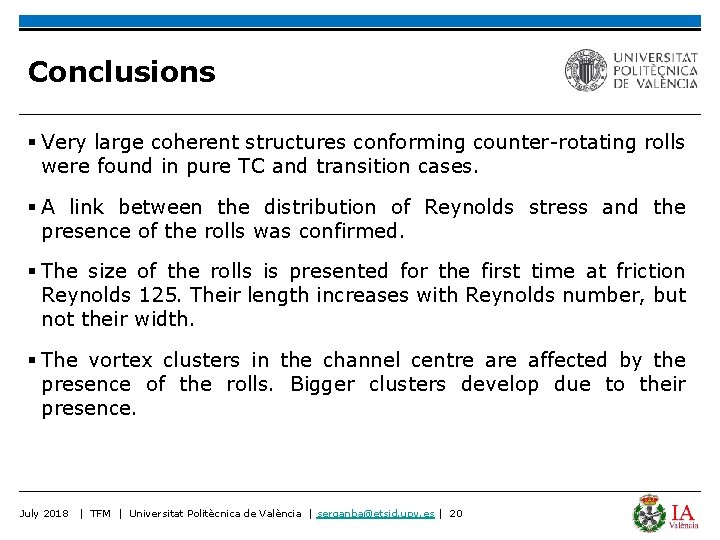

Conclusions § Very large coherent structures conforming counter-rotating rolls were found in pure TC and transition cases. § A link between the distribution of Reynolds stress and the presence of the rolls was confirmed. § The size of the rolls is presented for the first time at friction Reynolds 125. Their length increases with Reynolds number, but not their width. § The vortex clusters in the channel centre affected by the presence of the rolls. Bigger clusters develop due to their presence. July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 20

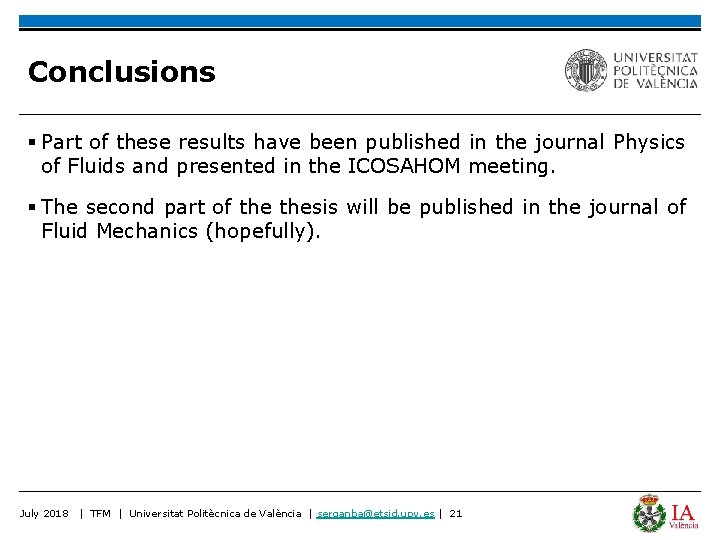

Conclusions § Part of these results have been published in the journal Physics of Fluids and presented in the ICOSAHOM meeting. § The second part of thesis will be published in the journal of Fluid Mechanics (hopefully). July 2018 | TFM | Universitat Politècnica de València | serganba@etsid. upv. es | 21
