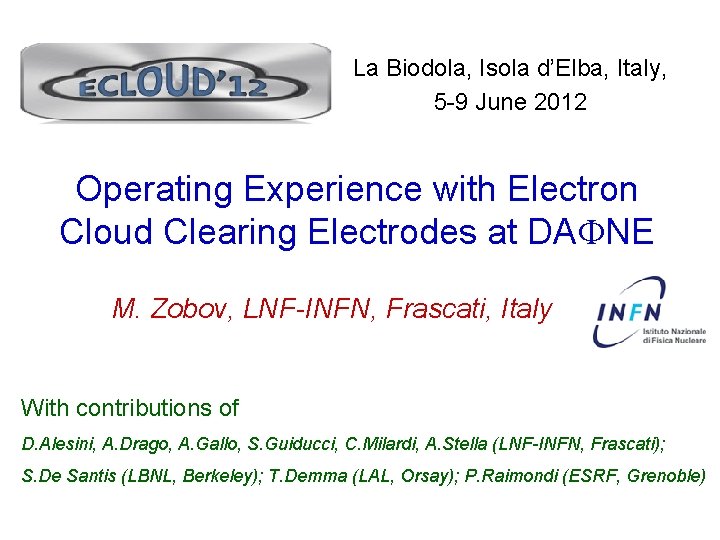

La Biodola, Isola d’Elba, Italy, 5 -9 June 2012 Operating Experience with Electron Cloud Clearing Electrodes at DA NE M. Zobov, LNF-INFN, Frascati, Italy With contributions of D. Alesini, A. Drago, A. Gallo, S. Guiducci, C. Milardi, A. Stella (LNF-INFN, Frascati); S. De Santis (LBNL, Berkeley); T. Demma (LAL, Orsay); P. Raimondi (ESRF, Grenoble)
![OUTLINE 1. DA NE Collider and e-Cloud Effects 2. Clearing Electrodes - Design - OUTLINE 1. DA NE Collider and e-Cloud Effects 2. Clearing Electrodes - Design -](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-2.jpg)
OUTLINE 1. DA NE Collider and e-Cloud Effects 2. Clearing Electrodes - Design - Installation - Beam coupling impedance 3. Experimental Measurements with Electrodes - Shift and spread of betatron tunes Growth rate of instabilities Beam dimension variations Vacuum chamber HOM frequency shifts Currents delievered by voltage generators 4. Conclusions
![The DA NE Collider Energy per beam 510 [Me. V] Machine length 97 [m] The DA NE Collider Energy per beam 510 [Me. V] Machine length 97 [m]](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-3.jpg)
The DA NE Collider Energy per beam 510 [Me. V] Machine length 97 [m] Max. beam current (KLOE run) 2. 5(e-) 1. 4(e+) [A] N of colliding bunches 100 RF frequency 368. 67 [MHz] RF voltage 200[k. V] Harmonic number 120 Bunch spacing 2. 7[ns] Max ach. Luminosity (SIDDHARTA run) 4. 5 1032 [cm-2 s-1] BTF
![e-Cloud in DA NE Al wiggler and dipole chamber anomalous vacuum pressure rise The e-Cloud in DA NE Al wiggler and dipole chamber anomalous vacuum pressure rise The](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-4.jpg)

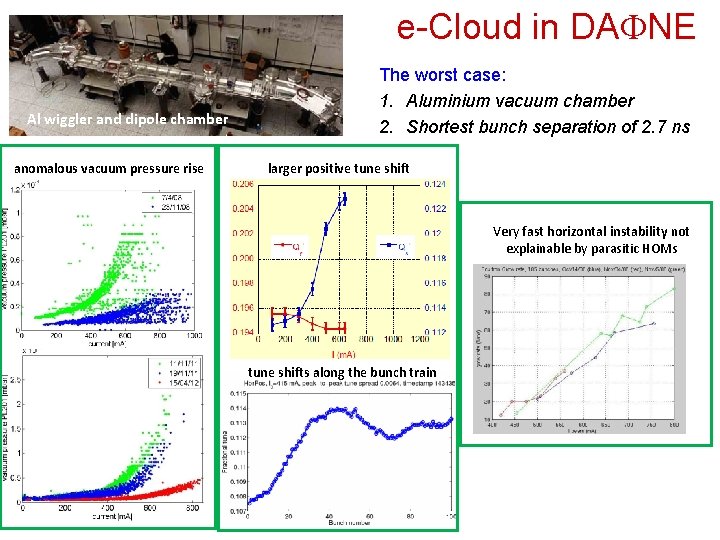

e-Cloud in DA NE Al wiggler and dipole chamber anomalous vacuum pressure rise The worst case: 1. Aluminium vacuum chamber 2. Shortest bunch separation of 2. 7 ns larger positive tune shift Very fast horizontal instability not explainable by parasitic HOMs tune shifts along the bunch train
![Solenoids Off 28/05/20122 VUGPS 203 VUGPL 201 VUGI 2001 Solenoids Off 28/05/20122 VUGPS 203 VUGPL 201 VUGI 2001](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-5.jpg)

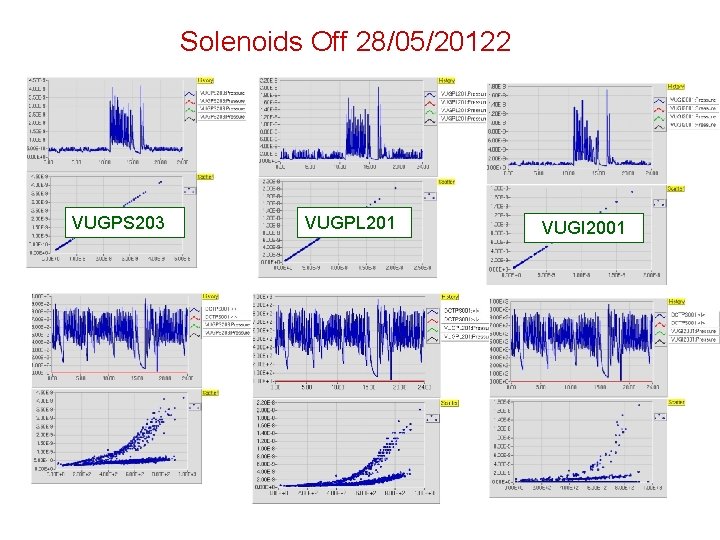

Solenoids Off 28/05/20122 VUGPS 203 VUGPL 201 VUGI 2001
![Installation of Electrodes To mitigate the e-cloud instability copper electrodes have been inserted in Installation of Electrodes To mitigate the e-cloud instability copper electrodes have been inserted in](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-6.jpg)

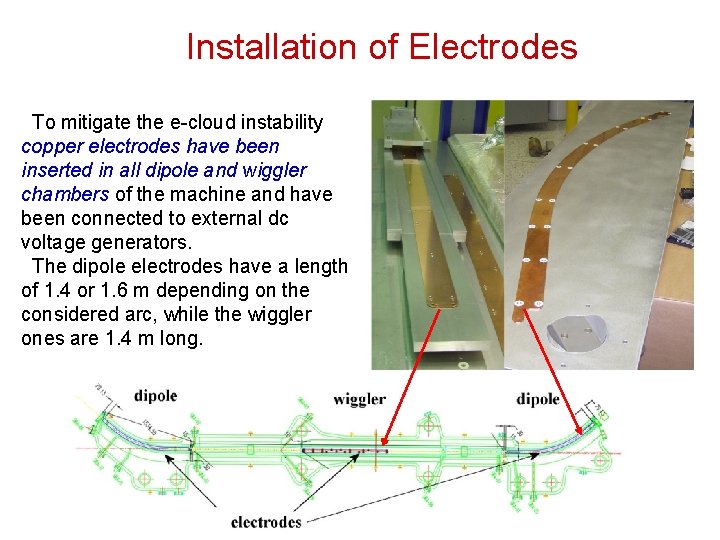

Installation of Electrodes To mitigate the e-cloud instability copper electrodes have been inserted in all dipole and wiggler chambers of the machine and have been connected to external dc voltage generators. The dipole electrodes have a length of 1. 4 or 1. 6 m depending on the considered arc, while the wiggler ones are 1. 4 m long.
![Simulation of e-Cloud Suppression Electric field as computed by POISSON Simulation of electron cloud Simulation of e-Cloud Suppression Electric field as computed by POISSON Simulation of electron cloud](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-7.jpg)

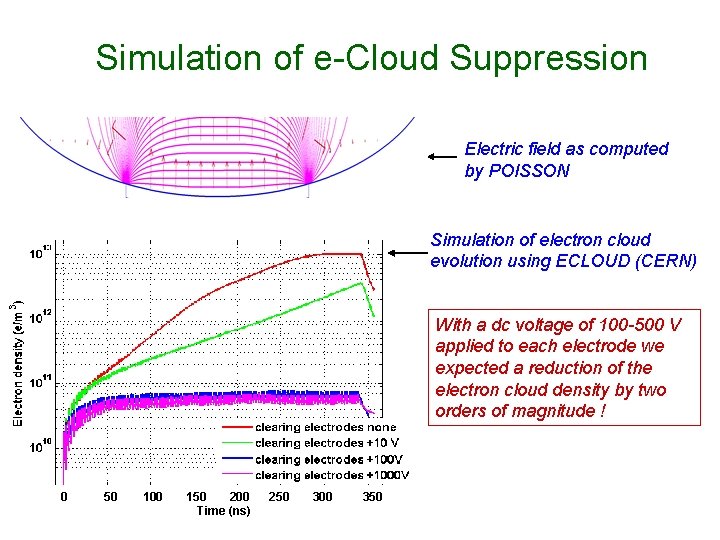

Simulation of e-Cloud Suppression Electric field as computed by POISSON Simulation of electron cloud evolution using ECLOUD (CERN) With a dc voltage of 100 -500 V applied to each electrode we expected a reduction of the electron cloud density by two orders of magnitude ! 0 50 100 150 200 Time (ns) 250 300 350
![Clearing Electrodes Realization The electrodes have a width of 50 mm, thickness of 1. Clearing Electrodes Realization The electrodes have a width of 50 mm, thickness of 1.](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-8.jpg)

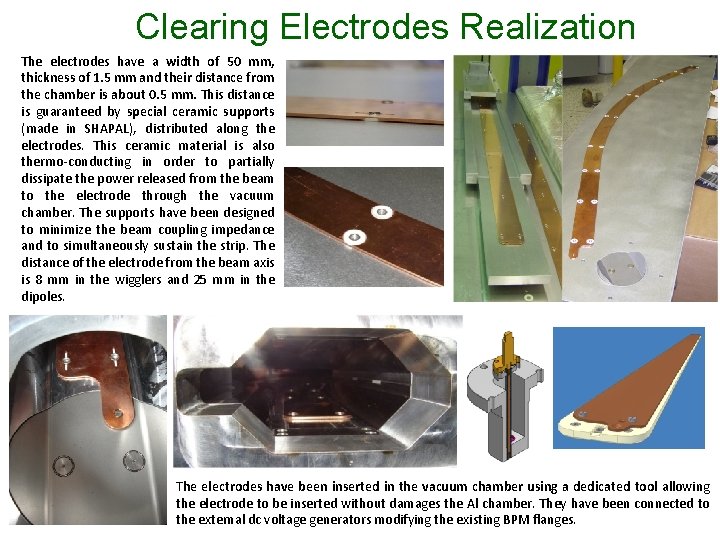

Clearing Electrodes Realization The electrodes have a width of 50 mm, thickness of 1. 5 mm and their distance from the chamber is about 0. 5 mm. This distance is guaranteed by special ceramic supports (made in SHAPAL), distributed along the electrodes. This ceramic material is also thermo-conducting in order to partially dissipate the power released from the beam to the electrode through the vacuum chamber. The supports have been designed to minimize the beam coupling impedance and to simultaneously sustain the strip. The distance of the electrode from the beam axis is 8 mm in the wigglers and 25 mm in the dipoles. The electrodes have been inserted in the vacuum chamber using a dedicated tool allowing the electrode to be inserted without damages the Al chamber. They have been connected to the external dc voltage generators modifying the existing BPM flanges.
![Electrode Impedance Evaluation Resistive wall It is due to a finite conductivity of the Electrode Impedance Evaluation Resistive wall It is due to a finite conductivity of the](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-9.jpg)

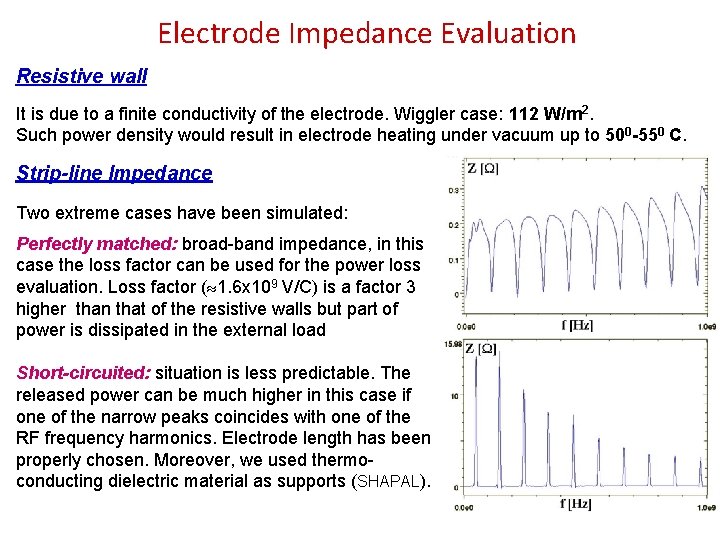

Electrode Impedance Evaluation Resistive wall It is due to a finite conductivity of the electrode. Wiggler case: 112 W/m 2. Such power density would result in electrode heating under vacuum up to 500 -550 C. Strip-line Impedance Two extreme cases have been simulated: Perfectly matched: broad-band impedance, in this case the loss factor can be used for the power loss evaluation. Loss factor ( 1. 6 x 109 V/C) is a factor 3 higher than that of the resistive walls but part of power is dissipated in the external load Short-circuited: situation is less predictable. The released power can be much higher in this case if one of the narrow peaks coincides with one of the RF frequency harmonics. Electrode length has been properly chosen. Moreover, we used thermoconducting dielectric material as supports (SHAPAL).
![Impedance (Simulation and Measurements) Numerical Simulations Bench Measurements RF harmonics Impedance (Simulation and Measurements) Numerical Simulations Bench Measurements RF harmonics](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-10.jpg)

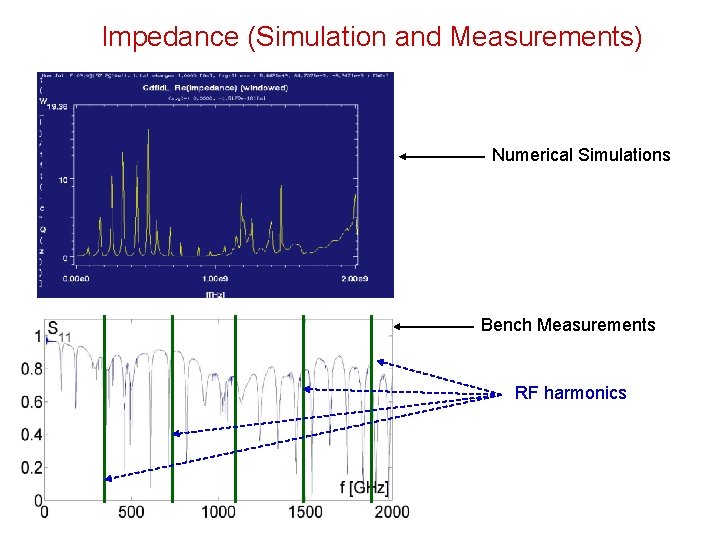

Impedance (Simulation and Measurements) Numerical Simulations Bench Measurements RF harmonics
![Bunch Length Measurements electrons positrons Surprisingly, the impedance (at least, its inductive part) seems Bunch Length Measurements electrons positrons Surprisingly, the impedance (at least, its inductive part) seems](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-11.jpg)

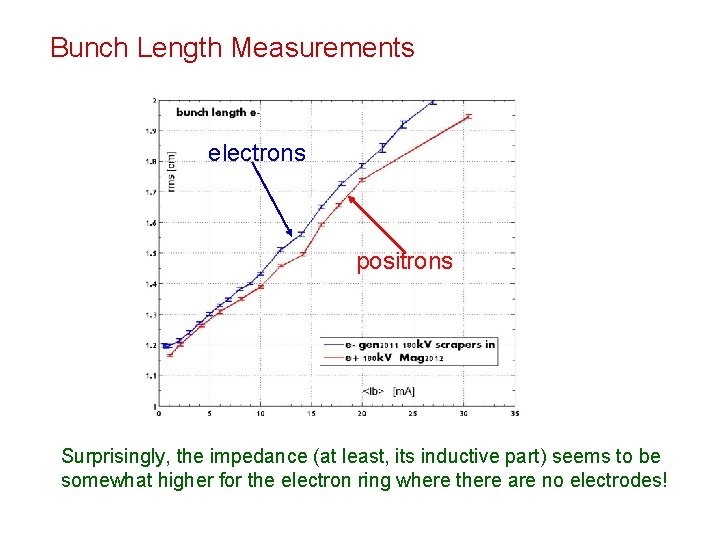

Bunch Length Measurements electrons positrons Surprisingly, the impedance (at least, its inductive part) seems to be somewhat higher for the electron ring where there are no electrodes!
![Horizontal Tune Shift I+ 550 m. A The frequency shift of the horizontal tune Horizontal Tune Shift I+ 550 m. A The frequency shift of the horizontal tune](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-12.jpg)

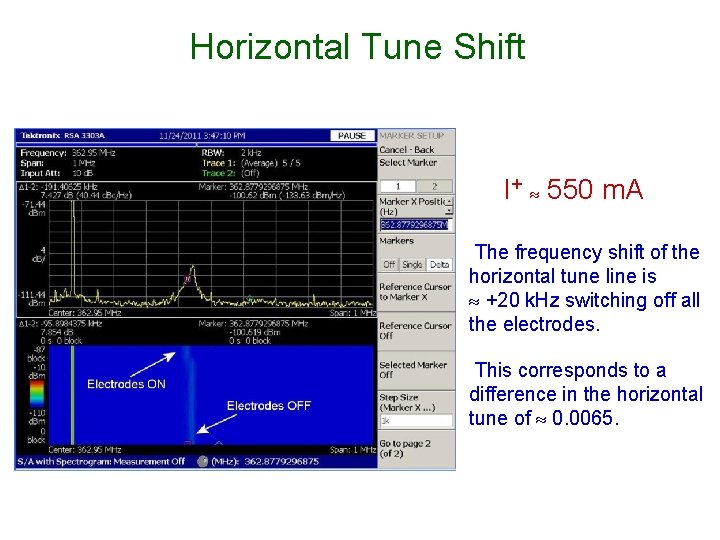

Horizontal Tune Shift I+ 550 m. A The frequency shift of the horizontal tune line is +20 k. Hz switching off all the electrodes. This corresponds to a difference in the horizontal tune of 0. 0065.
![Horizontal Bunch-by-Bunch Tune Spread Measured by the Feedback System OFF ON OFF DA NE Horizontal Bunch-by-Bunch Tune Spread Measured by the Feedback System OFF ON OFF DA NE](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-13.jpg)

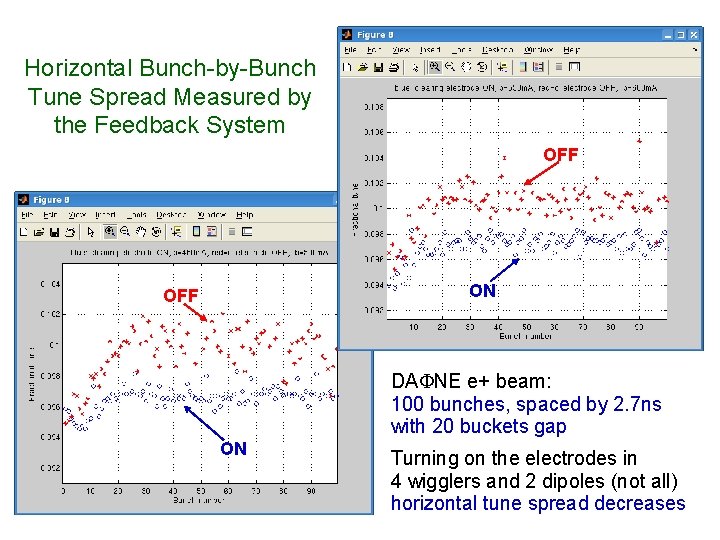

Horizontal Bunch-by-Bunch Tune Spread Measured by the Feedback System OFF ON OFF DA NE e+ beam: 100 bunches, spaced by 2. 7 ns with 20 buckets gap ON Turning on the electrodes in 4 wigglers and 2 dipoles (not all) horizontal tune spread decreases
![. . the effect of the electrodes is seen also on the vertical plane. . . the effect of the electrodes is seen also on the vertical plane.](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-14.jpg)

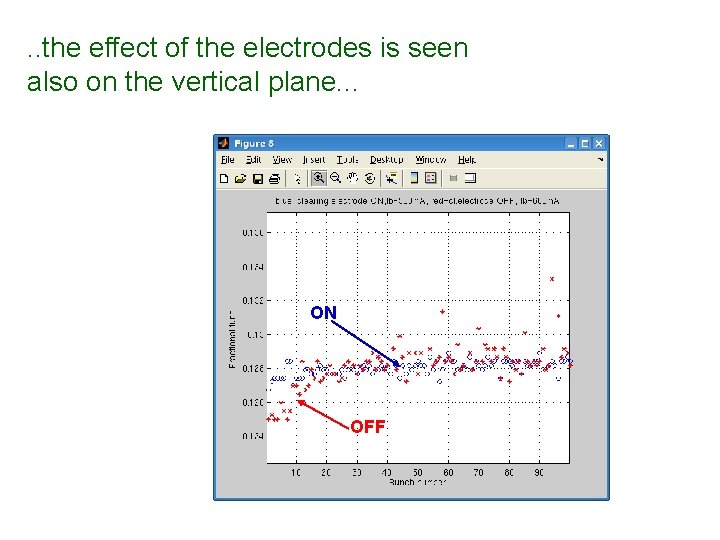

. . the effect of the electrodes is seen also on the vertical plane. . . ON OFF
![Vertical Size Variation 3 on 12 on 10 on 8 on 5 on All Vertical Size Variation 3 on 12 on 10 on 8 on 5 on All](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-15.jpg)

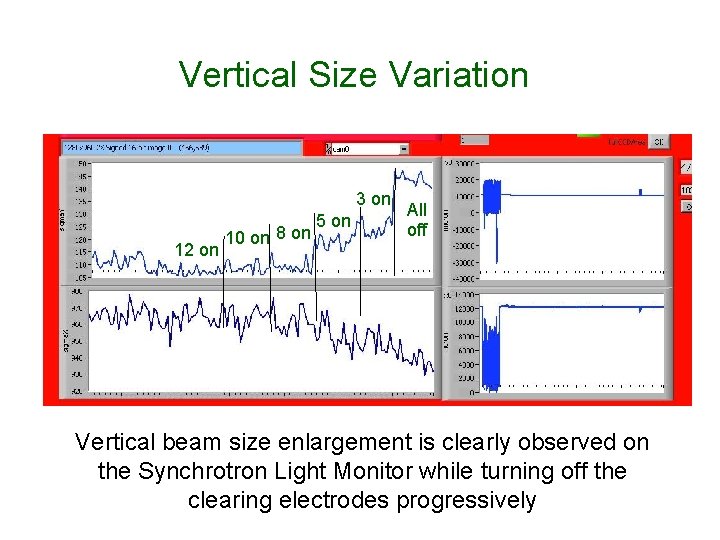

Vertical Size Variation 3 on 12 on 10 on 8 on 5 on All off Vertical beam size enlargement is clearly observed on the Synchrotron Light Monitor while turning off the clearing electrodes progressively
![Horizontal Instability Growth Rate Measurements Using Bunch-by-Bunch Feedback Applied voltages were 0 V, 70 Horizontal Instability Growth Rate Measurements Using Bunch-by-Bunch Feedback Applied voltages were 0 V, 70](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-16.jpg)

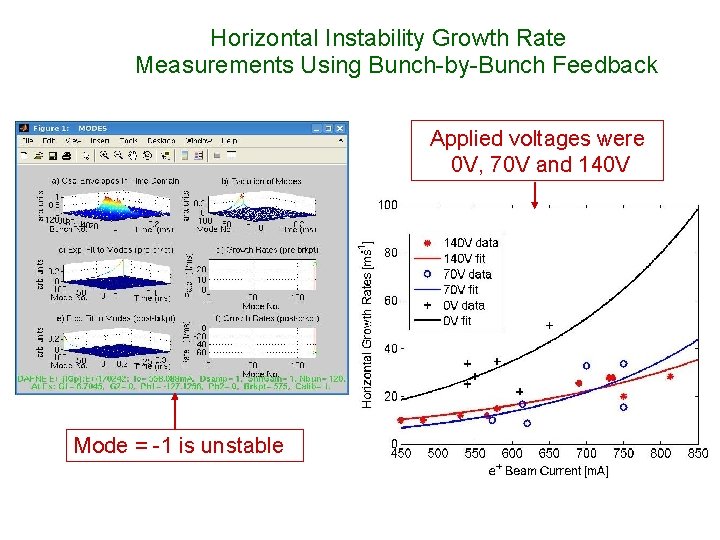

Horizontal Instability Growth Rate Measurements Using Bunch-by-Bunch Feedback Applied voltages were 0 V, 70 V and 140 V Mode 0 -1 Mode = -1 is unstable
![Vacuum Chamber HOM Shifts: Measurement Setup The e-cloud plasma can interact with RF waves Vacuum Chamber HOM Shifts: Measurement Setup The e-cloud plasma can interact with RF waves](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-17.jpg)

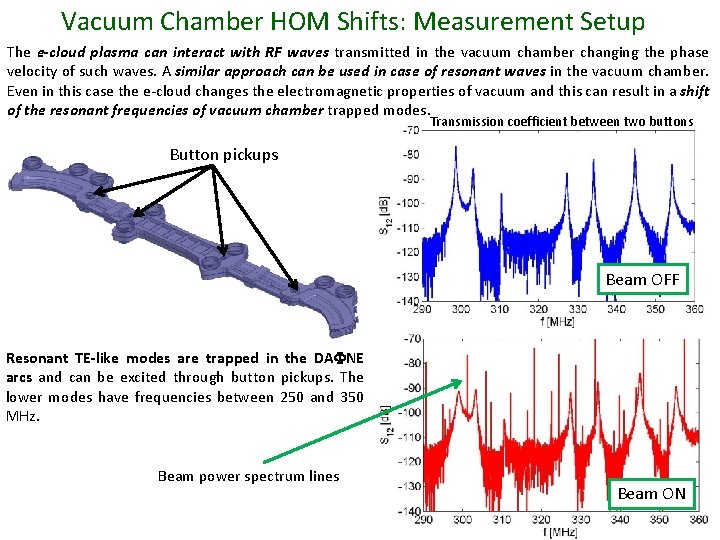

Vacuum Chamber HOM Shifts: Measurement Setup The e-cloud plasma can interact with RF waves transmitted in the vacuum chamber changing the phase velocity of such waves. A similar approach can be used in case of resonant waves in the vacuum chamber. Even in this case the e-cloud changes the electromagnetic properties of vacuum and this can result in a shift of the resonant frequencies of vacuum chamber trapped modes. Transmission coefficient between two buttons Button pickups Beam OFF Resonant TE-like modes are trapped in the DA NE arcs and can be excited through button pickups. The lower modes have frequencies between 250 and 350 MHz. Beam power spectrum lines Beam ON
![Vacuum Chamber HOM Shifts: results The analysis of data, up to now, gave the Vacuum Chamber HOM Shifts: results The analysis of data, up to now, gave the](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-18.jpg)

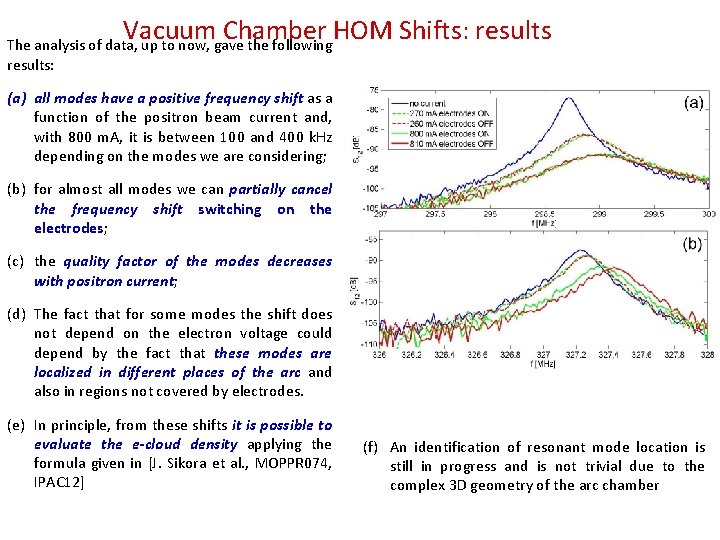

Vacuum Chamber HOM Shifts: results The analysis of data, up to now, gave the following results: (a) all modes have a positive frequency shift as a function of the positron beam current and, with 800 m. A, it is between 100 and 400 k. Hz depending on the modes we are considering; (b) for almost all modes we can partially cancel the frequency shift switching on the electrodes; (c) the quality factor of the modes decreases with positron current; (d) The fact that for some modes the shift does not depend on the electron voltage could depend by the fact that these modes are localized in different places of the arc and also in regions not covered by electrodes. (e) In principle, from these shifts it is possible to evaluate the e-cloud density applying the formula given in [J. Sikora et al. , MOPPR 074, IPAC 12] (f) An identification of resonant mode location is still in progress and is not trivial due to the complex 3 D geometry of the arc chamber
![Current delivered by voltage generators The voltage generators connected to the electrodes absorbs the Current delivered by voltage generators The voltage generators connected to the electrodes absorbs the](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-19.jpg)

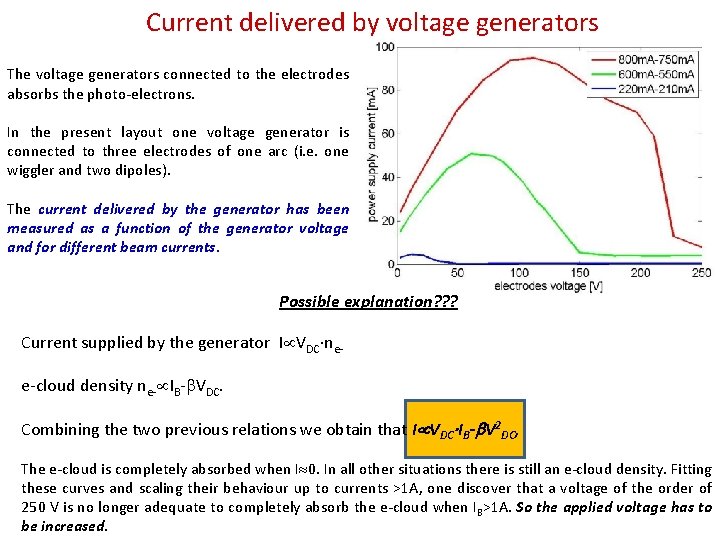

Current delivered by voltage generators The voltage generators connected to the electrodes absorbs the photo-electrons. In the present layout one voltage generator is connected to three electrodes of one arc (i. e. one wiggler and two dipoles). The current delivered by the generator has been measured as a function of the generator voltage and for different beam currents. Possible explanation? ? ? Current supplied by the generator I VDC nee-cloud density ne- IB- VDC. Combining the two previous relations we obtain that I VDC IB- V 2 DC, The e-cloud is completely absorbed when I 0. In all other situations there is still an e-cloud density. Fitting these curves and scaling their behaviour up to currents >1 A, one discover that a voltage of the order of 250 V is no longer adequate to completely absorb the e-cloud when IB>1 A. So the applied voltage has to be increased.
![. . . also during the current DA NE run we have exceeded 1 . . . also during the current DA NE run we have exceeded 1](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-20.jpg)

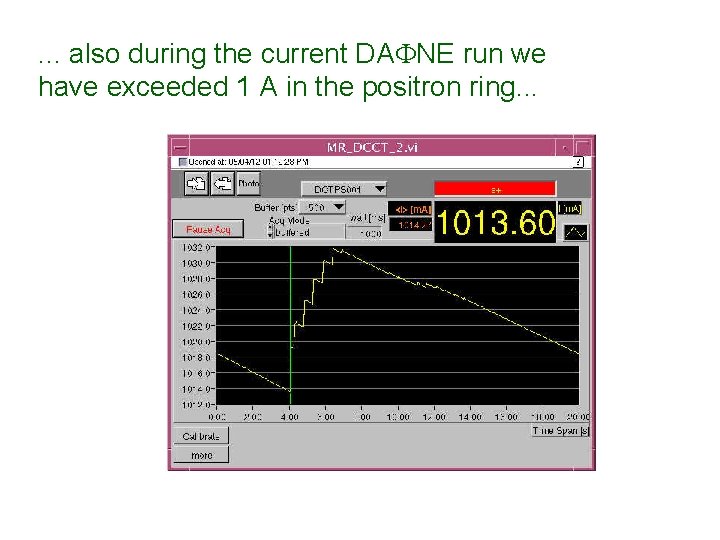

. . . also during the current DA NE run we have exceeded 1 A in the positron ring. . .
![Conclusions 1. Metallic e-cloud clearing electrodes have been inserted in all the dipole and Conclusions 1. Metallic e-cloud clearing electrodes have been inserted in all the dipole and](http://slidetodoc.com/presentation_image_h2/c6c46fbd1f7c1d8cb58e150a11974010/image-21.jpg)

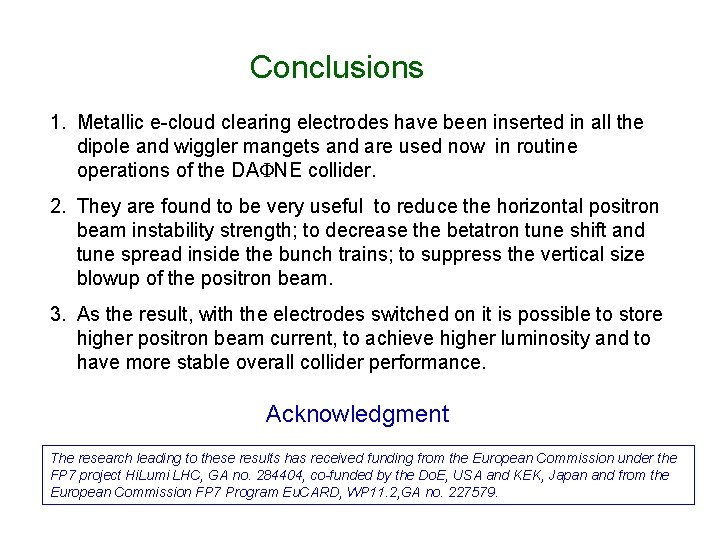

Conclusions 1. Metallic e-cloud clearing electrodes have been inserted in all the dipole and wiggler mangets and are used now in routine operations of the DA NE collider. 2. They are found to be very useful to reduce the horizontal positron beam instability strength; to decrease the betatron tune shift and tune spread inside the bunch trains; to suppress the vertical size blowup of the positron beam. 3. As the result, with the electrodes switched on it is possible to store higher positron beam current, to achieve higher luminosity and to have more stable overall collider performance. Acknowledgment The research leading to these results has received funding from the European Commission under the FP 7 project Hi. Lumi LHC, GA no. 284404, co-funded by the Do. E, USA and KEK, Japan and from the European Commission FP 7 Program Eu. CARD, WP 11. 2, GA no. 227579.
