La beam-test facility di Frascati (BTF) Da 1 a 1010 elettroni, fotoni e neutroni B. Buonomo, G. Mazzitelli, L. Quintieri INFN LNF P. Valente INFN Roma Con il fondamentale contributo degli operatori di DAFNE, dello staff della Divisione Acceleratori e degli utenti che ci hanno aiutato a migliorare la facility P. Valente – CSN 2, Roma, 5 Feb. 2009
DAFNE BTF Linac ad alta corrente: § 1 - 500 m. A e- 100 m. A e+, § Impulsi da 1 oppure 10 ns § Corrente minima ~ 1 m. A ~ 107 particles La BTF è una facility che può estrarre il fascio di e-/e+ dal Linac; è parte integrante del complesso del collider DAFNE dei Laboratori di Frascati Attenuando il fascio primario è possibile: § ottenere il regime di particella singola, ideale per test di rivelatori § modulare l’intensità del fascio § modulare l’energia del fascio P. Valente – CSN 2, Roma, 5 Feb. 2009
p e on zi le se mi su ra p BTF target P. Valente – CSN 2, Roma, 5 Feb. 2009
Fascio secondario 0 1 e- 103 2 e- 3 e- 102 calorimetro 10 1 0 100 200 300 400 500 Fascio del LINAC dipolo 45° Bersaglio (Cu) 1. 7, 2. 0, 2. 3 X 0 P. Valente – CSN 2, Roma, 5 Feb. 2009 N. of particles collimatori (W) Selected energy (Me. V)
Caratteristiche del fascio Fascio di positroni o elettroni, con una intensità modulabile grazie alla dispersione in energia introdotta dal bersaglio, selezionando l’energia e tramite dei collimatori, fino ad otterene il regime di singola particella per impulso Number (particles/pulse) 1 105 1 1010 Energy (Me. V) 25 -500 25 750 Repetition rate (Hz) 20 -50 50 Pulse Duration (ns) 10 1 or 10 p resolution 1% Spot size (mm) sx, y ≈ 2 2 (single particle) up to 10 10 (high multiplicity) s’x, y ≈ 2 (single particle) up to 10 (high multiplicity) Divergence (mmrad) Multi-purpose facility: • Detector calibration and setup • Calorimetry • High multiplicity efficiency • Detectors aging and efficiency • Beam diagnostics P. Valente – CSN 2, Roma, 5 Feb. 2009
Operazione BTF Il commissioning della BTF è stato completato nel 2002 e opera regolarmente con gli utenti dall’inizio del 2003. Il fascio è fornito 24 ore/24 (efficienza del 96%) tranne che durante l’operazione degli esperimenti al collider DAFNE. In questo caso la BTF deve operare in parasitaggio con un duty cycle che non potrebbe eccedere il 45% a causa delle iniezioni continue negli anelli principali (topping-up). Per ovviare a questa limitazione, nel 2004 è stata realizzata una transfer-line dedicata e nel 2006 è stato installato un alimentatore veloce pulsato che permette di selezionare ciascuno dei 50 bunch/secondo del Linac. Questo a portato l’efficienza complessiva della linea BTF al 90%. Richiesta di fascio negli ultimi 4 anni (richieste multiple conteggiate due volte) 2007 - 224 giorni 2006 - 244 giorni 2005 - 364 giorni 2004 - 282 giorni P. Valente – CSN 2, Roma, 5 Feb. 2009
Transfer-line dedicata P. Valente – CSN 2, Roma, 5 Feb. 2009
2008 dedicato 193 giorni nel 2008. Utilizzo effettivo del tempo allocato: 80 -90% P. Valente – CSN 2, Roma, 5 Feb. 2009
Infrastruttura Sala sperimentale 5. 5 m 4 m Linac tunnel P. Valente – CSN 2, Roma, 5 Feb. 2009
Infrastruttura • Sala riunioni (Wi. Fi) • Ufficio ospiti (LAN-Wi. Fi) Sala controllo PC, Console controllo, stampante patch panels, crate, racks, etc Ingresso carrabile: muri di radioprotezione (mobili) Linac tunnel P. Valente – CSN 2, Roma, 5 Feb. 2009
Infrastruttura § Sistema DAQ permanente: TDC/QDC/ADC/scaler/discriminatori per diagnositica e (limitatamente) per utenti § VME and CAMAC controller, modulistica NIM § Tavolo motorizzato e remotizzato (movimenti x-y) § Sistema Gas § Alte tensioni, crates, rack, etc. C 4 H 10 CO 2 Gas nobili § HV SY 2527 (3/4 KV neg, 3/4 KV pos, 15 KV pos) § 40 ch. CAEN SY 127 pos. § Cabling BTF HALL-BTF CR § Network: Wi-Fi, dedicated-LAN, WAN, printer http: //www. lnf. infn. it/acceleratori/btf/ P. Valente – CSN 2, Roma, 5 Feb. 2009 C 2 H 6
Diagnostica low multiplicity (1 -100): • • (back detector) lead glass, 5× 5× 35 - 10× 35 cm Pb. WO 4 crystal 3*3*11 cm 2× 2 mm spot size in lead/scintillator fibers (KLOE type), 25× 50× 30 cm fiber hodoscope Na. I high resolution 30× 30 cm (front/trigger detector/not destructive/tracking) multipurpose plastic scintillators 10 x 0. 5 cm, 10 x 30 x 0. 5 cm, 1 x 15 x 0, 5 cm hodoscope; two bundle of 1 mm fiber for a total active area of 48 x 48 mm 2 2× 2 mm spot size in Silicon tracker (high gain) Silicon XY chamber 3 GEM (Gas Electron Multiplier) detector P. Valente – CSN 2, Roma, 5 Feb. 2009
Esempio di applicazione a bassa intensità (Misura di inefficienza g veto di NA 62 a bassa energia) P 1 H 1 Eventi F 1 fascio H 2 P 2 F 2 H 2 1 e H 1 F 2 Calorimetro Pb/fibre F 1·F 2 F 1 • F 2 • H 1 • H 2 Energia (Me. V) B A P. Valente – CSN 2, Roma, 5 Feb. 2009 P 1
Esempio di applicazione a bassa intensità (Misura di inefficienza g veto di NA 62 a bassa energia) P 1 Inefficienza F 1 H 1 fascio P 2 H 2 F 2 - Measured n FC 68. 27% CL 1 -e = (7. 3+4. 1 -3. 3) 10 -5 EA+B < 50 Me. V P. Valente – CSN 2, Roma, 5 Feb. 2009 Soglia EA+B(Me. V)

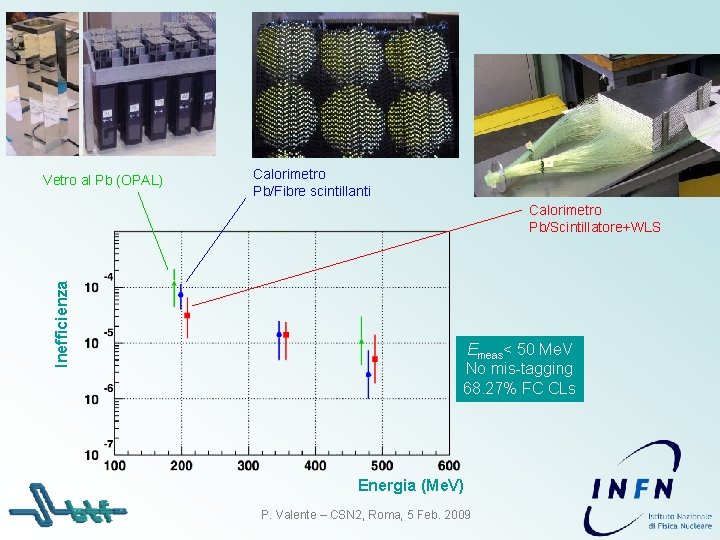

Vetro al Pb (OPAL) Calorimetro Pb/Fibre scintillanti Inefficienza Calorimetro Pb/Scintillatore+WLS Emeas< 50 Me. V No mis-tagging 68. 27% FC CLs Energia (Me. V) P. Valente – CSN 2, Roma, 5 Feb. 2009
Fotoni taggati alla BTF: calibrazione AGILE GRID The AGILE Gamma Ray Imaging Detector calibration at BTF is aimed at obtaining detailed data on all possible geometries and conditions. BTF can provide data in the most spectrometer significant energy region (20 -700 Me. V) silicon detector silicon tagging target Be window P. Valente – CSN 2, Roma, 5 Feb. 2009 AGILE
Moduli tagging Target attivo P. Valente – CSN 2, Roma, 5 Feb. 2009

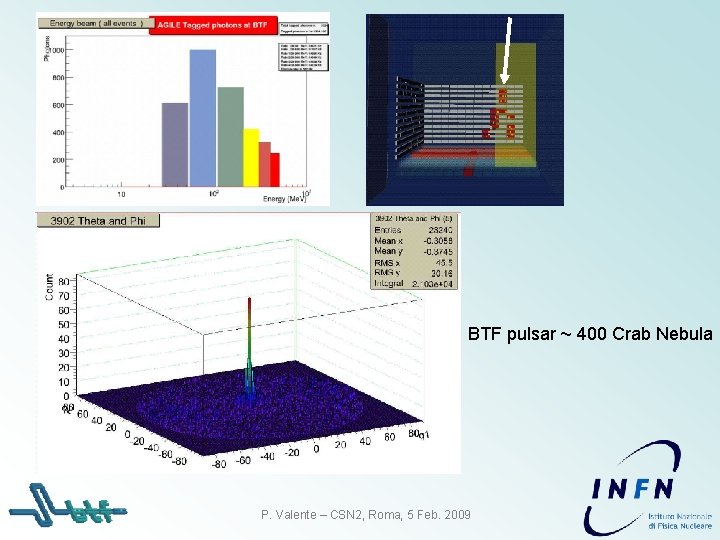

BTF pulsar ~ 400 Crab Nebula P. Valente – CSN 2, Roma, 5 Feb. 2009
Diagnostica • medium multiplicity diagnostics (100 -108): (front detector/not destructive) • Cerenkov light emission • Silicon Beam Chamber (low and tunable gain) • Triple GEM TPC (under development) • high multiplicity diagnostics (107 -1010): (front detector) • low noise (3× 106 particles) BCM • high sensitivity fluorescence flags – cromox, Be, yag: ce P. Valente – CSN 2, Roma, 5 Feb. 2009
Compact-Time Projection GEM Essenzialmente una GEM modificata per funzionare come una piccola TPC (spazio di drift di 4 cm) facendo incidere il fascio lateralmente. Buona risoluzione spaziale anche ad alta intensità misurando il tempo di drift. box cross section BTF beam ASDQ or Carioca GEM 16 samples for each readout Rivelatore realizzato modificando una tripla-GEM 10 x 10 cm 2 in una scatola di G 10 Readout realizzato con Carioca-GEM P. Valente – CSN 2, Roma, 5 Feb. 2009 F. Murtas et al.

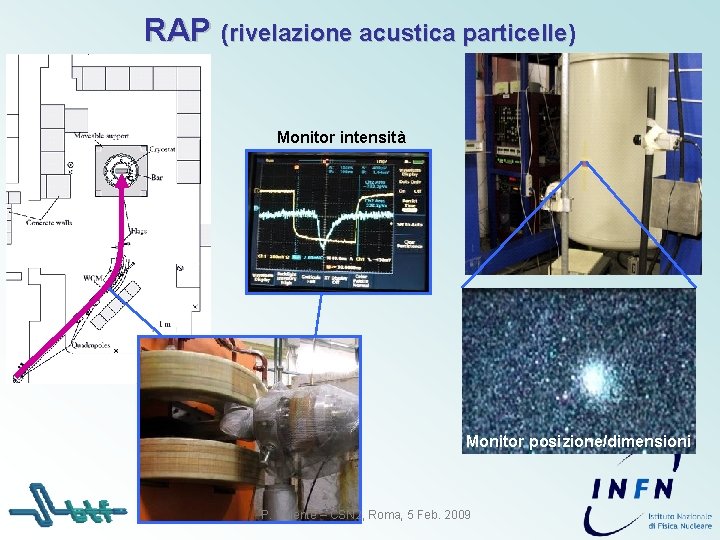

RAP (rivelazione acustica particelle) Monitor intensità Monitor posizione/dimensioni P. Valente – CSN 2, Roma, 5 Feb. 2009
P. Valente – CSN 2, Roma, 5 Feb. 2009

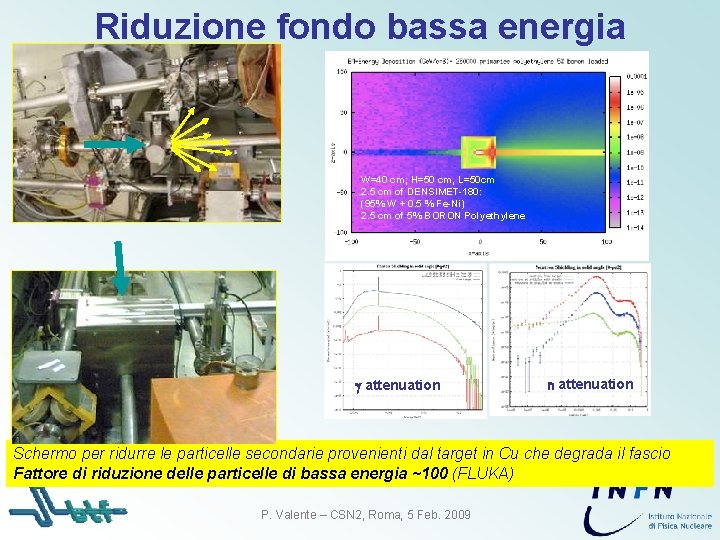

Riduzione fondo bassa energia W=40 cm; H=50 cm, L=50 cm 2. 5 cm of DENSIMET-180: (95% W + 0. 5 % Fe-Ni) 2. 5 cm of 5% BORON Polyethylene g attenuation n attenuation Schermo per ridurre le particelle secondarie provenienti dal target in Cu che degrada il fascio Fattore di riduzione delle particelle di bassa energia ~100 (FLUKA) P. Valente – CSN 2, Roma, 5 Feb. 2009
Idea per un fascio di neutroni @ BTF • Interesse alla produzione di neutroni nella comunità scientifica degli utenti della facility • Possibilità di effettuare test di diagnostica per neutroni a basso flusso e bassa energia • Possibilità di costruire il know-how necessario per la prossima generazione di sorgenti di alta energia (FEL) • Possibilità di realizzare una nuova facility Europea (ISO standard) • Progetto in collaborazione con S. Bartalucci, R. Bedogni, A. Esposito, F. Murtas P. Valente – CSN 2, Roma, 5 Feb. 2009
Produzione di neutroni Sfera di Pb, r=12 X 0 100 Me. V 1 Me. V Fino a qualche decina di Me. V lo spettro è ben descritto da una distribuzione Maxwelliana con un’energia media di ~1 Me. V Per energie più alte, allo spettro di risonanza gigante di dipolo si aggiunge una coda dovuta all’effetto quasi-deutone La pendenza diventa molto ripida quando ci si avvicina all’energia dell’elettrone incidente. Monte Carlo (Fluka) P. Valente – CSN 2, Roma, 5 Feb. 2009
Scelta del materiale Formula di Swanson: 9. 3 1010 Z 0. 73 n/k. W/s P. Valente – CSN 2, Roma, 5 Feb. 2009 Fluka
Ottimizzazione bersaglio W Massima potenza fascio BTF ~ 40 W (4. 9 1011 e-/s) P. Valente – CSN 2, Roma, 5 Feb. 2009
Setup per il test Target racchiuso in uno schermo, con linee di estrazione multiple e- beam fotoni Transfer Line Studio finanziato dalla CNS V (Settembre 2008) per realizzare • target • beam dumper • supporto movimentabile P. Valente – CSN 2, Roma, 5 Feb. 2009

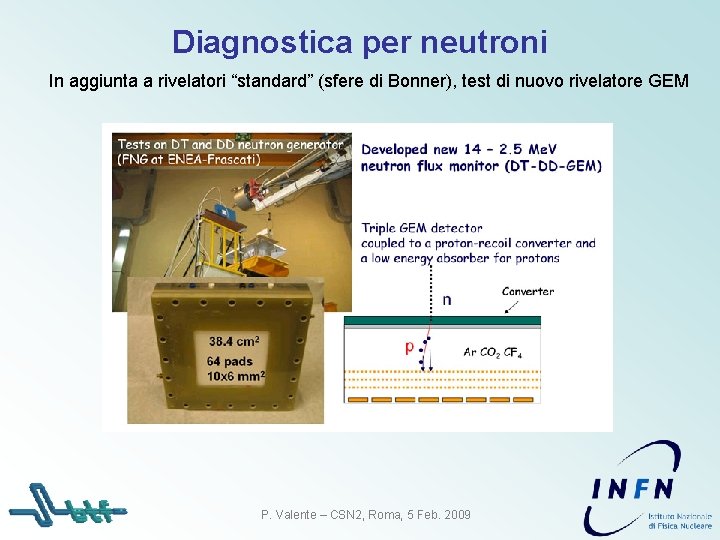

Diagnostica per neutroni In aggiunta a rivelatori “standard” (sfere di Bonner), test di nuovo rivelatore GEM P. Valente – CSN 2, Roma, 5 Feb. 2009

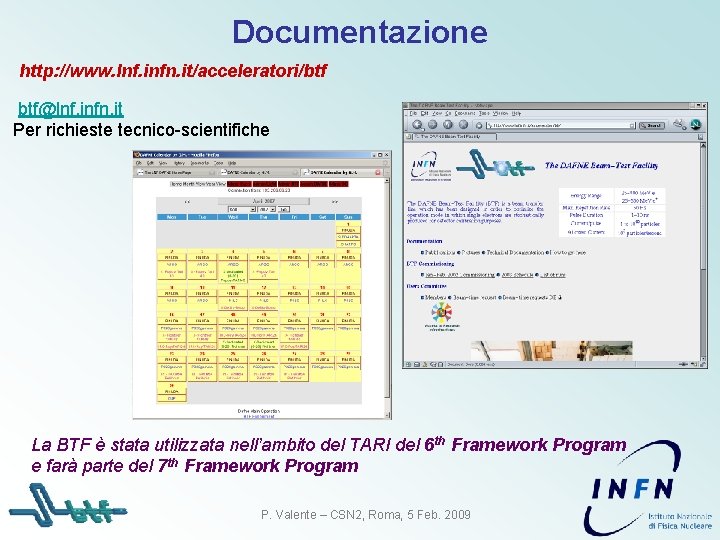

Documentazione http: //www. lnf. infn. it/acceleratori/btf btf@lnf. infn. it Per richieste tecnico-scientifiche La BTF è stata utilizzata nell’ambito del TARI del 6 th Framework Program e farà parte del 7 th Framework Program P. Valente – CSN 2, Roma, 5 Feb. 2009
Commissione BTF Richiesta di fascio Pasquale Di Nezza - INFN, LNF Flavio Gatti - INFN, Genova Clara Matteuzzi (Presidente) - INFN, Milano Giovanni Mazzitelli (Responsabile) - INFN, LNF Antonio Passeri - INFN, Roma III Paolo Valente - INFN, Roma Segreteria: Annette Donkerlo P. Valente – CSN 2, Roma, 5 Feb. 2009 Newsletter: Coordinatori CSN Responsabili nazionali Utenti BTF
2009 Assegnazioni da Gennaio ad Aprile Richieste da Maggio a Dicembre P. Valente – CSN 2, Roma, 5 Feb. 2009
Burocrazia btfsupport@lnf. infn. it Per supporto amministrativo P. Valente – CSN 2, Roma, 5 Feb. 2009
Grazie, anche da parte del personale precario, che è metà dello staff BTF Giovanni Mazzitelli, (LNF) Paolo Valente, (Roma) Lina Quintieri, tempo determinato (LNF) Bruno Buonomo, tempo determinato (LNF) P. Valente – CSN 2, Roma, 5 Feb. 2009
P. Valente – CSN 2, Roma, 5 Feb. 2009
La pubblicazione più “antica”… …e la più recente Jul 8, 2008 DAFNE provides a fine electron source http: //cerncourier. com/cws/article/cern/34935 P. Valente – CSN 2, Roma, 5 Feb. 2009

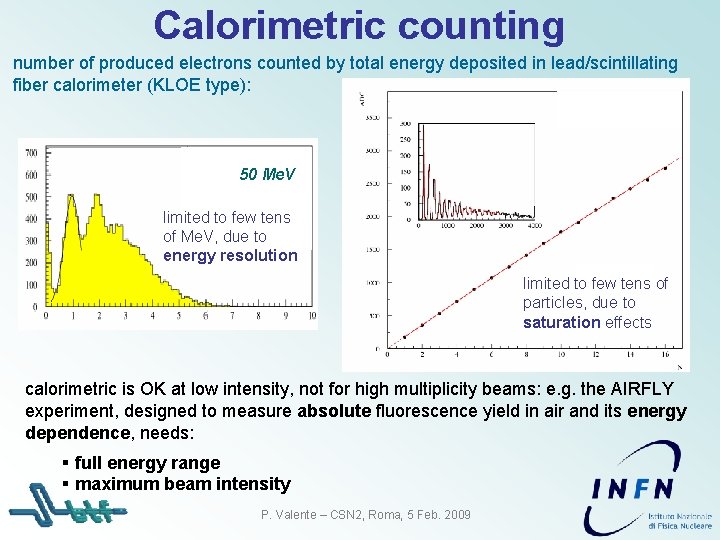

Calorimetric counting number of produced electrons counted by total energy deposited in lead/scintillating fiber calorimeter (KLOE type): 50 Me. V limited to few tens of Me. V, due to energy resolution limited to few tens of particles, due to saturation effects calorimetric is OK at low intensity, not for high multiplicity beams: e. g. the AIRFLY experiment, designed to measure absolute fluorescence yield in air and its energy dependence, needs: § full energy range § maximum beam intensity P. Valente – CSN 2, Roma, 5 Feb. 2009
Beam profile (AGILE Si tracker) 2 layers (x, y) 384 strips, analog readout 410 mm thick, single-side, AC coupled strips, 121 mm pitch, 242 mm readout pitch Optimal focusing at 493 Me. V, measured spot size: s 2 2 mm 2 Defocused Beam spot measured with all transfer line quadrupoles off: 55 35 mm 2, limited by vacuum pipe section P. Valente – CSN 2, Roma, 5 Feb. 2009
Sci-fi profile detector § A permanent beam position and size monitor needed, both for beam steering and optimization purposes, and for providing useful information for detector testing, complementing the beam intensity monitors § Such a position sensitive detector should have: § negligible mass, not to spoil beam characteristics (energy, divergence, spot size) § good resolution, as compared to beam typical size (1 mm required) § sensitivity both for single particle (even at low energy) and at high beam intensity § 4 layers of fibers glued together cladded scintillating fibers, Pol. Hi. Tech type 0046, 1 mm diameter § staggered by ½ fiber to minimize dead zones P. Valente – CSN 2, Roma, 5 Feb. 2009
Sci-fi profile detector energy dependence of the beam spot size H size (mm) § Charge weighted profiles for x and y fiber bundles y (mm) E (Me. V) x (mm) P. Valente – CSN 2, Roma, 5 Feb. 2009 Consistent with beam image from Silicon tracker
Cerenkov beam monitor detector, designed and built, in collaboration with the AIRFLY group, based on Cerenkov light emission § Cross-calibrated with calorimetric measurement at low particle multiplicity § Used to monitor beam intensity at higher intensity up 104 105 particles, in the full energy range filter dynamical range can be further extended: § calibrated optical filter in front of the PMT § use air as Cerenkov radiator detector tested up to 1010 particles with a cross calibration with BCM 45 o mirror Plexiglas radiator P. Valente – CSN 2, Roma, 5 Feb. 2009 PMT
Calorimeter/Cerenkov calibration Cerenkov beam monitor P. Valente – CSN 2, Roma, 5 Feb. 2009
Beam profile (FLAG fluorescence target) Very low current beam image on 1 Inc yag: ce Flag = metallic high fluorescence plate viewed by a camera Different fluorescence targets(Be, cromox, yag: ce) for very low current beam SIDHHARTA diagnostics P. Valente – CSN 2, Roma, 5 Feb. 2009
