L 22 Vibration and Waves 2 resonance clocks

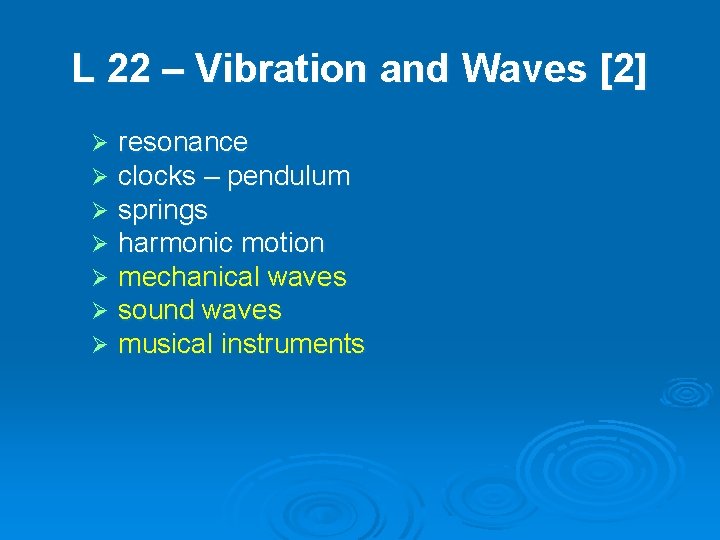

L 22 – Vibration and Waves [2] Ø Ø Ø Ø resonance clocks – pendulum springs harmonic motion mechanical waves sound waves musical instruments

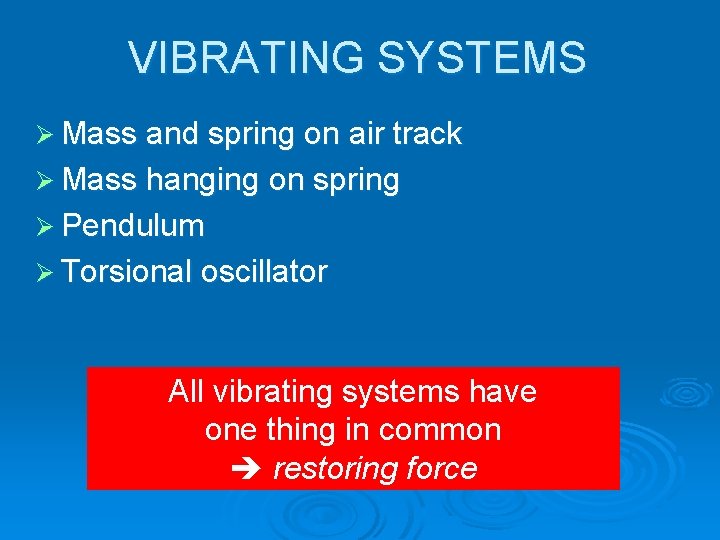

VIBRATING SYSTEMS Ø Mass and spring on air track Ø Mass hanging on spring Ø Pendulum Ø Torsional oscillator All vibrating systems have one thing in common restoring force

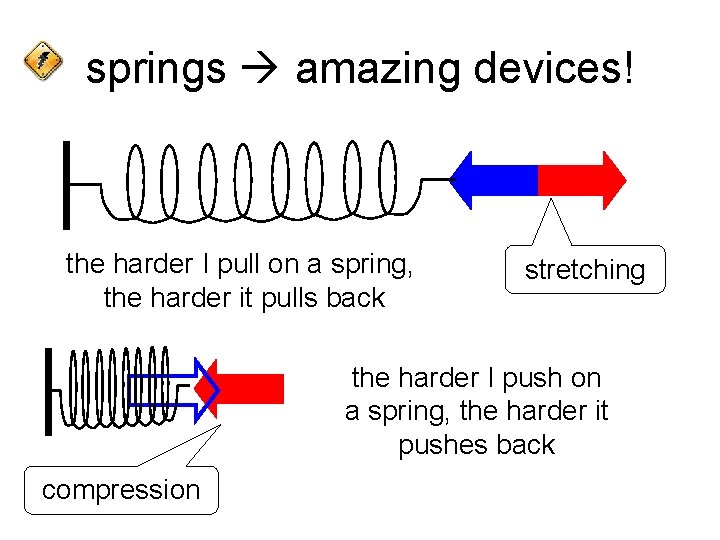

springs amazing devices! the harder I pull on a spring, the harder it pulls back stretching the harder I push on a spring, the harder it pushes back compression

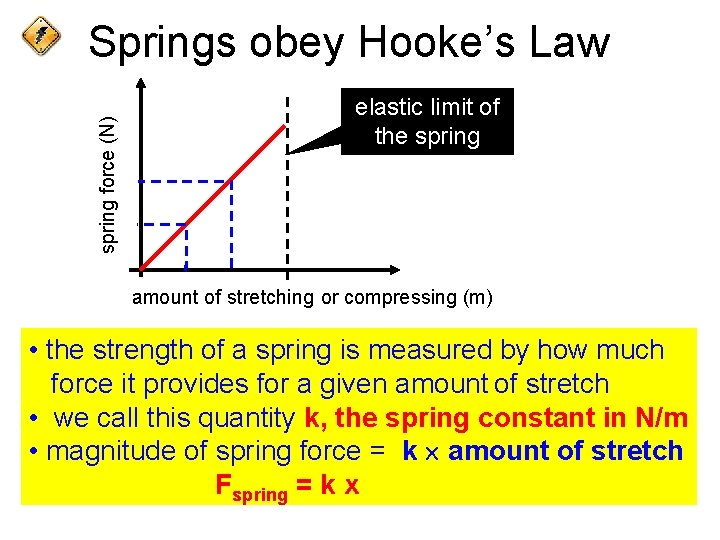

spring force (N) Springs obey Hooke’s Law elastic limit of the spring amount of stretching or compressing (m) • the strength of a spring is measured by how much force it provides for a given amount of stretch • we call this quantity k, the spring constant in N/m • magnitude of spring force = k amount of stretch Fspring = k x

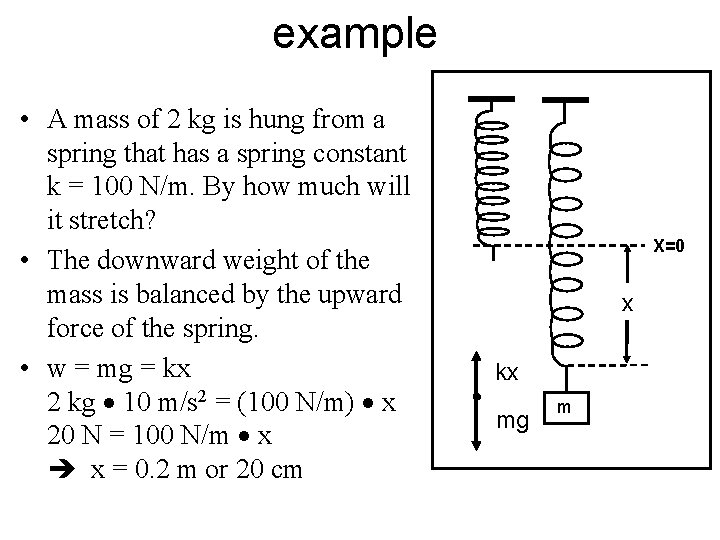

example • A mass of 2 kg is hung from a spring that has a spring constant k = 100 N/m. By how much will it stretch? • The downward weight of the mass is balanced by the upward force of the spring. • w = mg = kx 2 kg 10 m/s 2 = (100 N/m) x 20 N = 100 N/m x x = 0. 2 m or 20 cm X=0 x kx mg m

simple harmonic oscillator mass m and spring on a frictionless surface k spring that can be stretched or compressed Equilibrium position A 0 frictionless surface A k is the spring constant, which measures the stiffness of the spring in Newtons per meter

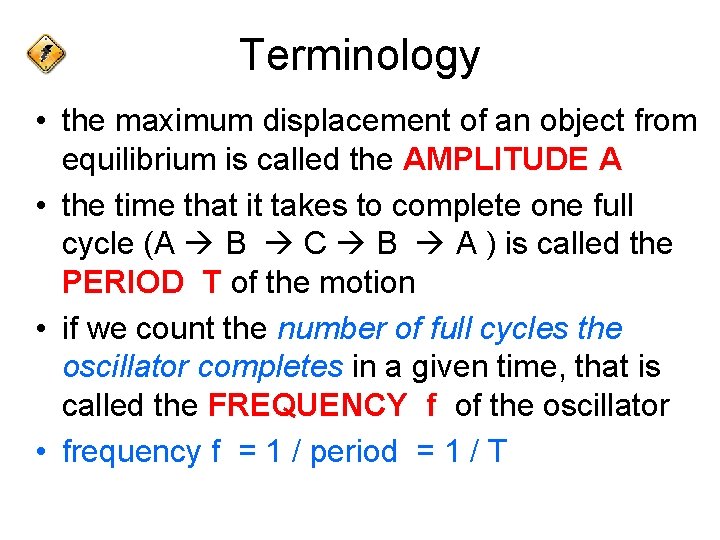

Terminology • the maximum displacement of an object from equilibrium is called the AMPLITUDE A • the time that it takes to complete one full cycle (A B C B A ) is called the PERIOD T of the motion • if we count the number of full cycles the oscillator completes in a given time, that is called the FREQUENCY f of the oscillator • frequency f = 1 / period = 1 / T

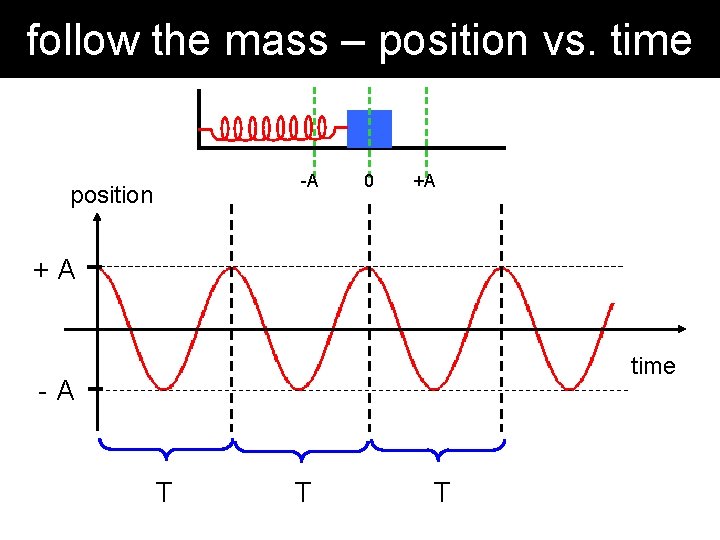

follow the mass – position vs. time -A position 0 +A +A time -A T T T

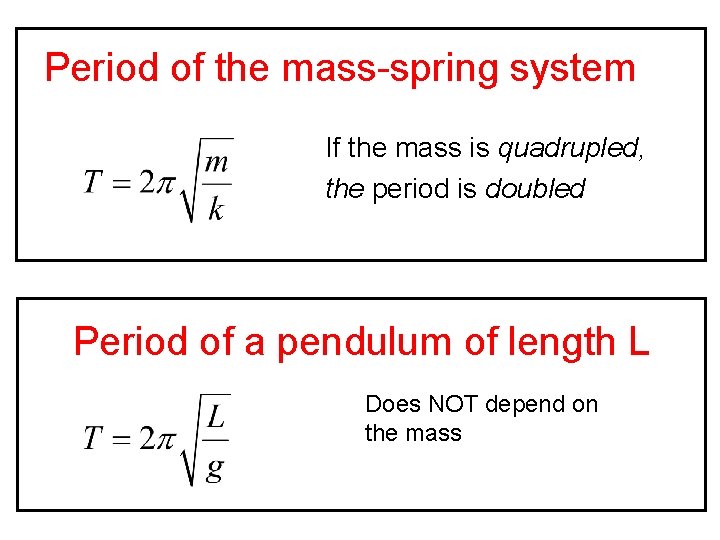

Period of the mass-spring system If the mass is quadrupled, the period is doubled Period of a pendulum of length L Does NOT depend on the mass

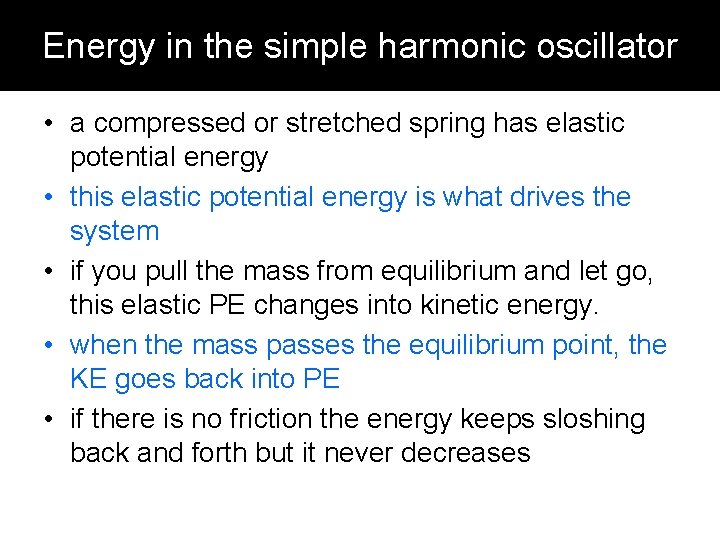

Energy in the simple harmonic oscillator • a compressed or stretched spring has elastic potential energy • this elastic potential energy is what drives the system • if you pull the mass from equilibrium and let go, this elastic PE changes into kinetic energy. • when the mass passes the equilibrium point, the KE goes back into PE • if there is no friction the energy keeps sloshing back and forth but it never decreases

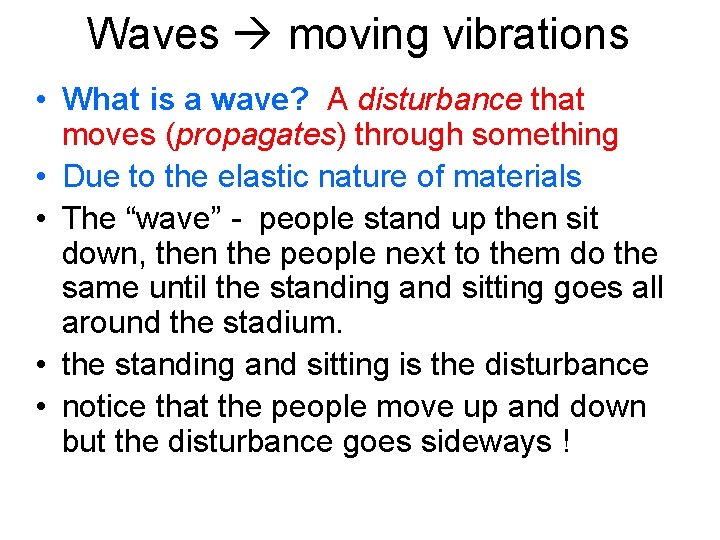

Waves moving vibrations • What is a wave? A disturbance that moves (propagates) through something • Due to the elastic nature of materials • The “wave” - people stand up then sit down, then the people next to them do the same until the standing and sitting goes all around the stadium. • the standing and sitting is the disturbance • notice that the people move up and down but the disturbance goes sideways !

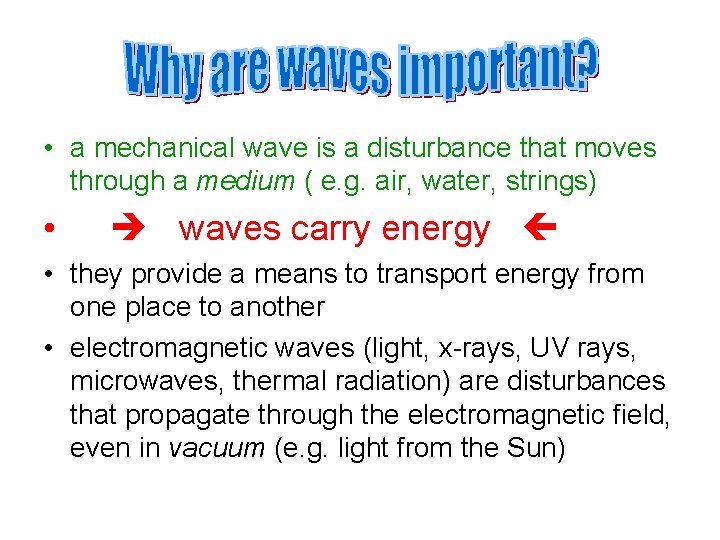

• a mechanical wave is a disturbance that moves through a medium ( e. g. air, water, strings) • waves carry energy • they provide a means to transport energy from one place to another • electromagnetic waves (light, x-rays, UV rays, microwaves, thermal radiation) are disturbances that propagate through the electromagnetic field, even in vacuum (e. g. light from the Sun)

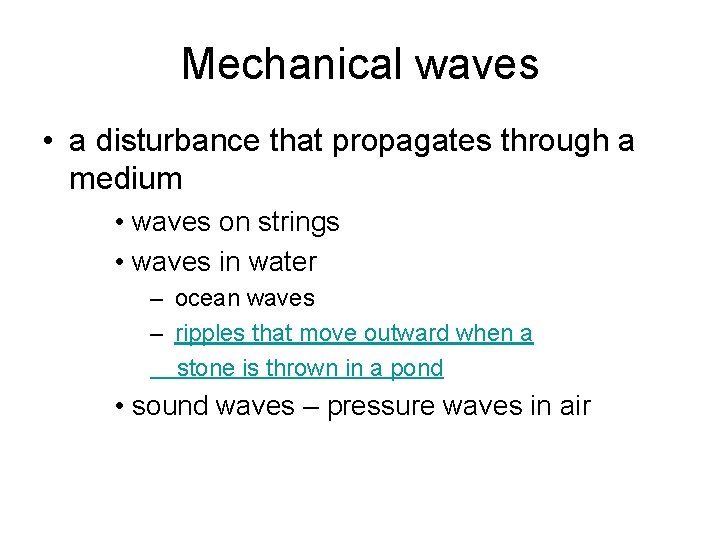

Mechanical waves • a disturbance that propagates through a medium • waves on strings • waves in water – ocean waves – ripples that move outward when a stone is thrown in a pond • sound waves – pressure waves in air

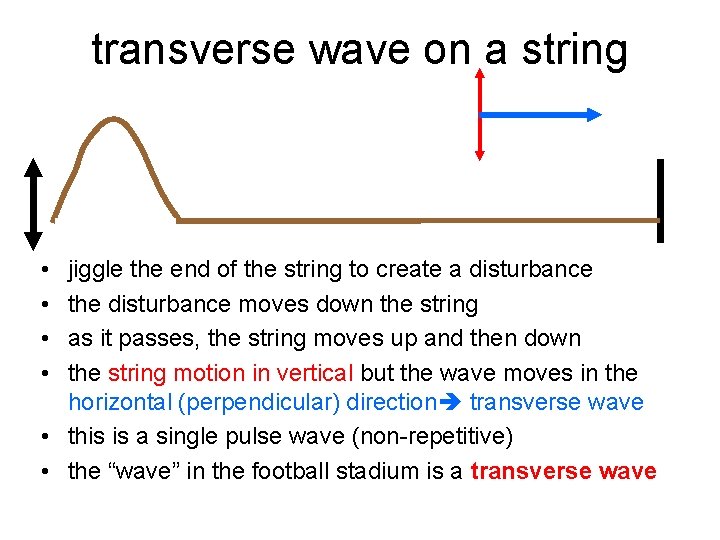

transverse wave on a string • • jiggle the end of the string to create a disturbance the disturbance moves down the string as it passes, the string moves up and then down the string motion in vertical but the wave moves in the horizontal (perpendicular) direction transverse wave • this is a single pulse wave (non-repetitive) • the “wave” in the football stadium is a transverse wave

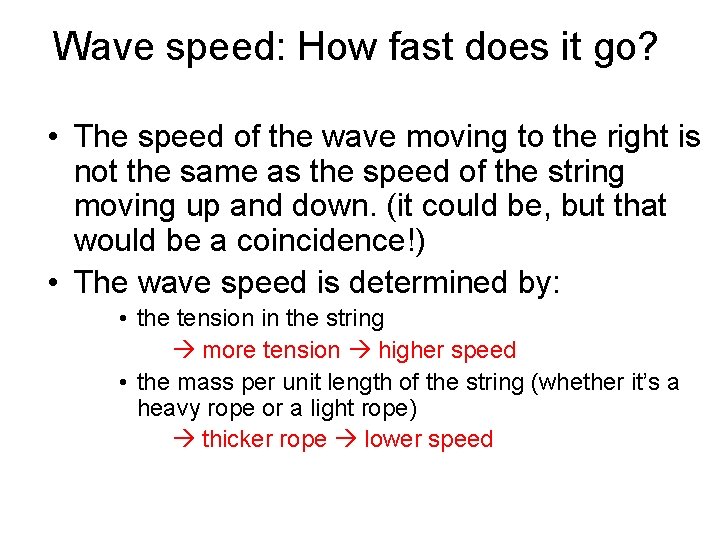

Wave speed: How fast does it go? • The speed of the wave moving to the right is not the same as the speed of the string moving up and down. (it could be, but that would be a coincidence!) • The wave speed is determined by: • the tension in the string more tension higher speed • the mass per unit length of the string (whether it’s a heavy rope or a light rope) thicker rope lower speed

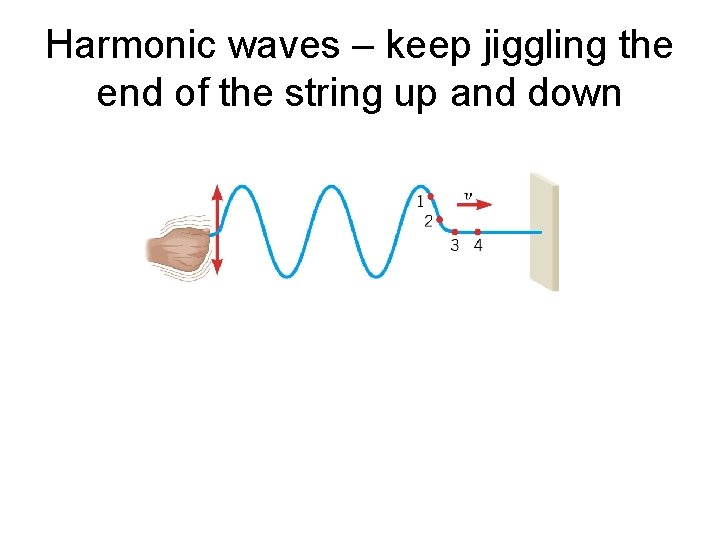

Harmonic waves – keep jiggling the end of the string up and down

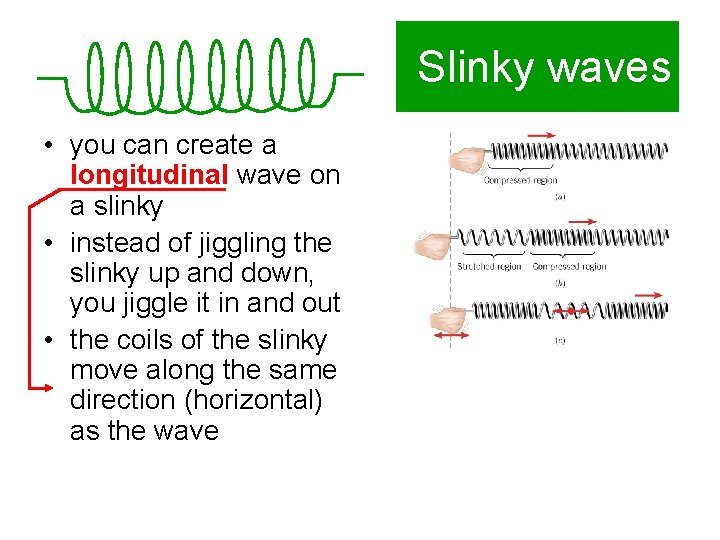

Slinky waves • you can create a longitudinal wave on a slinky • instead of jiggling the slinky up and down, you jiggle it in and out • the coils of the slinky move along the same direction (horizontal) as the wave

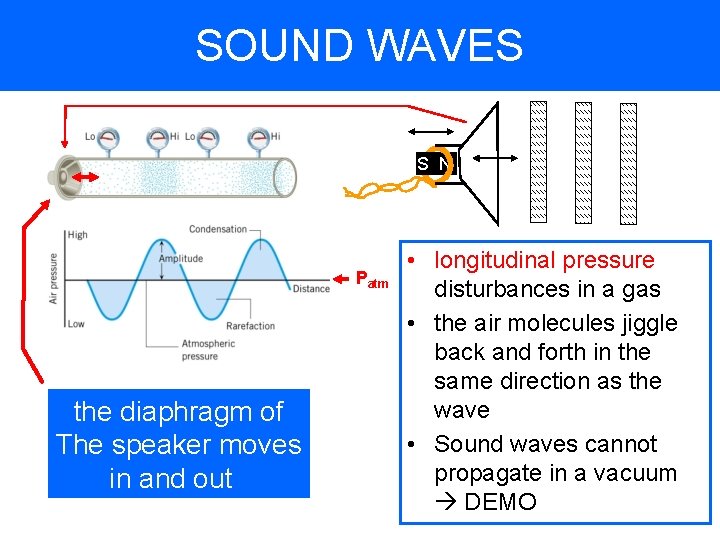

SOUND WAVES S N Patm the diaphragm of The speaker moves in and out • longitudinal pressure disturbances in a gas • the air molecules jiggle back and forth in the same direction as the wave • Sound waves cannot propagate in a vacuum DEMO

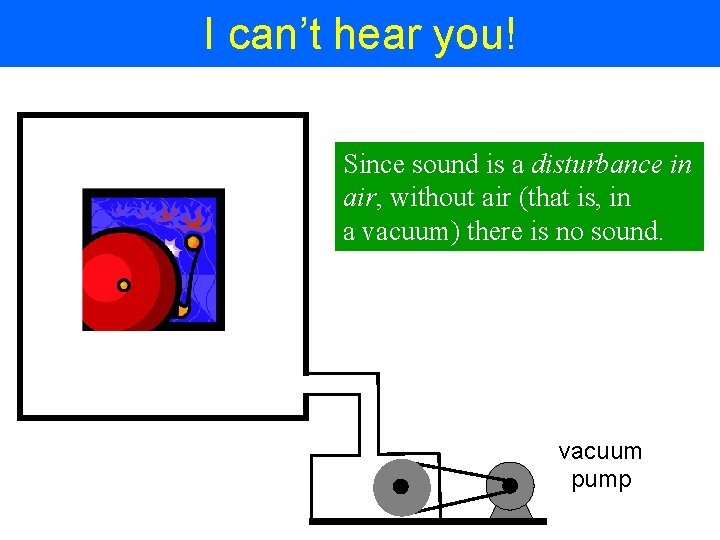

I can’t hear you! Since sound is a disturbance in air, without air (that is, in a vacuum) there is no sound. vacuum pump

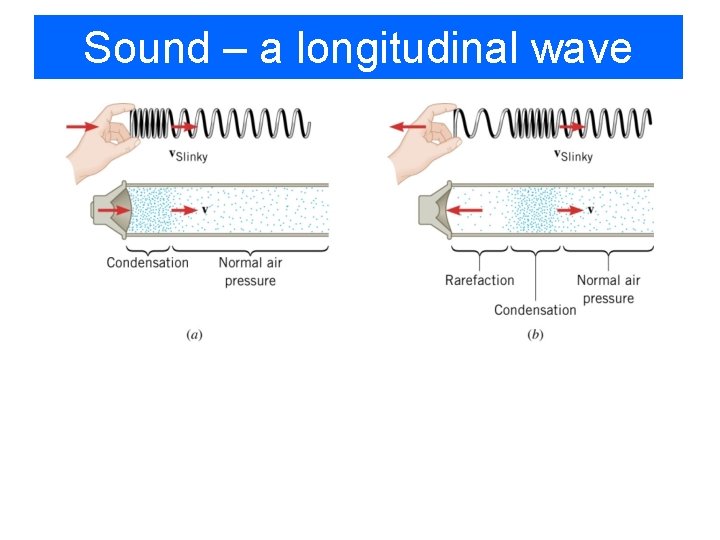

Sound – a longitudinal wave

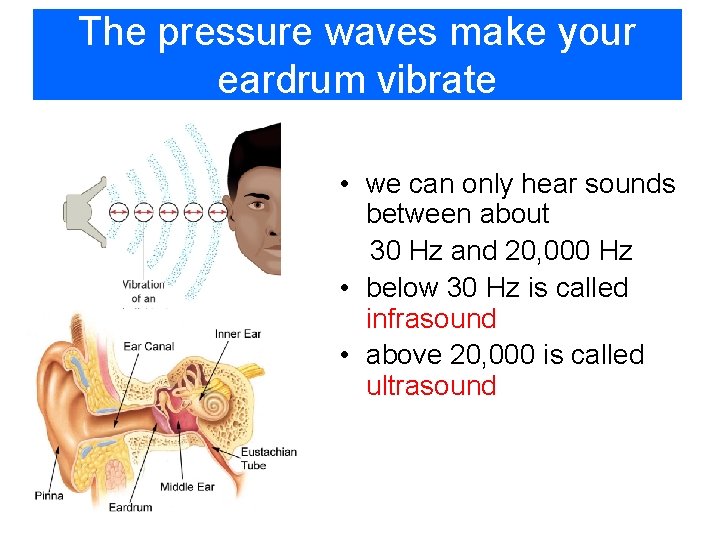

The pressure waves make your eardrum vibrate • we can only hear sounds between about 30 Hz and 20, 000 Hz • below 30 Hz is called infrasound • above 20, 000 is called ultrasound

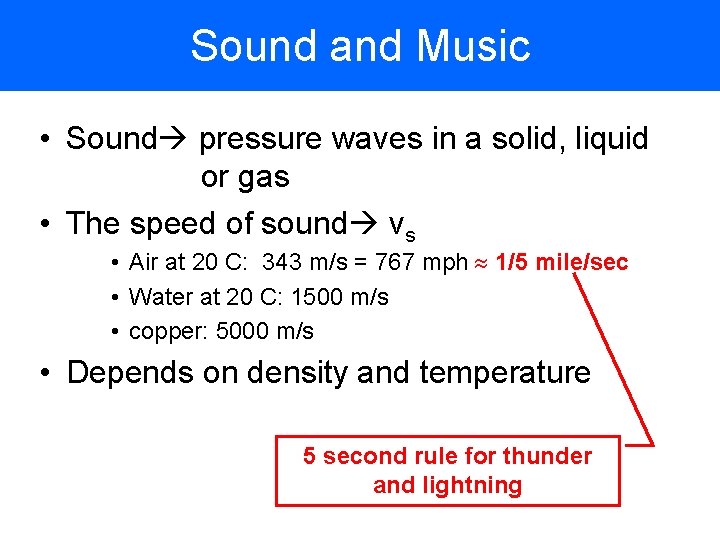

Sound and Music • Sound pressure waves in a solid, liquid or gas • The speed of sound vs • Air at 20 C: 343 m/s = 767 mph 1/5 mile/sec • Water at 20 C: 1500 m/s • copper: 5000 m/s • Depends on density and temperature 5 second rule for thunder and lightning

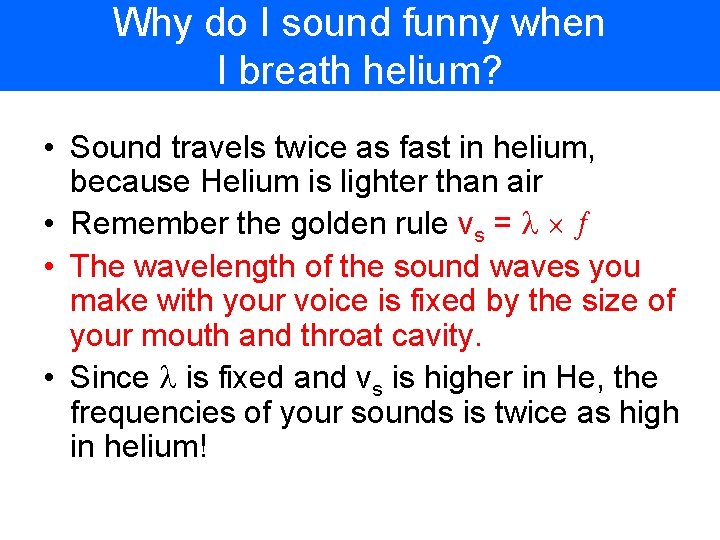

Why do I sound funny when I breath helium? • Sound travels twice as fast in helium, because Helium is lighter than air • Remember the golden rule vs = • The wavelength of the sound waves you make with your voice is fixed by the size of your mouth and throat cavity. • Since is fixed and vs is higher in He, the frequencies of your sounds is twice as high in helium!

Acoustic resonance • tuning fork resonance • shattering the glass
