L 1 Speed L 2 Distancetime graphs L
- Slides: 18
L 1 Speed L 2 Distance-time graphs L 3 Speed practical L 4 Acceleration L 5 Velocity time graphs L 6 Equation of motion Lesson Sequence Pupils should have been taught to: • Specification Students have just been taught the speed equation & this knowledge should be retrieved & directly relied upon during this lesson. Prior Learning Pupils will be taught: • Similar skills (e. g. gradients of a line) will be revisited during velocity time graphs. Future Learning
Distance-time graphs 28/02/2021 Do Now Sci. Doc Last Lesson Last Term Last Year Stretch & Challenge I do We do You do Test
Sci. Doc Distance-time graphs Learning Objectives Describe what the gradient of a distance-time graph gives. Explain the different types of distance-time graphs. Keywords Distance Time Speed Velocity Gradient Calculate speeds from distance-time graphs. Do Now I do We do You do Test
Sci. Doc Distance-time graphs A distance-time graph can be used to see when an object is stationary or travelling at a constant speed. The steeper the slope, the faster the speed. The gradient (slope) of a distance-time graph shows the speed. LO: I do We do Stretch: How can we calculate the gradient of a straight line? You do Test
Copy distance-time graphs from other whiteboard. LO: I do We do You do Sci. Doc Test
Sci. Doc Speed from a distance-time graph You can calculate the speed from the gradient of a distance-time graph. This is because of the equation for speed: Stretch: What is the speed between A and B Distance (km) D 50 40 30 B 20 10 v=s÷t 1 LO: C I do We do 2 3 You do 4 5 6 Time (h) Test
Sci. Doc Worksheet Complete the worksheet LO: I do We do You do Test
Sci. Doc Basic answers LO: I do We do You do Test

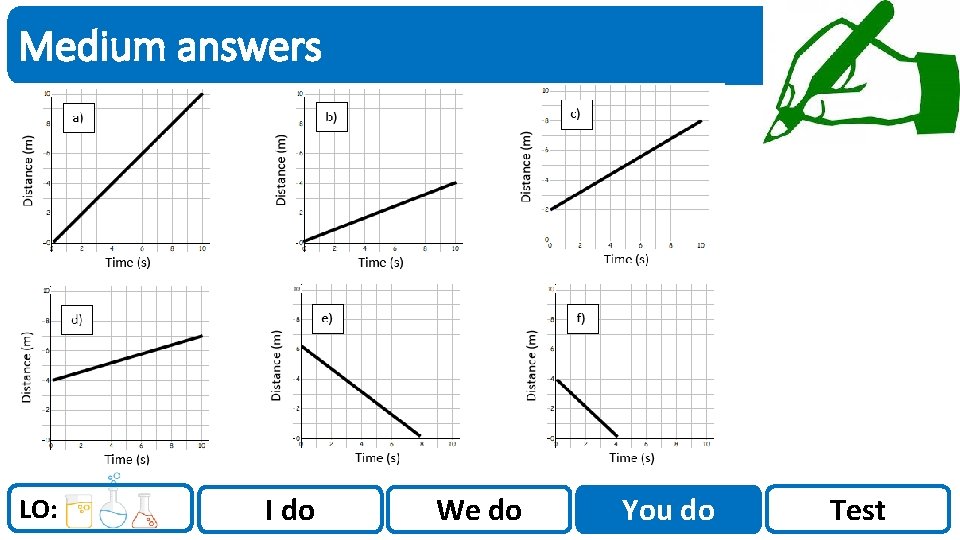

Sci. Doc Medium answers LO: I do We do You do Test

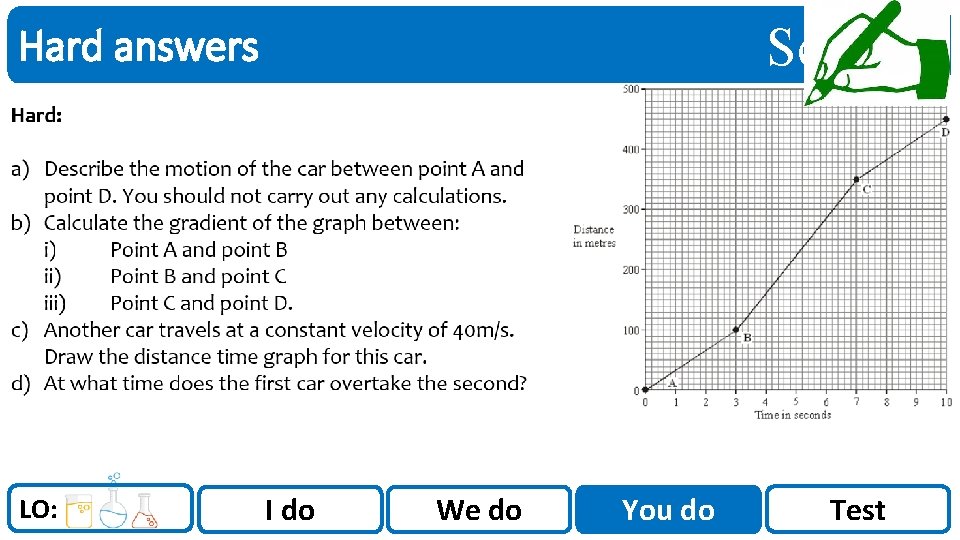

Sci. Doc Hard answers LO: I do We do You do Test

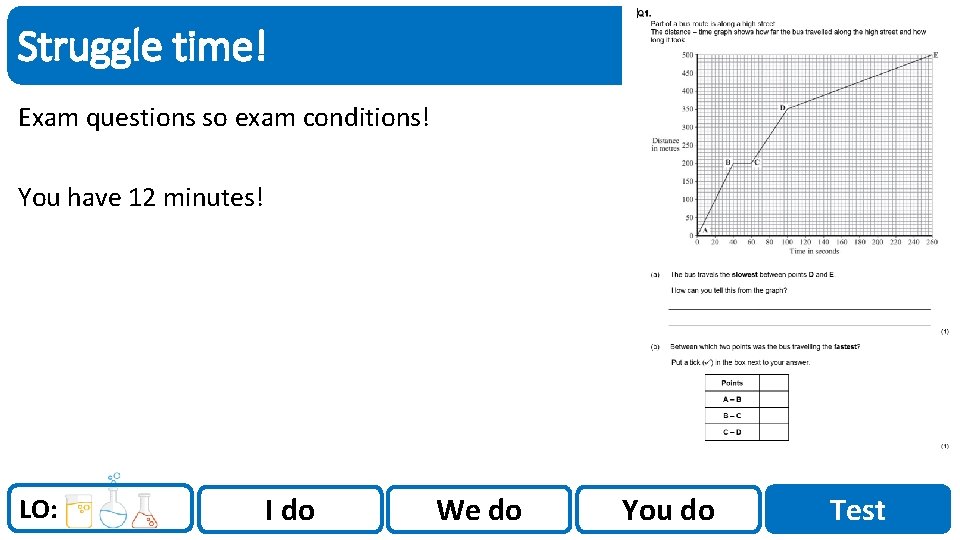

Sci. Doc Struggle time! Exam questions so exam conditions! You have 12 minutes! LO: I do We do You do Test

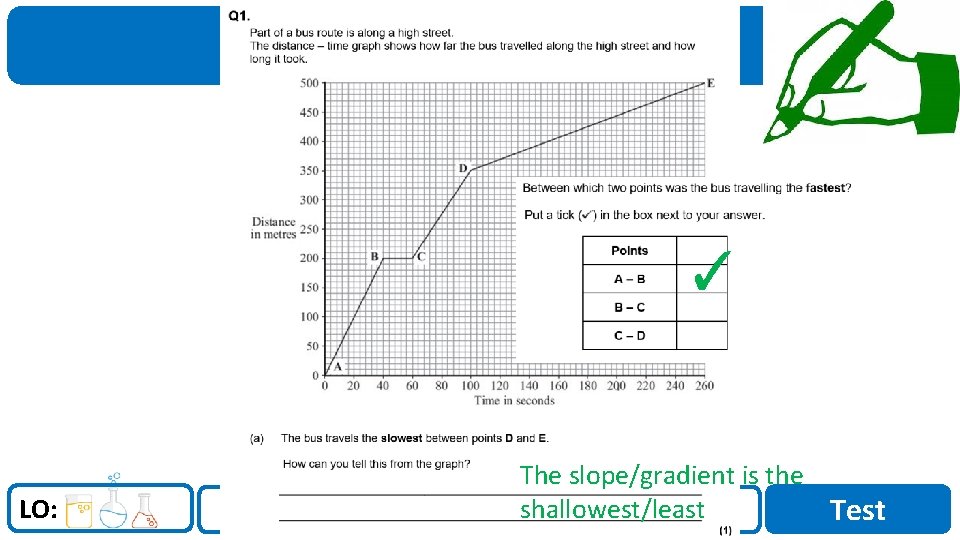

Sci. Doc ✓ LO: I do The slope/gradient is the Test We doshallowest/least You do
Sci. Doc 200 60 – 40 = 20 seconds LO: I do We do You do Test
Sci. Doc 162 -168 LO: I do We do You do Test
Sci. Doc ✓ LO: I do We do You do Test
Between B-C or D-E faster slower LO: I do We do Sci. Doc force You do Test
Sci. Doc Walking at a constant speed LO: I do We do You do Standing still Test
Sci. Doc faster the gradient of the line is steeper Speed = distance ÷ time LO: I do We do You do Test
