KYC Machine Industry Co Ltd KYC EX series

KYC Machine Industry Co. , Ltd.

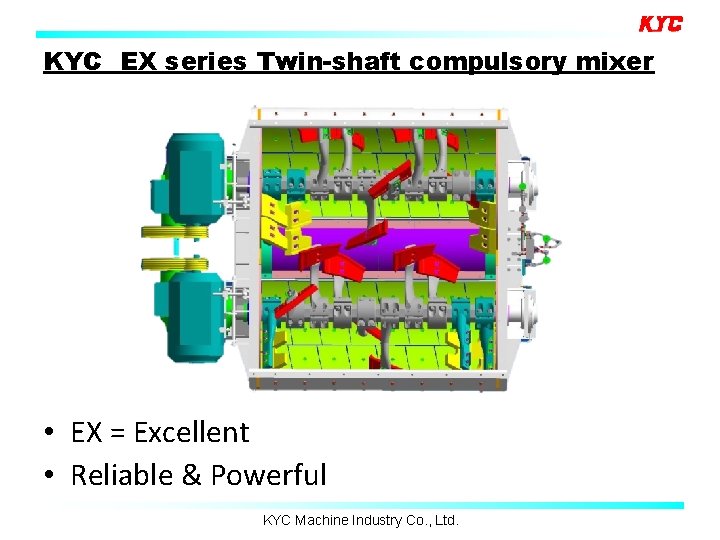

KYC EX series Twin-shaft compulsory mixer • EX = Excellent • Reliable & Powerful KYC Machine Industry Co. , Ltd.

Main features • Super High Quality Homogeneous mixing SAVE Cement cost ! • Easy and prompt discharge Achieve more production ! • Driving device • Reliable sealing • Low maintenance cost KYC Machine Industry Co. , Ltd.

Structure for high quality mixing • Mixing tank capacity is efficient by its shape The pursuit of the mixing principle and cost down produced enough space for a mixture. Architecture mixed Construction mixed KYC Machine Industry Co. , Ltd.

Mixing principle • Mixing motion was realized by rational design – Mixing blades and arms are unique shape – Participate in mixing works inside mixing vessel Ensuring PERFECT mixing in short time Because… • Large flow around shaft • Concentrated Cross flow • Circulate flow all over the mixer KYC Machine Industry Co. , Ltd.

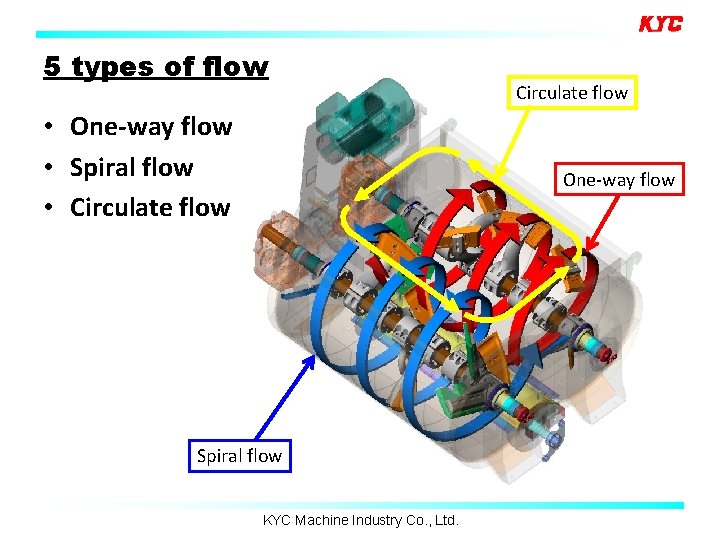

5 types of flow • One-way flow • Spiral flow • Circulate flow One-way flow Spiral flow KYC Machine Industry Co. , Ltd.

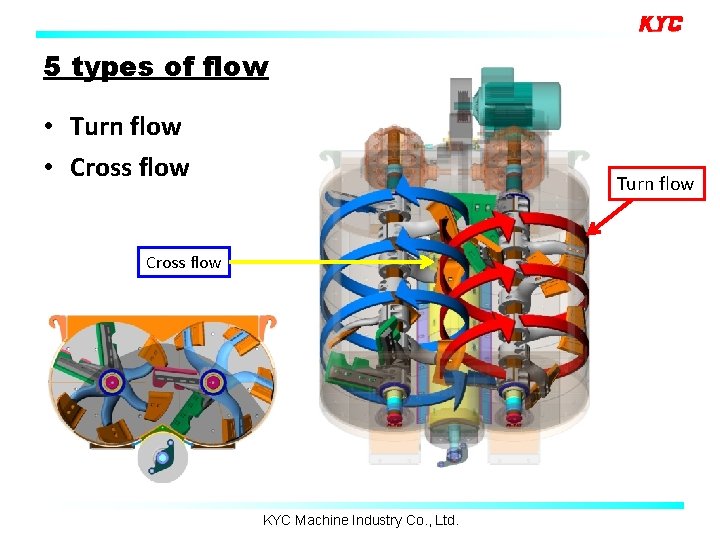

5 types of flow • Turn flow • Cross flow Turn flow Cross flow KYC Machine Industry Co. , Ltd.

Mixing parts are UNIQUE! Side arm KYC Machine Industry Co. , Ltd.

Mixing parts are UNIQUE! Blade for Side arm • The shape of these mixing parts are born of much experience. KYC Machine Industry Co. , Ltd.

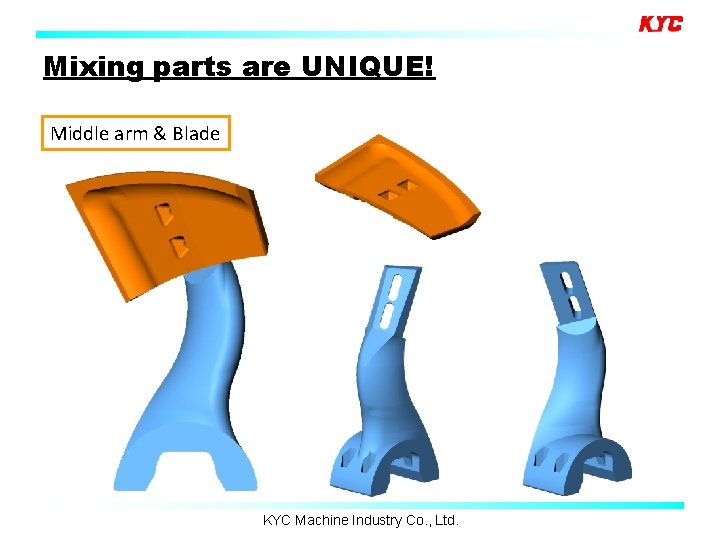

Mixing parts are UNIQUE! Middle arm & Blade KYC Machine Industry Co. , Ltd.

EASY & QUICK Discharge • Because of cylindrical drum form, discharge is smooth without crowded! • Speed is changeable. • The bottom part can be opened entirely. No remains! KYC Machine Industry Co. , Ltd.

Driving device • 55 kw x Double motor • Compact design • Install and remove easily • Planetary gear reducers KYC Machine Industry Co. , Ltd.

Sealed bearing is a life of the Twin-Shaft Mixer. • Adjusting a sealed bearing isn’t necessary at all. • The same system as the surrounded parts of a heavy industrial machine reg. • You have only to supply grease one time a day after washing! This is always necessary. KYC Machine Industry Co. , Ltd.

How to supply enough grease • Red = 4 point (at the part of concrete paste) ・Once a day : 50 g*4 points =200 g/day*25 day = 5 kg/month ・Once a week : 200 g*4 points =800 g/week*4 times =3. 2 kg/month • Yellow=12 points ・Once a week : 5 g*8 points =40 g/week*4 times =0. 16 kg/month Amount : 8. 36 kg/Month ≒ 10 kg KYC Machine Industry Co. , Ltd.

Designed to consider maintenance • Beveled edges at the Lozenge tile joints reduce uneven wear by 20% to 30% compare to previous square design. KYC Machine Industry Co. , Ltd.

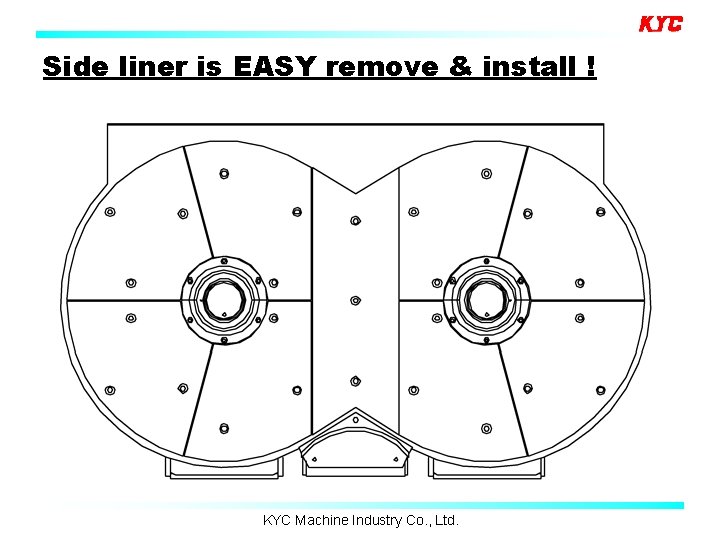

Side liner is EASY remove & install ! KYC Machine Industry Co. , Ltd.

Thank You! KYC Machine Industry Co. , Ltd.
