KX-TDE 600 Pure IP Telecommunication System The Intelligent Solution Terry Hughes General Manager Product Marketing

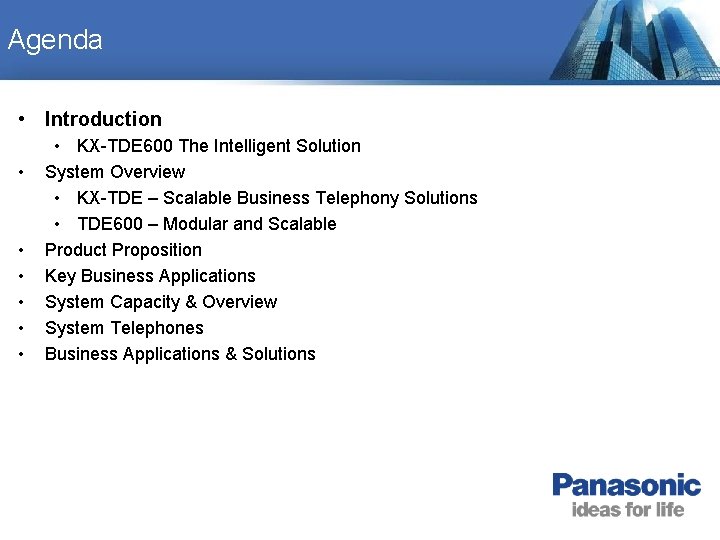

Agenda • Introduction • • KX-TDE 600 The Intelligent Solution System Overview • KX-TDE – Scalable Business Telephony Solutions • TDE 600 – Modular and Scalable Product Proposition Key Business Applications System Capacity & Overview System Telephones Business Applications & Solutions

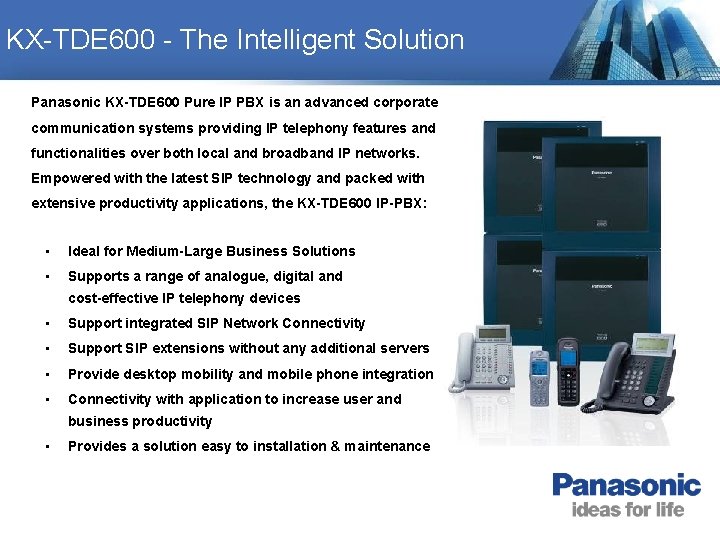

KX-TDE 600 - The Intelligent Solution Panasonic KX-TDE 600 Pure IP PBX is an advanced corporate communication systems providing IP telephony features and functionalities over both local and broadband IP networks. Empowered with the latest SIP technology and packed with extensive productivity applications, the KX-TDE 600 IP-PBX: • Ideal for Medium-Large Business Solutions • Supports a range of analogue, digital and cost-effective IP telephony devices • Support integrated SIP Network Connectivity • Support SIP extensions without any additional servers • Provide desktop mobility and mobile phone integration • Connectivity with application to increase user and business productivity • Provides a solution easy to installation & maintenance

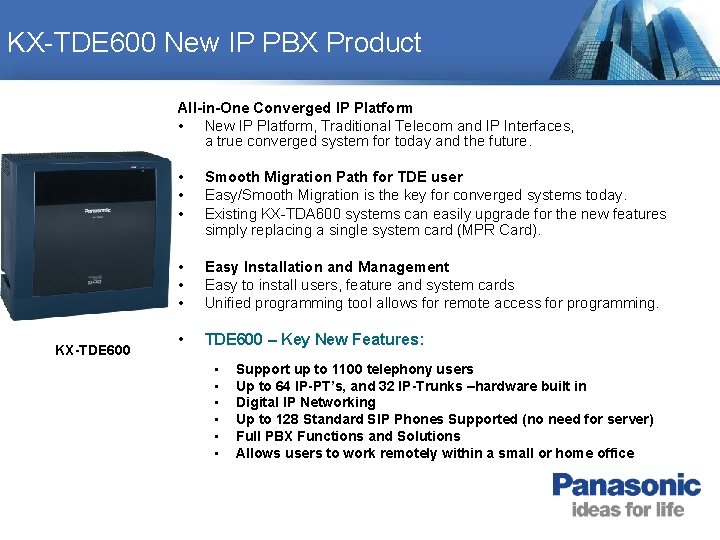

KX-TDE 600 New IP PBX Product All-in-One Converged IP Platform • New IP Platform, Traditional Telecom and IP Interfaces, a true converged system for today and the future. KX-TDE 600 • • • Smooth Migration Path for TDE user Easy/Smooth Migration is the key for converged systems today. Existing KX-TDA 600 systems can easily upgrade for the new features simply replacing a single system card (MPR Card). • • • Easy Installation and Management Easy to install users, feature and system cards Unified programming tool allows for remote access for programming. • TDE 600 – Key New Features: • • • Support up to 1100 telephony users Up to 64 IP-PT’s, and 32 IP-Trunks –hardware built in Digital IP Networking Up to 128 Standard SIP Phones Supported (no need for server) Full PBX Functions and Solutions Allows users to work remotely within a small or home office

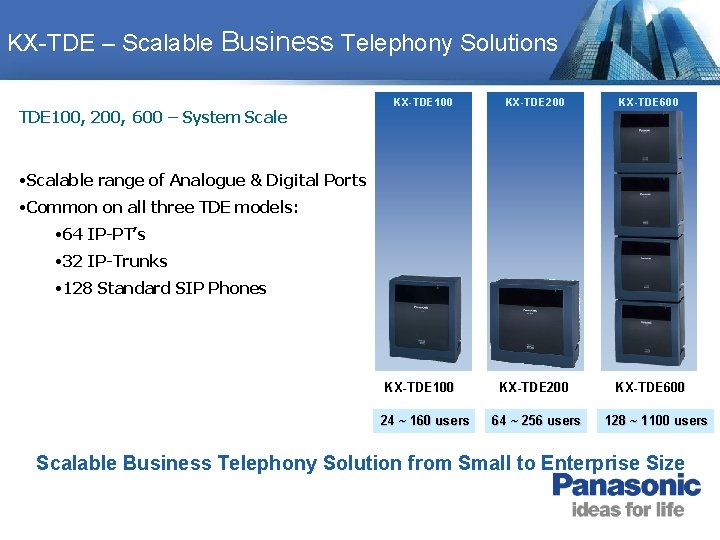

KX-TDE – Scalable Business Telephony Solutions TDE 100, 200, 600 – System Scale KX-TDE 100 KX-TDE 200 KX-TDE 600 • Scalable range of Analogue & Digital Ports • Common on all three TDE models: • 64 IP-PT’s • 32 IP-Trunks • 128 Standard SIP Phones KX-TDE 100 24 ~ 160 users 64 ~ 256 users 128 ~ 1100 users Scalable Business Telephony Solution from Small to Enterprise Size

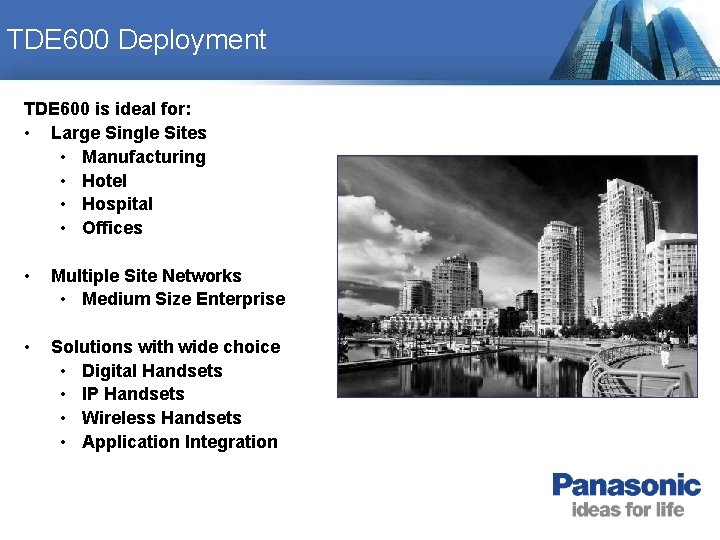

TDE 600 Deployment TDE 600 is ideal for: • Large Single Sites • Manufacturing • Hotel • Hospital • Offices • Multiple Site Networks • Medium Size Enterprise • Solutions with wide choice • Digital Handsets • IP Handsets • Wireless Handsets • Application Integration

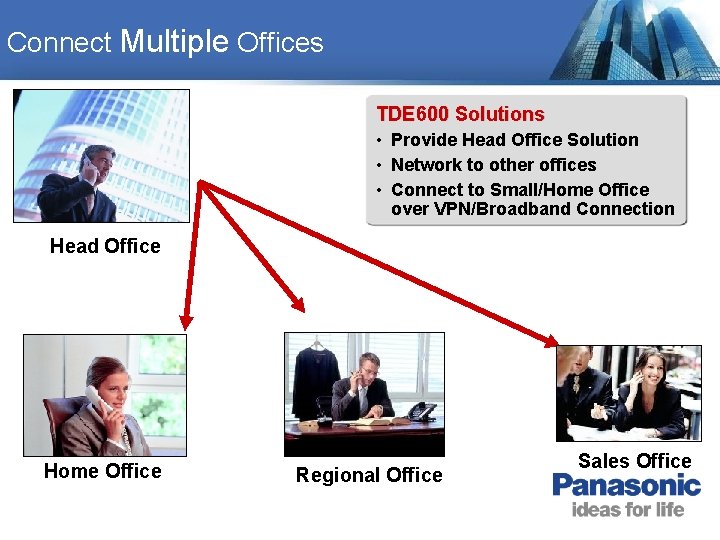

Connect Multiple Offices TDE 600 Solutions • Provide Head Office Solution • Network to other offices • Connect to Small/Home Office over VPN/Broadband Connection Head Office Home Office Regional Office Sales Office

Office Network Solution Example Corporate Office TDE 600 PSTN World Wide Web Managed IP VPN Home/Remote Office Branch Office NCP 500 = VPN Routers

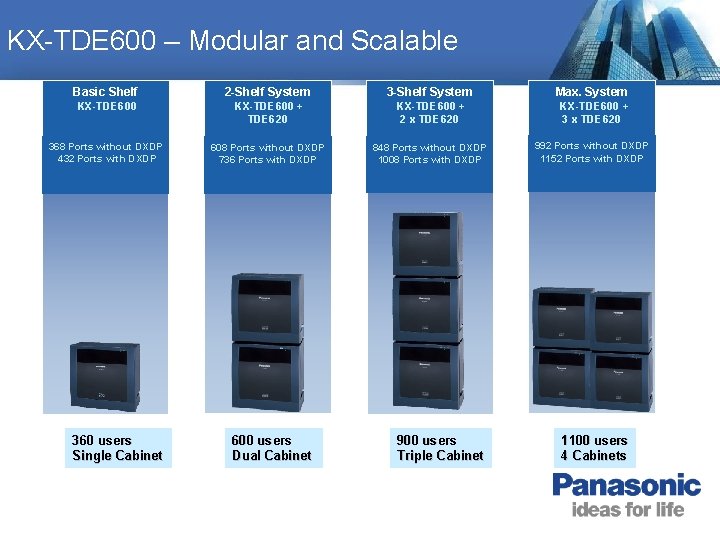

KX-TDE 600 – Modular and Scalable Basic Shelf 2 -Shelf System 3 -Shelf System Max. System KX-TDE 600 + TDE 620 KX-TDE 600 + 2 x TDE 620 KX-TDE 600 + 3 x TDE 620 368 Ports without DXDP 432 Ports with DXDP 608 Ports without DXDP 736 Ports with DXDP 848 Ports without DXDP 1008 Ports with DXDP 992 Ports without DXDP 1152 Ports with DXDP 360 users Single Cabinet 600 users Dual Cabinet 900 users Triple Cabinet 1100 users 4 Cabinets

KX-TDE 600 System Overview & Capacity

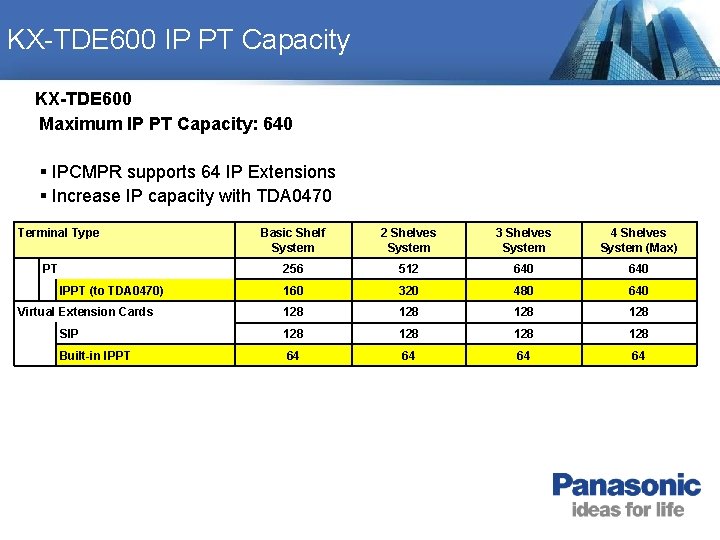

KX-TDE 600 IP PT Capacity KX-TDE 600 Maximum IP PT Capacity: 640 § IPCMPR supports 64 IP Extensions § Increase IP capacity with TDA 0470 Terminal Type Basic Shelf System 2 Shelves System 3 Shelves System 4 Shelves System (Max) 256 512 640 160 320 480 640 128 128 SIP 128 128 Built-in IPPT 64 64 PT IPPT (to TDA 0470) Virtual Extension Cards

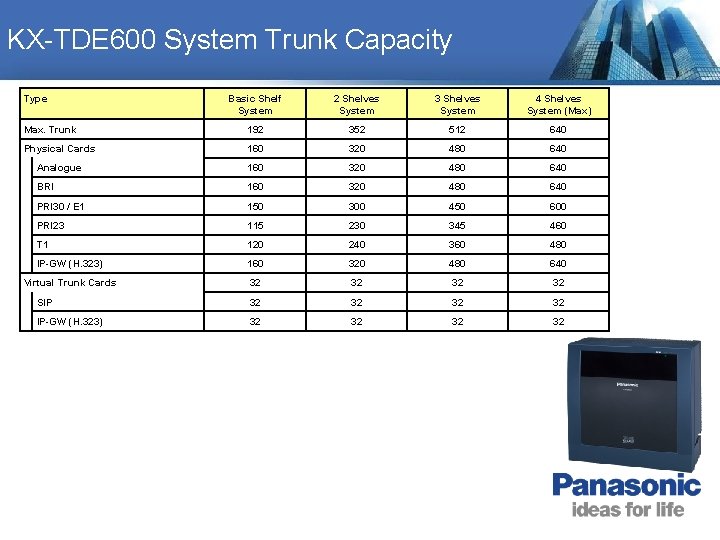

KX-TDE 600 System Trunk Capacity Type Basic Shelf System 2 Shelves System 3 Shelves System 4 Shelves System (Max) Max. Trunk 192 352 512 640 Physical Cards 160 320 480 640 Analogue 160 320 480 640 BRI 160 320 480 640 PRI 30 / E 1 150 300 450 600 PRI 23 115 230 345 460 T 1 120 240 360 480 IP-GW (H. 323) 160 320 480 640 Virtual Trunk Cards 32 32 SIP 32 32 IP-GW (H. 323) 32 32

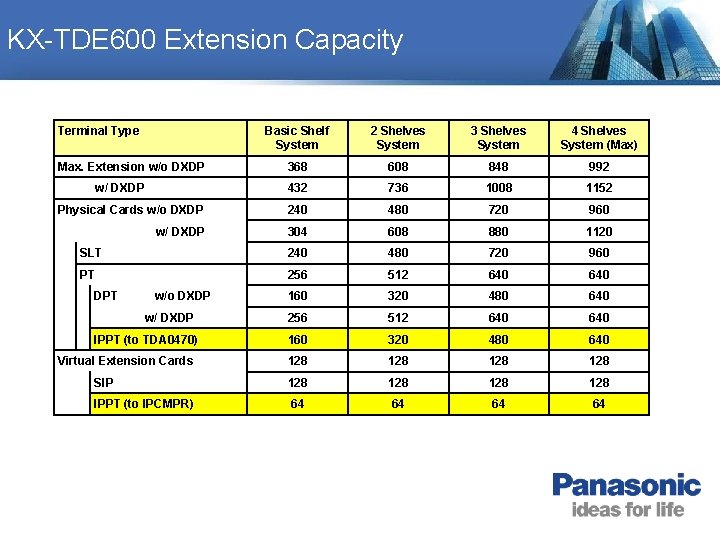

KX-TDE 600 Extension Capacity Terminal Type Basic Shelf System 2 Shelves System 3 Shelves System 4 Shelves System (Max) 368 608 848 992 432 736 1008 1152 Physical Cards w/o DXDP 240 480 720 960 w/ DXDP 304 608 880 1120 SLT 240 480 720 960 PT 256 512 640 640 160 320 480 640 128 128 SIP 128 128 IPPT (to IPCMPR) 64 64 Max. Extension w/o DXDP w/ DXDP DPT w/o DXDP w/ DXDP IPPT (to TDA 0470) Virtual Extension Cards

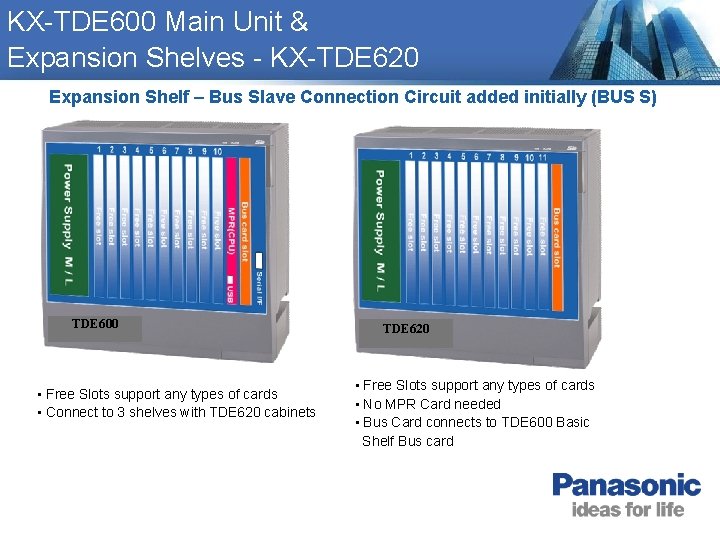

KX-TDE 600 Main Unit & Expansion Shelves - KX-TDE 620 Expansion Shelf – Bus Slave Connection Circuit added initially (BUS S) TDE 600 • Free Slots support any types of cards • Connect to 3 shelves with TDE 620 cabinets TDE 620 • Free Slots support any types of cards • No MPR Card needed • Bus Card connects to TDE 600 Basic Shelf Bus card

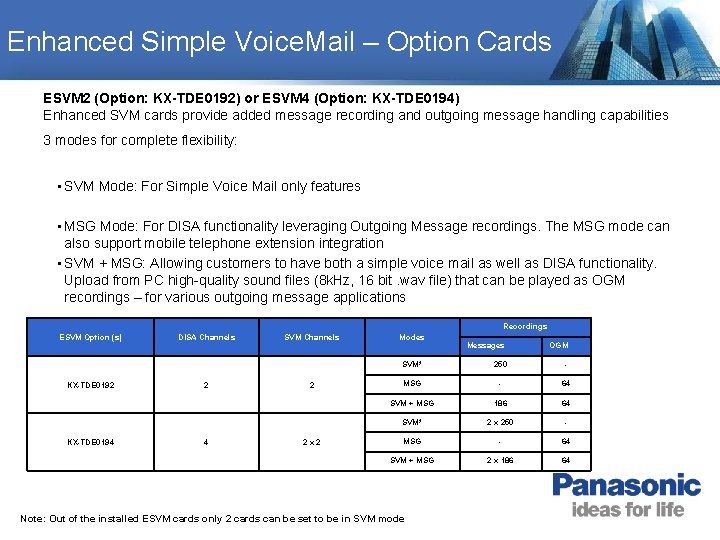

Enhanced Simple Voice. Mail – Option Cards ESVM 2 (Option: KX-TDE 0192) or ESVM 4 (Option: KX-TDE 0194) Enhanced SVM cards provide added message recording and outgoing message handling capabilities 3 modes for complete flexibility: • SVM Mode: For Simple Voice Mail only features • MSG Mode: For DISA functionality leveraging Outgoing Message recordings. The MSG mode can also support mobile telephone extension integration • SVM + MSG: Allowing customers to have both a simple voice mail as well as DISA functionality. Upload from PC high-quality sound files (8 k. Hz, 16 bit. wav file) that can be played as OGM recordings – for various outgoing message applications Recordings ESVM Option (s) KX-TDE 0192 KX-TDE 0194 DISA Channels 2 4 SVM Channels 2 2 x 2 Modes Messages OGM SVM* 250 - MSG - 64 SVM + MSG 186 64 SVM* 2 x 250 - MSG - 64 SVM + MSG 2 x 186 64 Note: Out of the installed ESVM cards only 2 cards can be set to be in SVM mode

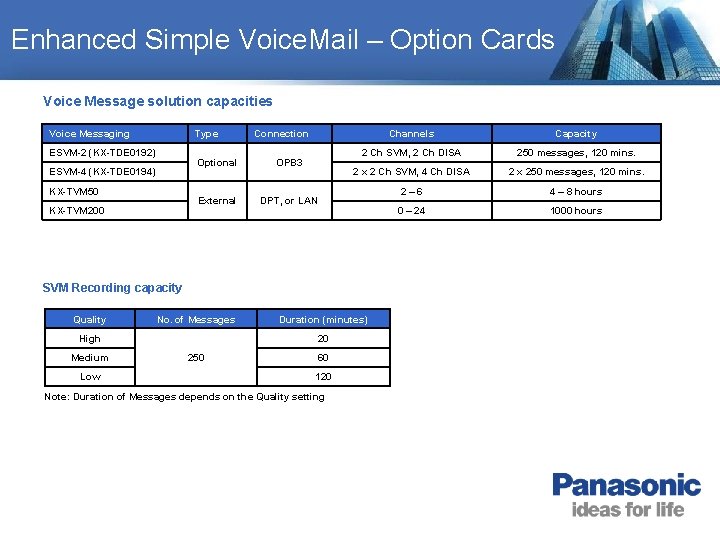

Enhanced Simple Voice. Mail – Option Cards Voice Message solution capacities Voice Messaging Type ESVM-2 (KX-TDE 0192) ESVM-4 (KX-TDE 0194) KX-TVM 50 KX-TVM 200 Connection Optional OPB 3 External DPT, or LAN Channels Capacity 2 Ch SVM, 2 Ch DISA 250 messages, 120 mins. 2 x 2 Ch SVM, 4 Ch DISA 2 x 250 messages, 120 mins. 2– 6 4 – 8 hours 0 – 24 1000 hours SVM Recording capacity Quality No. of Messages High Medium Low Duration (minutes) 20 250 60 120 Note: Duration of Messages depends on the Quality setting

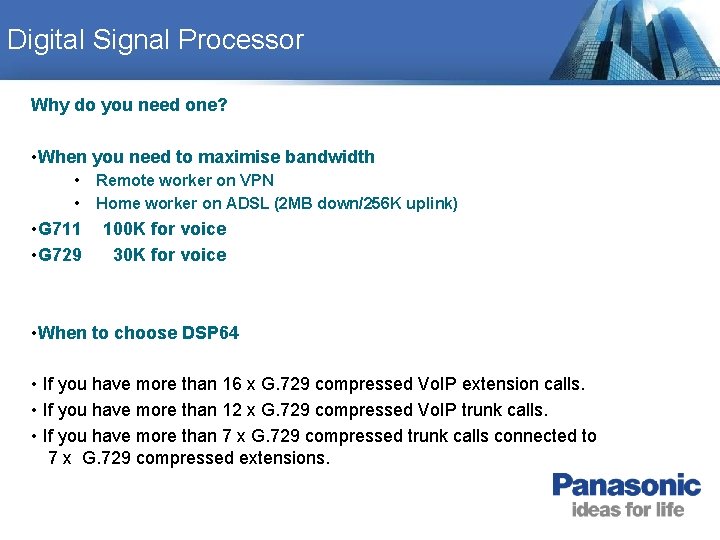

Digital Signal Processor Why do you need one? • When you need to maximise bandwidth • • • G 711 • G 729 Remote worker on VPN Home worker on ADSL (2 MB down/256 K uplink) 100 K for voice 30 K for voice • When to choose DSP 64 • If you have more than 16 x G. 729 compressed Vo. IP extension calls. • If you have more than 12 x G. 729 compressed Vo. IP trunk calls. • If you have more than 7 x G. 729 compressed trunk calls connected to 7 x G. 729 compressed extensions.

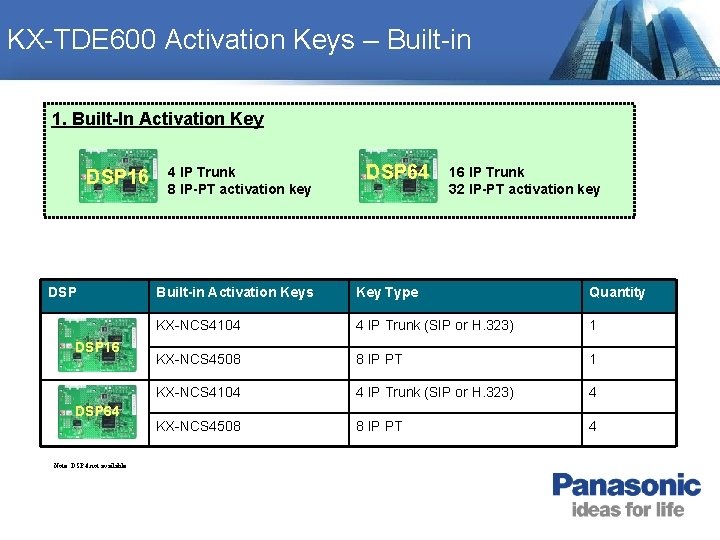

KX-TDE 600 Activation Keys – Built-in 1. Built-In Activation Key DSP 16 DSP 64 Note: DSP 4 not available 4 IP Trunk 8 IP-PT activation key DSP 64 16 IP Trunk 32 IP-PT activation key Built-in Activation Keys Key Type Quantity KX-NCS 4104 4 IP Trunk (SIP or H. 323) 1 KX-NCS 4508 8 IP PT 1 KX-NCS 4104 4 IP Trunk (SIP or H. 323) 4 KX-NCS 4508 8 IP PT 4

KX-TDE 600 Activation Keys Additional Activation Key IP trunk, IP-PT and SIP-extension activation keys are available for installation along with software upgrade keys. You can get all additional activation keys from the web based key management system

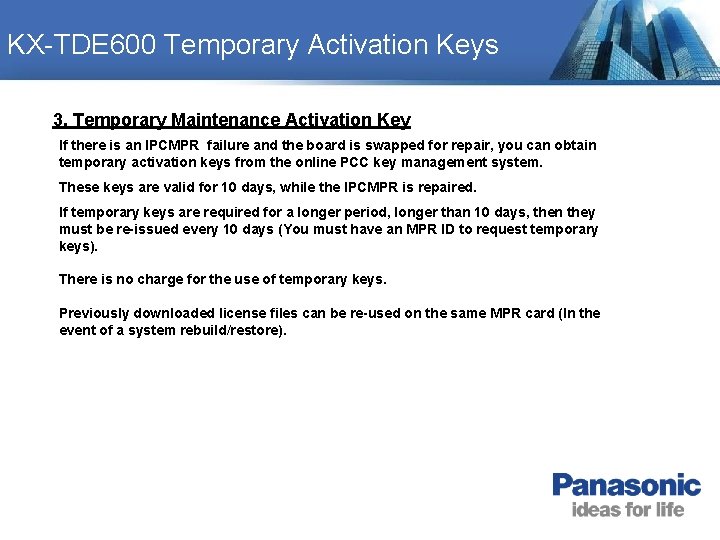

KX-TDE 600 Temporary Activation Keys 3. Temporary Maintenance Activation Key If there is an IPCMPR failure and the board is swapped for repair, you can obtain temporary activation keys from the online PCC key management system. These keys are valid for 10 days, while the IPCMPR is repaired. If temporary keys are required for a longer period, longer than 10 days, then they must be re-issued every 10 days (You must have an MPR ID to request temporary keys). There is no charge for the use of temporary keys. Previously downloaded license files can be re-used on the same MPR card (In the event of a system rebuild/restore).

KX-TDE 600 System-Telephones

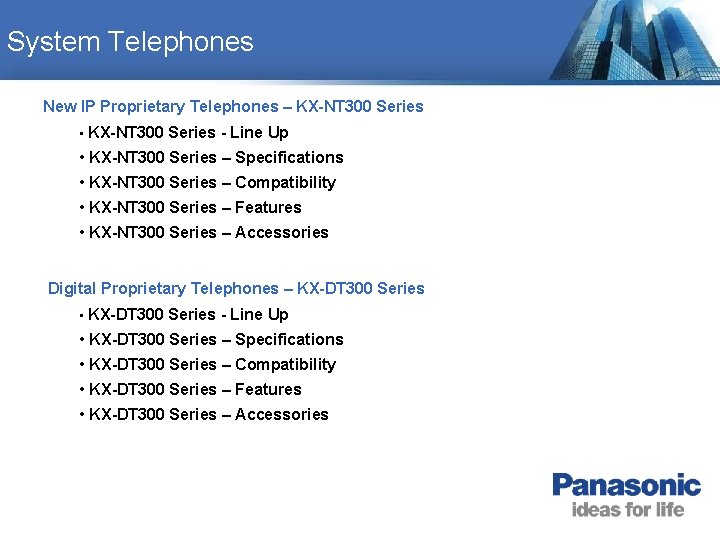

System Telephones New IP Proprietary Telephones – KX-NT 300 Series • KX-NT 300 Series - Line Up • KX-NT 300 Series – Specifications • KX-NT 300 Series – Compatibility • KX-NT 300 Series – Features • KX-NT 300 Series – Accessories Digital Proprietary Telephones – KX-DT 300 Series • KX-DT 300 Series - Line Up • KX-DT 300 Series – Specifications • KX-DT 300 Series – Compatibility • KX-DT 300 Series – Features • KX-DT 300 Series – Accessories

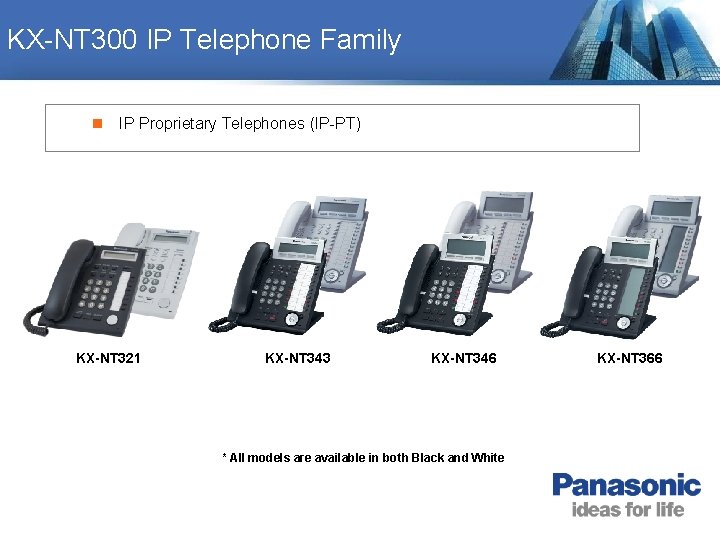

KX-NT 300 IP Telephone Family n IP Proprietary Telephones (IP-PT) KX-NT 321 KX-NT 343 KX-NT 346 * All models are available in both Black and White KX-NT 366

KX-DT 300 Digital Telephone Family n Digital Proprietary Telephones (DPT) KX-DT 333 KX-DT 343 KX-NT 346 * All models are available in both Black and White

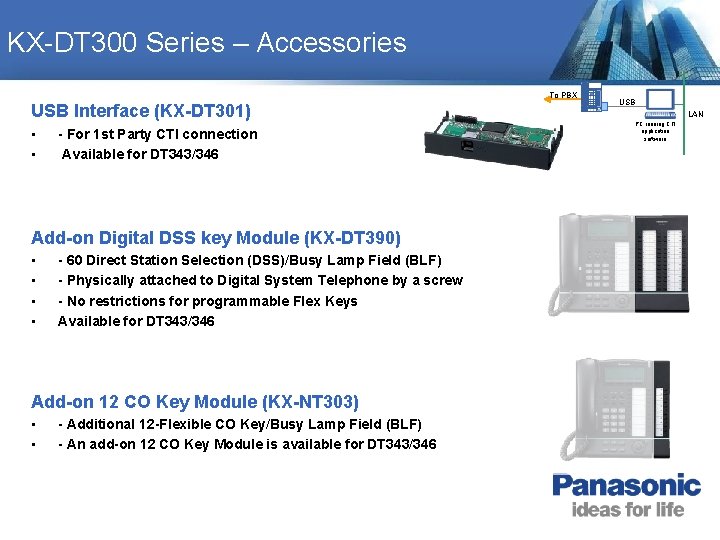

KX-DT 300 Series – Accessories To PBX USB Interface (KX-DT 301) • • - For 1 st Party CTI connection Available for DT 343/346 Add-on Digital DSS key Module (KX-DT 390) • • - 60 Direct Station Selection (DSS)/Busy Lamp Field (BLF) - Physically attached to Digital System Telephone by a screw - No restrictions for programmable Flex Keys Available for DT 343/346 Add-on 12 CO Key Module (KX-NT 303) • • - Additional 12 -Flexible CO Key/Busy Lamp Field (BLF) - An add-on 12 CO Key Module is available for DT 343/346 USB LAN PC running CTI application software

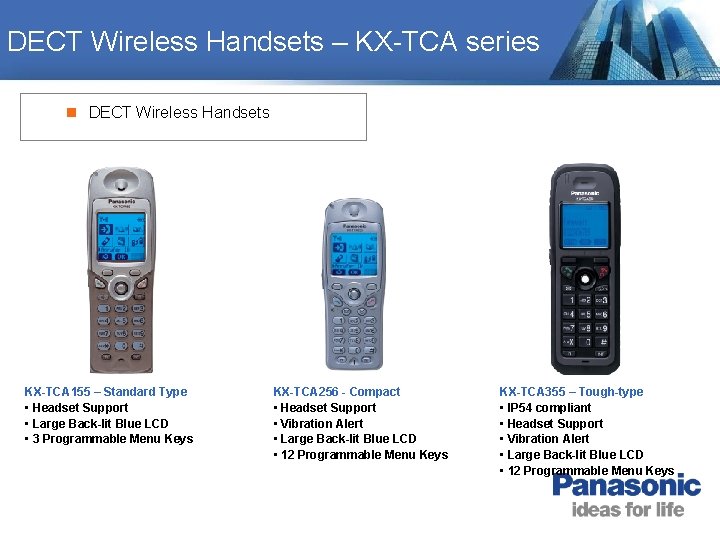

DECT Wireless Handsets – KX-TCA series n DECT Wireless Handsets KX-TCA 155 – Standard Type • Headset Support • Large Back-lit Blue LCD • 3 Programmable Menu Keys KX-TCA 256 - Compact • Headset Support • Vibration Alert • Large Back-lit Blue LCD • 12 Programmable Menu Keys KX-TCA 355 – Tough-type • IP 54 compliant • Headset Support • Vibration Alert • Large Back-lit Blue LCD • 12 Programmable Menu Keys

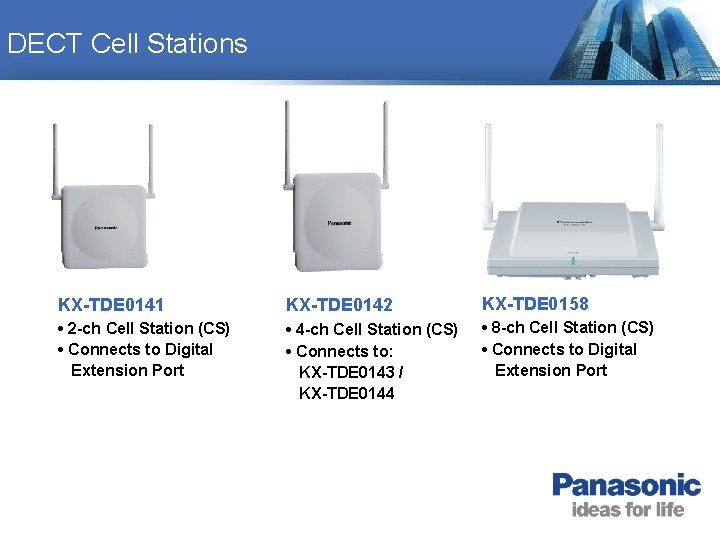

DECT Cell Stations KX-TDE 0141 KX-TDE 0142 KX-TDE 0158 • 2 -ch Cell Station (CS) • Connects to Digital Extension Port • 4 -ch Cell Station (CS) • Connects to: KX-TDE 0143 / KX-TDE 0144 • 8 -ch Cell Station (CS) • Connects to Digital Extension Port
