KXTDA 600 System Production Version 2 01 Chapter
- Slides: 20
KX-TDA 600 System (Production Version 2. 01) Chapter 1 Hardware Configuration Panasonic Communications Co. , Ltd. Office Network Company Edition 1. 0 16 Sep. , 2005 Confidential 1
Chapter 1 Hardware Configuration 1. System Connection Diagram 2. Inside Cabinet Configuration 3. New Hardware Architecture 4. System Card Configuration 5. Cards Specification 6. Option Card Compatibility 7. Backup Battery Connection Confidential 2
1. System Connection Diagram Confidential 3
2. Inside Cabinet Configuration (KX-TDA 600) Basic Shelf – Main Unit 6 7 8 Free slot Free slot 9 10 BUS-M card slot 5 EMPR(CPU) 4 Free slot 3 Free slot 2 Free slot Serial I/F USB Power Supply M / L 1 ¬Free Slot supports any types of cards ¬Bus Card connects to TDA 620 Expansion Shelf Bus card Confidential 4
2. Inside Cabinet Configuration (KXTDA 620) Expansion Shelf – Bus Slave Connection Circuit added initially (BUS S) 6 7 8 Free slot Free slot 9 10 11 BUS-S card slot 5 Free slot 4 Free slot 3 Free slot 2 Free slot Power Supply M / L 1 ¬Free Slot supports any types of cards ¬Bus Card connects to TDA 600 Basic Shelf Bus card Confidential 5
3. New Hardware Architecture (1) Building Block shelf expansion - Bus Master/Bus Master Expansion, Bus Slave - Built in Cooling fan to Shelf(Connect 4 Shelf/Increase EXT card) (2) New Card - EMPR Powerful 32 bit CPU(Clock 200 MHz, 360 MIPS) Twice faster than TDA 100/200(Clock 133 MHz, 170 MIPS) - EMEC Expanding the memory size SRAM(2 MB -> 4 MB) - ESLC 16/EMSLC 16, ELCOT 16 CPU is used to reduce the load of EMPR - EECOH 16 By using the Time Slot for Shelf inter connection (3) Improve the Battery Back up connection - Connecting multiple shelves to one set of backup batteries Confidential 6
4. System Card Configuration New card Confidential 7
5. Cards Specification (1/8) Expansion Shelf Main Processor Card EMPR : Enhanced Main Processor card Basic Shelf KX-TDA 6105(Memory Expansion Card) Note: MEC(KX-TDA 0105) cannot be used. (The shape of connector is different) Current KX-TDA 0196(Remote Modem Card) Connector Hot Swap Note : The position where EMEM and RMT was changed. 128 MB Confidential 64 MB for built in SD Card 128 MB for Enhanced SD (KX-TDA 6920) (128 MB : Anticipating the function addition in the future) 8
5. Cards Specification (2/8) Expansion Shelf BUS Card(1/3) BUS-M : BUS Muster Card(KX-TDA 6110) Basic Shelf KX-TDA 6111(BUS Muster Expansion Card) Hot Swap To connect 4 th Self To connect 3 rd Self Without CPU To connect 2 nd Self (Built in) Confidential 9
5. Cards Specification (3/8) BUS Card(2/3) BUS-M : BUS Slave Card(Built in) CPU Expansion Shelf Basic Shelf Same type of EMPR-CPU is used. CPU of BUS-S is processed as follows (To decrease the load of EMPR) (1) Sending and receiving of data from BUS-M (2) Sending and receiving of data from LPR in Shelf (3) Tone generation (4) Transmission of broadcast data (5) LCD display (Idle/Talk) To connect Basic Self Confidential 10
5. Cards Specification (4/8) BUS Card(3/3) BUS Configuration between Shelves The connecting Cables are included in : - BUS-M (TDA 6110) - BUS-ME (TDA 6111) BUS-S FG should be connected BUS-Slave (Built-in) BUS-S BUS-ME 2 m Cable BUS-Master (TDA 6110) Confidential BUS-Master Expansion (TDA 6111) BUS-ME 11
5. Cards Specification (5/8) Slot Card (Extension 1/2) Extension card (Optional) Installed in “Free slot” CPU Confidential Expansion Shelf Basic Shelf Note : SLC 16(KX-TDA 0174) cannot be used 12
5. Cards Specification (6/8) Slot Card (Extension 2/2) Extension card (Optional) Installed in “Free slot” CPU Confidential Expansion Shelf Basic Shelf Note : MSLC 16(KX-TDA 0175) cannot be used 13
5. Cards Specification (7/8) Slot Card (Trunk 1/1) Trunk card (Optional) Installed in “Free slot” Expansion Shelf Basic Shelf CPU Confidential Note : LCOT 4/8/16(KX-TDA 0180/181/183) cannot be used 14

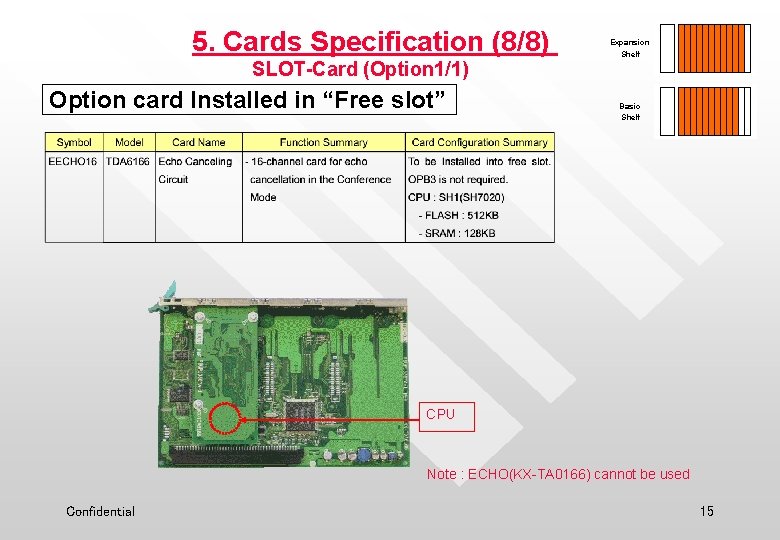

5. Cards Specification (8/8) SLOT-Card (Option 1/1) Option card Installed in “Free slot” Expansion Shelf Basic Shelf CPU Note : ECHO(KX-TA 0166) cannot be used Confidential 15
6. Option Card compatibility (1/3) Optional Card MPR TDA 600 TDA 100/200 MPR (for TDA 100/200) N/A OK EMPR (for TDA 600) OK N/A Analog Remote Modem TDA 0196 TDA 6105 TDA 0105 DHLC 8 TDA 0170 DLC 8 TDA 0171 DLC 16 TDA 0172 SLC 8 TDA 0173 SLC 16 TDA 6174 TDA 0174 MSLC 16 TDA 6175 TDA 0175 CSIF 4 TDA 0143 CSIF 8 TDA 0144 IP-EXT 16 TDA 0470 EXT-CID (for SLC 8) TDA 0168 MEC Extension N/A : Not Available Confidential 16
6. Option Card compatibility (2/3) Optional Card CO TDA 600 TDA 200 LCOT 4 N/A TDA 0183 LCOT 8 N/A TDA 0180 LCOT 16 TDA 6181 TDA 0181 CID/PAY 8(for LCOT) TDA 0189 CID 8 (for LCOT) TDA 0193 E&M 8 TDA 0184 T 1 TDA 0187 E 1 TDA 0188 DID 8 TDA 0182 BRI 4 TDA 0284 BRI 8 TDA 0288 PRI 30 TDA 0290 CE PRI 23 TDA 0290 IP-GW 4 TDA 0484 IP-GW 16 TDA 0490 N/A : Not Available Confidential 17
6. Option Card compatibility (3/3) Optional Card OPB 3 TDA 600 TDA 200 OPB 3 TDA 0190 DPH 4 TDA 0161 DPH 2(for Germany type) TDA 0162 EIO 4 TDA 0164 N/A TDA 0166 MSG 4 TDA 0191 CTI-LINK TDA 0410 EECHO 16 TDA 6166 N/A BUS-Master TDA 6110 N/A BUS-Master Expansion TDA 6111 N/A * Floor Mounting Kit TDA 6201 N/A Expansion Shelf TDA 620 N/A TDA 0103 (L Type) TDA 0104 (M Type) ECHO 16 Others Power Unit N/A : Not Available * : Mounting Kit for expanding to a 3 - or 4 - shelf System Confidential 18
7. Backup Power Supply Duration Battery Capacity Total Load Figure of the Connected Shelfs Backup Power Supply Duration 28 Ah 128 (M Type) 5. 5 h 512 (L Type) 3 h Note : The Duration may depending on the conditions Confidential 19
Chapter 1 Hardware Configuration Thank you very much ! Confidential 20
