KX-TDA 600 System (Product Version 2. 01) Chapter 3 Features Panasonic Communications Co. , Ltd. Office Network Company Edition 1. 0 16 Sep. , 2005 Confidential 1

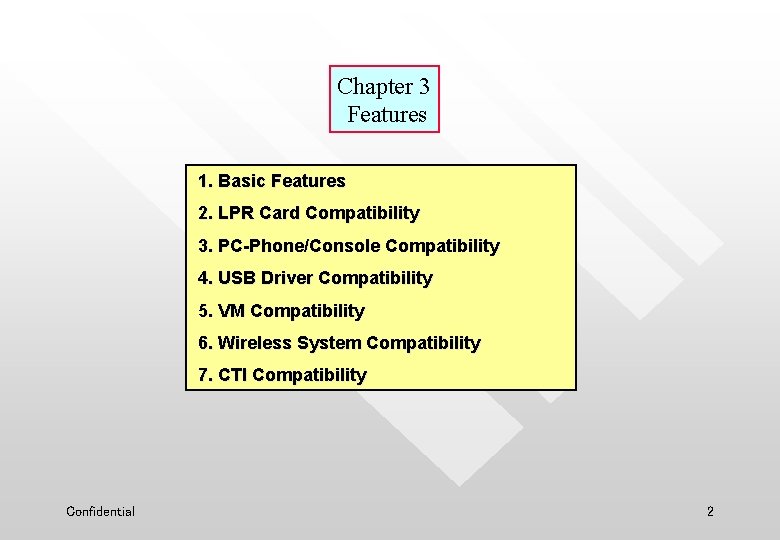

Chapter 3 Features 1. Basic Features 2. LPR Card Compatibility 3. PC-Phone/Console Compatibility 4. USB Driver Compatibility 5. VM Compatibility 6. Wireless System Compatibility 7. CTI Compatibility Confidential 2

1. Basic Features(1/4) KX-TDA 600 Built-in SD Card It contain same features as KX-TDA 100/200 Ver. 2. 01 (2005 Aug Mass-production PMPR V 2. 2201) Note: PDN/SDN function will be supported from the Ver. 2. 03 Confidential 3

1. Basic Features(2/4) KX-TDA 6920 Enhanced SD Card It contains the following Enhanced features (1)NDSS(Network Direct Station Selection) - NDSS is a DSS key referring to an extension of other PBX - It works with both of the open numbering and the closed numbering - It’s used for monitoring extension status and making or transferring calls - Only one TDA can be a Monitor PBX - Maximum 32 extensions in the network can be monitored (2)CTI Enhancement - PT, IP Phone Command Control for following functions: (Microphone, Message Waiting Lamp, Flexible CO Key, Speakerphone On/Off, Speakerphone Volume, Ringing On/Off and Controlling Ringing Pattern) And, LCD display contents is available without TDA 6920. - DECT Handset Command Control for following functions: (Ringing On/Off, LCD display contents) Note: There is no compatibility between TDA 0920 and TDA 6920, because the format of DKEY is different. Confidential 4

Startup time 1. Basic Features(3/4) For example 1 Shelf, 160 DPT Initial startup Normal startup W/O EMEC W EMEC About + 30 s 1 m 57 s 1 m 13 s 2 m 36 s 1 m 25 s About + 15 s About + 20 s 2 Shelf, 320 DPT Initial startup Normal startup 2 m 21 s 1 m 30 s 2 m 58 s 1 m 46 s About + 20 s 3 Shelf, 480 DPT Initial startup Normal startup 2 m 50 s 1 m 46 s 3 m 27 s 1 m 57 s About + 20 s 4 Shelf, 640 DPT Initial startup Normal startup 3 m 17 s 2 m 00 s 3 m 56 s 2 m 21 s If the number of cards is decreased, it becomes earlier. Confidential (Actual measurement) 5

Download time 1. Basic Features(4/4) RS 232 C USB CTI-LINK Modem ISDN PLMPR 51 m 18 s 8 m 33 s 22 m 4 s 1 h 5 m 58 s 24 m 20 s DLSYS 3 m 40 s 1 m 4 s 2 m 4 s 4 m 45 s 2 m 14 s PLMPR 51 m 40 s 8 m 30 s 21 m 58 s 1 h 5 m 49 s 25 m 14 s DLSYS 9 m 10 s 2 m 53 s 5 m 15 s 11 m 40 s 5 m 34 s W/O EMEC W EMEC (Actual measurement) Confidential 6

2. Programming PC Programming (New design programming software) It makes the operation easily, because of the programming item increased. Note: We will improve the PC Programming software of TDA 100/200 to same stile from V 2. 02. And, TDA 30 also will improved. PT Programming The same item of current TDA 100/200/30 can be program. Confidential 7

2. LPR Card Compatibility Compatible with upgrading LPR software KX-TDA 0190(OPB 3) : V 3. 001 or higher version Note: The upgrading is unnecessary for other option cards. Confidential 8

3. PC-Phone/Console Compatibility Compatible with upgrading software KX-TDA 0300(PC-Console) : V 2. 00 or higher version KX-TDA 0350(PC-Phone) : V 2. 00 or higher version PC-Phone Light : V 2. 00 or higher version Note: 5 digit of extension number is supported from this version of PC-Phone/Console. Confidential 9

4. USB Driver Compatibility Compatible with upgrading software USB Driver pack : V 2. 0. 0. 7 or higher version Note: USB driver has the compatibility with KX-TDA 100/200/30/50/15. Confidential 10

5. VM Compatibility Compatible without upgrading All KX-TVP series. All KX-TVM series. Note: 5 digit of extension number is not supported by both KX-TVP series and KX-TVM series. And, it will be supported from the next production which has the function of VM-LINK. Confidential 11

6. Wireless System Compatibility(1/2) Compatible with upgrading software DECT-CS: KX-TDA 0142 CE : V 2. 011 or higher version KX-TDA 0141 CE : V 1. 003 or higher version 2. 4 G-CS: KX-TDA 0142 KX-TDA 0141 : V 1. 007 or higher version : V 1. 003 or higher version Note: 5 digit of extension number is not supported by the PS software. And, we don’t have a plan to add it to PS software. Confidential 12

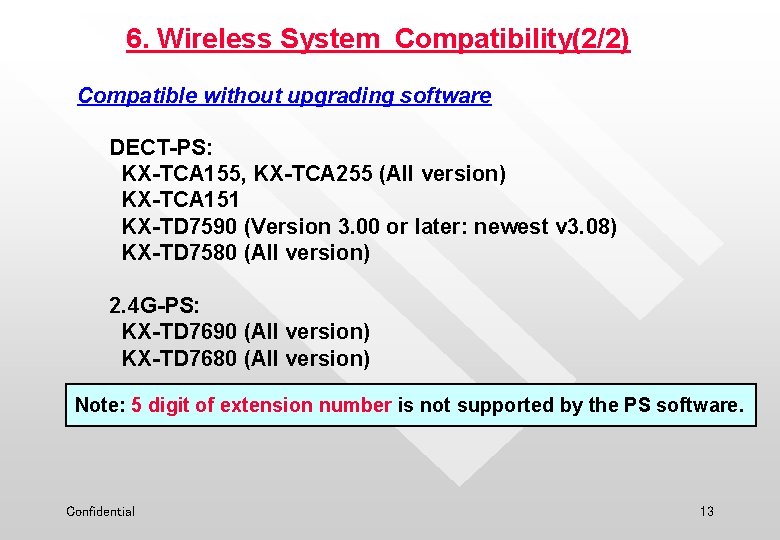

6. Wireless System Compatibility(2/2) Compatible without upgrading software DECT-PS: KX-TCA 155, KX-TCA 255 (All version) KX-TCA 151 KX-TD 7590 (Version 3. 00 or later: newest v 3. 08) KX-TD 7580 (All version) 2. 4 G-PS: KX-TD 7690 (All version) KX-TD 7680 (All version) Note: 5 digit of extension number is not supported by the PS software. Confidential 13

7. CTI Compatibility Compatible with upgrading software (1) TSP : V 2. 1. 0. 0 or higher version Note 1: TSP has the compatibility with KX-TDA 100/200/30/50. For KX-TDA 15, we have not confirm yet. (2) PMS Interface Software (KX-A 291/292/293) - Waiting for the compatibility confirmation - KX-A 293 can be use 960 Room with TDA 600 Confidential 14
