KXTDA 600 Hybrid IP Telecommunication System Presentation for

KX-TDA 600 Hybrid IP Telecommunication System Presentation for Sales Engineer Release 5. 0

Agenda • Introduction – KX-TDA 600 The Intelligent Solution • System Overview – KX-TDA – Scalable Business Telephony Solutions – TDA 600 – Modular and Scalable • • • Product Proposition Key Business Applications System Capacity & Overview System Telephones Business Applications & Solutions

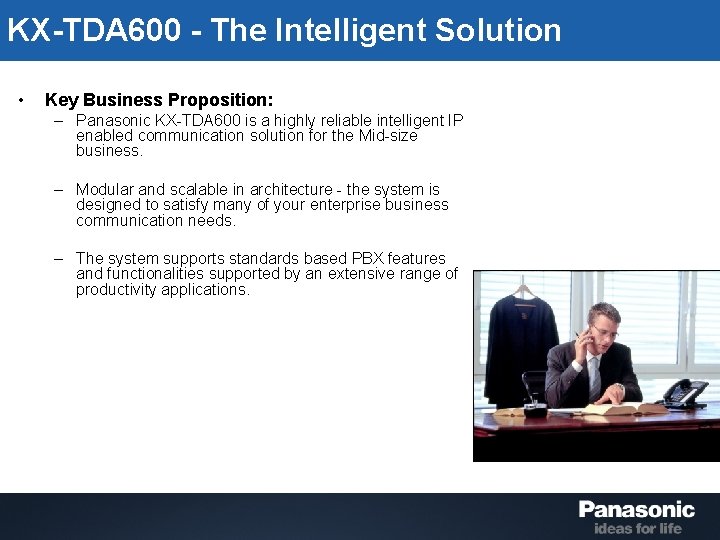

KX-TDA 600 - The Intelligent Solution • Key Business Proposition: – Panasonic KX-TDA 600 is a highly reliable intelligent IP enabled communication solution for the Mid-size business. – Modular and scalable in architecture - the system is designed to satisfy many of your enterprise business communication needs. – The system supports standards based PBX features and functionalities supported by an extensive range of productivity applications.

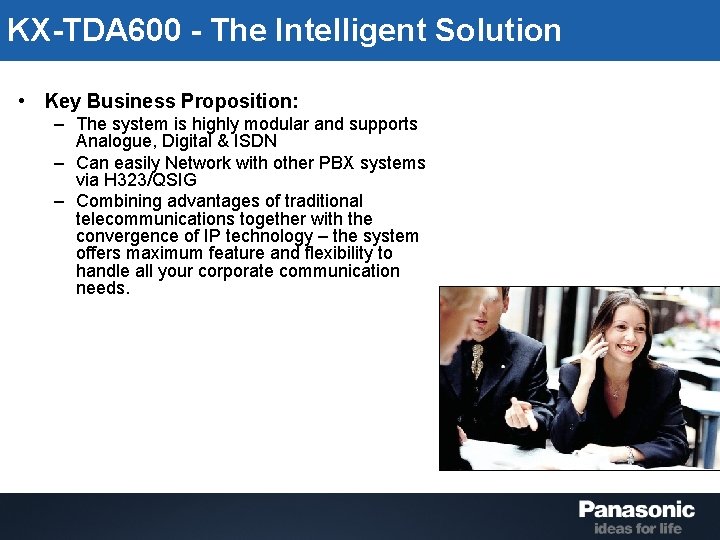

KX-TDA 600 - The Intelligent Solution • Key Business Proposition: – The system is highly modular and supports Analogue, Digital & ISDN – Can easily Network with other PBX systems via H 323/QSIG – Combining advantages of traditional telecommunications together with the convergence of IP technology – the system offers maximum feature and flexibility to handle all your corporate communication needs.

Connect Multiple Offices Head Office Regional Office TDA 600 Solutions • Provide Head Office Solution • Network to other offices • Centralised resources Sales Office Home Office

KX-TDA – Scalable Business Telephony Solutions KX-TDA 15 KX-TDA 30 KX-TDA 100 16 ~ 52 users 24 ~ 160 users 2 ~ 20 users KX-TDA 200 KX-TDA 600 64 ~ 256 users 128 ~ 960 users Scalable Business Telephony Solution from Small to Enterprise Size

KX-TDA 600 – Modular and Scalable Basic Shelf 2 -Shelf System 3 -Shelf System Max. System KX-TDA 600 + TDA 620 KX-TDA 600 + 2 x TDA 620 KX-TDA 600 + 3 x TDA 620 240 Ports without DXDP 304 Ports with DXDP 480 Ports without DXDP 608 Ports with DXDP 720 Ports without DXDP 880 Ports with DXDP 960 Ports without DXDP 1120 Ports with DXDP 240 users Single Cabinet 480 users Dual Cabinet 720 users Triple Cabinet 960 users 4 Cabinets Scalable Business Telephony Solution That Grows With Your Business

KX-TDA 600 - Structure BUS Configuration between Shelves Optional BUS-Master Expansion card (BUS-ME) must be connected to BUS-M Card for the 3 rd and 4 th cabinets BUS-Slave (Built-in) BUS-Master (TDA 6110) BUS-S BUS-S BUS-ME BUS-ME BUS-Master Expansion

KX-TDA 600 System Capacity

KX-TDA 600 System Capacity -1 Basis System with DXDP 2 Shelf System with DXDP TDA 600 + TDA 620 240 304 480 608 Initial Configuration 0 0 Free Slots 10 10 21 21 Power Supply M/L M/L Max. Trunk Ports 160 160 320 320 Max. BRI, S 0 -Bus 80 (160 -ch) 160 (320 -ch) Max. PRI, Internal PRI 5 (150 -ch) 10 (300 -ch) Max. IP Gateway 10 (160 -ch) 20 (320 -ch) Max. Ports Max. CO (PSTN)

KX-TDA 600 System Capacity -2 3 Shelf System with DXDP 4 Shelf System (Max) with DXDP TDA 600 + 2 x TDA 620 TDA 600 + 3 x TDA 620 720 880 960 1120 Initial Configuration 0 0 Free Slots 32 32 43 43 Power Supply M/L M/L Max. Trunk Ports 480 480 640 640 Max. BRI, S 0 -Bus 240 (480 -ch) 320 (640 -ch) Max. PRI, Internal PRI 15 (450 -ch) 20 (600 -ch) Max. IP Gateway 30 (480 -ch) 40 (640 -ch) Max. Ports Max. CO (PSTN)

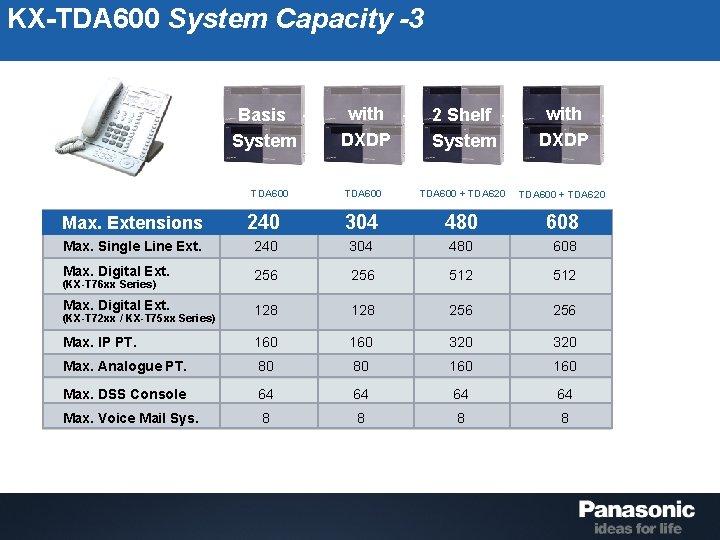

KX-TDA 600 System Capacity -3 Basis System TDA 600 with DXDP 2 Shelf System with DXDP TDA 600 + TDA 620 Max. Extensions 240 304 480 608 Max. Single Line Ext. 240 304 480 608 Max. Digital Ext. 256 512 Max. Digital Ext. 128 256 Max. IP PT. 160 320 Max. Analogue PT. 80 80 160 Max. DSS Console 64 64 Max. Voice Mail Sys. 8 8 (KX-T 76 xx Series) (KX-T 72 xx / KX-T 75 xx Series)

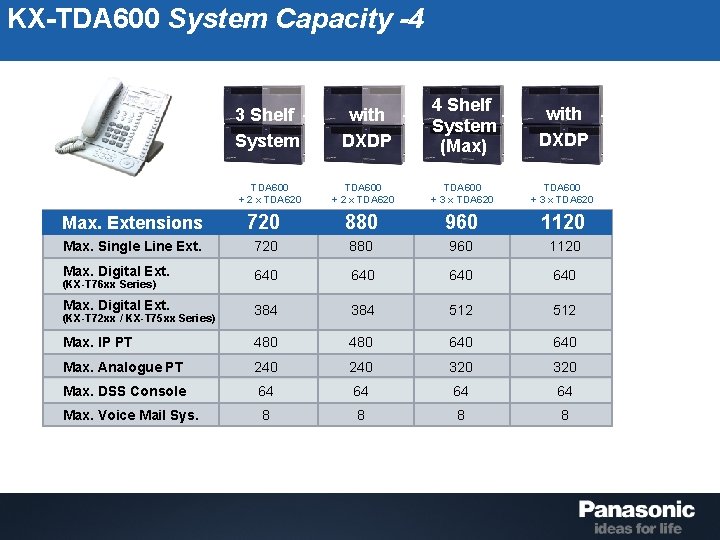

KX-TDA 600 System Capacity -4 3 Shelf System with DXDP 4 Shelf System (Max) with DXDP TDA 600 + 2 x TDA 620 TDA 600 + 3 x TDA 620 Max. Extensions 720 880 960 1120 Max. Single Line Ext. 720 880 960 1120 Max. Digital Ext. 640 640 Max. Digital Ext. 384 512 Max. IP PT 480 640 Max. Analogue PT 240 320 Max. DSS Console 64 64 Max. Voice Mail Sys. 8 8 (KX-T 76 xx Series) (KX-T 72 xx / KX-T 75 xx Series)

KX-TDA 600 System Capacity -5 Basis System Other Accessories TDA 600 DECT CS (Cell Station) DECT HDCS (Cell Station) Max. DECT PS w/o EMEC Max. DECT PS with EMEC Max. Doorphone Max. Door Opener Max. External Relay Max. External Sensor Max. BGM / MOH Input Max. External Paging Max. RS 232 C / SMDR USB CTI Link Interface PC Phone PC Console 32 16 256 512 16 16 2 2 1 128 8 2 Shelf System TDA 600 + TDA 620 64 32 256 512 32 32 2 2 1 128 8 3 Shelf System 4 Shelf System (Max) TDA 600 + 2 x TDA 620 TDA 600 + 3 x TDA 620 96 48 256 512 48 48 2 2 1 128 8 128 64 256 512 64 64 2 2 1 128 8

KX-TDA 600 System Cards

Basic Shelf - KX-TDA 600 Basic Shelf – Main Unit • Free Slots support any types of cards (Trunk, Extension, Option, Etc) • Bus Card connects to TDA 620 Expansion Shelf Bus card

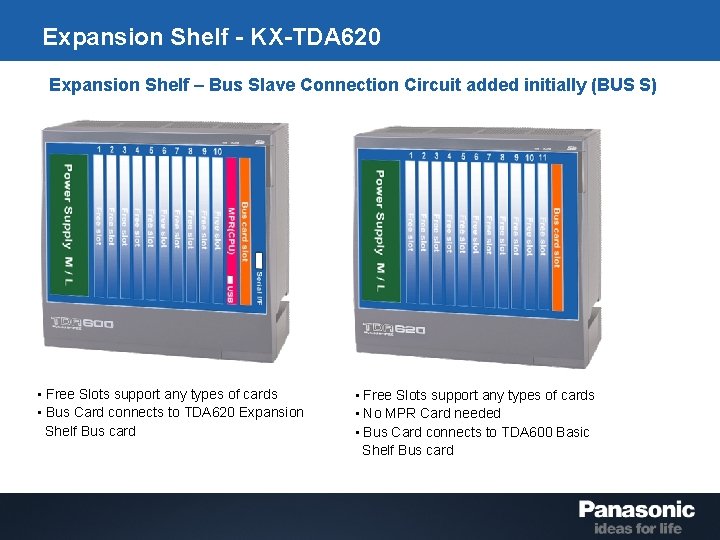

Expansion Shelf - KX-TDA 620 Expansion Shelf – Bus Slave Connection Circuit added initially (BUS S) • Free Slots support any types of cards • Bus Card connects to TDA 620 Expansion Shelf Bus card • Free Slots support any types of cards • No MPR Card needed • Bus Card connects to TDA 600 Basic Shelf Bus card

KX-TDA 600/620 – MPR Card MPR: Main Processor Card (Pre-installed) Expansion Shelf Built-in Components SD Slot SD (Secure Digital) Card (128 MB) LAN I/F LAN Interface (x 2) MPR EMEC Basic Shelf • Store Main PBX Software/Customer Database • ISDN Remote Maintenance • Programming • CTI RMT Serial I/F RS 232 -C / V. 24 Interface • Programming / SMDR MPR Option cards EMEC Expansion Memory card KX-TDA 6105 (Optional) • Extension Capacity Expansion RMT Analogue Modem card KX-TDA 0196 (Optional) • Support Max. 56 K bps (V. 90)

Enhanced Simple. Voice. Mail – Option Cards ESVM 2 (Option: KX-TDA 0192) or ESVM 4 (Option: KX-TDA 0194) Enhanced SVM cards provide added message recording and outgoing message handling capabilities that help ensure calls from your customers are routed through properly and are always answered or processed gracefully. These optional cards can be configured to run in three modes for complete flexibility: – SVM Mode: For Simple Voice Mail only features – MSG Mode: For DISA functionality leveraging Outgoing Message recordings. The MSG mode can also support mobile telephone extension integration allowing for mobile telephones to be used as PBX extension. – SVM + MSG: Allowing customers to have both a simple voice mail as well as DISA functionality. Companies can even upload from PC high-quality sound files (8 k. Hz, 16 bit. wav file) that can be played as OGM recordings – for various outgoing message applications Recordings ESVM Option (s) KX-TDA 0192 KX-TDA 0194 DISA Channels 2 4 SVM Channels 2 2 x 2 Note: Out of the installed ESVM cards only 2 cards can be set to be in SVM mode Modes Messages OGM SVM* 250 - MSG - 64 SVM + MSG 186 64 SVM* 2 x 250 - MSG - 64 SVM + MSG 2 x 186 64

Enhanced Simple. Voice. Mail – Option Cards Voice Message solution capacities Voice Messaging ESVM-2 (KX-TDA 0192) ESVM-4 (KX-TDA 0194) KX-TVM 50 KX-TVM 200 Type Connection Optional OPB 3 External DPT, or LAN Channels Capacity 2 Ch SVM, 2 Ch DISA 250 messages, 120 mins. 2 x 2 Ch SVM, 4 Ch DISA 2 x 250 messages, 120 mins. 2 – 6 4 – 8 hours 0 – 24 1000 hours SVM Recording capacity Quality No. of Messages High Medium Low Duration (minutes) 20 250 60 120 Note: Duration of Messages depends on the Quality setting

KX-TDA 600/620 – Enhanced Features KX-TDA 600 Built-in SD Card will contain same features as TDA 100/200 Version 2. 0 KX-TDA 6920 contains the following Enhanced features: • Network Busy Lamp Field An operators programmed DSS key LED will show the status of another system extension when it is: busy, receiving an incoming call (ringing) or in ‘Do not Disturb’ (DND) mode. All these features are available for a single PBX and QSIG or Vo. IP networked TDA PBX systems. A Maximum of 32 extensions over 7 PBX systems can be monitored by one operator extension. • CTI Enhancement for DECT Multi PBX Control Function – 2 PBXs can be controlled by TAPI software. System Phone, IP Phone, and DECT Handset Command Control for following functions: - Microphone, Message Waiting Lamp*, Flexible CO Key, Speakerphone On/Off*, Speakerphone Volume*, Ringing On/Off, LCD display contents. Other – Controlling Ringing Pattern for restricted calls, Setting Absent Message * Not available for DECT Handset.

KX-TDA 600 System. Telephones

Index - System Telephones New IP Proprietary Telephones – KX-NT 300 Series • KX-NT 300 Series - Line Up • KX-NT 300 Series – Specifications • KX-NT 300 Series – Compatibility • KX-NT 300 Series – Features • KX-NT 300 Series – Accessories Digital Proprietary Telephones – KX-T 7600 Series • KX-T 7600 Series – Specifications • KX-T 7600 Series – Accessories

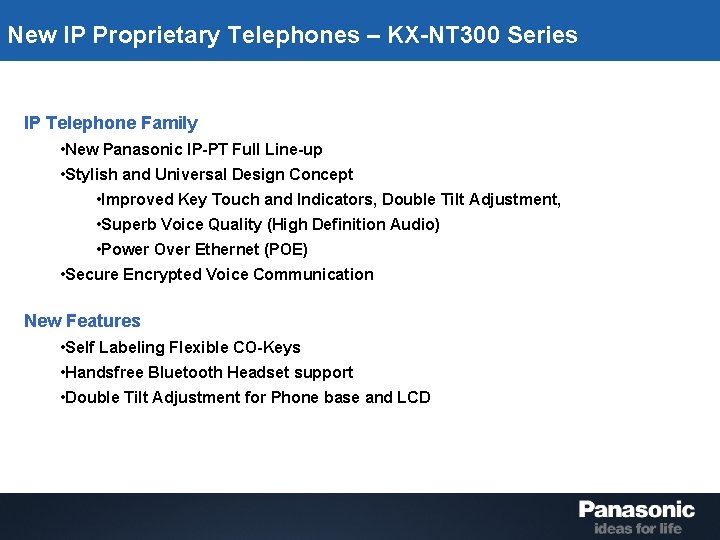

New IP Proprietary Telephones – KX-NT 300 Series IP Telephone Family • New Panasonic IP-PT Full Line-up • Stylish and Universal Design Concept • Improved Key Touch and Indicators, Double Tilt Adjustment, • Superb Voice Quality (High Definition Audio) • Power Over Ethernet (POE) • Secure Encrypted Voice Communication New Features • Self Labeling Flexible CO-Keys • Handsfree Bluetooth Headset support • Double Tilt Adjustment for Phone base and LCD

KX-NT 300 IP Telephone Family n IP Proprietary Telephones (IP-PT) KX-NT 321 KX-NT 343 * All models are available in both Black and White KX-NT 346

KX-NT 300 Series – Specifications Display Keys / Functions Audio KX-NT 321 KX-NT 343 KX-NT 346 1 x 16 3 x 24 6 x 24 Tilt-Angle Adjustment 2 Steps 4 Steps Display-Contrast Adjustment Back-Lit LCD (White) Display Feature Access Keys Programmable Keys with Dual-Colour LED‘s 3 Levels 4 Levels - Yes 4 8 24 (36**) Yes Yes Yes 12 Levels 4 Levels Wisper OHCA 4 Levels Yes Yes 4 Levels Yes Ethernet Port Yes Yes Second Ethernet Port Bluetooth Headset Compatible Yes Yes - Yes Station Speed Dial Numbers 10 Yes Alphernumeric Display (Lines x Charactures) Navigation Key Ringer/Message Waiting Lamp Speakerphone (Full Duplex) Handset Volume Control Ringer Volume Control Off-Hook Monitor Connection Others Wall Mount * 36 Programmable Keys are available when the optional 12 Programmable Key Add-on Module (KX-T 7603) is selected.

KX-NT 300 Series – Accessories Bluetooth Module (KX-NT 307) • For Wireless Headset • Wireless Conference Units (audio Profile) • Available with NT 366, NT 346 and NT 343 • Connect as Add-on Module • Bluetooth registration is done via Telephone IP-PT with Bluetooth Module Bluetooth Headset (3 rd Party) [Bluetooth] Conference Unit (3 rd Party)

KX-NT 300 Series – Accessories Add-on 12 CO Key Module (KX-NT 303) • • Additional 12 -Flexible CO Key An add-on 12 CO Key Module is available for NT 346/343

Digital Proprietary Telephones – KX-T 7600 Series n Digital Proprietary Telephones (D-PT) KX-T 7636 KX-T 7633 KX-T 7630 * All models are available in both Black and White KX-T 7668

KX-T 7600 Series – Specifications Display Keys / Functions Audio KX-T 7636 KX-T 7633 KX-T 7630 KX-T 7668 6 x 24 3 x 24 1 x 16 Tilt-Angle Adjustment 4 Steps Display-Contrast Adjustment Back-Lit LCD Display Feature Access Keys Programmable Keys with Dual-Colour LEDs 4 Levels 4 Steps 4 Levels 2 Steps 3 Levels Yes 4 4 - 24 (36*) Yes Yes 24 Yes 8 Yes 12 Levels 4 Levels 4 Levels Yes Yes 4 Levels Yes USB Module (KX-T 7601) Connectable Yes - - Digital e. Xtra Device Port (DXDP) Optional Handset Compatible Yes Yes - Station Speed Dial Numbers 10 Yes Alphanumeric Display (Lines x Characters) Navigation Key Ringer/Message Waiting Lamp Speakerphone/Monitor Volume Control Handset Volume Control Ringer Volume Control Off-Hook Call Anouncement (OHCA) Wisper OHCA Connection Others Wall Mount * 36 programmable Keys are available when the optional 12 Programmable Key Add-On Module (KX-T 7603) is selected.

KX-T 7600 Series – Accessories To PBX USB Interface (KX-T 7601)* • • - For 1 st Party CTI connection Available for T 7636/33 Add-on 60 CO key Module (KX-T 7640) • • - 60 Direct Station Selection (DSS)/Busy Lamp Field (BLF) - Physically attached to Digital System Telephone by a screw - No restrictions for programmable Flex Keys For all T 7600 series models Add-on 12 CO Key Module (KX-T 7603) • • - Additional 12 -Flexible CO Key/Busy Lamp Field (BLF) - An add-on 12 CO Key Module is available for T 7636/33 * (KX-T 7636/33 only) USB LAN KX-T 7601 PC running CTI application software

DECT Wireless Handsets – KX-TCA series n DECT Wireless Handsets KX-TCA 155 – Standard Type • Headset Support • Large Back-lit Blue LCD • 3 Programmable Menu Keys KX-TCA 256 - Compact • Headset Support • Vibration Alert • Large Back-lit Blue LCD • 12 Programmable Menu Keys KX-TCA 355 – Tough-type • IP 54 compliant • Headset Support • Vibration Alert • Large Back-lit Blue LCD • 12 Programmable Menu Keys

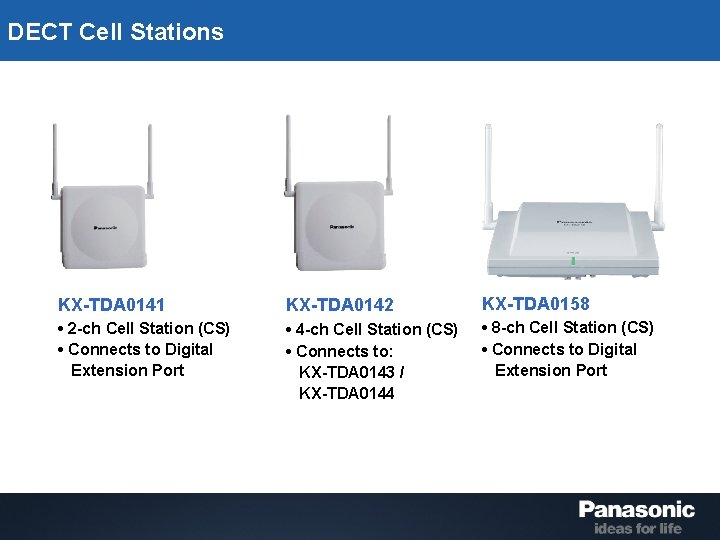

DECT Cell Stations KX-TDA 0141 KX-TDA 0142 KX-TDA 0158 • 2 -ch Cell Station (CS) • Connects to Digital Extension Port • 4 -ch Cell Station (CS) • Connects to: KX-TDA 0143 / KX-TDA 0144 • 8 -ch Cell Station (CS) • Connects to Digital Extension Port

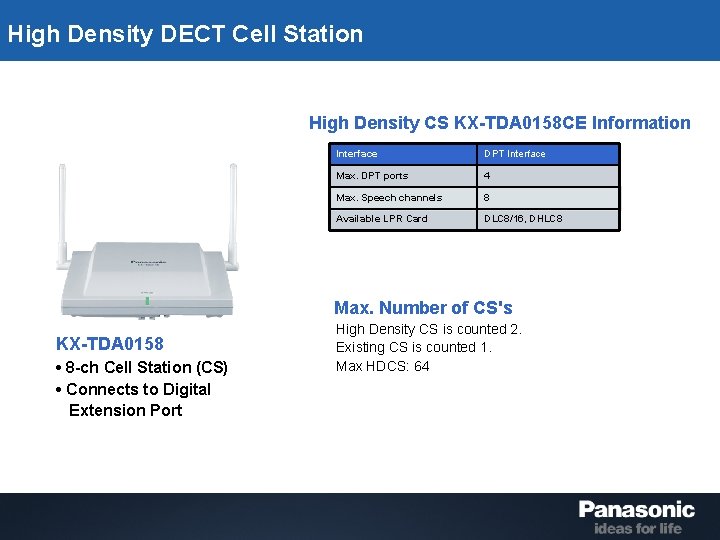

High Density DECT Cell Station High Density CS KX-TDA 0158 CE Information Interface DPT Interface Max. DPT ports 4 Max. Speech channels 8 Available LPR Card DLC 8/16, DHLC 8 Max. Number of CS's KX-TDA 0158 • 8 -ch Cell Station (CS) • Connects to Digital Extension Port High Density CS is counted 2. Existing CS is counted 1. Max HDCS: 64

High Density DECT Cell Station KX-TDA 600 supports single D-PT port CS and also 4 D-PT port HD-CS (High Density CS). If you install High Density CS, you don’t need many CS’s in the same area. One High Density CS supports up to 8 channels. single D-PT Port CS 4 D-PT Port CS = High Density CS

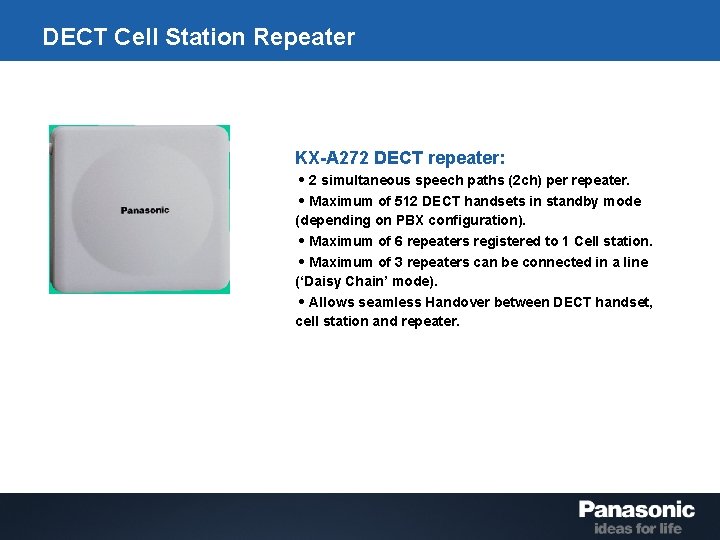

DECT Cell Station Repeater KX-A 272 DECT repeater: • 2 simultaneous speech paths (2 ch) per repeater. • Maximum of 512 DECT handsets in standby mode (depending on PBX configuration). • Maximum of 6 repeaters registered to 1 Cell station. • Maximum of 3 repeaters can be connected in a line (‘Daisy Chain’ mode). • Allows seamless Handover between DECT handset, cell station and repeater.

DECT Cell Station Repeater TDA 600 KX-TDA 0141 KX-TDA 0142 KX-A 272 Daisy Chain configuration KX-A 272 The KX-A 272 is compatible with the following cell stations: • KX-TDA 0141 • KX-TDA 0142 The KX-A 272 DECT Repeater greatly extends the range of your DECT telephones or PBX cell stations. The KX-A 272 repeater extends the range in all directions, allowing several areas to be covered.

KX-TDA 600 System Solutions

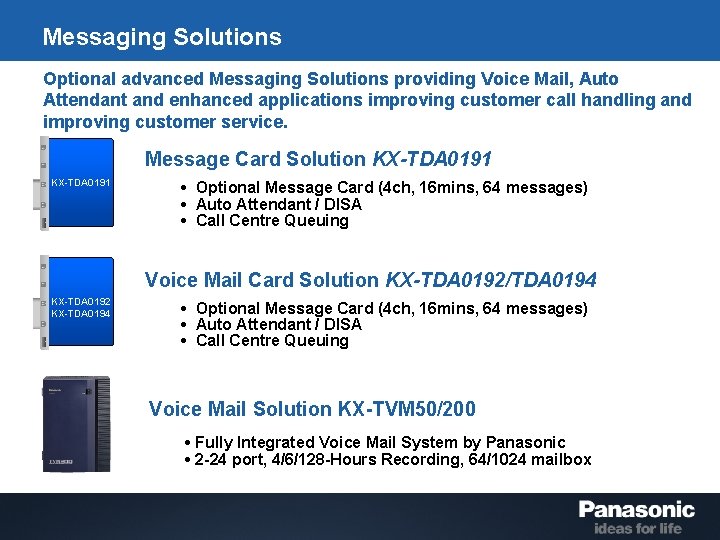

Messaging Solutions Optional advanced Messaging Solutions providing Voice Mail, Auto Attendant and enhanced applications improving customer call handling and improving customer service. Message Card Solution KX-TDA 0191 • Optional Message Card (4 ch, 16 mins, 64 messages) • Auto Attendant / DISA • Call Centre Queuing Voice Mail Card Solution KX-TDA 0192/TDA 0194 KX-TDA 0192 KX-TDA 0194 • Optional Message Card (4 ch, 16 mins, 64 messages) • Auto Attendant / DISA • Call Centre Queuing Voice Mail Solution KX-TVM 50/200 • Fully Integrated Voice Mail System by Panasonic • 2 -24 port, 4/6/128 -Hours Recording, 64/1024 mailbox

System Solutions • TDA 600 system is ideal for the following: – Hotel Business – Call Centre – Large Business up to 1000 extensions – Campus of University or School – Integration into Multi-site PBX Solutions

Key Business Applications Improve Business Communications

Key Business Applications • • [Voice Application]: [Wireless Mobility]: [Voice Messaging]: [Centralised Voice Messaging]: [Call Centre Functionality]: [IP-Enabled]: [Intelligent Call Routing]:

Key Business Applications • [Mobile Phone Integration]: • [Automated Attendant]: • [Advanced Terminals]: • [Computer Telephony Applications]: • [Remote Workers]: • [Easy Administration]: • [Future Ready]:

Thank you
