KX-NS 1000 Step by Step Guide PBX to PBX One-look Network Stacking Card June 20, 2014 Panasonic System Networks PBX SE team Specifications are subject to change without notice. 1

1. Introduction KX-NS 1000 one-look networking supports full feature transparency like TDE 600 -TDE 620 connection. - Max. 16 KX-NS 1000 can be connected for one-look connection. - Max. 1, 000 extensions are supported by one-look networking. - Both master unit and slave unit are “KX-NS 1000”. - Slave unit has to be registered to master unit like IP-PT registration. Programming is very easy because it is same as IP-PT registration. CO Fukuoka Master Register CO Tokyo CO Niseko TDE 620 is connected with TDE 600 by cable. IP Network (VPN) Register Digital PT IP-PT Slave Max. 15 slave NS 1000 can be registered to one master NS 1000. Digital PT is connected with PBX by cable. IP-PT is registered to PBX. 2

2. Indicator The PBX mode (Master or Slave) is indicated by LED. Indicators <Master Unit> <Slave Unit> BATT Software version and suffix such as “BX” have to be same for ALARM MASTER both main unit and slave unit. 3

3. Stacking Card with one-look networking You can connect a maximum of 2 existing PBXs for one KX-NS 1000. A maximum of 8 existing PBXs and 16 KX-NS 1000 can be connected for the entire One-look Network. They support 1, 000 extensions. An existing PBX refers to a Panasonic KX-TDE series, KX-NCP series, or KX-TDA 100/200/620 PBX. IP Network KX-TDE 620 Stacking KX-TDE 600 KX-NCP IP Network KX-TDE 600 Stacking KX-TDE 620 Stacking KX-NCP Stacking QSIG KX-DT KX-DT Max. 8 PBXs 100 % Feature Transparency like TDE 600 and TDE 620 Different PBX category cannot be mixed to one KX-NS 1000. NCP 500+TDE 200 : N/A Category 1 : KX-NCP 500 -1000 TDE 100+TDA 200 : OK Category 2 : KX-TDE(A)100 -200 TDE 600+TDE 620 : OK Category 3 : KX-TDE(A)600 -620 TDE 620+TDE 620 : OK Category 4 : KX-TDA 100 D Programming is not required to connect stacking card. 4

4. Table of Contents Chapter Explanation 1 Activation key installation to Master PBX 2 Slave unit data assignment to Master PBX 3 Set-up Slave PBX Activation key installation to Slave PBX 4 Slave PBX registration to Master PBX 5 Demo after set-up 5

Master Unit Chapter 1 Activation key installation to Master PBX Master Register Slave 6

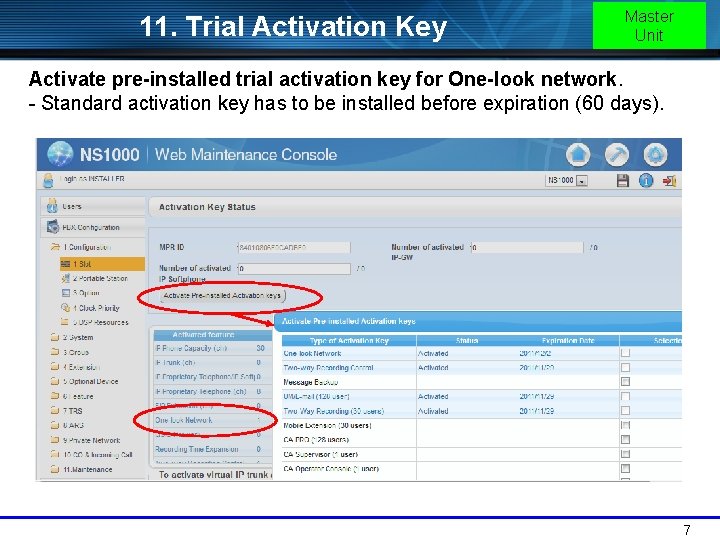

11. Trial Activation Key Master Unit Activate pre-installed trial activation key for One-look network. - Standard activation key has to be installed before expiration (60 days). 7

12. Standard Activation Key Master Unit Install standard activation key for One-look network if trial activation key has been already expired. 8

Master Unit Chapter 2 Slave PBX data assignment to Master PBX Master Register Slave 9

21. Add Site Wizard Master Unit 1. Click [Add Site]. 10

22. Add Site Wizard Master Unit 1. Select correct time zone and time of Slave PBX. 2. Click [Next]. 11

23. Add Site Wizard Master Unit 1. (Programming is not required. ) 2. Click [Next]. 12

24. Add Site Wizard Master Unit 1. (Programming is not required. ) 2. Click [Next]. 13

25. Add Site Wizard Master Unit 1. Select “No” is strongly recommended for demo of one-look network. If LAN is removed from slave PBX for example, back-up mode starts. Even if LAN is connected again, back-up mode is kept until operation to return to normal one-look mode. So demo of one-look network is not possible without this operation. If demo of back-up is required, it can be assigned later. 14

26. Change PBX Site Name Master Unit 1. Click “List View”. 15

27. Change PBX Site Name Master Unit 1. Change site name and click [Apply]. 16

Slave Unit Chapter 3 Setup Slave PBX Activation key to Slave PBX Master Register Slave 17

Slave Unit 31. Easy Setup Wizard Initialize KX-NS 1000 Slave unit by default clear. If IP address of Master unit is 192. 168. 0. 101, do not connect Slave unit in the same network because default of IP address is 192. 168. 0. 101. Connect PC with KX-NS 1000 Slave unit. to start “Easy Setup Wizard”. 1 Location Setting Screen 1. Select “Slave” as a PBX type, and specify the IP address of the Master. * 2. Click “Next”. * If the slave is located on the same network with the Master, it is unnecessary to specify the IP address of the Master. 18

32. Easy Setup Wizard 2 Slave Unit 2. PBX Setting Screen 1. Site name is fixed. (Will be downloaded from the Master. ) 2. Set Time Zone and Local Time of slave unit. 3. Click “Next”. 3 3. LAN Setting Screen 1. Set the LAN settings for the slave unit. 2. Click “Next”. 19

33. Easy Setup Wizard 4 Slave Unit 4. Registration Setting Screen 1. Select “Active” to enable trial activation key for One-look networking. Standard activation key has to be installed before expiration (60 days). 2. To finish the Easy setup wizard, click “Finish”. 3. To register to master unit, click “OK”. Registration mode of master unit has to start before or after this step. See chapter 4. 20

Master Unit Chapter 4 Slave PBX registration to Master PBX Master Register Slave 21

41. Register Slave unit Master Unit 1. Click [Registration]. 22

42. Register Slave unit Master Unit 1. Select slave unit and click [Next]. 23

43. Register Slave unit Master Unit 1. Connect Slave unit to LAN. After registration is completed, the slave unit will reboot automatically. So wait for more 3 minutes. 24

Master Unit 44. Register Slave unit After 3 minutes, slave unit becomes In Service. Home Screen After registration List View Screen Before registration PBX version and so on is displayed. 25

Chapter 5 Demo after setup 26

51. Demo or test after setup Paging to all extensions in Tokyo and Fukuoka. KX-NS 1000 Slave (Fukuoka) KX-NS 1000 Master (Tokyo) DSP KX-NT Fax Paging DSP Paging NS 0130 N S 0 1 3 2 D H L C 8 Paging KX-DT *33 – Paging group number (01) Cards in TDA/TDE/NCP are recognized automatically through KXNS 0130 without programming. User Group 1 (Paging group 1) has to be programmed to KX-NT to receive paging. Default is User Group 31. 27

52. Slave Unit - Programming Slave unit can be programmed from master unit. Slave unit can be selected. Master Slave 28

53. Stacking Card - Programming Property of cards in TDA/TDE/NCP can be programmed using NS 1000 Web. 29

54. Site ID is displayed to know location (Unit). - The “Site ID” is displayed for “CO Line Settings”, “DIL Table & port Settings”, “Doorphone”, “External Relay” and “External Sensor”. 30

55. Direct Log-in to branch unit Direct log-in is used to setup Built-in VM in slave unit. - After direct log-in, Web-MC logs-out from master PBX automatically. Built-in VM : 500 Master Built-in VM : 501 Slave 31
