Introduction -1 Network Communication Platform Panasonic Network Communication Platforms provide cost effective solutions for small to medium business Market. The solutions provide: • Extensive business telephony communications over local and broadband Networks • Enables Businesses to implement Unified Communications • Provides feature rich mobility solutions • Increases user and business productivity • Reduces complexity and cost “

“ Introduction -2 Network Communication Platform The systems are designed for: • Installation into standard IT equipment racks • Supports a range of • IP Telephone devices (MGCP, SIP) • Digital, & Analogue Telephone devices • Digital, Analogue & IP network connections • Integrated Applications • System Hardware Comprises of • Main Processor Card • Power Supply (as standard) Standard 19” Rack Installation

“ Concept -1 TDA MPR 5 TDE MPR 2 NCP MPR 1 Same function level TDE: Facilitated smooth migration from TDA to Full IP-PBX NCP: Easy maintenance for Telecom and IT dealers Provides scalability suited to the users environment Profitable business model for dealers by providing applications Unified Communication Application (w/ Communication Assistant: CA)

Concept -2 IT oriented design All RJ-45 Connector New D-PT KX-DT 3 xx “ 19 -inch rack oriented design (New design) RJ-45 Connector Built-in Communication Assistant (CA) PCC proprietary 1 st Party CTI Application.

Basic System Construction

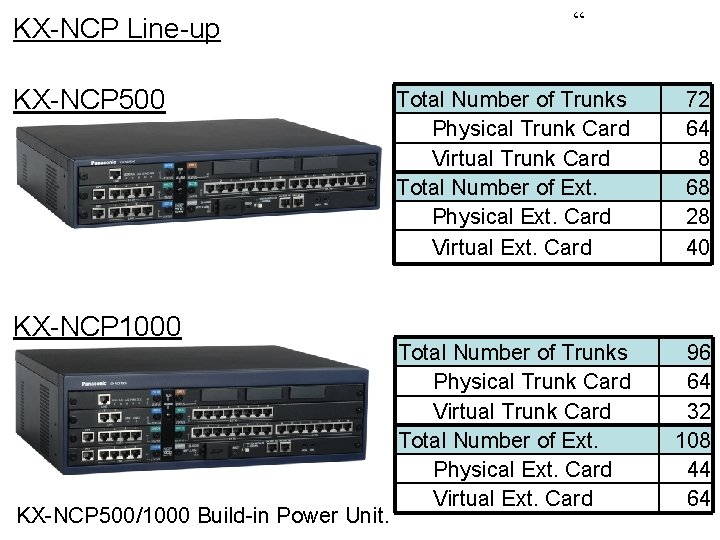

KX-NCP Line-up KX-NCP 500 KX-NCP 1000 KX-NCP 500/1000 Build-in Power Unit. “ Total Number of Trunks Physical Trunk Card Virtual Trunk Card Total Number of Ext. Physical Ext. Card Virtual Ext. Card 72 64 8 68 28 40 Total Number of Trunks Physical Trunk Card Virtual Trunk Card Total Number of Ext. Physical Ext. Card Virtual Ext. Card 96 64 32 108 44 64

“ System Capacity Type and Maximum Number of Slots Slot Type IPCMPR Card Slot Regular Free Slot Small Free Slot Virtual Trunk Virtual Slot Virtual Ext. (MPR) A A KX-NCP 500 B Maximum Number NCP 500 NCP 1000 1 1 2 3 3 4 2 4 3 4 A B C C B C A. Small Free Slots B. Regular Free Slots C. IPCMPR Card Slot KX-NCP 1000 C

“ Block Design Small Free Slots Regular Free Slots NCP 500 3 slots NCP 1000 4 slots MPR Card NCP 500 2 slots NCP 1000 3 slots Daughter board SLC 8 w/ CID SLC 16 w/ CID DHLC 4 w/CID LCOT 4 w/CID BRI 2 PRI 30 DSP 4/16/64 Analogue RMT Built-In LAN RJ 45 Maintenance RJ 45 RS-232 C D-SUB - SD memory slot - ESVM 2 DLC 8 DLC 16 OPB 3 DPH 2(G MSG 4 DPH 4 ESVM 2/4 EIO 4 ECHO 16 T 1 E 1

“ Slot Configuration OPB-3 DHLC 4 LCOT 4 BRI 2 PRI 30/23 DLC 8/16 SLC 8/16 T 1/E 1 OPB 3 Daughters Slot 1 Daughters Slot 2 Daughters Slot 3 DPH 2(G) MSG 4 ESVM 2 DPH 4 ESVM 4 EIO 4 ECHO 16 Free Slot 4 Free Slot 7 Free Slot 3 Free Slot 6 Free Slot 2 Free Slot 5 Free Slot 1 NCP 1000 MPR Free Slot 1 NCP 500 MPR

“ Slot Configuration NCP 1000 Free Slot 4 Free Slot 7 Free Slot 3 Free Slot 6 Free Slot 2 Free Slot 5 Free Slot 1 MPR Daughter Slot ( MPR Card ) Built-in DSP slot ESVM-2 RMT slot Virtual Slot V-IPEXT 32 V-SIPEXT 32 V-IPGW 16 V-SIPGW 16 Vo. IP Extension Slot 1 Vo. IP Extension Slot 2 Vo. IP Extension Slot 3 Vo. IP Extension Slot 4 Vo. IP Trunk Slot 1 Vo. IP Trunk Slot 2 Vo. IP Trunk Slot 3 Vo. IP Trunk Slot 4 NCP 500 Free Slot 1 MPR Daughter Slot ( MPR Card ) Built-in DSP slot ESVM-2 RMT slot Virtual Slot Vo. IP Extension Slot 1 Vo. IP Extension Slot 2 Vo. IP Extension Slot 3 Vo. IP Trunk Slot 1 Vo. IP Trunk Slot 2

“ View Free Slot 7 Free Slot 3 Free Slot 6 Free Slot 2 Free Slot 5 Free Slot 1 Vo. IP-DSP MPR NCP 500 86 mm Free Slot 4 Free Slot 3 Free Slot 6 Free Slot 2 Free Slot 5 Free Slot 1 FAN back 128 mm 19 -inch rack oriented design NCP 1000 Vo. IP-DSP FAN PSU connector Small slot Regular slot Front Regular slot Back board 340 mm Back board Small slot MPR 430 mm

System Specification

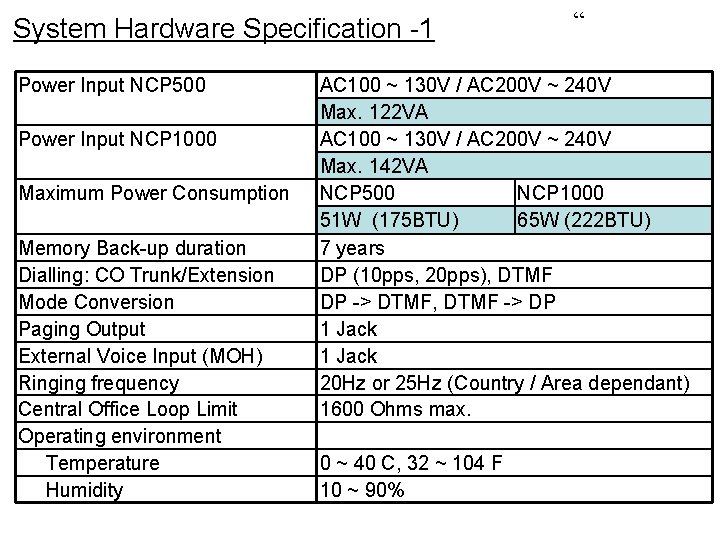

System Hardware Specification -1 Power Input NCP 500 Power Input NCP 1000 Maximum Power Consumption Memory Back-up duration Dialling: CO Trunk/Extension Mode Conversion Paging Output External Voice Input (MOH) Ringing frequency Central Office Loop Limit Operating environment Temperature Humidity “ AC 100 ~ 130 V / AC 200 V ~ 240 V Max. 122 VA AC 100 ~ 130 V / AC 200 V ~ 240 V Max. 142 VA NCP 500 NCP 1000 51 W (175 BTU) 65 W (222 BTU) 7 years DP (10 pps, 20 pps), DTMF DP -> DTMF, DTMF -> DP 1 Jack 20 Hz or 25 Hz (Country / Area dependant) 1600 Ohms max. 0 ~ 40 C, 32 ~ 104 F 10 ~ 90%

System Hardware Specification -2 Conference Trunk MOH (Music On Hold) “ 32 Conference Trunk (3 party x 10 ~ 8 party x 4) 1 port, internal/external selectable, level control 6 d. B ~ +6 d. B Internal Paging Level control -6 d. B ~ +3 d. B External Paging 1 port, volume control -15 d. B ~ +6 d. B Serial Interface Port RS 232 C, D-Sub 9, 1 port (115. 2 kbps) Built-in battery back-up No External battery back-up No Dimension NCP 1000: 430(W) x 128(H) x 340(D)mm NCP 500: 430(W) x 86(H) x 340(D)mm Weight (Full configuration) NCP 1000: 7. 5 kg NCP 500: 6. 5 kg

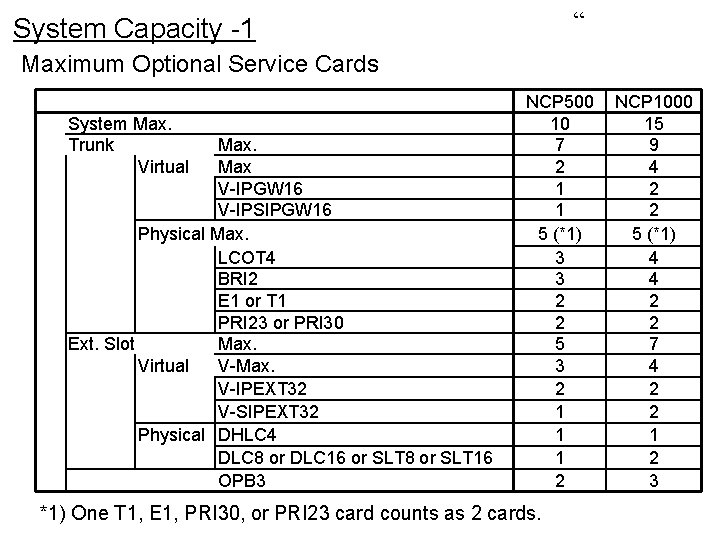

“ System Capacity -1 Maximum Optional Service Cards System Max. Trunk Virtual Max V-IPGW 16 V-IPSIPGW 16 Physical Max. LCOT 4 BRI 2 E 1 or T 1 PRI 23 or PRI 30 Ext. Slot Max. Virtual V-Max. V-IPEXT 32 V-SIPEXT 32 Physical DHLC 4 DLC 8 or DLC 16 or SLT 8 or SLT 16 OPB 3 NCP 500 10 7 2 1 1 5 (*1) 3 3 2 2 5 3 2 1 1 1 2 *1) One T 1, E 1, PRI 30, or PRI 23 card counts as 2 cards. NCP 1000 15 9 4 2 2 5 (*1) 4 4 2 2 7 4 2 2 1 2 3

“ System Capacity -2 Maximum Optional Service Cards on OPB-3 Type Name OPB 3 DPH 4 DPH 2 EIO 4 ECHO 16 MSG 4 ESVM 2 ESVM 4 NCP 500 NCP 1000 2 4 6 4 2 4 4 4 3 4 8 4 2 4 4 4

“ System Capacity -3 Maximum Trunks Name Total Number of Trunks Trunk (Physical Trunk Card) Trunk (Virtual Trunk Card) NCP 500 NCP 1000 72 64 8 96 64 32

“ System Capacity -3 Maximum Terminal Equipment Max. MPR Extension Legacy CS PS Voice Mail System Doorphone External Sensor External Relay Max. IP-PT Max. SIP Max. DPT APT SLT Max KX-TDA 0158 KX-TDA 0141 NCP 500 68 40 32 28 24 4 20 4 2 4 64 2 16 16 16 *1) One TDA 0158 counts as 2 x TDA 0141. NCP 1000 108 64 64 44 40 4 36 8 4 (*1) 8 64 2 16 16 16

System Main Features -1 Feature “ Required Key CA (Communication Assistant) - 1 st Party CTI interface for LAN port NCS 21 xx NCS 22 xx NCS 2301 NT 321 - Basic feature NT 3 xx IP-PT with 4 -Direction Key NCS 32 xx NCS 35 xx NT 3 xx Series IP-PT -Bluetooth support -Tilt LCD with white backlight NCS 32 xx NCS 35 xx

System Main Features -2 Feature DSS BLF for Mobile Extension. “ Required Key NCS 3910 Transfer Recall to VM Group NONE Intercept for Call-FWD to CO NONE Auto recovery function for Busy-out (Analogue line) NONE Two CLIP on an Extension NONE Hotel feature enhancement – “Not Ready” status is added. NONE System error activates an external relay NONE PRI CNIP with the name of each extension NONE

System Main Features -3 Feature KX-TDA 0158 (8 ch-CS) VM-TDA Extension Number Expansion (8 digits) KX-TDA 0192/4 (ESVM) - Moving From SVM to DISA (Supported) - High Quality OGM Record (Supported) - Wav file import from PC (Supported) Build-IN ESVM. - Moving From SVM to DISA (Supported) - High Quality OGM Record by handset. (Supported) - Wav file import from PC (Not-Supported) T. 38 UDP (H. 323 IPGW FAX Signalling protocol support) Fax Forwarding (TDA 30 Feature) - PBX ESVM(DISA) detects FAX signal and can transfer call to FAX Extension port. “ Required Key NONE NONE

KX-NCS 3910 Features “ NCS 3910 Activation key is required to use the following features. Feature DSS BLF for Mobile Extension (when call is routed through PBX) Automatic Call Distribution (ACD) By using dummy PS Technique. - Network ICD Group - Outside Destinations in ICD Group (Mobile Integration) New - - PS Roaming by Network ICD Group DISA Call Transfer from Outside Destination - DISA Automatic Walking COS Common Extension Numbering. Network Direct Station Selection (N-DSS) Centralized Voice Mail - Enhanced CTI function (Sending text message to PS)

Hardware

Hardware - Main Unit (MPR Card) MODEL Summary “ Visual ICMPR NCP 500/1000 - One daughter slot for DSP 4/16/64 - One daughter slot for Analogue RMT - Main Unit -Comparison with TDE 100/200 MPR TDE NCP Built-in SVM Type: SVM -> ESVM MOH/Page: 2 ch -> 1 ch NCPS 01 Encryption SD -PSU & Fan Built-in Vo. IP Encryption for IP-PT (NT Series) Compatible with NCP 500/1000 only N/A

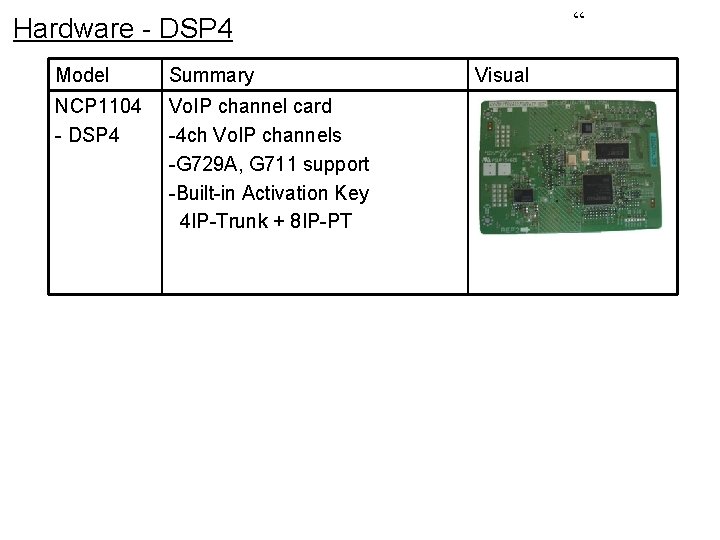

“ Hardware - DSP 4 Model Summary NCP 1104 - DSP 4 Vo. IP channel card -4 ch Vo. IP channels -G 729 A, G 711 support -Built-in Activation Key 4 IP-Trunk + 8 IP-PT Visual

Hardware - Small Free Slot Model Summary NCP 1170 4 port digital hybrid extension card (RJ 45) - DHLC 4 -DPT, APT, SLT, DSS, CS(PT Interface) -Caller ID for SLT (FSK Only) -PFT port x 1 to LCOT 4 -DXDP is supported NCP 1180 4 port analogue Trunk Card (RJ 45) - LCOT 4 -Caller ID Detection (Built-in) -PFT port x 1 to DHLC 4 NCP 1280 2 port BRI Card (RJ 45) -Same BRI functionality as TDA 0288) - BRI 2 - No PFT port NCP 1290 1 port PRI Card (RJ 45 – No BNC) -Same PRI functionality as TDA 0290) - PRI 30 Hot-Swap is not supported. “ Visual

Hardware - Regular Free Slot Model NCP 1171 (DLC 8) Summary 8 port digital extension card (RJ 45) - DPT, DSS, CS(PT Interface) - DXDP is supported NCP 1172 16 port digital extension card (RJ 45) (DLC 16) - DPT, DSS, CS(PT Interface) - DXDP is supported NCP 1173 8 port SLC Card (RJ 45) (SLC 8) - Caller ID for SLT (FSK), - No-Message Lamp Function. NCP 1174 16 port SLC Card (RJ 45) (SLC 16) - Caller ID for SLT (FSK) - No-Message Lamp Function. NCP 1190 Option Base Card (OPB 3) - 3 daughter slots for DPH 2/4, EIO 4, MSG 4, ESVM 2/4, ECHO 16 NCP 1187 (T 1) T 1 Trunk Card (RJ 45, no BNC) NCP 1188 (E 1) E 1 Trunk Card (RJ 45, BNC) Hot-Swap is supported. “ Visual

Hardware - Option cards -1 “ Common Card with TDE 100/200 - Mounted on ICMPR Card Model TDA 0196 - RMT TDE 0110 - DSP 16 TDE 0111 - DSP 64 Summary Analogue modem card (For Remote Access) -V 90 support Vo. IP channel card 16 IP channel G 729 A, G 711 support Built-in Activation Key 4 IP-Trunk + 8 IP-PT Vo. IP channel card - 64 IP Channel -G 729 A, G 711 support -Built-in Activation Key 16 IP-Trunk + 32 IP-PT

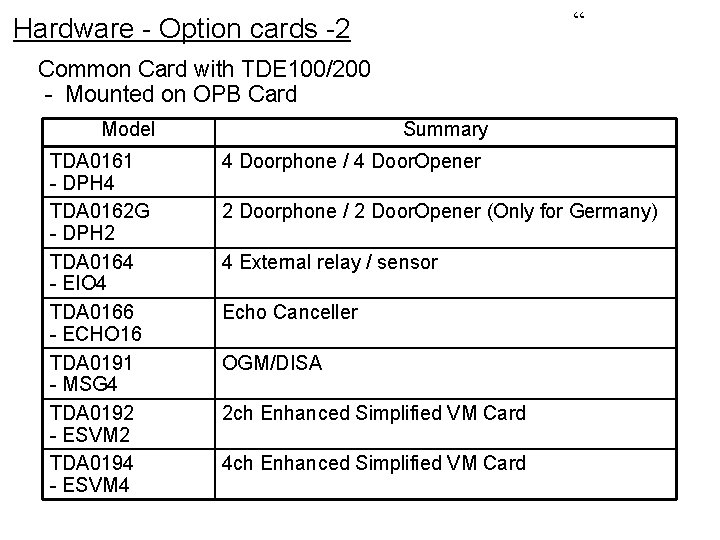

“ Hardware - Option cards -2 Common Card with TDE 100/200 - Mounted on OPB Card Model TDA 0161 - DPH 4 TDA 0162 G - DPH 2 TDA 0164 - EIO 4 TDA 0166 - ECHO 16 TDA 0191 - MSG 4 TDA 0192 - ESVM 2 TDA 0194 - ESVM 4 Summary 4 Doorphone / 4 Door. Opener 2 Doorphone / 2 Door. Opener (Only for Germany) 4 External relay / sensor Echo Canceller OGM/DISA 2 ch Enhanced Simplified VM Card 4 ch Enhanced Simplified VM Card

Hardware Compatibility

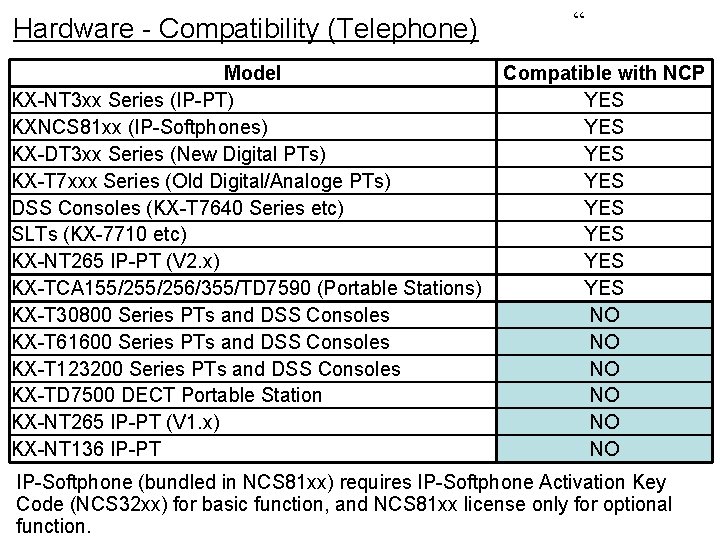

Hardware - Compatibility (Telephone) Model KX-NT 3 xx Series (IP-PT) KXNCS 81 xx (IP-Softphones) KX-DT 3 xx Series (New Digital PTs) KX-T 7 xxx Series (Old Digital/Analoge PTs) DSS Consoles (KX-T 7640 Series etc) SLTs (KX-7710 etc) KX-NT 265 IP-PT (V 2. x) KX-TCA 155/256/355/TD 7590 (Portable Stations) KX-T 30800 Series PTs and DSS Consoles KX-T 61600 Series PTs and DSS Consoles KX-T 123200 Series PTs and DSS Consoles KX-TD 7500 DECT Portable Station KX-NT 265 IP-PT (V 1. x) KX-NT 136 IP-PT “ Compatible with NCP YES YES NO NO NO IP-Softphone (bundled in NCS 81 xx) requires IP-Softphone Activation Key Code (NCS 32 xx) for basic function, and NCS 81 xx license only for optional function.

“ Hardware - Compatibility (CS/Other) Model Compatible with NCP TDA 0141 CE 2 ch CS (DPT IF) YES TDA 0142 CE 4 ch CS (CSIF) NO TDA 0158 CE 8 ch CS (DPT IF) YES Model A 228 S/M-type battery backup cable A 229 L-type battery backup cable A 258 Blank Slot cover T 30865 Doorphone T 7765 Doorphone Compatible with NCP NO NO NO YES

“ New PT (KX-DT 300 Series) -Same design concept with NT 300 series -TDA/TDE/NCP compatible -Apply for bluetooth headset (PBX MPR software enhance required. ) New Features Old Lineup Tilt T 76 xx Bluetooth LCD New Lineup DT 3 xx Features LCD Backlight CO Headset DXDP USB key jack DT 346 T 7636 Yes 6 line Yes 24 Yes Yes DT 343 T 7633 Yes 3 line Yes 24 Yes Yes DT 333 T 7630 No Yes 3 line No 24 Yes No - - None - 24 Yes No No No 1 line No 12 Yes No DT 390 T 7640 - - 60 CO key DSS console DT 301 T 7601 - - USB module NT 303 T 7603 - - Add on 12 CO key module NT 307 - - Bluetooth module None T 7625 DT 321 T 7667 T 7668 -

Power Supply Unit Capacity

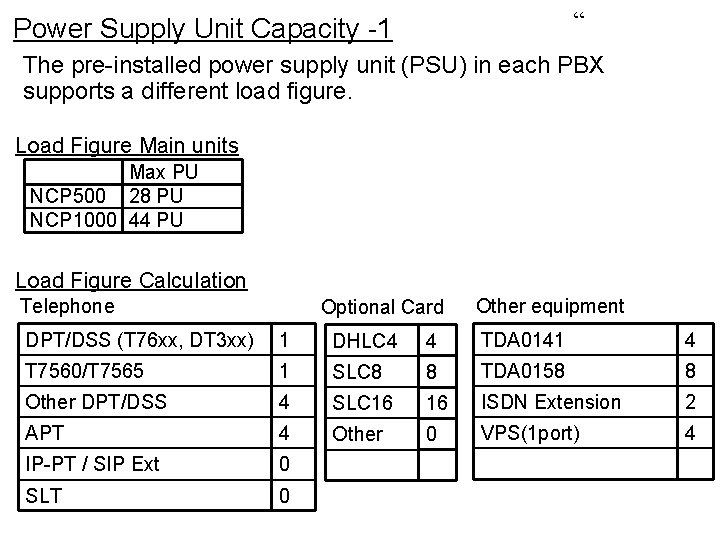

“ Power Supply Unit Capacity -1 The pre-installed power supply unit (PSU) in each PBX supports a different load figure. Load Figure Main units Max PU NCP 500 28 PU NCP 1000 44 PU Load Figure Calculation Telephone Optional Card Other equipment DPT/DSS (T 76 xx, DT 3 xx) 1 DHLC 4 4 TDA 0141 4 T 7560/T 7565 1 SLC 8 8 TDA 0158 8 Other DPT/DSS 4 SLC 16 16 ISDN Extension 2 APT 4 Other 0 VPS(1 port) 4 IP-PT / SIP Ext 0 SLT 0

Power Supply Unit Capacity -2 “ If the total load figure exceeds the maximum load figure of the PBX by 3, the corresponding extension card cannot be supported by the PBX. Ex. 1 NCP 500 + 1 x DLC 16 + 1 x DHLC 4 +16 x DT 3 xx NCP 500 DLC 16 DHLC 4 16 x DT 3 xx Free PU 28 PU - 0 PU - 4 PU - 16 PU 4 PU Another 4 x DT 3 xx can be connected. Ex. 2 NCP 1000 + 1 x DHLC 4 + 1 x DLC 16 + SLC 8 + 32 x DT 3 xx NCP 1000 DHLC 4 DLC 16 SLC 8 32 x DT 3 xx Free PU No more D-TP can be connected 44 PU - 0 PU - 8 PU - 32 PU 0 PU

Power Supply Unit Capacity -3 “ Ex. 3 NCP 1000 + 1 x DHLC 4 + 1 x DLC 16 SLC 8 + 32 x DT 3 xx NCP 1000 DHLC 4 DLC 16 SLC 8 32 x DT 3 xx Free PU 44 PU - 0 PU - 8 PU - 32 PU 0 PU No more D-TP can be connected How many SLT can be connected ? Ex. 4 NCP 1000 + 1 x DLC 16 x T 7435/7535 x ? NCP 1000 DLC 16 ? X T 7435/7535 How many T 7435/7535 can be connected? 44 PU - 0 PU ?

“ DXDP All port of DHLC 4/DLC 8/DLC 16 supports DXDP function. It’s simply limited by - the exact number of connected DPT and , - max. number of DPT units ( NCP 500 : 24 / NCP 1000 : 40 ) NCP 500 Small Free Slot Config. -1 Config. -2 Config. -3 Config. -4 Config. -5 DHLC 4 - DHLC 4 Regular Free Slot - DLC 8 DLC 16 No. of DPT port 4 8 12 16 20 No. of DXDP Extension 4 8 12 8 4 Total No. of DPT Units 8 16 24(Max) NCP 1000 Small Free Slot Config. -1 Config. -2 Config. -3 Config. -4 Config. -5 - DHLC 4 - - DHLC 4 Regular Free Slot (1) DLC 16 DLC 8 DLC 16 Regular Free Slot (2) - - DLC 16 No. of DPT port 16 20 24 32 36 No. of DXDP Extension 16 20 16 8 4 Total No. of DPT Units 32 40(Max)

“ TDA/TDE MEC Features The NCP 500/1000 does not have MEC Card Capacity, but the NCP 500/1000 has some of MEC features. Feature NCP 500/1000 TDA 30 W/O MEC TDA 30 W/ MEC 28/44 28 52 System Speed Dial 1000/tenant (8 tenants / system) 1000/system Station Speed Dial 100 / extension 80 + 4000 80 80 + 1000 Hotel Bill 1000 0 1000 SMDR Buffer (calls) 200 200 Broadcasting Feature Yes No Yes Max. Extensions Quick Dial

Vo. IP Channel Card (DSP)

“ Vo. IP Channel Card (DSP) This role of this card is to provide the necessary CODEC conversion when calling over IP via TDM. i. e. The DSP allows a TDM call (DLC, LCOT, BRI etc) to be routed over IP. It is the DSP which converts TDM <-> IP(G 711, G 729 etc) If you want to use the Vo. IP features, you need to install DSP 4, DSP 16 or DSP 64. ＴＤＭ Trunk ＴＤＭ Ext. TDM IP : 49 ch TSW Vo. IP DSP New MPR IP Trunk IP Ext.

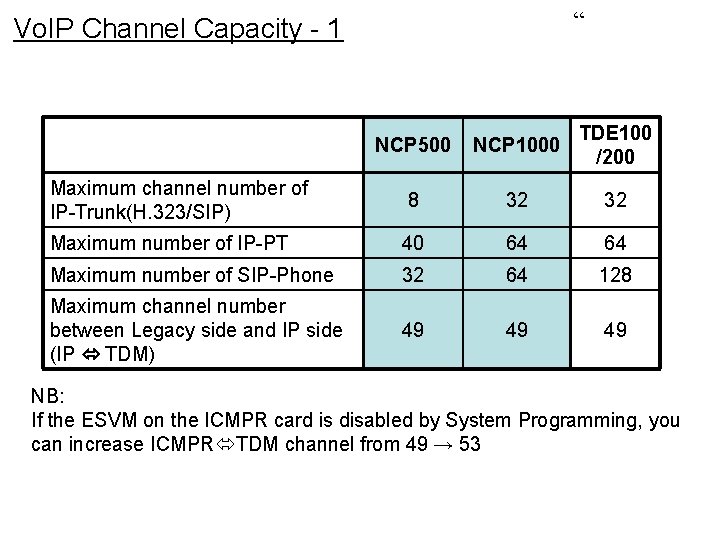

“ Vo. IP Channel Capacity - 1 NCP 500 NCP 1000 TDE 100 /200 Maximum channel number of IP-Trunk(H. 323/SIP) 8 32 32 Maximum number of IP-PT 40 64 64 Maximum number of SIP-Phone 32 64 128 Maximum channel number between Legacy side and IP side (IP TDM) 49 49 49 NB: If the ESVM on the ICMPR card is disabled by System Programming, you can increase ICMPR TDM channel from 49 → 53

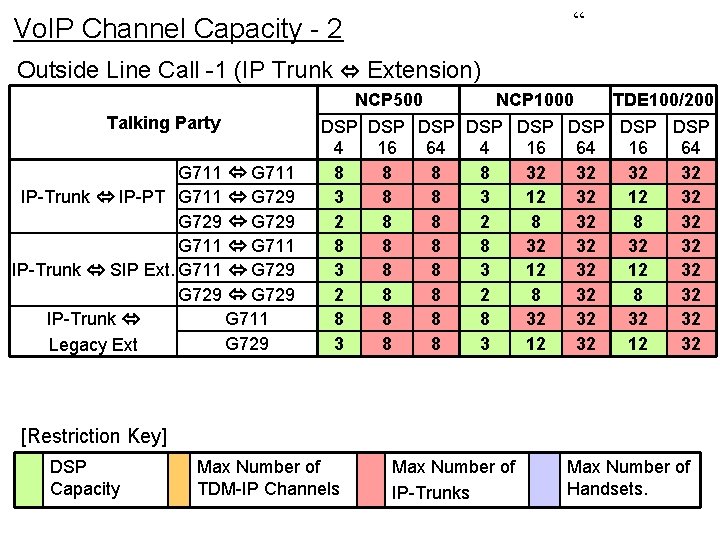

“ Vo. IP Channel Capacity - 2 Outside Line Call -1 (IP Trunk Extension) Talking Party G 711 IP-Trunk IP-PT G 711 G 729 G 711 IP-Trunk SIP Ext. G 711 G 729 IP-Trunk G 711 G 729 Legacy Ext NCP 500 NCP 1000 TDE 100/200 DSP DSP 4 16 64 8 8 8 8 32 32 3 8 8 3 12 32 2 8 8 2 8 32 8 8 32 32 3 8 8 3 12 32 [Restriction Key] DSP Capacity Max Number of TDM-IP Channels Max Number of IP-Trunks Max Number of Handsets.

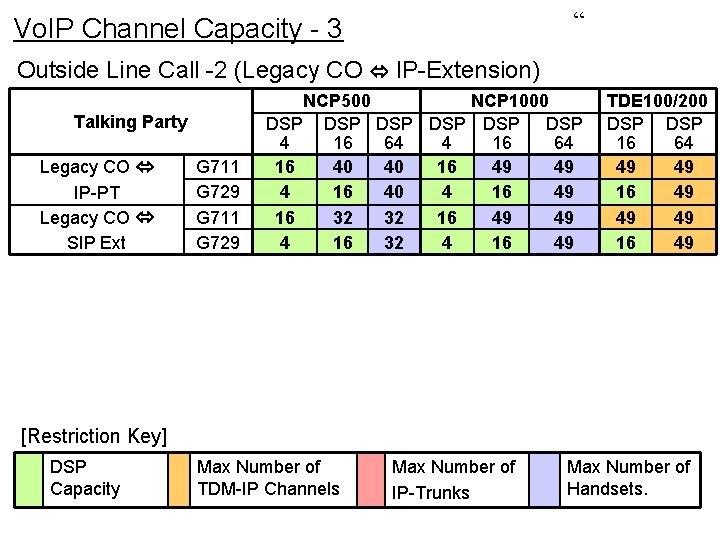

“ Vo. IP Channel Capacity - 3 Outside Line Call -2 (Legacy CO IP-Extension) Talking Party Legacy CO IP-PT Legacy CO SIP Ext G 711 G 729 NCP 500 NCP 1000 DSP DSP DSP 4 16 64 16 40 40 16 49 49 4 16 40 4 16 49 16 32 32 16 49 49 4 16 32 4 16 49 TDE 100/200 DSP 16 64 49 49 16 49 [Restriction Key] DSP Capacity Max Number of TDM-IP Channels Max Number of IP-Trunks Max Number of Handsets.

“ Vo. IP Channel Capacity - 4 Extension to Extension Call Talking Party IP-PT P to P (*) IP-PT IP Ext P to P (*) SIP G 711 IP-PT Legacy Ext G 729 IP Ext Legacy Ext G 711 SIP Legacy Ext G 729 NCP 500 NCP 1000 TDE 100/200 DSP DSP 4 16 64 20 20 20 32 32 32 16 16 16 32 32 32 64 64 16 4 40 16 32 16 40 40 32 32 16 4 49 16 49 49 (*): Vo. IP channel is not used for Peer to Peer mode [Restriction Key] DSP Capacity Max Number of TDM-IP Channels Max Number of IP-Trunks Max Number of Handsets.

Activation Key for NCP

“ Activation Key (Line Up) Activation Keys for Trunk and Extension Model NCS 3104 NCS 3201 NCS 3208 NCS 3508 NCS 3716 Type 4 IP-Trunk (4 ch H. 323 IPGW or 4 ch SIP-Trunk) 1 -IP-PT / IP-Softphone combination 8 IP-PT 16 SIP Extension Activation Keys for CA and Enhanced Feature Model NCS 2101 NCS 2105 NCS 2110 NCS 2201 NCS 2205 NCS 2210 NCS 2301 NCS 3910 Type CA-Basic (1 User) CA-Basic (5 Users) CA-Basic (10 Users) CA-Pro (1 User) CA-Pro (5 Users) CA-Pro (10 Users) CA-Supervisor (1 User) Enhanced Feature

Activation Key (Issue Activation key file) “ Issuing NCP Activation key procedure is the same as TDE 100/200. URL: https: //eww. netreg. panasonic. co. jp/kms/

Activation Key -1 NCP Activation Key Status Screen. “

Activation Key -2 “ Current Activation Status Total number of channel or user. We can divide number of channels by channel base. Pre-Programmed Activation key User Purchased Activation key

Activation Key (Activate Activation key file) -1 “ 1 - Connect the PCMC to the NCP and confirm the current activation status. PCMC PCC provides 10 days temporary activation key for all models. Current Activation status

Activation Key (Activate Activation key file) -2 “ 2 - Transfer activation key file to the NCP (SD Card) PCMC Activation key file 3 - Open the Activation key display screen again, to activate key file. New Activation status

Activation Key (Activate Activation key file) -3 “ When you install some kind of Activation Key, you do not need to change status of Virtual card. Type of Activation key V-card OUS-INS operation NCP 500/1000 TDE 100/200 IP-Trunk Need IPPT/IP-Softphone Need IPPT No Need SIP Extension No Need Enhanced Feature No Need CA-Basic No Need N/A CA-Pro No Need N/A CA-Supervisor No Need N/A

New Features

“ Software Enhancement Plan NCP 500 TDE 600 NCP 1000 DSS BLF for Mobile Extension Transfer re-call to VM-Group. Intercept for Call. FWD to CO. Busy-out Auto recovery function. Check-OUT not ready mode. System error activates an external relay. PRI CNIP TDA 30 TDA 100 TDE 100 TDA 600 TDA 200 TDE 200 1. 0 (3. 0) (5. 0) (? ) (3. 0) 1. 0 2. 0 (5. 0) (? ) (3. 0) 1. 0 2. 0 N/A (5. 0) (? ) (3. 0) ( ) = Planed MPR version

PC Maintenance Console for NCP 500/1000

PCMC for NCP 500/1000 Please use U-PCMC Ver. 4 “
