KOPEX SCREENFORCE SYSTEMS KOPEX SCREENFORCE SYSTEMS Applications 1

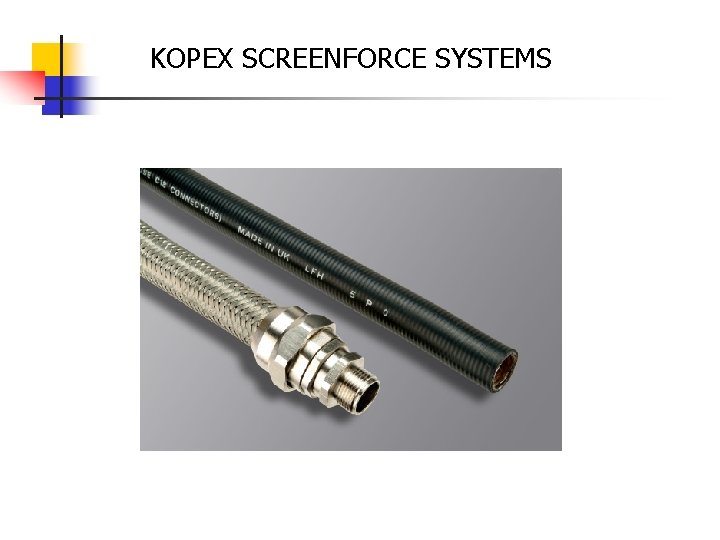

KOPEX SCREENFORCE SYSTEMS

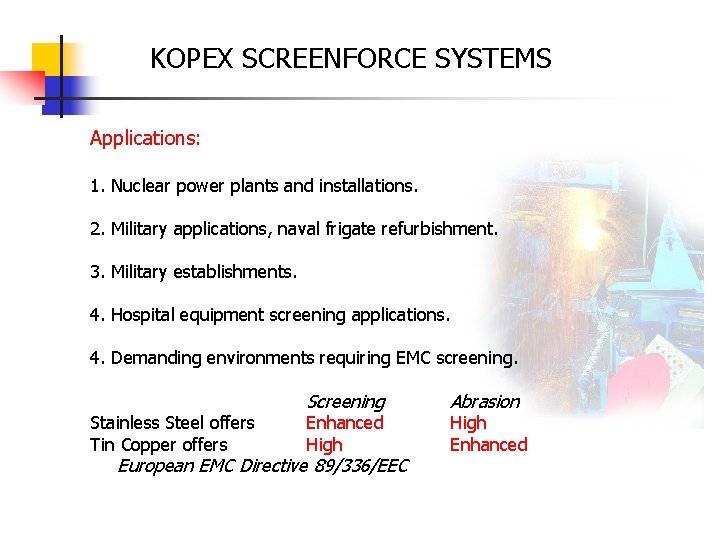

KOPEX SCREENFORCE SYSTEMS Applications: 1. Nuclear power plants and installations. 2. Military applications, naval frigate refurbishment. 3. Military establishments. 4. Hospital equipment screening applications. 4. Demanding environments requiring EMC screening. Stainless Steel offers Tin Copper offers Screening Enhanced High European EMC Directive 89/336/EEC Abrasion High Enhanced

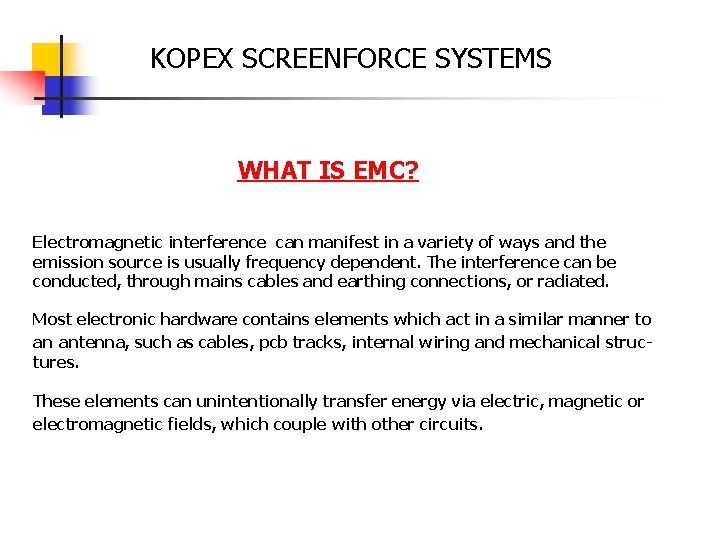

KOPEX SCREENFORCE SYSTEMS WHAT IS EMC? Electromagnetic interference can manifest in a variety of ways and the emission source is usually frequency dependent. The interference can be conducted, through mains cables and earthing connections, or radiated. Most electronic hardware contains elements which act in a similar manner to an antenna, such as cables, pcb tracks, internal wiring and mechanical structures. These elements can unintentionally transfer energy via electric, magnetic or electromagnetic fields, which couple with other circuits.

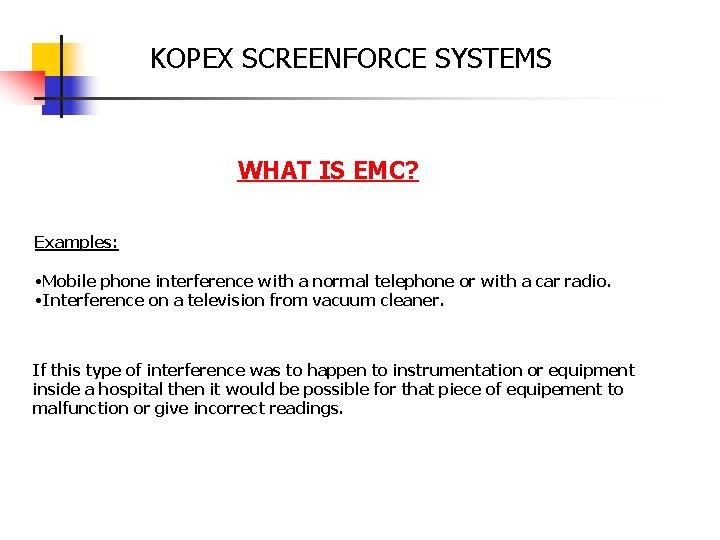

KOPEX SCREENFORCE SYSTEMS WHAT IS EMC? Examples: • Mobile phone interference with a normal telephone or with a car radio. • Interference on a television from vacuum cleaner. If this type of interference was to happen to instrumentation or equipment inside a hospital then it would be possible for that piece of equipement to malfunction or give incorrect readings.

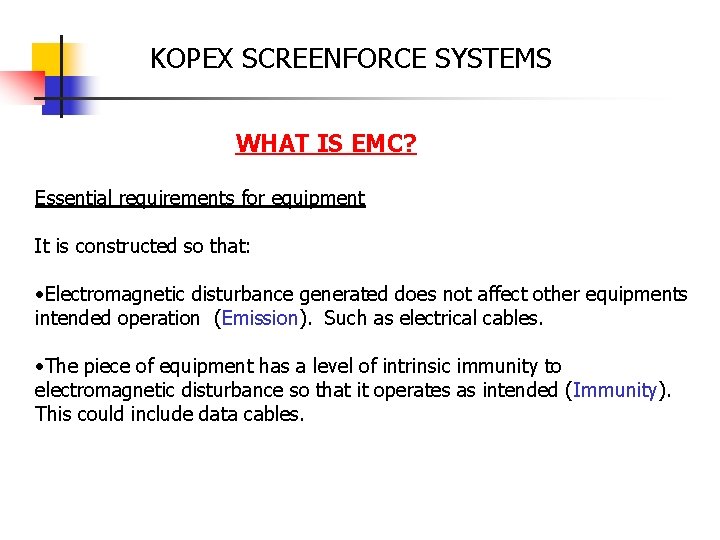

KOPEX SCREENFORCE SYSTEMS WHAT IS EMC? Essential requirements for equipment It is constructed so that: • Electromagnetic disturbance generated does not affect other equipments intended operation (Emission). Such as electrical cables. • The piece of equipment has a level of intrinsic immunity to electromagnetic disturbance so that it operates as intended (Immunity). This could include data cables.

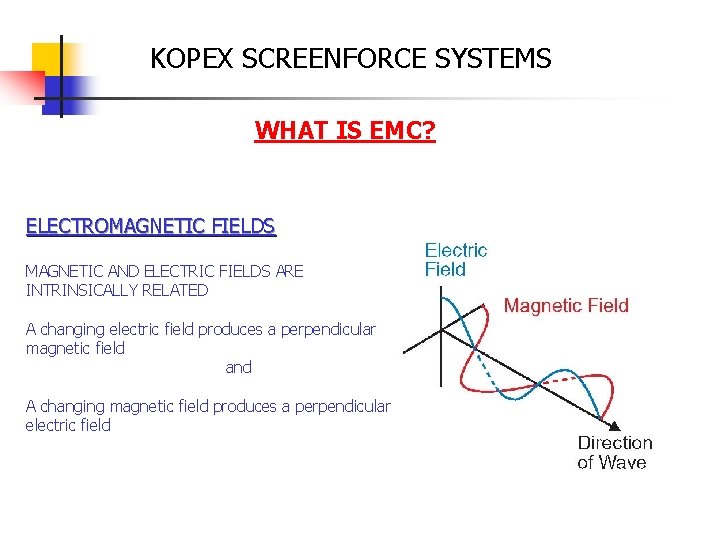

KOPEX SCREENFORCE SYSTEMS WHAT IS EMC? ELECTROMAGNETIC FIELDS MAGNETIC AND ELECTRIC FIELDS ARE INTRINSICALLY RELATED A changing electric field produces a perpendicular magnetic field and A changing magnetic field produces a perpendicular electric field

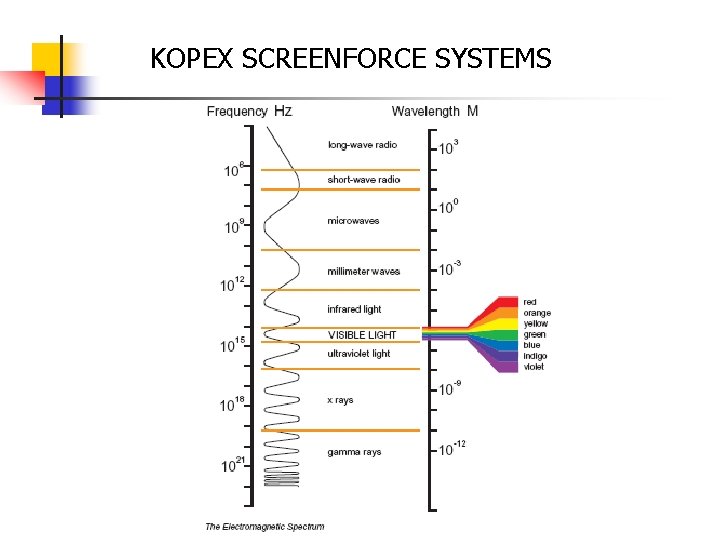

KOPEX SCREENFORCE SYSTEMS

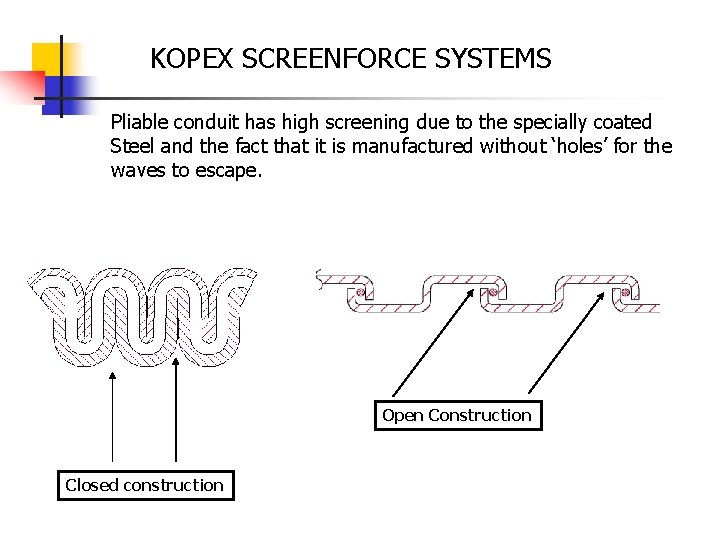

KOPEX SCREENFORCE SYSTEMS Pliable conduit has high screening due to the specially coated Steel and the fact that it is manufactured without ‘holes’ for the waves to escape. Open Construction Closed construction

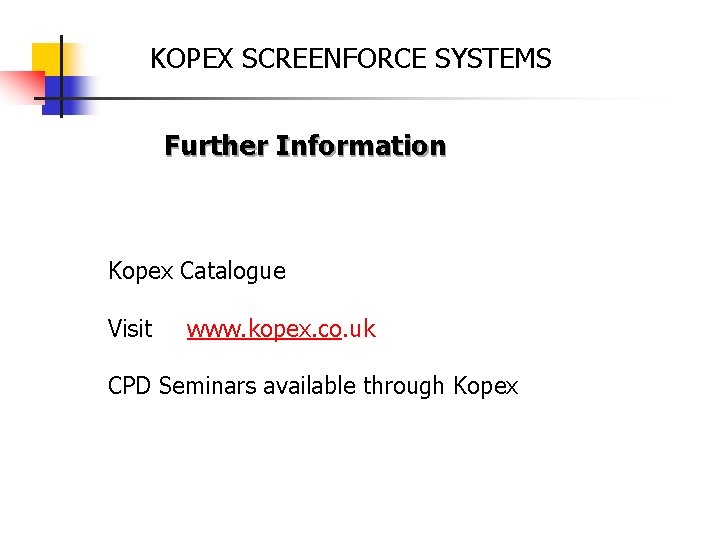

KOPEX SCREENFORCE SYSTEMS Further Information Kopex Catalogue Visit www. kopex. co. uk CPD Seminars available through Kopex
