Kontrol Series Innovation Technology Future Kontrol Series p

Kontrol Series Innovation > Technology > Future

Kontrol Series p. H ORP EC Kontrol 20 Single Parameter x x x Kontrol 40 Single Parameter x x Kontrol 100 Single Parameter x Kontrol 200 Single Parameter EC Ind Flow CLA *CLP x x x x x Kontrol 500 Single Parameter x x x Kontrol 502 Double Parameters p. H-O 2 p. H-CL p. H-ORP p. H-µS Kontrol 800 Multi Parameters x x x Photometer Multi Parameters x x x O 2 NTU SS x x x p. HO 2 NTU-CL CL-µS x x CL DPD x x *H O , PAA, O , Dioxide Chlorine through m. A input 2 2 3 Innovation > Technology > Future

Highlights • • • Professional Enclosures Box Big Display with backlight Competitive Net Price Rs 485 Mod. Bus RTU/Ascii Communication port p. H High resolution (± 0, 01 p. H) Conductivity measure for pure Water Galvanic insulation measure Frequency Output m. A Output (PLC remote connection) Power Supply 12÷ 32 Vdc /24 Vac and 100÷ 240 Vac Automatic save parameters Innovation > Technology > Future

Kontrol 100 Status bar Measure Bargraph Tool. Bar Keyboard Innovation > Technology > Future

Main Menu Press "Mode" button navigate on main menu Step 1 Step 2 Step 3 Step 4 Innovation > Technology > Future

Index menu Innovation > Technology > Future

View Level Standard Complete Two Big Measures One Big Measure Analog Tabel List Innovation > Technology > Future

Color Backlight Function Innovation > Technology > Future

Enclosures box L: 96 x. H: 96 x. D: 42 mm Weight 0, 4 kg IP 65: front panel IP 20: Back box L: 144 x. H: 144 x. D: 122, 5 mm Weight 0, 823 kg IP 65: full box Innovation > Technology > Future

96 x 96 Enclosures box Snail lock fixing system Innovation > Technology > Future

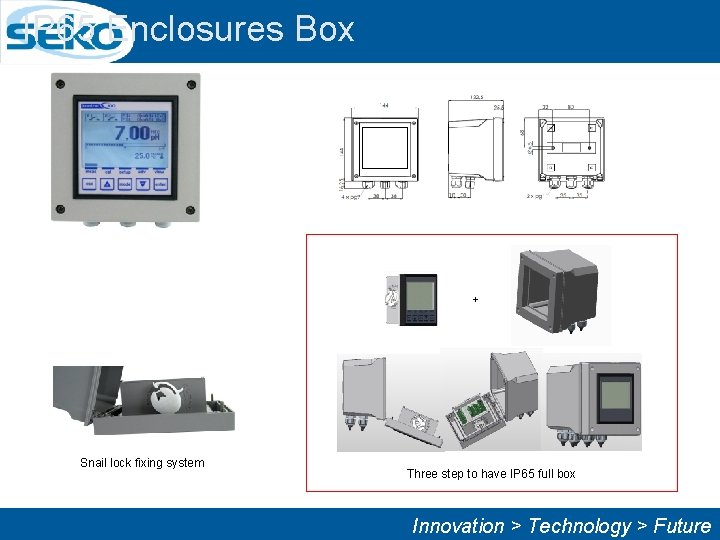

IP 65 Enclosures Box + Snail lock fixing system Three step to have IP 65 full box Innovation > Technology > Future

Kontrol 100 • Measure Range K 100 PR p. H/ORP K 100 CD EC-Cond • Measure Scale Accuracy • p. H • ORP • Conductivity • Flow Rate: • Temperature 0÷ 14, 00 p. H ± 2000 m. V 0, 054÷ 200. 000 μS(*) 0, 0÷ 99. 999 Liters/Sec. (***) -50÷ 150°C (-58÷ 302 °F ± 0, 4°F ) ± 0, 01 p. H ± 1 m. V ± 2%(**) ± 0, 5 Hz(**) ± 0, 2°C – with PT 100/PT 1000 • (*) Setting by software following unit measures: µS, m. S, KΩ, M Ω, ppm, ppb • (**) accuracy of measuring point • (***) Setting by software following unit measures: l/s, l/m, l/h, m³/h, GPM. K 100 FX Flow Rate Innovation > Technology > Future

Terminal block Power supply 100÷ 240 Vac p. H/ORP input Temperature input Solid State Relay (SSR) Relay 250 Vac 5 A Conductivity Temperature input Output 4÷ 20 m. A Serial port RS 485 Flow rate input Hold and Reed Input External signal Flow Controller (not used) Innovation > Technology > Future
