Komponen Electronika 1 Passive Components Resistors Capacitors Inductors
- Slides: 35
Komponen Electronika 1
Passive Components Resistors Capacitors Inductors Diodes Interface components 2
Values specified in ohms (Ω), kiloohms (K), or mega-ohms (M) Marked with value using a color code 0 1 2 3 4 5 6 7 8 9 5% 10% 3
ARTI NILAI WARNA PADA RESISTOR
Thin Film Resistor / Precision resistor
Chip Resistors 8
Capacitors Values specified in microfarads (μF) or picofarads (p. F) Marked with actual value or a numeric code Some varieties are +/- polarized
Capacitors Ceramic disk Monolithic ceramic Dipped siver-mica Mylar Ceramic disk Monolithic ceramic Dipped silvered-mica Mylar or polyester Aluminum electrolytic (+/-) Tantalum (+/-) Solid tantalum, polarized Radial aluminum electrolytic Axial aluminum electrolytic
Capacitors
Capacitors Variabel 0 -20 p. F 0 -10 p. F 0 -250 p. F 0 -200 p. F
Capacitors Variabel High Voltage 5 to 500 pf 5 kv vacuum variable capacitor. Variable Capacitor 25 -500 pf 15 k. V UCS-500 -15 S.
Switch/saklar
Switch/saklar
Inductors Values specified in henries (H), millihenries (m. H) and microhenries (μH) A coil of wire that may be wound on a core of air or other non-magnetic material, or on a magnetic core such as iron powder or ferrite. Two coils magnetically coupled form a transformer. 16
Inductor Molded inductor & air-wound inductor Ferrite core toroidal transformer Adjustable air-wound inductor Air wound inductor Iron powder toroidal inductor 17
INDUKTOR
INDUKTOR

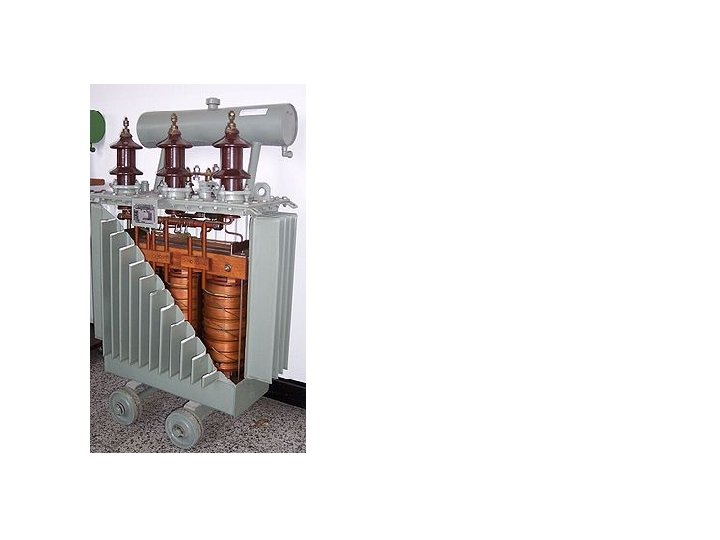

TRANFORMATOR
TRANFORMATOR
Buzzer
