KNX Energy Meter Measuring energy consumption easily and

KNX Energy Meter Measuring energy consumption – easily and intelligently

KNX Energy Meter Intelligent energy use is an increasingly important issue In order to be energyefficient, it is essential to know exactly how much energy is being consumed Schneider Electric – LSB-Nr – Date 2

KNX Energy Meter Effective energy management Precise consumption measurement ● Making buildings more cost-effective ● Guaranteeing compatibility via KNX-based energy solutions Comprehensive energy management solutions for small and mediumsized building types Energy management ● Measuring energy consumption and actively reducing in ● Private houses ● Small offices ● Commercial units Schneider Electric – LSB-Nr – Date 3

KNX Energy Meter High precision for low consumption Multiple loads possible Exact determination of the energy consumption of individual groups of devices ● Three individual consumers (such as a washing machine, oven etc. ) or three consumer groups (e. g. individual rooms) can be connected and measured ● Max. 16 A per channel ● Identify and examine in detail any unnecessary power consumption and take appropriate action Schneider Electric – LSB-Nr – Date 4

KNX Energy Meter High precision for low consumption Energy-saving functions ● Reducing the energy consumption by Flexible configuration for individual devices and users ● Dimming ● Switching ● Retrieving scenes ● Alarms for specific threshold values ● Up to eight threshold values can be configurated Schneider Electric – LSB-Nr – Date 5

KNX Energy Meter High precision for low consumption Precise cost control by setting tariffs ● Up to four tariffs can be stored ● Display the detailed consumption for each tariff ● The active energy consumption in each channel is measured very precisely: ● 1. 5% accuracy means the device reaches Class 1 according to IEC 61557 -12 Schneider Electric – LSB-Nr – Date 6

KNX Energy Meter Planning example Living room Individual rooms KNX 7’’ Touch Panel KNX Argus movement detector KNX power supply Schneider Electric – LSB-Nr – Date Movement detection KNX Universal dimming actuator Dimming KNX Energy Meter Power monitoring 7

KNX Energy Meter High precision for low consumption Main and intermediate counters Counters for different devices and periods ● Measurement of both energy consumption in the individual channels and the overall consumption of all the connected loads ● Information is made available via bus ● The measured consumption values are stored in a cache ● Measurements are not lost, if the device’s power supply fails ● Resetting the intermediate counter makes it possible to measure and display various different periods of any length Schneider Electric – LSB-Nr – Date 8

KNX Energy Meter High precision for low consumption Alarm functions Alarms signal when consumption exceeds the preset ● If consumption exceeds the preset limits, an alarm will be triggered ● The delay time before the alarm sounds can be chosen individually Time stamp ● The energy consumption values can thus precisely been related to time ● The measured values can be combined with a time stamp Schneider Electric – LSB-Nr – Date 9

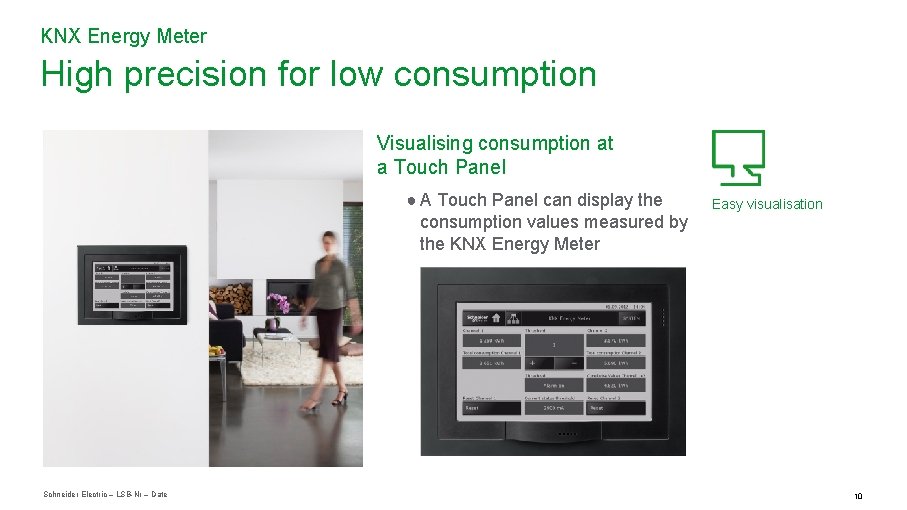

KNX Energy Meter High precision for low consumption Visualising consumption at a Touch Panel ● A Touch Panel can display the consumption values measured by the KNX Energy Meter Schneider Electric – LSB-Nr – Date Easy visualisation 10

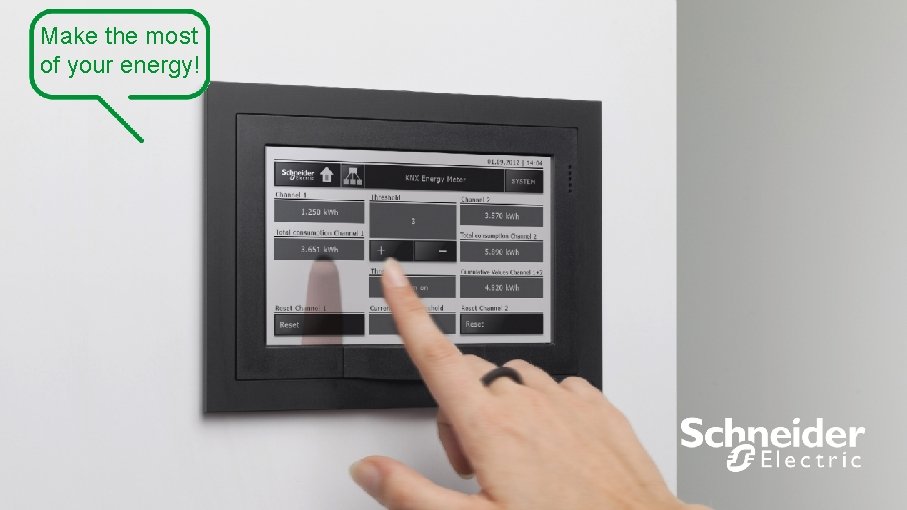

Make the most of your energy! Schneider Electric – LSB-Nr – Date 11
