Knit Stich Face Knit Stich Face Graphical representation
- Slides: 13

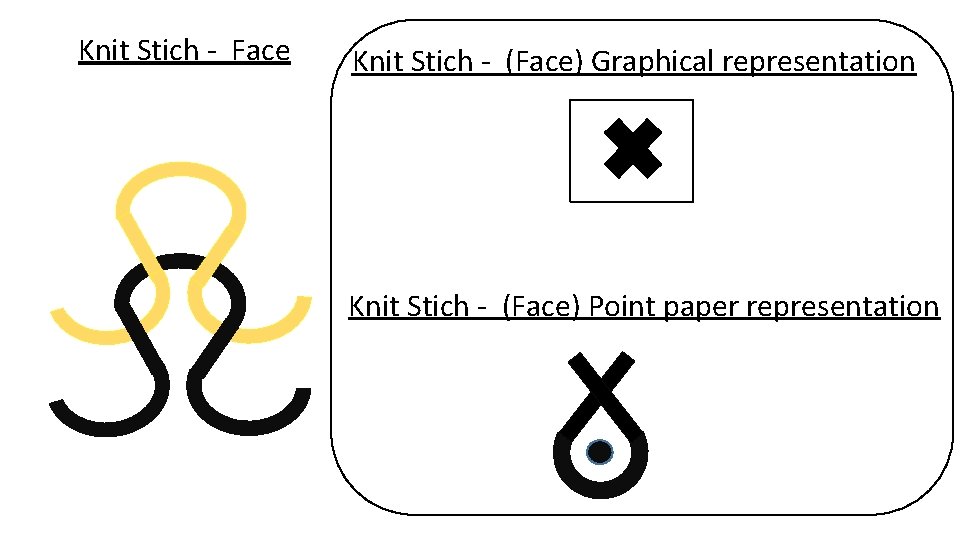

Knit Stich - Face Knit Stich - (Face) Graphical representation Knit Stich - (Face) Point paper representation
Knit Stich - Back Knit Stich - (Back) Graphical representation Knit Stich - (Back) Point paper representation

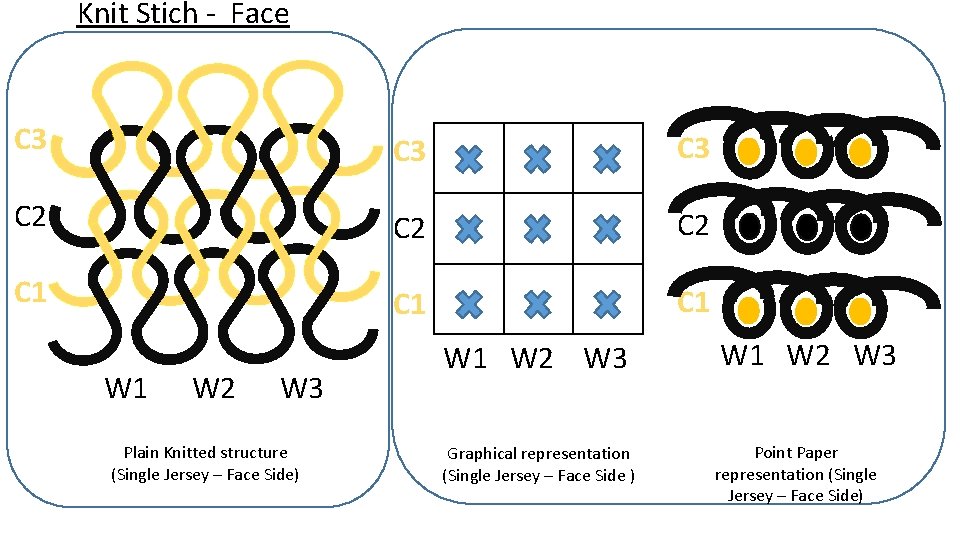

Knit Stich - Face C 3 C 3 C 2 C 2 C 1 C 1 W 2 W 3 Plain Knitted structure (Single Jersey – Face Side) W 1 W 2 W 3 Graphical representation (Single Jersey – Face Side ) Point Paper representation (Single Jersey – Face Side)

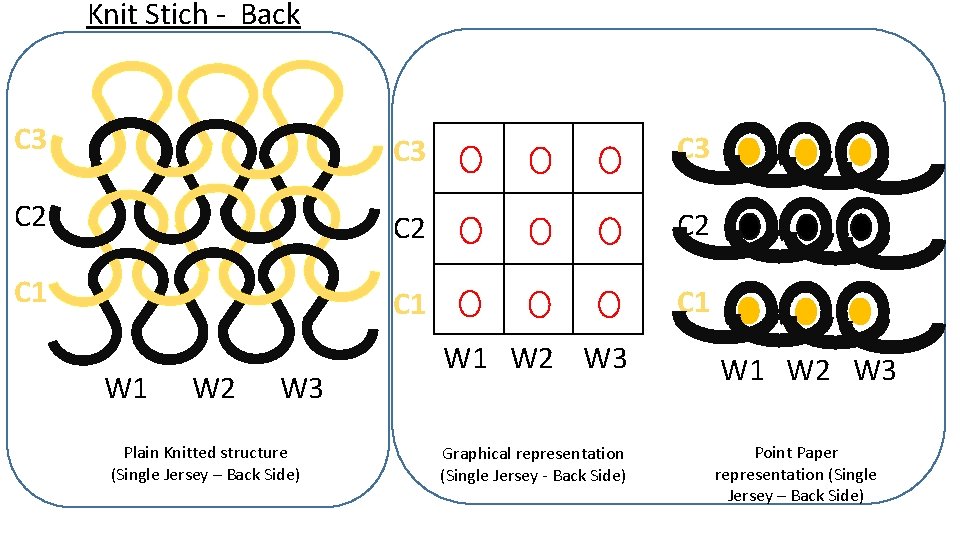

Knit Stich - Back C 3 C 3 C 2 C 2 C 1 C 1 W 2 W 3 Plain Knitted structure (Single Jersey – Back Side) W 1 W 2 W 3 Graphical representation (Single Jersey - Back Side) W 1 W 2 W 3 Point Paper representation (Single Jersey – Back Side)

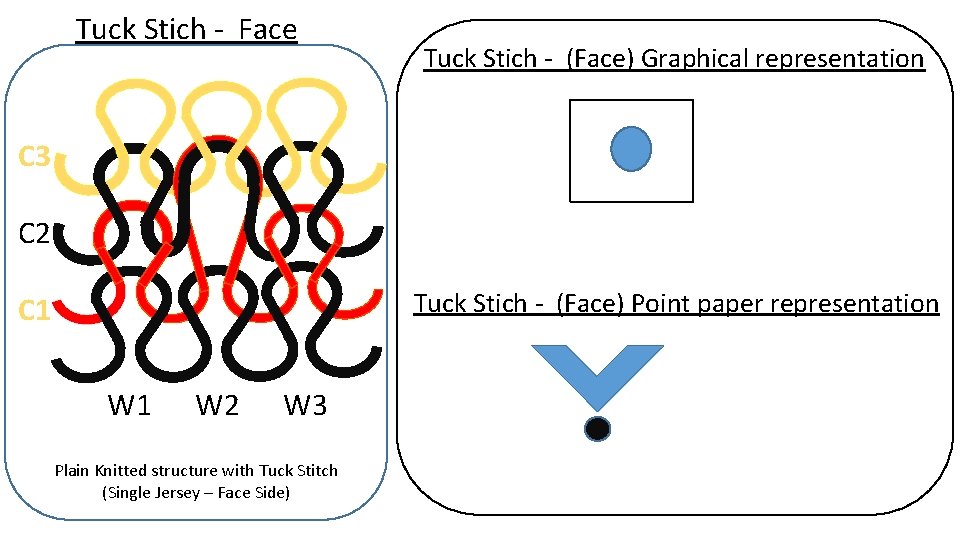

Tuck Stich - Face Tuck Stich - (Face) Graphical representation C 3 C 2 Tuck Stich - (Face) Point paper representation C 1 W 2 W 3 Plain Knitted structure with Tuck Stitch (Single Jersey – Face Side)

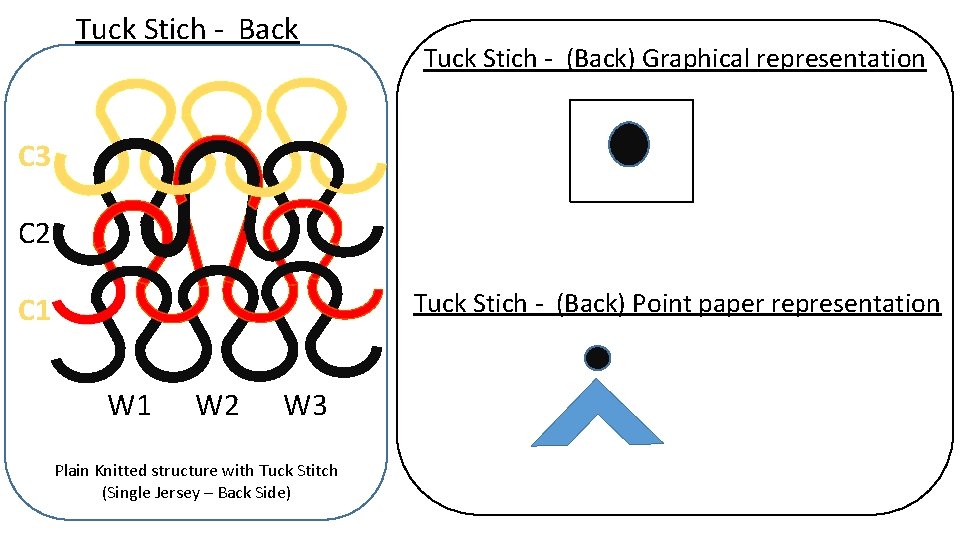

Tuck Stich - Back Tuck Stich - (Back) Graphical representation C 3 C 2 Tuck Stich - (Back) Point paper representation C 1 W 2 W 3 Plain Knitted structure with Tuck Stitch (Single Jersey – Back Side)

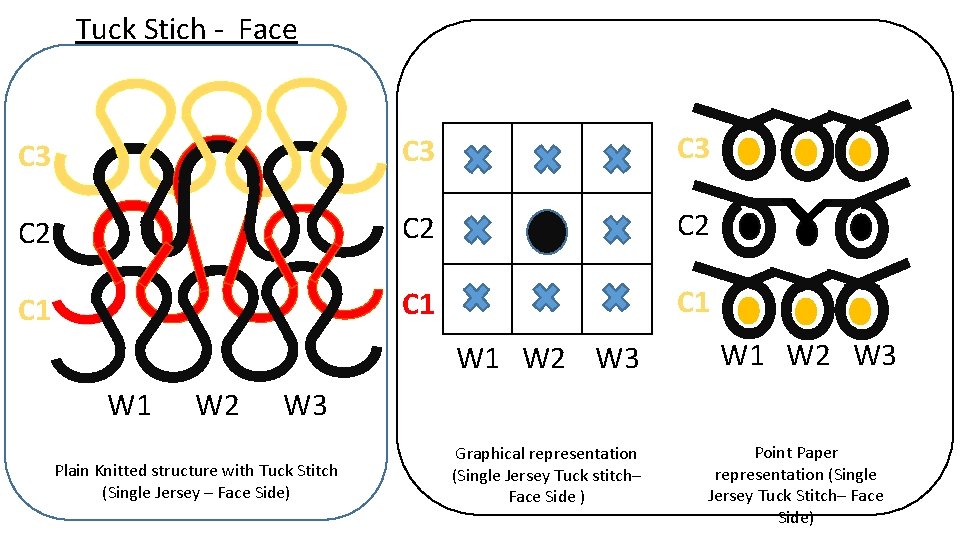

Tuck Stich - Face C 3 C 3 C 2 C 2 C 1 C 1 W 2 W 3 W 1 W 2 W 3 Plain Knitted structure with Tuck Stitch (Single Jersey – Face Side) Graphical representation (Single Jersey Tuck stitch– Face Side ) Point Paper representation (Single Jersey Tuck Stitch– Face Side)

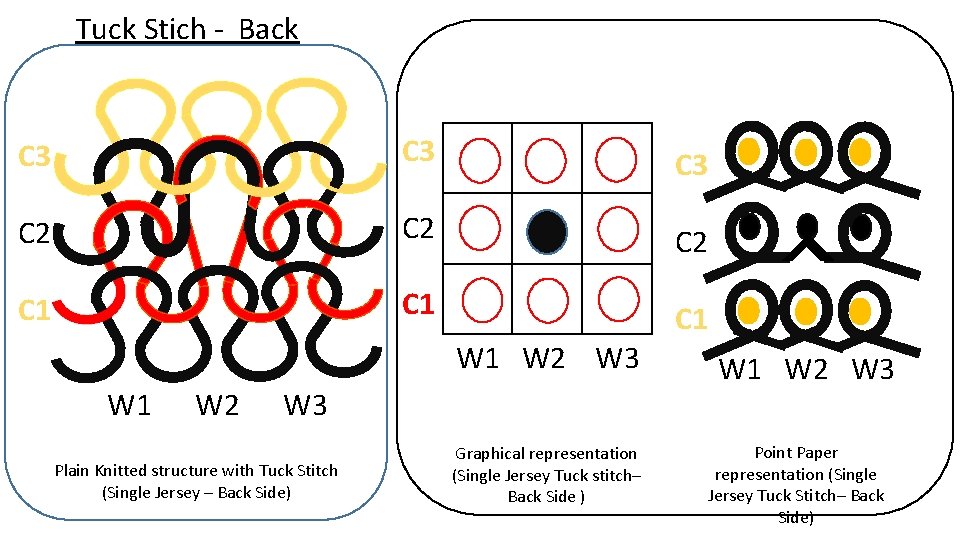

Tuck Stich - Back C 3 C 3 C 2 C 2 C 1 C 1 W 2 W 3 W 1 W 2 W 3 Plain Knitted structure with Tuck Stitch (Single Jersey – Back Side) Graphical representation (Single Jersey Tuck stitch– Back Side ) W 1 W 2 W 3 Point Paper representation (Single Jersey Tuck Stitch– Back Side)
Float/ Miss Stich - Face Float Stich - (Face) Graphical representation C 3 C 2 Float Stich - (Face) Point paper representation C 1 W 2 W 3 Plain Knitted structure with Float Stitch (Single Jersey – Face Side)

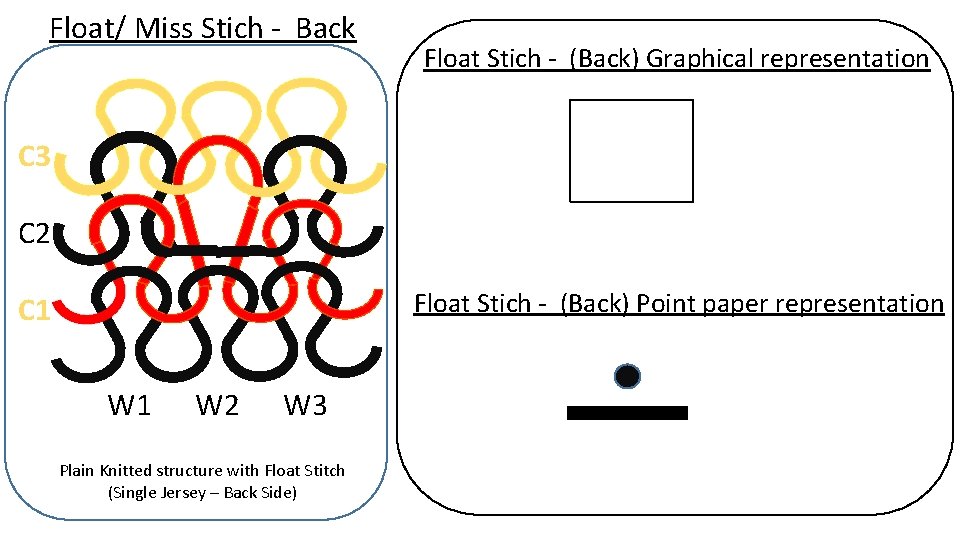

Float/ Miss Stich - Back Float Stich - (Back) Graphical representation C 3 C 2 Float Stich - (Back) Point paper representation C 1 W 2 W 3 Plain Knitted structure with Float Stitch (Single Jersey – Back Side)

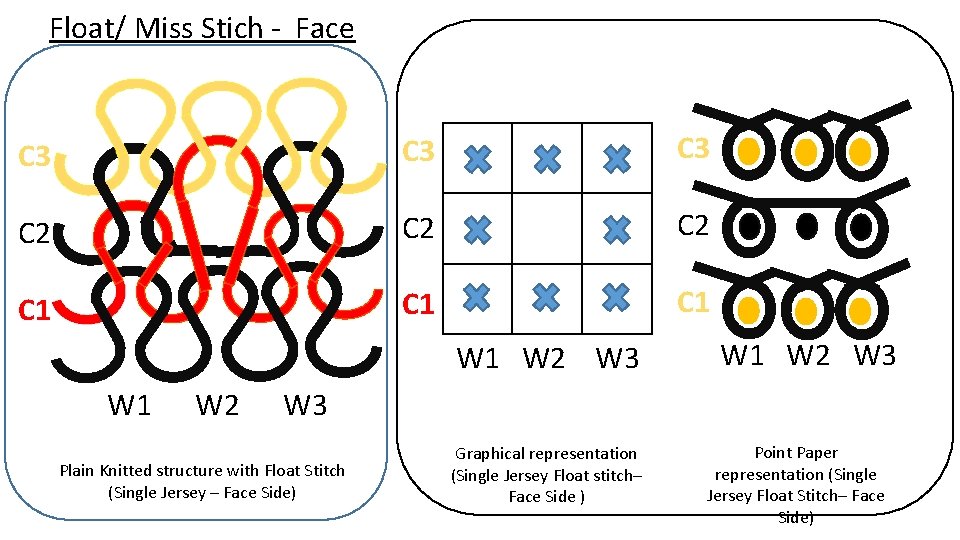

Float/ Miss Stich - Face C 3 C 3 C 2 C 2 C 1 C 1 W 2 W 3 W 1 W 2 W 3 Plain Knitted structure with Float Stitch (Single Jersey – Face Side) Graphical representation (Single Jersey Float stitch– Face Side ) Point Paper representation (Single Jersey Float Stitch– Face Side)

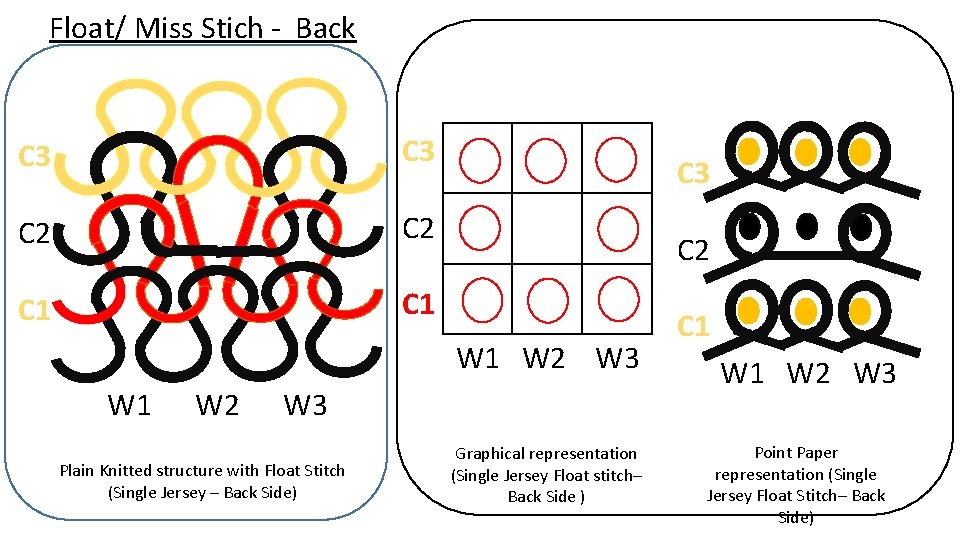

Float/ Miss Stich - Back C 3 C 2 C 1 C 3 C 2 W 1 W 2 W 3 Plain Knitted structure with Float Stitch (Single Jersey – Back Side) Graphical representation (Single Jersey Float stitch– Back Side ) C 1 W 2 W 3 Point Paper representation (Single Jersey Float Stitch– Back Side)
Comparison of different stitch / Effect of stitch w. r. t. Knit stitch Fabric Parameter Tuck Stitch Float Stitch Fabric Width Wider because tuck loop is wider Narrower Fabric Length Shrinks Extensability Less Porosity Open and porous Dimensional Stability Better because of more compact structure improves Fabric Bulk improves Flimsy less rigid Fabric Thickness Thicker because of accumulation of yarns thinner Fabric Weight heavier Lighter because less yarn is used Laddering tendency less Patterning/Fancy Effect Possible by using coloured yarn less extensible in both direction Faint horizontal lines, used to hide coloured yarns
