KLEIN MARINE SYSTEMS, INC. Harbor. Guard - Concept of Operations • Monitor Vessel Activity Along the Route and Adjacent Waters • • • Integrate Multiple Sensors – Radar, AIS, Vis/IR Cameras, Underwater Sensors, Resolve Overlapping Coverage – Hand Off Between Sensors/Platforms Use Available Data Sources (Radar, AIS) and Other Resources to Build a More Comprehensive Maritime Picture • Assess The Intent Of Vessel Movements • • • Monitor and Track Own Assets - Mobile Escorts and Vessels of Opportunity Intensify Scrutiny and Response To Unknown/Threat Contacts Analyze Vessel Operational Behavior • Classify And Identify Potential Threats Rapidly • Establish Appropriate Alarm/Rule Conditions (spatial and temporal) • Incursion and Impending Incursion Alerts • Excursion Alerts – Vessels departing from authorized areas • Deviation and Conflict Alerts • Support Appropriate Response • • • Selective Information Distribution To Others (Coast Guard, Pilots, Law Enforcement) Warning/Deterrence Mechanisms – Acoustic Hailer, Visual signaler, Laser Dazzler Intercept, Engage, Communicate

KLEIN MARINE SYSTEMS, INC. Coastal Surveillance System Satellite Surveillance LRIT, SSAS Offshore Asset Surveillance & Security System Offshore Patrol Vessel Coastal Surveillance Radar AIS Base Station Coastal Surveillance Radar Long Range Thermal IR Camera Small Target Detection Radar

KLEIN MARINE SYSTEMS, INC. Port Security Ø MTSA or ISPS Code Compliance Ø Monitor Scheduled Vessel Movements Ø Protect Unattended Waterfront Approaches to Critical Facilities § Small High Speed Craft Threats § Swimmer & Diver Threats § Underwater & Floating IED Threats Ø Real-time Information Presented to Security Stakeholders § § Small Target Detection Maritime Radar(s) EO/IR Sensor(s) AIS Perimeter surveillance radar(s) Harbor Security Zone Harbor Entrance Security Zone

KLEIN MARINE SYSTEMS, INC. Offshore Early Detection & Warning System • • • All-around 360° surveillance for critical offshore assets Radar, AIS and Sonar tracked targets on a common display Nautical chart display with alarm zone overlays Rules based alarms and actions Integration with Thermal IR sensors and Acoustic Hailing Devices Event and video recording

KLEIN MARINE SYSTEMS, INC. Critical Infrastructure/Key Resource Site Protection Providing coverage of unattended waterside approaches to CI/KR facilities Nuclear Power Plants National Historic Sites Petro-Chem Facilities Dams, Locks & critical Waterways Bridges Other Private palaces, islands, mega-yachts Wind farms, fish farms

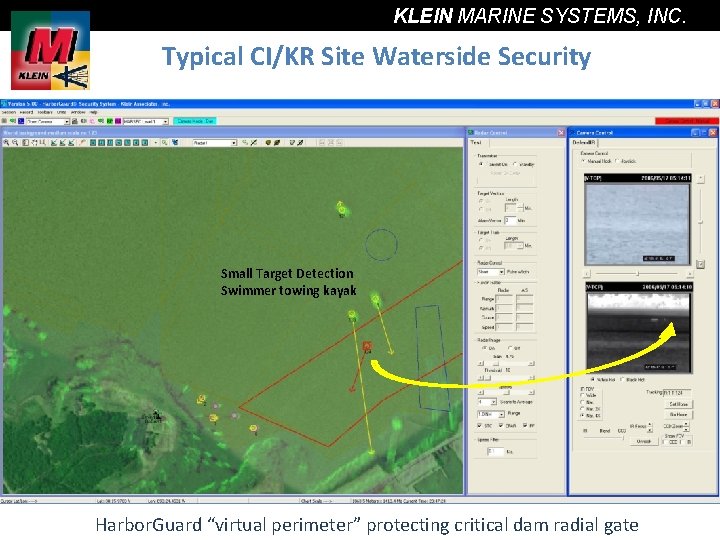

KLEIN MARINE SYSTEMS, INC. Typical CI/KR Site Waterside Security Small Target Detection Swimmer towing kayak Harbor. Guard “virtual perimeter” protecting critical dam radial gate

KLEIN MARINE SYSTEMS, INC. Asymmetric Threat Surface Threats (waterborne vehicles) Floating Threats (mines/IED’s) Underwater Threats (divers, mines/IED, AUV’s)

KLEIN MARINE SYSTEMS, INC. Small Target Detection Radar Ø Protect unattended waterside approaches to critical facilities § Cruise terminals, hazardous material facilities, military bases, critical infrastructure sites Ø Simple Installation § Small foot print – can be installed on existing facilities § Low radar power – minimal exposure hazard Ø Scalable Coverage capabilities § 1 km up to 15 km range Ø Unique Radar Processing specifically designed for small target detection in changing sea states § Demonstrated ability to detect surface swimmers, floating IED’s, mine’s, etc Ø Fast scan update rate (80 RPM) § Real time tracking of small high speed craft § Quick “slew-to-cue” response for integrated Thermal/Optic PTZ sensors

KLEIN MARINE SYSTEMS, INC. High Resolution Small Target Detection Radar Unique High Resolution Radar Image Overlay Capability - Advanced Signal Processing High dynamic range 960 x 12 -bit resolution In high threat, high clutter user can detect intermittent targets Adjustable Image Opacity Actual Radar Image Google Map Satellite View

KLEIN MARINE SYSTEMS, INC. Small Target Detection Performance IALA Target Type Target Description RCS Radar 20 m ASL 1 Small open boats, fiberglass, wood or rubber at least 4 meters long… target at 1 m above the surface 1 m 2 2 Inshore fishing vessels, sailing boats, speed boats… target at 2 m above the surface 3 m 2 N/A Low observable vessel, kayak, jet ski, canoe… target less than 1 m above the surface N/A Surface swimmer, floating WBIED… target less than 0. 5 m above the surface, typically awash Radar 8 m ASL 4. 1 nautical miles 2. 2 nautical miles 6. 0 nautical miles 3. 5 nautical miles 0. 25 - 0. 5 m 2 3. 2 nautical miles 2. 1 nautical miles 0. 01 – 0. 1 m 2 2. 0 nautical miles 1. 3 nautical miles Example

KLEIN MARINE SYSTEMS, INC. Integration Flexibility Visualization Surveillance o Radar o CCTV & Thermal IR § Klein Series 2000 Small Target Detection Radar • All around surveillance • Light weight • Configuration Options for short and long range surveillance § Compatible with 3 rd Party Radar Systems • Short range perimeter radars • Coastal Surveillance/VTS Radars • Terma 5000 Series • Kelvin-Hughes Sharp. Eye series o AIS § o Diver Detection Sonar § Underwater security perimeter • • • Vessel perimeter monitoring Protection from underwater threats while dockside or at anchor Portable “over-the-side” or permanent thru-hull Pelco Excite (Ex) PTZ LRAD RXL LRAD RX • Night/day security zone monitoring • Automatic slew-to-cue on radar intruder RVision Carbide 16 CZ FLIR Ranger® MS-UC Defend. IR Ultra Hyper. Spike o Non-lethal Impairment § Laser “dazzler” visual confuser § High pressure remote water cannon § Long Range Thermal IR (cooled) • Long range target identification • Automatic slew-to-cue on radar intruder Sea. Lase Maritime Nonlethal Laser System Rvision Carbide C 75 Sonardyne Sentin el § Project loud and clear warnings § If necessary, debilitating aversion tone Pelco Spectra IV Dome § Short Range Thermal IR (uncooled) FLIR PT-600 Compatible with NMEA/IEC interface data standard o Acoustic Hailing Device (AHD) § Color Day Camera Pelco Espirt PTZ Deterrence & Response MOOG MWIR CZ FLIR Ranger HRC L-3 CE Night. Hawk Unifire Anti-pirate Water Cannon

KLEIN MARINE SYSTEMS, INC. Maritime Domain Awareness Monitoring and Control room displays - Geospatial Displays - Generated alerts - Radio and data comms to support units Remote clients - Supports real-time remote monitoring - Shared data with mobile assets Data support - Real-time vessel & track feeds - Geospatial layers - Recording of all system parameters

KLEIN MARINE SYSTEMS, INC. Expert Services & Support q Concept of Operations Support o o Maritime Surveillance SME’s Compliance with relevant rules & regs (IEC, IMO, IALA, MTSA, ISPS) q Site survey o o Identify candidate sensor sites for optimal system performance Detailed predictive performance analysis (radar, viewshed, GIS tools) q System Design and Integration o o Custom engineering; software integration and hardware integration Detailed installation, cabling and structural drawings (Dn. V, ABS) q Installation support o o Installation supervision, set-to-work and commissioning FCC licensed radar technicians q Operator and maintainer training o Factory or on-site training q Life cycle support o o 24/7/365 phone & email support Detailed maintenance plans Extended warranty and service contract options Spare parts support
