Kinepolis BASICS EDG Candidate Objects q q q
Kinepolis BASICS - EDG

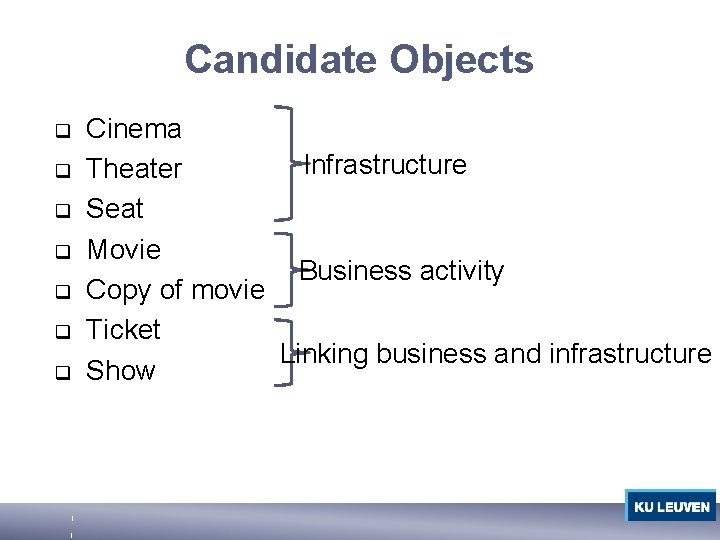

Candidate Objects q q q q Cinema Infrastructure Theater Seat Movie Business activity Copy of movie Ticket Linking business and infrastructure Show
Remarks q Difference between Movie and Movie. Copy o q Difference between Seat and Ticket o q A movie can have multiple copies. These copies are stored on multiple locations. It is possible to sell multiple tickets per seat (for separate shows). In response, it is possible to calculate the revenue per seat. Difference between Show and Copy o A customer does not pay for a copy. He/she pays to see a show were a copy is displayed.
Infrastructure Cinema Can be mandatory. Optional is OK. Theatre Seat is an abstract concept. It is not the physical seat. You cannot move a seat from one theatre to another. It is only used to indicate the space for someone to sit.

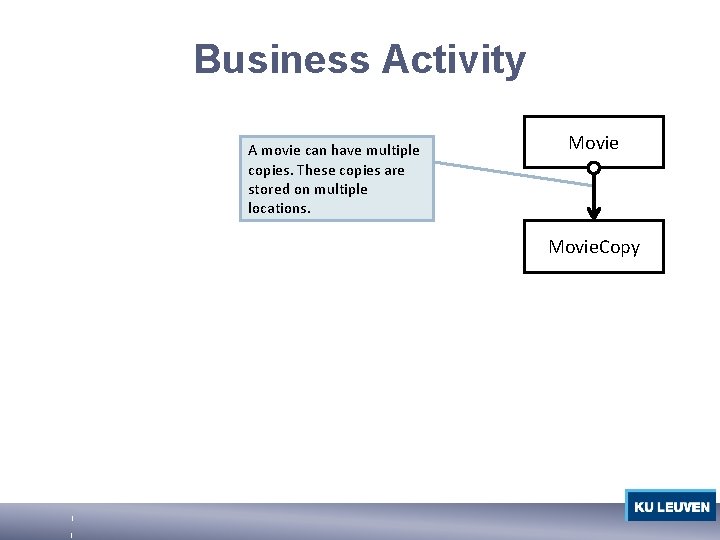

Business Activity A movie can have multiple copies. These copies are stored on multiple locations. Movie. Copy
Linking Infrastructure and Business Cinema A Cinema has multiple Copy. Locations where it can store a Movie. Copy. Theatre Movie. Copy. Location Seat Attributes - Start. Date - End. Date A copy of a movie can only be shown on one location on a single point in time, but can be transferred to other locations across time This also enables you to show a planning.

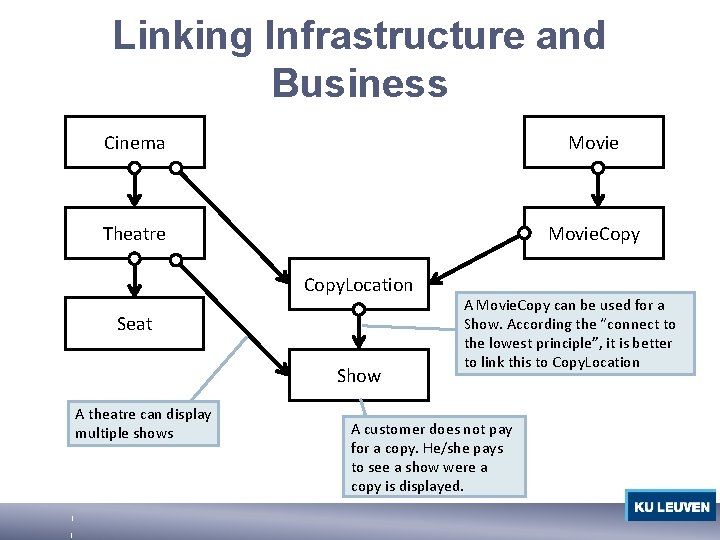

Linking Infrastructure and Business Cinema Movie Theatre Movie. Copy. Location Seat Show A theatre can display multiple shows A Movie. Copy can be used for a Show. According the “connect to the lowest principle”, it is better to link this to Copy. Location A customer does not pay for a copy. He/she pays to see a show were a copy is displayed.
Linking Infrastructure and Business Cinema Movie Theatre Movie. Copy. Location Seat A seat can be used for multiple tickets A ticket is a unit that can be sold Show Ticket A show can be displayed for multiple tickets

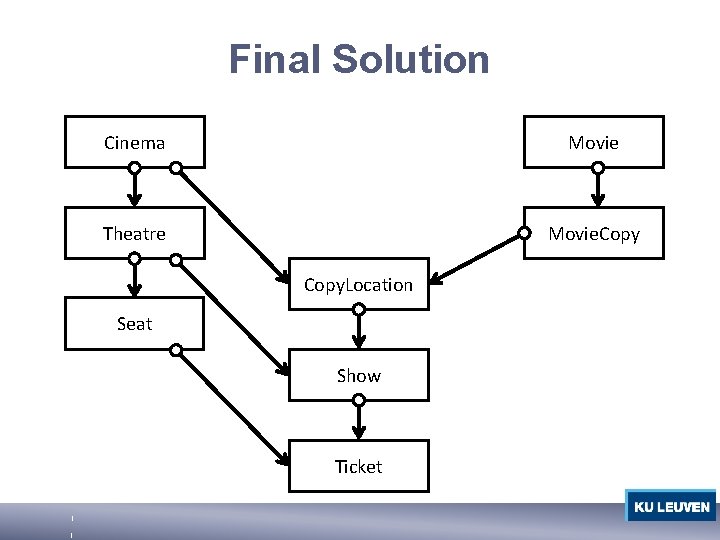

Final Solution Cinema Movie Theatre Movie. Copy. Location Seat Show Ticket
