Kinematic Synthesis of Robotic Manipulators from Task Descriptions
Kinematic Synthesis of Robotic Manipulators from Task Descriptions June 2003 By: Tarek Sobh, Daniel Toundykov
Envisioning Optimal Geometry Workspace Dimensions and Coordinates of the Task-Points Restrictions on Manipulator Configuration Velocity and Acceleration Requirements Obstacles, Working Medium, and Trajectory Biases
Objectives Parameters considered in this work: n n n Coordinates of the task-points Spatial constraints Restrictions (if any) on the types of joints Goals n n n Simplified interface Performance Modular architecture to enable additional optimization modules (for velocity, obstacles, etc. )
Optimization Techniques Minimization of cost functions Stochastic algorithms Parameters space methods Custom algorithms developed for specific types of robots
Steepest Descent Method {fi(x)=0} → S(x)=∑fi(x)2 System of equations is combined into a single function whose zeroes correspond to the solution of the system Algorithm iteratively searches for local minima by investigating the gradient of the surface S(x). Points where S(x) is small provide a good approximation to the optimal solution.
Manipulability Measure w=√det(J∙JT) For performance purposes the manipulability measure was the one originally proposed by Tsuneo Yoshikawa Singular configurations are avoided by maximizing the determinant of the Jacobian matrix
Optimization Measure Task Points Manipulability Measure Dimensional Restrictions Manipulator Jacobian DOF & Types of Joints Joint Vector
Single Target Problem Cost = [b + Manipulability]-1 + p [Distance to target] b : = bias to eliminate singularities p : = precision factor Parameters that minimize the cost yield larger manipulability and small positional error Increase of the precision factor forces the algorithm to reduce the positional error in order to compensate the overall cost growth
Optimization for Multiple Targets Several single-target cost functions are combined into a single expression Single-target cost functions share the same set of invariant DH-Parameters; however, each of these functions has its own copy of the joint variables
Invariant DH-Parameters Invariant parameters depend on the types of joints When no joints are specified, the algorithm compares all possible configurations based on the average manipulability value Invariant DH-parameters have a dumping factor. If dumping is large, the dimensions of the robot must decrease to keep the total cost low
Results of Optimization Shared DH-parameters → Geometry that maximizes manipulability at each target Joint Vector for Target 1 → Inverse Solution for Target 1 … Joint Vector for Target N … → Inverse Solution for Target N
Mathematica® (Wolfram Research Inc ) Powerful mathematical and graphics tools for scientific computing Flexible programming environment Availability of enhancing technologies: n n n Nexus to Java-based applications via J/Link interface Flexible Web-integration provided by web. Mathematica® software Potential access to distributed computing systems, such as grid. Matematica®
CAD Module Structure Computation Center Input Data Filter Dynamic Expression Library Graphics tools (use Rbotica package) File Processing Tools Generator of Jacobian Matrices Generator of Transformation Matrices Generator of Optimization Measure
Input Data The set of task points Configuration restrictions: n n DOF value if the system should determine optimal types of joints by itself or a specific configuration, such as Cartesian, articulated etc. Precision and size-dumping factors Output file name

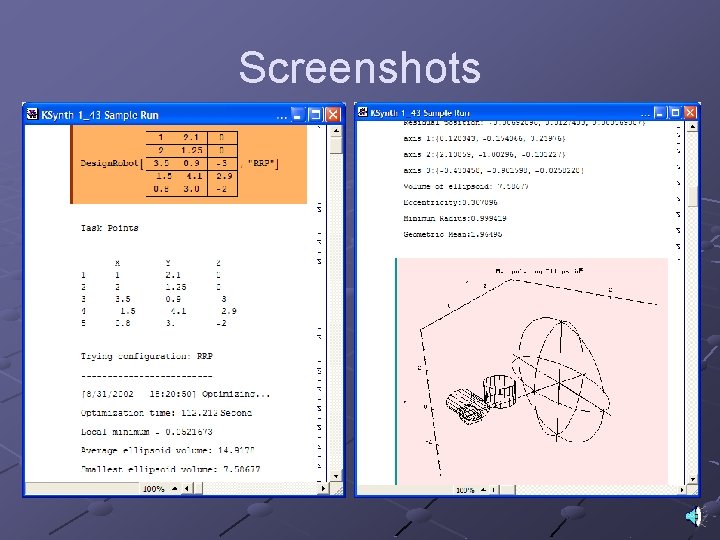

Screenshots

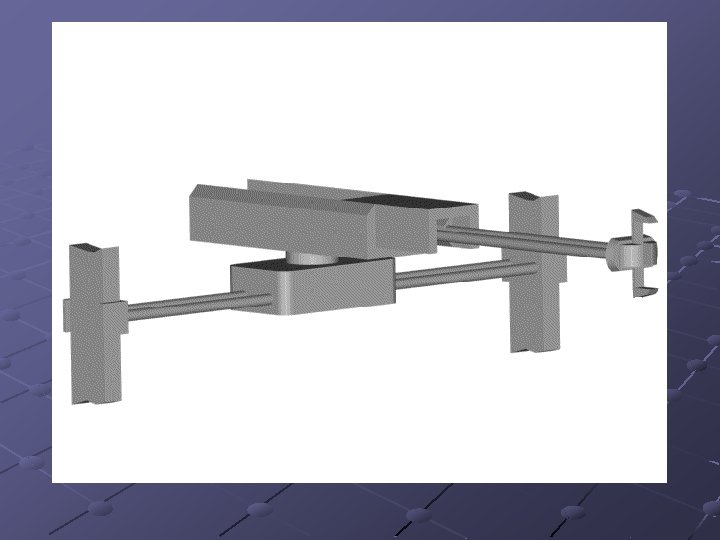

Sample I Design a 3 -link robot for a specific parametric trajectory No configuration was given, so the software had to choose the types of joints Dimensions of the robot were severely restricted
Sample I : Trajectory
Sample I : DH-Table (PRP) Length Twist Offset Angle -0. 61557 -0. 0022699 d 1 0. 037812 2 -0. 0025489 1. 56847 5. 0315 x 10 -4 q 2 3 4. 1630 x 10 -4 0 d 3 0. 92619 1
Sample I : Manipulability Ellipsoids
Sample II The trajectory has been changed This time we require a spherical manipulator No significant spatial constraints have been provided
Sample II : Trajectory
Sample II : DH-Table (RRR) Length Twist Offset Angle 1 1. 6261 -1. 5700 -0. 040365 q 1 2 1. 5632 -4. 9335 x 10 -4 -0. 0012193 q 2 3 1. 5638 0 1. 8082 x 10 -4 q 3
Sample II : Manipulability Ellipsoids
Further Research Work has been done to account for robot dynamics and velocity requirements Online interface to the design module Future research may include obstacle avoidance and integration with distributed computing architectures
