Kidney Functions n n n n Filters blood

Kidney Functions n n n n Filters blood plasma, eliminates waste, returns useful chemicals to blood Regulates blood volume and pressure Regulates osmolarity of body fluids Secretes renin, activates angiotensin, aldosterone – controls BP, electrolyte balance Secretes erythropoietin, controls RBC count Regulates PCO 2 and acid base balance Detoxifies free radicals and drugs Gluconeogenesis

Nitrogenous Wastes n n Urea – proteins amino acids NH 2 removed forms ammonia, liver converts to urea Uric acid – nucleic acid catabolism Creatinine – creatinine phosphate catabolism Renal failure – azotemia: nitrogenous wastes in blood – uremia: toxic effects as wastes accumulate

Renal System Functions of kidney: n. Remove waste products from the blood n. Control the acid base balance (through HCO 3 - & H+) n. Secrete Hormones and enzyme like erythropoietin and rennin. n. Activates Vitamin D. n. Make G from non CHO sources (make sugar from proteins at time of starvation (gluconeogenesis). )

Urinary System Two kidneys • Two ureters • Urethra •

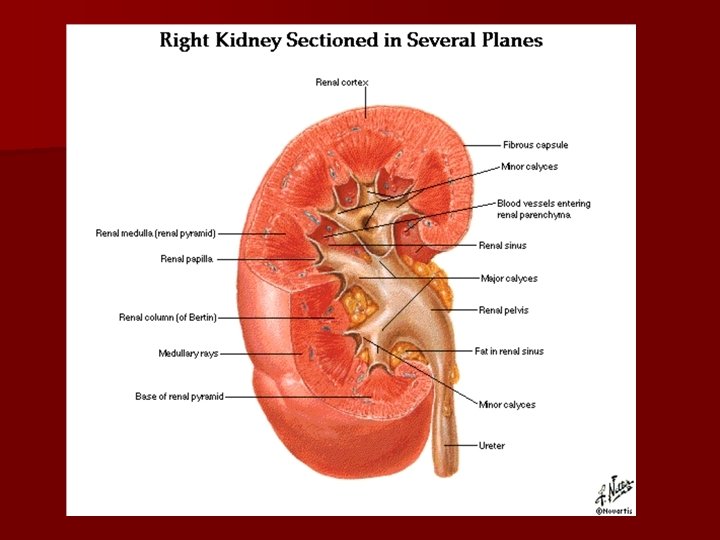

Anatomy of Kidney n Renal cortex: outer 1 cm Renal medulla: renal columns, pyramids - papilla n Lobe of kidney: pyramid and it’s overlying cortex n

Lobe of Kidney

Renal (Uriniferous) Tubule Proximal convoluted tubule (PCT) – longest, most coiled, simple cuboidal with brush border n Nephron loop - U shaped; descending + ascending limbs n Thin segment (simple squamous)…water permeable – thick segment (simple cuboidal) initial part of descending limb and part or all of ascending limb, active transport of salts n Distal convoluted tubule (DCT) – cuboidal, minimal microvilli n

Renal (Uriniferous) Tubule 2 n Juxtaglomerular apparatus: DCT, afferent, efferent arterioles Collecting duct: several DCT’s join n Flow of glomerular filtrate: n – glomerular capsule PCT nephron loop DCT collecting duct papillary duct minor calyx major calyx renal pelvis ureter urinary bladder urethra

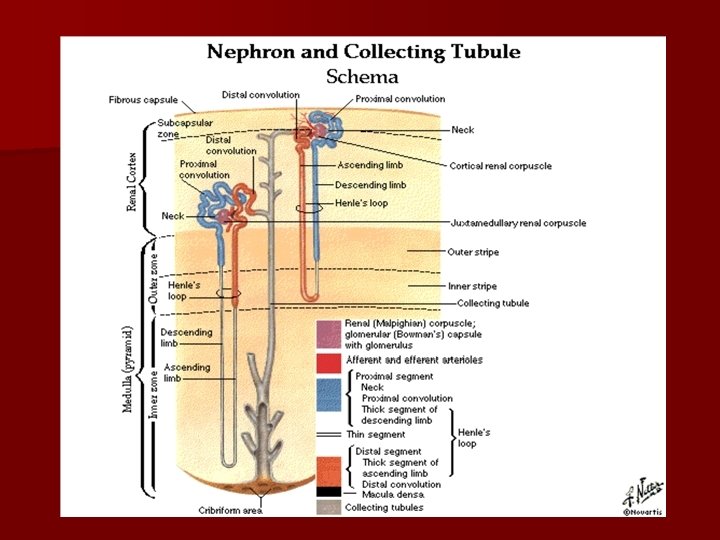

Nephron Diagram n Peritubular capillaries shown only on right

Nephrons True proportions of nephron loops to convoluted tubules shown n Cortical nephrons (85%) – short nephron loops – efferent arterioles branch off peritubular capillaries n Juxtamedullary nephrons (15%) – very long nephron loops, maintain salt gradient, helps conserve water – efferent arterioles branch off vasa recta, blood supply for medulla n

Renal pyramid Efferent vessel Inferior renal capsule Afferent vessel Renal artery Renal vein Renal hilum Renal pelvis Ureter Minor calyx Nephron Minor calyx Major calyx Renal capsule Renal papilla Inferior renal capsule Renal column

Functions of Nephron Structures n Afferent Arteriole – Transports arterial blood to the glomerulus for filtration Unit 1 - Objective 4

Functions of Nephron Structures n Efferent Arteriole – Transports filtered blood from the glomerulus , through the peritubular capillaries and the vasa recta, and to the kidney venous system Unit 1 - Objective 4

Functions of Nephron Structures n Glomerulus – The site for blood filtration – operates as a nonspecific filter; in that, it will remove both useful and nonuseful material – the product of the glomerulus is called filtrate Unit 1 - Objective 4

Functions of Nephron Structures n Bowman’s Capsule – A sac that encloses Bowman’s Capsule and transfers filtrate from the glomerulus to the Proximal Convoluted Tubule (PCT) Unit 1 - Objective 4

Functions of Nephron Structures n Proximal Convoluted Tubule (PCT) – A thick, constantly actively segment of the nephron that reabsorbs most of the useful substances of the filtrate: sodium (65%), water (65%), bicarbonate (90%), chloride (50%), glucose (nearly 100%!), etc. – The primary site for secretion (elimination) of drugs, waste and hydrogen ions Unit 1 - Objective 4

Functions of Nephron Structures n Descending Limb of the Loop of Henle – A part of the counter current multiplier – freely permeable to water and relatively impermeable to solutes (salt particles) – receives filtrate from the PCT, allows water to be absorbed and sends “salty” filtrate on the next segment. “Saves water and passes the salt” Unit 1 - Objective 4

Functions of Nephron Structures n Ascending Limb of the Loop of Henle – part of the counter current multiplier – impermeable to water and actively transports (reabsorbs) salt (Na. Cl) to the interstitial fluid of the pyramids in the medulla. “Saves salt and passes the water. ” – the passing filtrate becomes dilute and the interstitium becomes hyperosmotic Unit 1 - Objective 4

Functions of Nephron Structures n Distal Convoluted Tubule (DCT) – receives dilute fluid from the ascending limb of the Loop of Henle – Variably active portion of the nephron – When aldosterone hormone is present, sodium is reabsorbed and potassium is secreted. Water and chloride follow the sodium. Unit 1 - Objective 4

Functions of Nephron Structures n Collecting Duct – receives fluid from the DCT – variably active portion of the Nephron – when antidiuretic hormone (ADH) is present, this duct will become porous to water. Water from the collecting duct fluid then moves by osmosis into the “salty” (hyperosmotic) interstitium of the medulla. – The last segment to save water for the body Unit 1 - Objective 4

Functions of Nephron Structures n Peritubular Capillaries – transport reabsorbed materials from the PCT and DCT into kidney veins and eventually back into the general circulation – help complete the conservation process (reabsorption) that takes place in the kidney Unit 1 - Objective 4

Path of Blood Through Kidney n Renal artery interlobar arteries (up renal columns, between lobes) arcuate arteries (over pyramids) interlobular arteries (up into cortex) afferent arterioles glomerulus (cluster of capillaries) efferent arterioles (near medulla vasa recta) peritubular capillaries interlobular veins arcuate veins interlobar veins n Renal vein

Blood Supply Diagram

Anatomy of kidneys: Cortex : contain glomeruli ----->filtration Medulla : contain tubules ----->secretion and reabsorption n (each tubule is 5 -6 cm long) * Cortical atrophy : glomerulonephrits * Medullary atrophy : tubular nephritis n Cortical nephron have short loop of Henle n Juxta-medullary nephron Have long loop of Henle and this is important in urine concentration (15 -20%). n In each kidney we have 1 million afferent arteriole & nephron. n n

Functional Anatomy of the Kidney Structure & function of the kidney are closely matched. The kidney is a combination of: 1. Ultrafiltation device (the glomerular apparatus). 2. Epithelium (tubules), which modifies the ultrafiltarte by: - addition (secretion) or - removal (reabsorption). n

n Filtration in kidney is also affected, as systemic capillaries, by Starling forces (Hydrostatic & Osmotic pressure in & out… 4 forces). n Bowman’s capsule stands for the interstitium n To be discussed with regulation of GFR

RBF n n Kidneys are reconditioning organs i. e. Receive too much blood. RBF= 20 -25% of Q →→ This makes the A-V oxygen difference small. Nevertheless, kidneys consume twice O 2/per gm tissue as brain. This O 2 consumption is directly related to Na+ reabsorption. If GFR is high → Na+ reabsorption is high→O 2 consumption is high. When GFR is severely depressed (Acute RF) → decrease need for O 2 …. nothing to reabsorb If RBF decreases →→acute renal Failure

Tissue Blood flow (ml/g/min) Heart 0. 8 A-V difference Vol% 11 Brain 0. 5 6. 2 Sk muscles 0. 03 6 Liver 0. 6 3. 4 Kidney 4. 2 1. 4 Carotid bodies 20 0. 5

How to measure Renal Plasma Flow (RPF) : RPF : how much plasma enter both kidneys per minute. n We use a substance X that is completely removed (cleaned) from the blood once it reaches the kidneys: i. e. Renal vein concentration of X = 0 n i. e; once comes to the peritubular capillaries is completely secreted. n The substance used commonly here is the PAH (para-aminohippuric acid. ) n

RPF 650 ml is the RPF. n 125 is filtered (GFR). n How much is the filtration fraction? n 525 leave through efferent arteriole and go to peritubular capillaries. n 1 ml/min is the urine output. . n

Example n n n n NOTE : this is not a routine clinical test. So. . if we inject a certain amount of PAH in blood to achieve certain blood concentration. If RPF is 650 ml/min. And urine output is 1 ml/min Then, the concentration of PAH will increase 650 times in the urine. But actually this is not the case. Because 10 % of renal blood goes to nourish the kidney i. e. don’t participate in the renal function…. don't reach the glomeruli So 585 ml/min (90%) is the effective RPF and 650 ml/min (100%) is called true or total RPF. True RBF = effective RBF 0. 9.

PHA CURVE for FILTRATION and SECRETION : n n n n Filtration is passive. Secretion is active (saturation). Filtered load of “x” : is how much of “x” is being filtered/minute. Filtered load is proportional to its plasma conc. (linear) Since GFR = 125…………filtration counts for 125/650 = 20 % of excretion of PAH in urine. Secretion counts for 80 %. Secretion exhibit Tmax; (Transport maximum. ) The excretion curve is the sum of the above two curves.

PHA CURVE for FILTRATION and SECRETION : 140 120 100 80 60 excreted 40 secreted 20 Filtrated 20 40 60 80 100 120 140
