KEY FEATURES CRITERIA LGS CONSTRUCTION TECHNICAL ADDEDVALUE IMPLEMENTATION
- Slides: 26
KEY FEATURES & CRITERIA LGS CONSTRUCTION

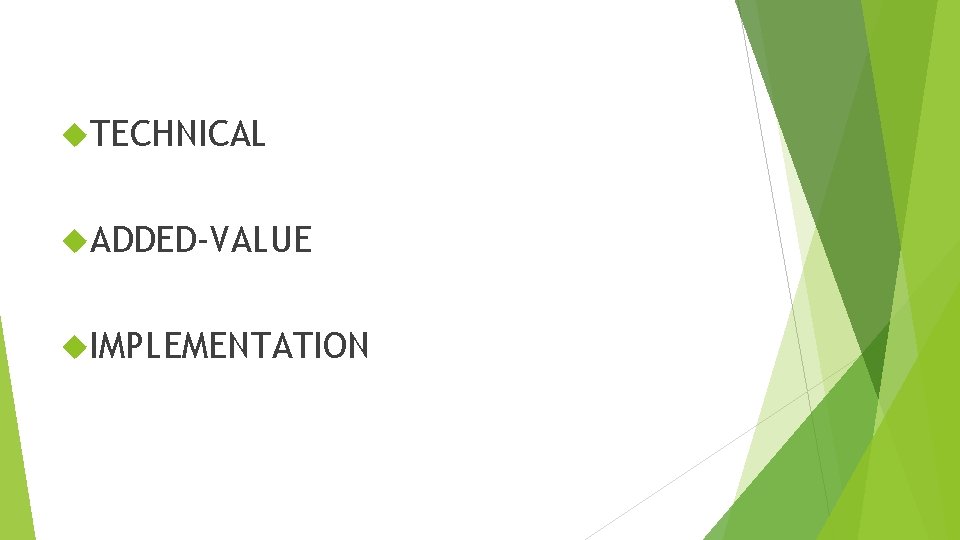

TECHNICAL ADDED-VALUE IMPLEMENTATION
TECHNICAL LIGHTWEIGHT CFS wall panels and trusses weigh less without sacrificing durability; faster and easier installation; Use of FC can achieve reduction in weight from 10% to 95% compared with dense weight concrete; Structural components and foundation cost are greatly reduced due to the lower deadweight of the building, in particular on high-rise projects offering substantial savings.
ACOUSTIC INSULATION Foam Concrete assures improved acoustics and superior sound control as it is being absorbed (especially low frequency noise), not reflected as is the case with dense weight concrete or brick walls; Concrete closes all cavities in the wall structure– no hollow sounds.

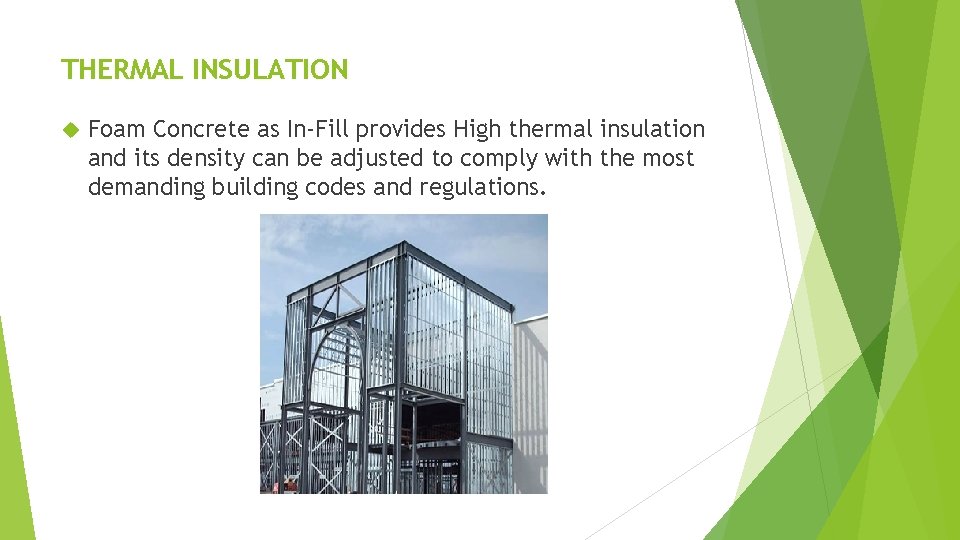

THERMAL INSULATION Foam Concrete as In-Fill provides High thermal insulation and its density can be adjusted to comply with the most demanding building codes and regulations.
FIRE RESISTANCE 100% non combustible; Low fire risk; FC filled CFLGS panels and frames offer fire rating of a minimum of 3 hours for a 90 mm thick panel.
ADDED-VALUE INTEGRATION OF SERVICES As panels are designed with the provision of service holes for electrical and water conduits and junction/terminal boxes, there is much convenience for plumbing and electrical installations; Recesses in the floors/ceilings due to the spanned joists allow for fitting mechanical equipment and components such as fan coil units and insulated copper pipes;

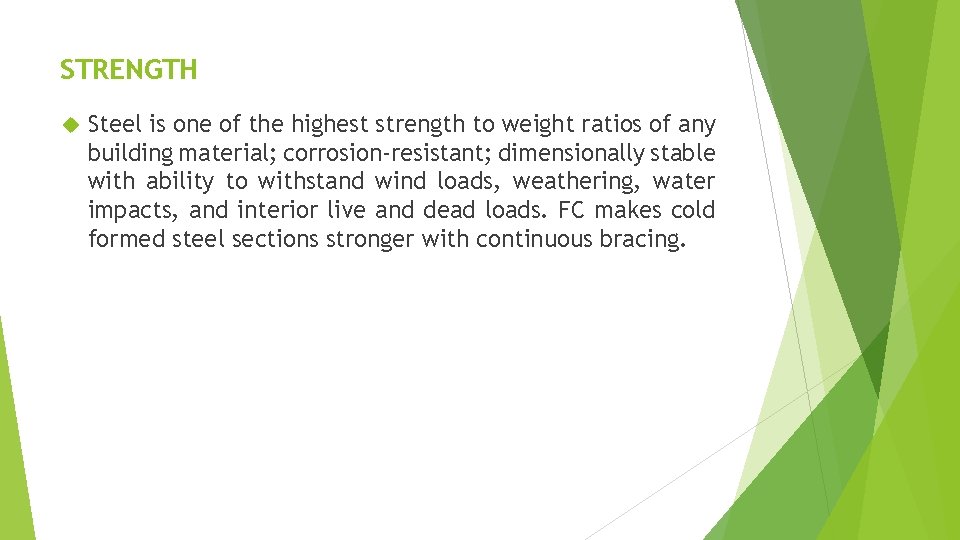

STRENGTH Steel is one of the highest strength to weight ratios of any building material; corrosion-resistant; dimensionally stable with ability to withstand wind loads, weathering, water impacts, and interior live and dead loads. FC makes cold formed steel sections stronger with continuous bracing.
PERFORMANCE High Specs Galvanized Steel Grade make it resistant to temperature change, heat or fire especially when these steel channels are covered by Fire Resistant FC.
COMPLEMENTARITY Cold Formed Steel Frames, Joists and trusses offer Load Bearing and structural Walls, Partitions, Floors and Roofs, while the Foam Concrete Infill yields Thermal & Acoustic Insulation and Fire Resistance;
ENERGY SAVINGS Ongoing savings on power / energy costs (air-conditioning and heating) are reduced because high thermal insulation ratings can be achieved.

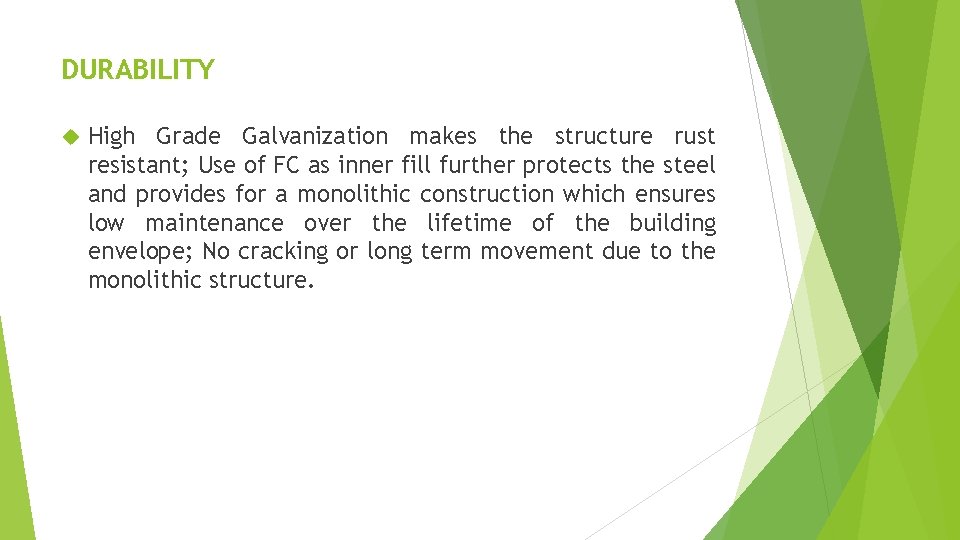

DURABILITY High Grade Galvanization makes the structure rust resistant; Use of FC as inner fill further protects the steel and provides for a monolithic construction which ensures low maintenance over the lifetime of the building envelope; No cracking or long term movement due to the monolithic structure.
ECO-FRIENDLY There is significantly less sand cement consumed which contributes to a lower embodied energy than common building materials; Produces substantially less waste than raw materials; 100% recyclable. Can meet efficiency standards such as LEED, BREEAM and CSH points.
IMPLEMENTATION QUALITY CONTROL Predictability & Quality Control are the result of Integrated design and manufacturing process as roll forming machines operated by our own technicians deliver the required frames into precise, uniform shapes with exacting tolerances for consistent material quality.
COMPLIANCE Regulated by International Standards & Building Codes; Load bearing CFS frames/structure are engineered to meet the highest seismic and wind loads in addition to associated dead and live loads and as prescribed by building codes.
SINGLE – SOURCE Combining ability to design, fabricate and erect steel structures make for self-control and single sourced which drives schedule.

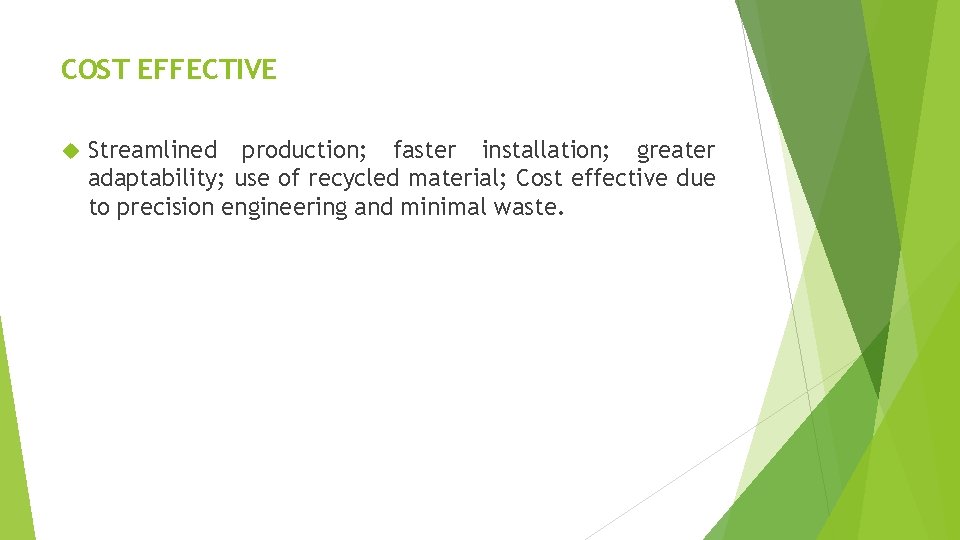

COST EFFECTIVE Streamlined production; faster installation; greater adaptability; use of recycled material; Cost effective due to precision engineering and minimal waste.
SPEED Speed of construction – Typically 50 -70% less than traditional; No site storage – ‘Just in time’ delivery process; Accelerated building schedule with Factory. Assembled panelling.
HEALTH & SAFETY No obnoxious or toxic fume emission; Stable and nonorganic material. Allergy-free material that won’t contribute to mold or produce volatile organic compounds (VOC’s).
KAPEC IS INTRODUCING REVOLOTIONIZED TECHNOLOGY, PINNACLE LGS CONCREAT
WHAT IS PINNACLE LGS CONCRETE Pinnacle LGS Concrete System represents a revolution for the residential Concrete Structure Build industry. It is minimum 100% faster, 15% cheaper, 100% better and greener than either traditional Column-Beam brick & block system or the more recent Precast Concrete Build system. Pinnacle LGS Concrete represents a true Game Changer for the mass housing development and construction industry on a global scale. Pinnacle System takes the steel and concrete build technology to anther level for the 21 st century.
Pinnacle LGS Concrete System Features (Globally Patented)
Pinnacle Foundation System: 10 times more time saving and thus more efficient than traditional ready mix, rebar, and wood formwork system, seamless construction integration with LGS super structure above. Pinnacle Wall System: A composite structure design, integrating Pinnacle’s structural concrete panels with LGS wall frames, infilled with Pinnacle CLC, generating a superior fire rated, high thermal performance load bearing wall. Pinnacle Floor System: Another composite structure design, integrating Pinnacle’s structural concrete panels with LGS floor joist, finished and topped with wire mesh and ready mix, producing a light weight composite slab replacing all traditional concrete slab systems, 10 times more efficient to build, and minimum 50% saving on material cost for the same load bearing capacity. Pinnacle Truss System: Versus popular in-line LGS truss framing, Pinnacle TRUSS system doubles load bearing capability for the same size C shape profile, thus saving cost minimum 50%.

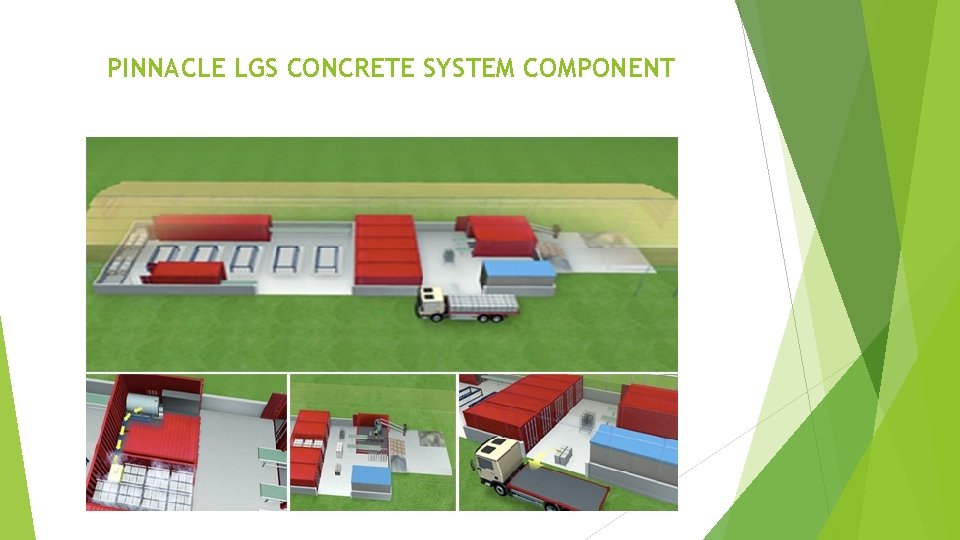

PINNACLE LGS CONCRETE SYSTEM COMPONENT
Pinnacle LGS Concrete V 1200, V 3600 Mobile Factory System. Pinnacle CLC System. Pinnacle LGS Concrete Construction Reference & Knowhow, over 10, 000 buildings already completed, 120, 000 units being built, replacing all traditional concrete block buildings.
